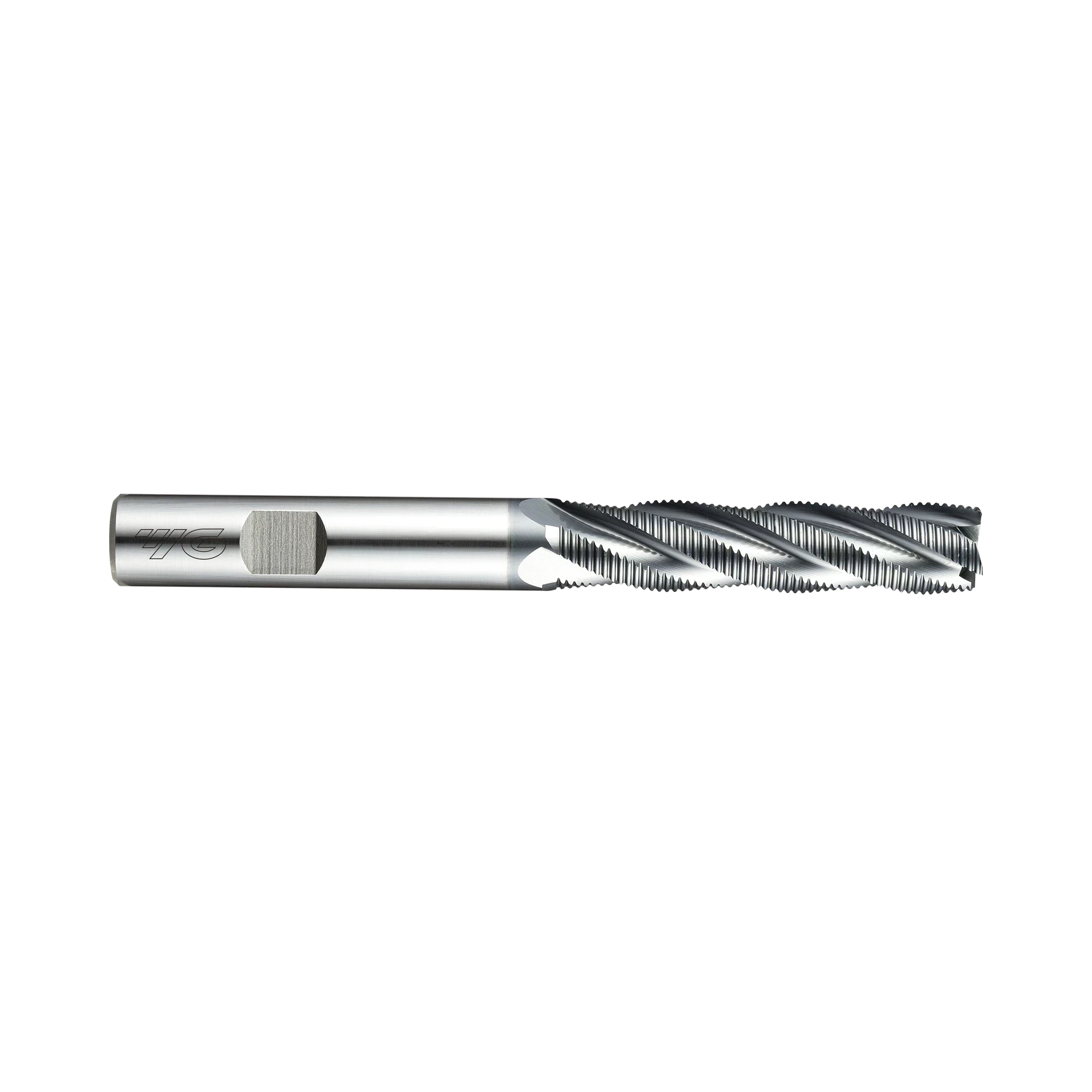

(GYF98) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Long Length, Flat Shank (Fine)
PM60 long-length fine-roughing end millCode: GYF98060
-
Key Features
- Y-coated PM60 multi-flute fine-roughing end mill
- Long-length center-cut geometry for roughing milling
- Flat shank configuration
Made in South Korea
Extended cutting reach
Long-length geometry provides cutting lengths from 24 to 90 mm.
Fine roughing format
Multi-flute fine-roughing geometry is centre-cut for roughing milling operations.
Matched size selection
Eleven variants cover 6 to 25 mm mill diameters with matched flat shanks.
| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| GYF98060 | 6 | 0.18 | 68.0 | 6.0 | 3 | 24.0 | 5 days | $69.10 | ||
| GYF98070 | 7 | 0.18 | 80.0 | 10.0 | 3 | 30.0 | 5 days | $71.30 | ||
| GYF98080 | 8 | 0.18 | 88.0 | 10.0 | 3 | 38.0 | 5 days | $71.30 | ||
| GYF98090 | 9 | 0.18 | 88.0 | 10.0 | 3 | 38.0 | 5 days | $74.40 | ||
| GYF98100 | 10 | 0.18 | 95.0 | 10.0 | 4 | 45.0 | 5 days | $74.40 | ||
| GYF98120 | 12 | 0.18 | 110.0 | 12.0 | 4 | 53.0 | 5 days | $106.90 | ||
| GYF98140 | 14 | 0.25 | 110.0 | 12.0 | 4 | 53.0 | 5 days | $141.40 | ||
| GYF98160 | 16 | 0.25 | 123.0 | 16.0 | 4 | 63.0 | 5 days | $136.10 | ||
| GYF98180 | 18 | 0.25 | 123.0 | 16.0 | 4 | 63.0 | 5 days | $199.90 | ||
| GYF98200 | 20 | 0.25 | 141.0 | 20.0 | 4 | 75.0 | 5 days | $232.30 | ||
| GYF98250 | 25 | 0.36 | 166.0 | 25.0 | 5 | 90.0 | 5 days | $316.70 |
Add (GYF98) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Long Length, Flat Shank (Fine) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GYF98 is a Y-coated PM60 multi-flute long-length fine-roughing end mill with a flat shank. Its fine roughing form and center-cut design support roughing milling with extended cutting reach. The series uses three, four or five flutes according to selected cutter diameter. Mill diameters span 6 to 25 mm, covering eleven precisely specified variants. Cutting lengths extend from 24 to 90 mm and overall lengths from 68 to 166 mm. A 45° chamfer preparation is provided, with chamfer dimensions ranging from 0.18 to 0.36 mm. Flat shanks range from 6 to 25 mm, matched to individual cutter sizes. Selected variants combine long cutting lengths with respective three, four or five flute configurations.
- Y-coated PM60 multi-flute fine-roughing end mill
- Long-length center-cut geometry for roughing milling
- Flat shank configuration
- Available in 6 to 25 mm cutter diameters
- Three to five flutes according to cutter diameter
- 45° chamfer preparation from 0.18 to 0.36 mm
