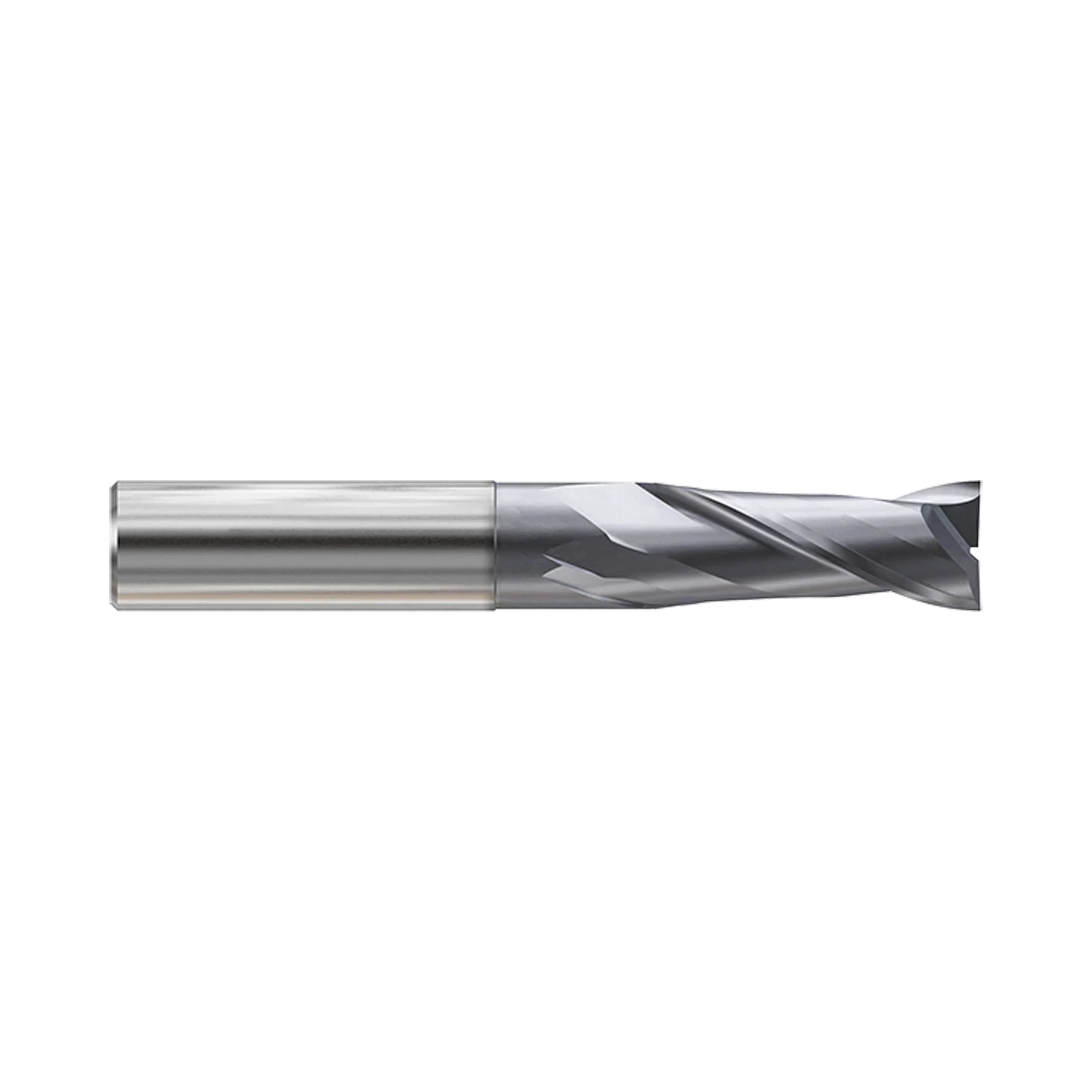

(GYG72) HSS-PM, Only One 2Flute Coated End Mill, Short Length, Plain Shank
PM60 two flute Y-Coating square end millCode: GYG72030
-
Key Features
- Y-Coating coated PM60 end mill construction
- Two flute square cutting geometry
- 30° helix angle
Made in South Korea
Centre-cutting capability
Supports milling starts within the workpiece for short-length cutting operations.
Square end profile
Delivers a flat cutting profile for square-end milling requirements.
Useful size coverage
Available in diameters from 3 to 25 mm for varied milling tool selection.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GYG72030 | 3 | 49.0 | 6.0 | 5.0 | 5 days | $19.50 | ||
| GYG72040 | 4 | 51.0 | 6.0 | 7.0 | 5 days | $19.50 | ||
| GYG72050 | 5 | 52.0 | 6.0 | 8.0 | 5 days | $19.50 | ||
| GYG72060 | 6 | 52.0 | 6.0 | 8.0 | 5 days | $19.50 | ||
| GYG72070 | 7 | 60.0 | 8.0 | 10.0 | 5 days | $33.30 | ||
| GYG72080 | 8 | 61.0 | 8.0 | 11.0 | 5 days | $33.30 | ||
| GYG72090 | 9 | 61.0 | 10.0 | 11.0 | 5 days | $37.80 | ||
| GYG72100 | 10 | 63.0 | 10.0 | 13.0 | 5 days | $37.80 | ||
| GYG72120 | 12 | 73.0 | 12.0 | 16.0 | 5 days | $53.10 | ||
| GYG72160 | 16 | 79.0 | 16.0 | 19.0 | 5 days | $87.40 | ||
| GYG72180 | 18 | 79.0 | 16.0 | 19.0 | 5 days | $109.10 | ||
| GYG72200 | 20 | 88.0 | 20.0 | 22.0 | 5 days | $140.00 | ||
| GYG72220 | 22 | 88.0 | 20.0 | 22.0 | 5 days | $157.80 | ||
| GYG72250 | 25 | 102.0 | 25.0 | 26.0 | 5 days | $206.80 |
Add (GYG72) HSS-PM, Only One 2Flute Coated End Mill, Short Length, Plain Shank to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GYG72 Only One PM60 2 flute square end mill is a Y-Coating short-length cutter with a plain shank. It provides centre cutting for short-length square-end milling where a two-flute, 30° helix geometry is required. PM60 construction identifies the Only One coated end mill family for practical milling applications. Available diameters run from 3 to 25 mm, covering compact through larger milling tools. The square cutting edge supports operations needing a flat-bottomed milled form and centre-cutting capability. Plain-shank models are identified by GYG72 part numbers, separating this family from flat-shank counterparts. This short-length format provides a focused option within the Only One PM60 range.
- Y-Coating coated PM60 end mill construction
- Two flute square cutting geometry
- 30° helix angle
- Centre-cutting short-length design
- Plain shank configuration
- 3 to 25 mm diameter range
