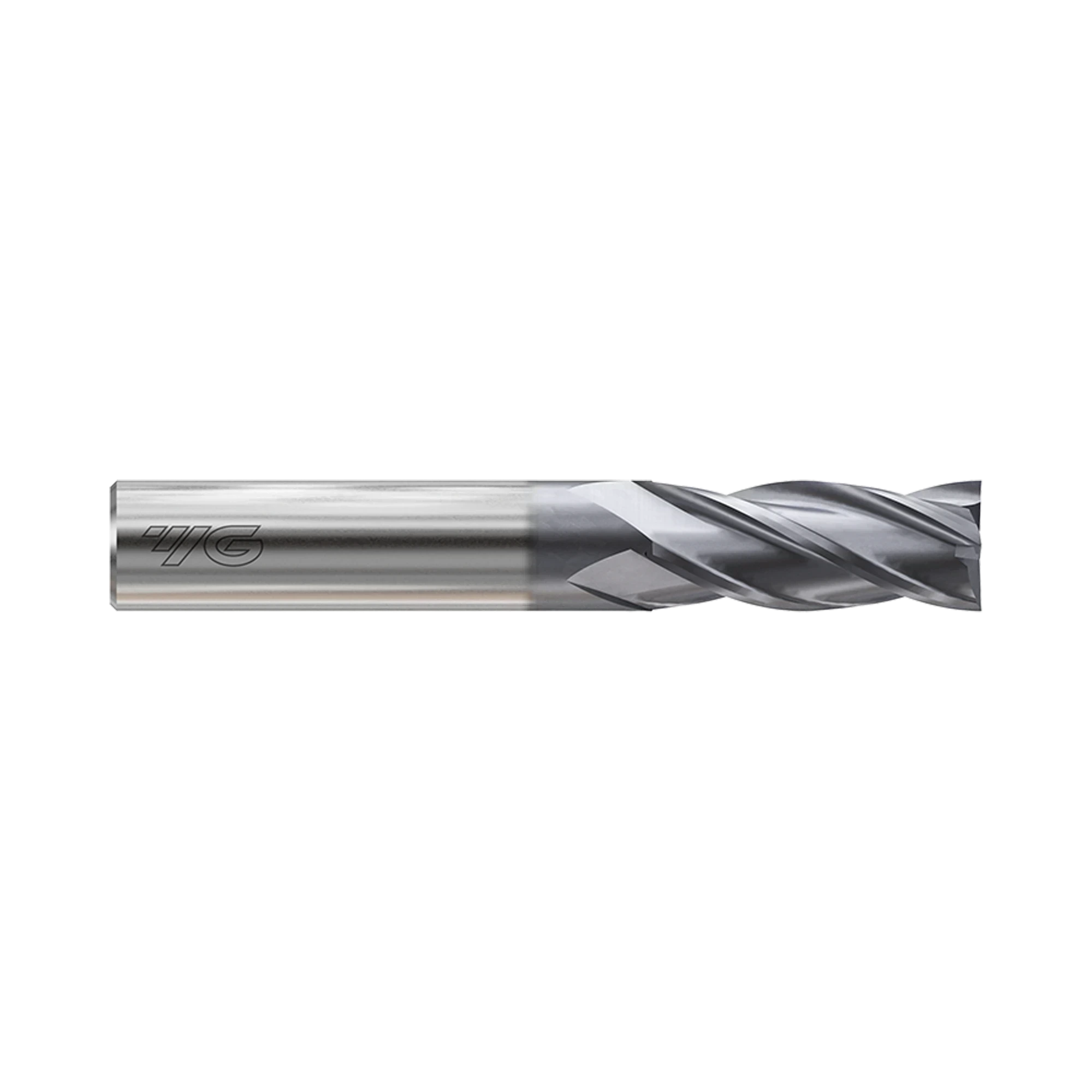

(GYG74) HSS-PM, Only One 4Flute Coated End Mill, Short Length, Plain Shank
PM60 4 Flute Short Length Centre-Cut End MillCode: GYG74010
-
Key Features
- PM60 four-flute square end mill configuration
- Y coated Only One PM60 series
- Centre-cut short-length design
Made in South Korea
Compact cutting format
Short-length geometry supports milling work where a compact tool format is preferred.
Centre-cut capability
Centre-cut configuration provides a practical choice for general milling operations.
Useful metric selection
Mill diameters from 1 to 20 mm cover common metric tool sizes.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GYG74010 | 1 | 49.0 | 6.0 | 3.0 | 5 days | $22.50 | ||
| GYG74020 | 2 | 51.0 | 6.0 | 7.0 | 5 days | $22.50 | ||
| GYG74030 | 3 | 52.0 | 6.0 | 8.0 | 5 days | $22.50 | ||
| GYG74040 | 4 | 55.0 | 6.0 | 11.0 | 5 days | $22.50 | ||
| GYG74050 | 5 | 57.0 | 6.0 | 13.0 | 5 days | $22.50 | ||
| GYG74060 | 6 | 57.0 | 6.0 | 13.0 | 5 days | $22.50 | ||
| GYG74080 | 8 | 69.0 | 8.0 | 16.0 | 5 days | $36.70 | ||
| GYG74090 | 9 | 69.0 | 10.0 | 19.0 | 5 days | $41.70 | ||
| GYG74100 | 10 | 72.0 | 10.0 | 22.0 | 5 days | $41.70 | ||
| GYG74120 | 12 | 83.0 | 12.0 | 26.0 | 5 days | $61.20 | ||
| GYG74140 | 14 | 83.0 | 12.0 | 26.0 | 5 days | $82.30 | ||
| GYG74160 | 16 | 92.0 | 16.0 | 32.0 | 5 days | $101.80 | ||
| GYG74180 | 18 | 92.0 | 16.0 | 32.0 | 5 days | $127.50 | ||
| GYG74200 | 20 | 104.0 | 20.0 | 38.0 | 5 days | $162.30 |
Add (GYG74) HSS-PM, Only One 4Flute Coated End Mill, Short Length, Plain Shank to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GYG74 Only One is a PM60 four-flute short-length coated square end mill with plain shank. Its centre-cut design and short length suit general milling tasks requiring compact reach. The range covers 1 to 20 mm mill diameters, using plain shanks selected for each size. The Y coating is paired with PM60 tool material for the Only One coated PM60 family. Four flutes and a square cutting profile provide the defining GYG74 configuration. Each listed tool combines a short-length format with a centre-cut configuration. Shank diameters span 6 to 20 mm, while overall lengths run from 49 to 104 mm.
- PM60 four-flute square end mill configuration
- Y coated Only One PM60 series
- Centre-cut short-length design
- Plain shank construction
- 1 to 20 mm mill diameter range
- 49 to 104 mm overall length range
