(GA942) HSS-PM, Tank-Power, 3 Flute End Mill, Stub Length (TiAlN Coated)
TiAlN-Coated HSS-PM 3 Flute Stub Length End MillCode: GA942020
-
Key Features
- TiAlN-coated HSS-PM square end mill
- Three-flute stub-length cutting geometry
- Balanced web design helps minimise deflection and chattering
Made in South Korea
Stable milling geometry
A balanced web design helps reduce deflection and chattering during steel milling.
Steel-focused capability
Designed to machine carbon steels, alloyed steels and stainless steels.
High-speed cutting support
Tank-Power coating is suitable for high-speed cutting applications.

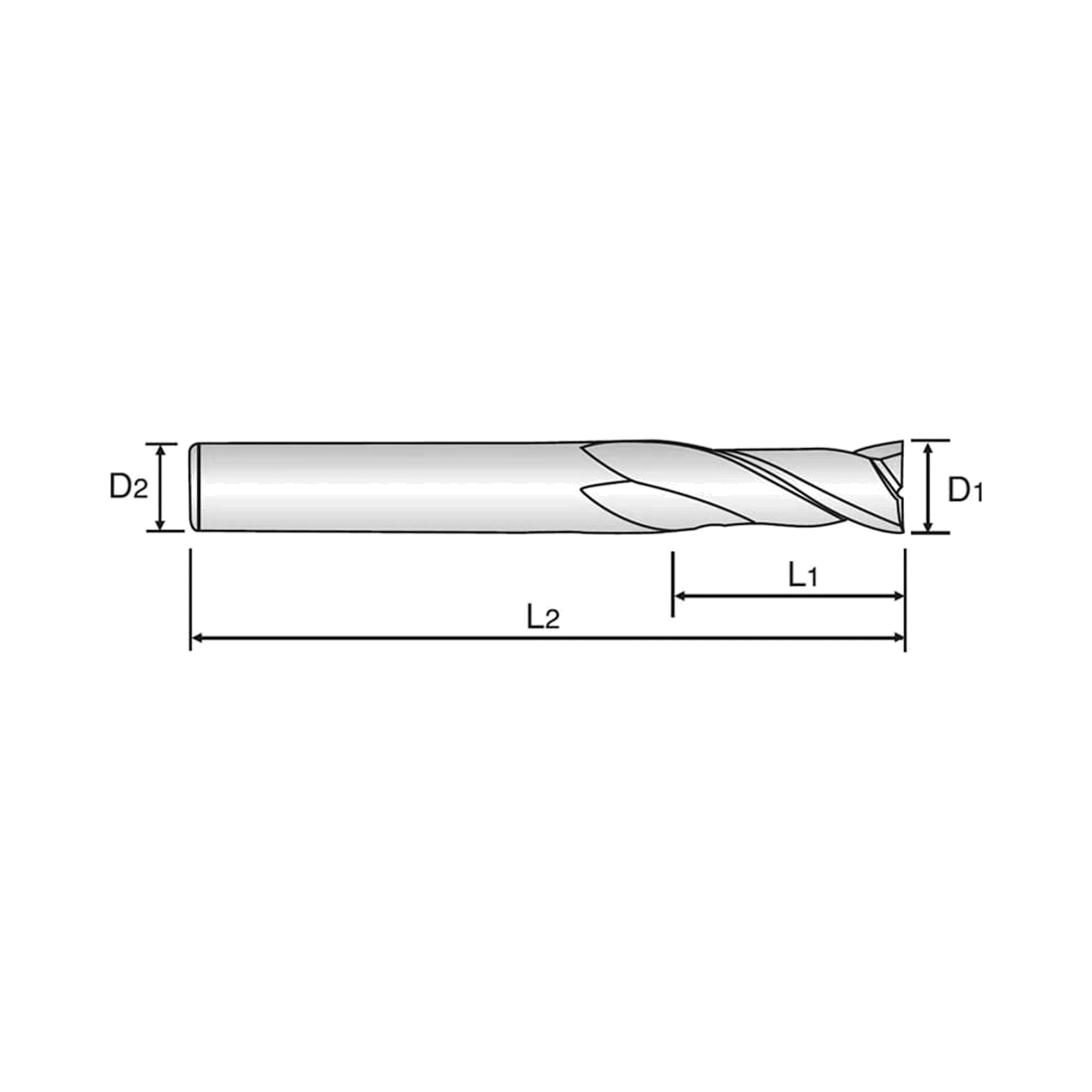

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GA942020 | 2 | 48.0 | 6.0 | 4.0 | 5 days | $29.80 | ||
| GA942030 | 3 | 49.0 | 6.0 | 5.0 | Low stock | $29.80 | ||
| GA942040 | 4 | 51.0 | 6.0 | 7.0 | Low stock | $29.80 | ||
| GA942050 | 5 | 52.0 | 6.0 | 8.0 | In stock | $29.80 | ||
| GA942060 | 6 | 52.0 | 6.0 | 8.0 | In stock | $29.80 | ||
| GA942080 | 8 | 61.0 | 10.0 | 11.0 | In stock | $47.10 | ||
| GA942090 | 9 | 61.0 | 10.0 | 11.0 | 5 days | $60.40 | ||
| GA942100 | 10 | 63.0 | 10.0 | 13.0 | In stock | $48.60 | ||
| GA942140 | 14 | 73.0 | 12.0 | 16.0 | Low stock | $68.30 | ||
| GA942160 | 16 | 79.0 | 16.0 | 19.0 | 5 days | $82.70 | ||
| GA942180 | 18 | 79.0 | 16.0 | 19.0 | Low stock | $103.20 | ||
| GA942200 | 20 | 88.0 | 20.0 | 22.0 | Low stock | $135.30 | ||
| GA942220 | 22 | 88.0 | 20.0 | 22.0 | 5 days | $185.40 | ||
| GA942250 | 25 | 102.0 | 25.0 | 26.0 | 5 days | $243.10 |
Add (GA942) HSS-PM, Tank-Power, 3 Flute End Mill, Stub Length (TiAlN Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews

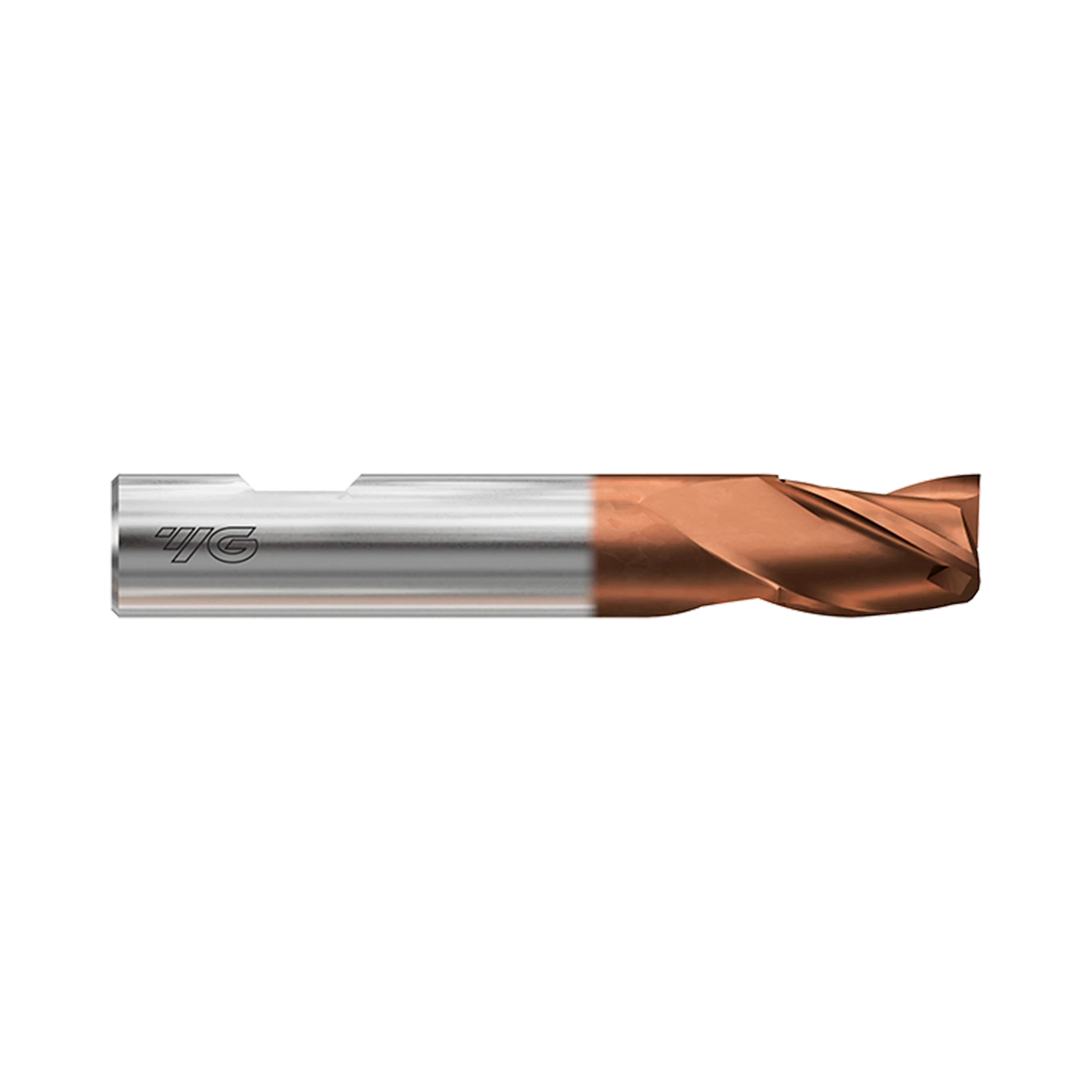

YG-1 GA942 Tank-Power is a TiAlN-coated HSS-PM three-flute stub-length square end mill. Its balanced web design helps minimise deflection and chattering when milling carbon steels, alloyed steels and stainless steels. The three-flute geometry combines the stated advantages of two-flute and four-flute end mill designs. Tank-Power coating is suitable for high-speed cutting applications in these specified steel materials. GA942 uses a 30° helix and a square cutting-end profile. This series offers metric cutting diameters from 2 to 25 mm. The stub-length format keeps this series focused on short-length end milling applications. Choose this end mill family for steel milling where its specified geometry is required.
- TiAlN-coated HSS-PM square end mill
- Three-flute stub-length cutting geometry
- Balanced web design helps minimise deflection and chattering
- Designed for carbon steels alloyed steels and stainless steels
- Tank-Power coating suitable for high-speed cutting
- 30° helix with 2 to 25 mm cutting diameters
No specifications available.
