(GAA34) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Long Length (Coarse)
Long-length coarse roughing for steelCode: GAA34060
-
Key Features
- HSS-PM long-length coarse roughing end mill with X-COATING
- Suitable for high-feed roughing milling
- Designed for carbon steels alloyed steels and stainless steels
Made in South Korea
Built for high-feed roughing
Coarse roughing geometry supports productive material removal in demanding milling operations.
Coated for high-speed cutting
Tank-Power coating technology is specified for high-speed cutting applications.
Long-reach size range
Choose 6–25 mm diameters with long cutting lengths for additional reach.

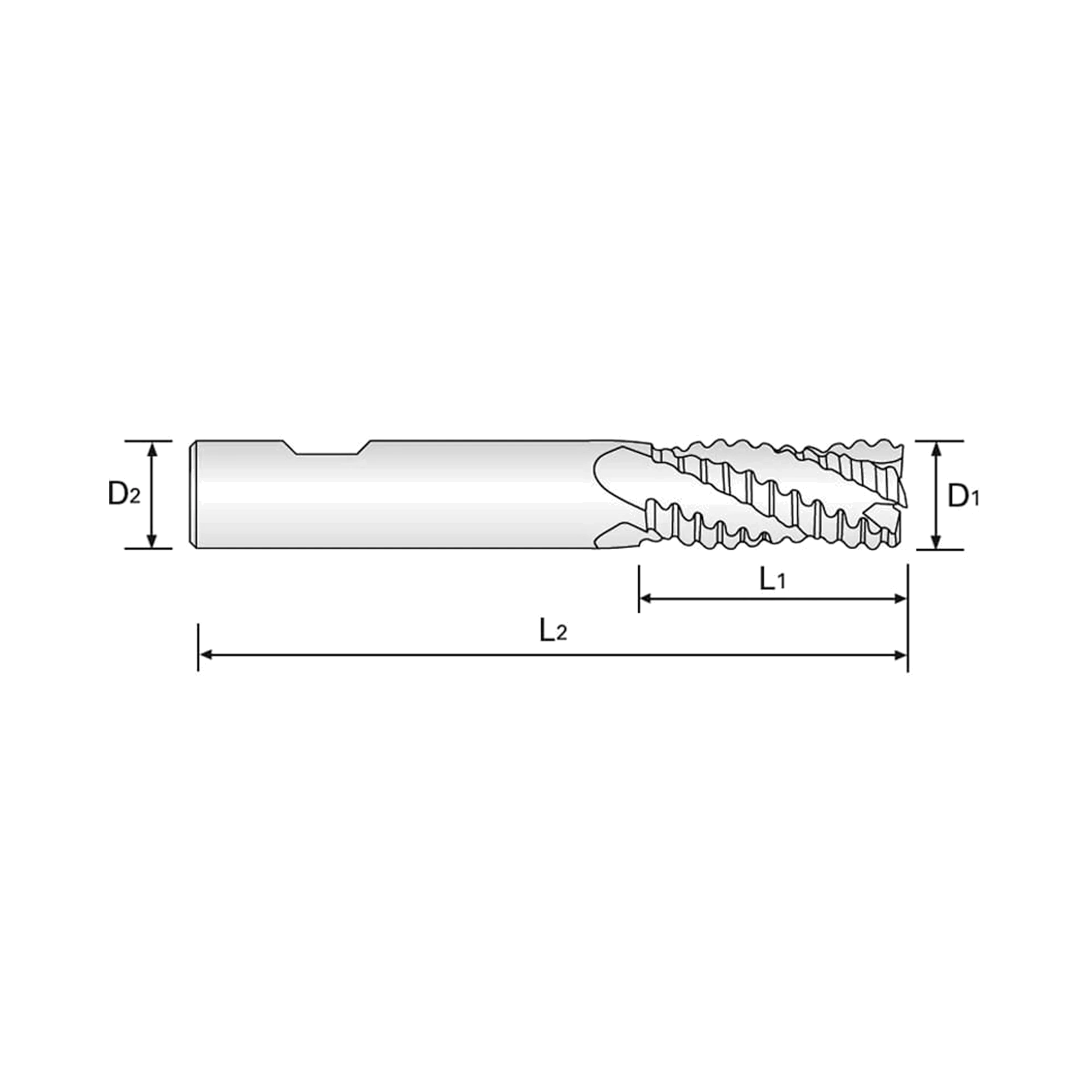

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| GAA34060 | 6 | 0.25 | 68.0 | 6.0 | 3 | 24.0 | 5 days | $62.50 | ||
| GAA34070 | 7 | 0.25 | 80.0 | 10.0 | 3 | 30.0 | 5 days | $113.10 | ||
| GAA34080 | 8 | 0.25 | 88.0 | 10.0 | 3 | 38.0 | 5 days | $76.80 | ||
| GAA34100 | 10 | 0.36 | 95.0 | 10.0 | 4 | 45.0 | 5 days | $77.30 | ||
| GAA34140 | 14 | 0.55 | 110.0 | 12.0 | 4 | 53.0 | 5 days | $183.30 | ||
| GAA34160 | 16 | 0.55 | 123.0 | 16.0 | 4 | 63.0 | Low stock | $126.80 | ||
| GAA34180 | 18 | 0.55 | 123.0 | 16.0 | 4 | 63.0 | 5 days | $240.10 | ||
| GAA34200 | 20 | 0.55 | 141.0 | 20.0 | 4 | 75.0 | Low stock | $211.10 | ||
| GAA34220 | 22 | 0.55 | 141.0 | 20.0 | 5 | 75.0 | 5 days | $380.90 | ||
| GAA34250 | 25 | 0.55 | 166.0 | 25.0 | 5 | 90.0 | 5 days | $297.40 |
Add (GAA34) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Long Length (Coarse) to comparison
View Comparison- Overview
- Specifications
- Reviews

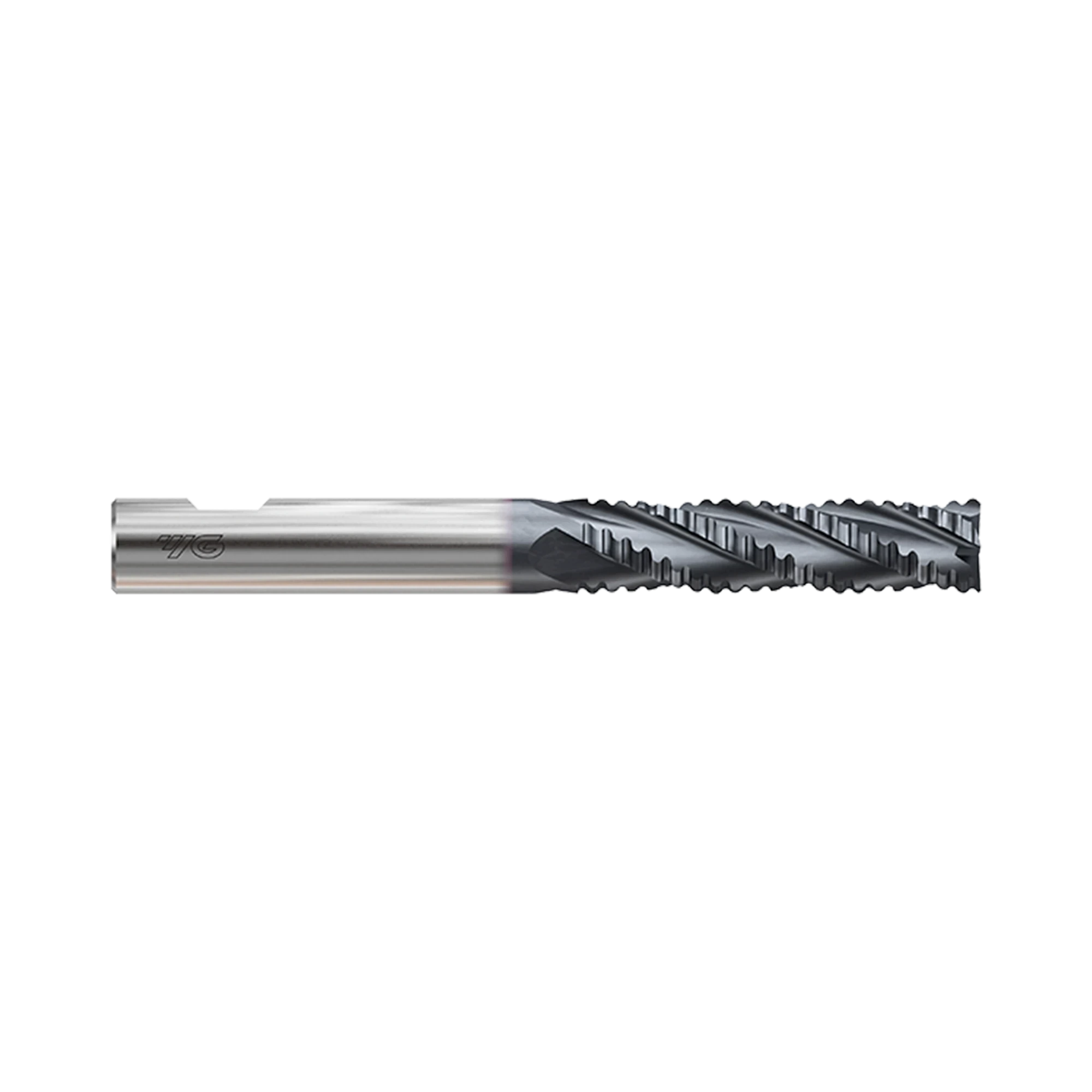

YG-1 GAA34 is an HSS-PM multi-flute long-length coarse roughing end mill with X-COATING. It supports high-feed roughing milling of carbon steels, alloyed steels and stainless steels. Tank-Power coating technology is specified as suitable for high-speed cutting applications. Coarse roughing geometry enables high chip removal while helping minimise cutting-edge breakages. The series covers 6–25 mm diameters, three to five flutes, and 24–90 mm cutting lengths. Centre-cutting geometry applies through 20 mm diameter, while 22 and 25 mm tools are non-centre-cutting. Long overall lengths from 68 to 166 mm support roughing where added reach is required. Shank diameters vary from 6 to 25 mm to suit the listed tool sizes.
- HSS-PM long-length coarse roughing end mill with X-COATING
- Suitable for high-feed roughing milling
- Designed for carbon steels alloyed steels and stainless steels
- High chip removal with reduced cutting-edge breakage risk
- 6–25 mm diameter range with three to five flutes
- Centre cutting through 20 mm diameter
No specifications available.
