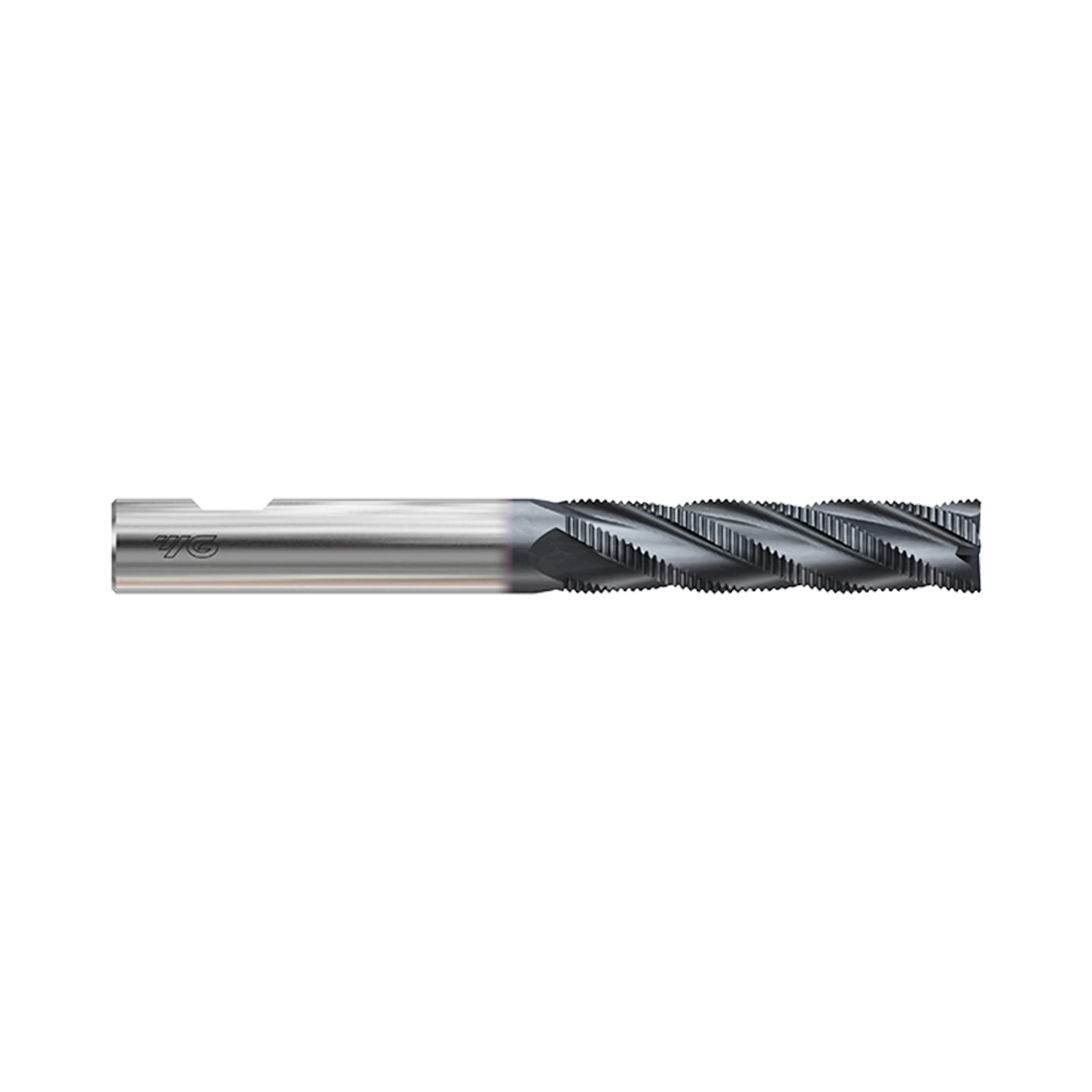

(GAA35) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Long Length (Fine)
Long-Length HSS-PM Fine Roughing End MillCode: GAA35060
-
Key Features
- HSS-PM long-length fine roughing end mill with X-Coating
- Suitable for high-feed roughing milling
- Designed for carbon steels alloyed steels and stainless steels
Made in South Korea
High-feed roughing
Designed for high-feed roughing milling of carbon, alloyed and stainless steels.
Long cutting reach
Long-length geometry provides lengths of cut from 24 to 90 mm.
Fine roughing finish
Fine roughing geometry can provide excellent finished surfaces in many applications.

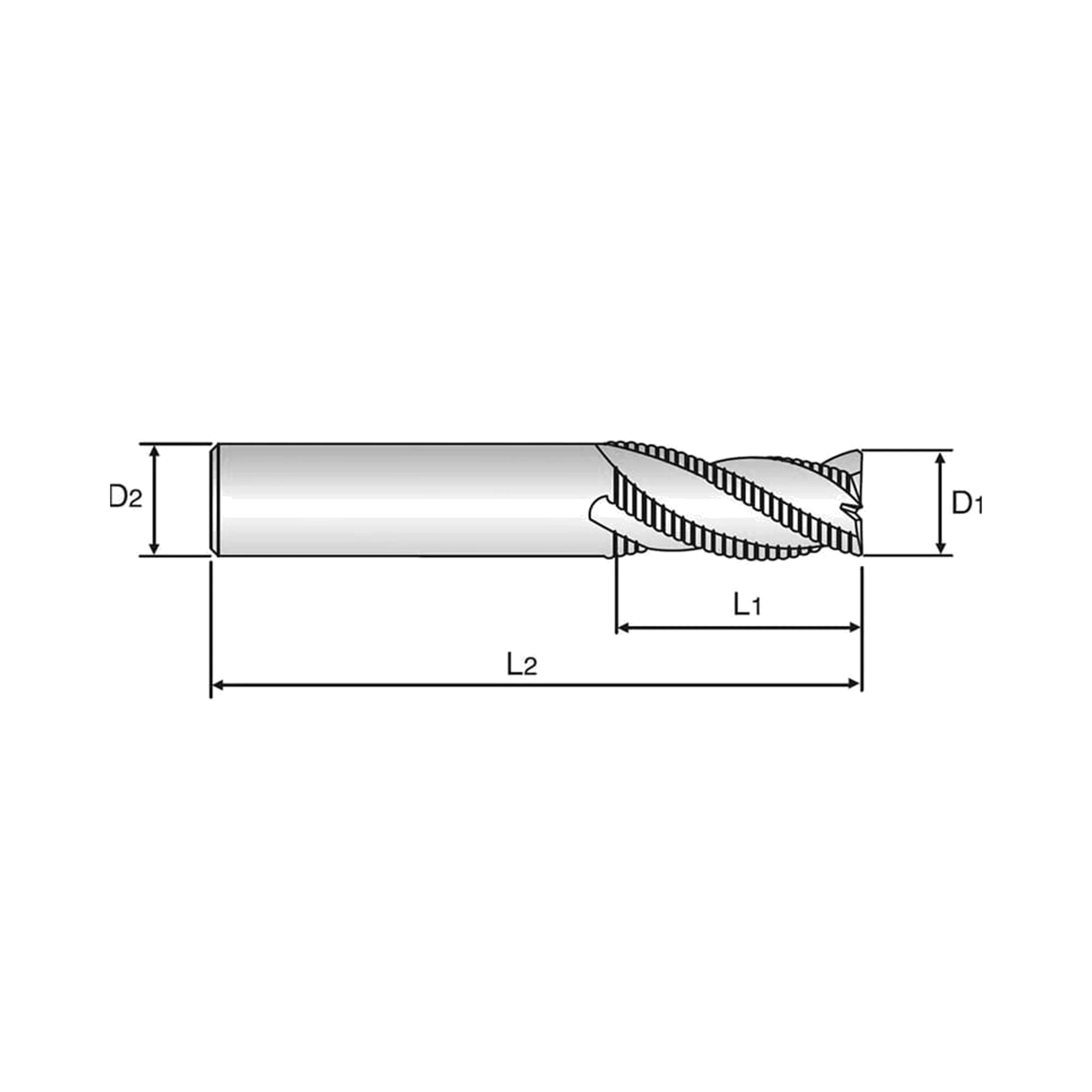

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| GAA35060 | 6 | 0.18 | 68.0 | 6.0 | 3 | 24.0 | 5 days | $99.60 | ||
| GAA35070 | 7 | 0.18 | 80.0 | 10.0 | 3 | 30.0 | 5 days | $121.50 | ||
| GAA35080 | 8 | 0.18 | 88.0 | 10.0 | 3 | 38.0 | 5 days | $121.50 | ||
| GAA35090 | 9 | 0.18 | 88.0 | 10.0 | 3 | 38.0 | 5 days | $122.20 | ||
| GAA35100 | 10 | 0.18 | 95.0 | 10.0 | 4 | 45.0 | 5 days | $122.20 | ||
| GAA35120 | 12 | 0.18 | 110.0 | 12.0 | 4 | 53.0 | 5 days | $101.30 | ||
| GAA35140 | 14 | 0.25 | 110.0 | 12.0 | 4 | 53.0 | 5 days | $197.30 | ||
| GAA35160 | 16 | 0.25 | 123.0 | 16.0 | 4 | 63.0 | 5 days | $136.10 | ||
| GAA35180 | 18 | 0.25 | 123.0 | 16.0 | 4 | 63.0 | 5 days | $257.50 | ||
| GAA35200 | 20 | 0.25 | 141.0 | 20.0 | 4 | 75.0 | 5 days | $197.80 | ||
| GAA35220 | 22 | 0.36 | 141.0 | 20.0 | 5 | 75.0 | 5 days | $408.60 | ||
| GAA35250 | 25 | 0.36 | 166.0 | 25.0 | 5 | 90.0 | 5 days | $316.70 |
Add (GAA35) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Long Length (Fine) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GAA35 is a long-length HSS-PM multi-flute fine roughing end mill with X-Coating. Its TANK-POWER coating is suitable for high-speed cutting during high-feed roughing milling. Designed for carbon steels, alloyed steels and stainless steels in high-feed roughing applications. Fine roughing geometry can provide excellent finished surfaces in many machining situations. The series covers 6 to 25 mm diameters with three, four or five flutes. Tools to 20 mm are centre cutting, while 22 and 25 mm versions are non-centre cutting. Lengths of cut span 24 to 90 mm, supporting extended reach roughing work. Chamfers range from 0.18 to 0.36 mm through the specified diameter selection.
- HSS-PM long-length fine roughing end mill with X-Coating
- Suitable for high-feed roughing milling
- Designed for carbon steels alloyed steels and stainless steels
- Available in 6 to 25 mm diameters
- Three four or five flute configurations
- Centre cutting through 20 mm diameter
