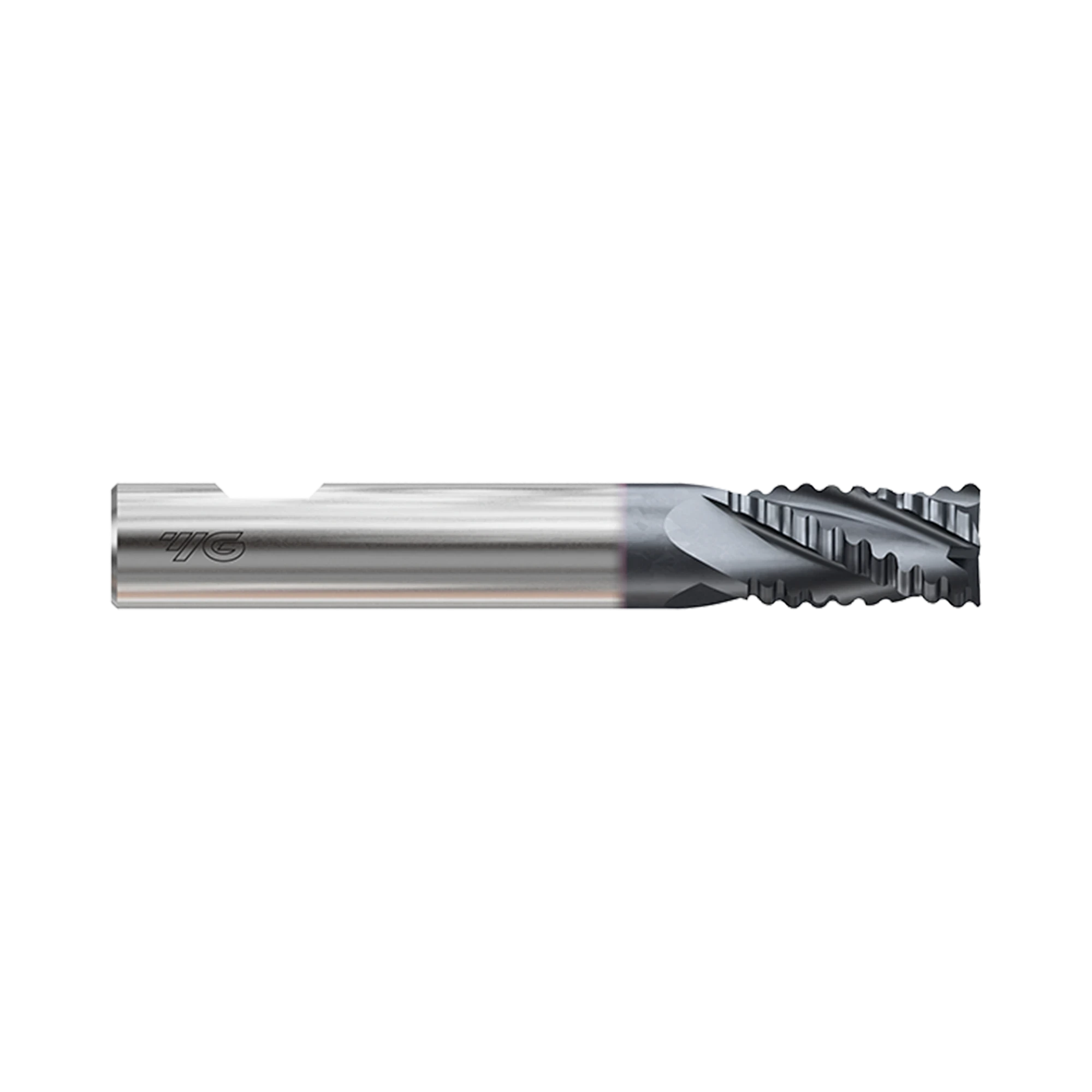

(GAA33) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Short Length (Coarse)
HSS-PM coarse roughing end mills for high-feed millingCode: GAA33060
-
Key Features
- HSS-PM multi-flute coarse roughing end mill
- X-Coating for high-speed cutting
- Suitable for high-feed roughing milling
Made in South Korea
High-feed roughing
Coarse roughing geometry supports high chip removal for productive material removal.
Steel-focused capability
Designed for carbon steels, alloy steels and stainless steels.
Practical size range
Short-length tools cover 6 to 25 mm diameters for common roughing requirements.

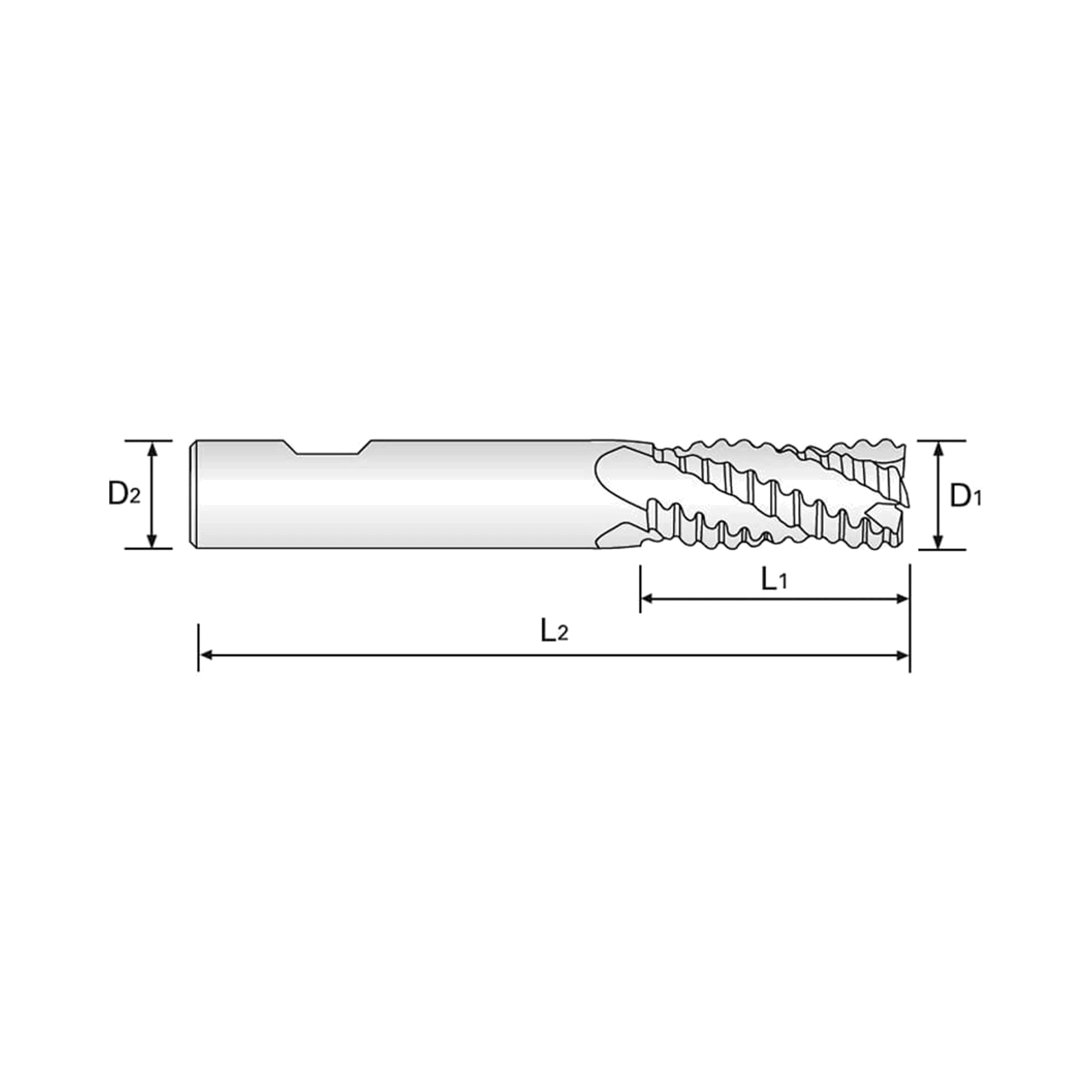

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| GAA33060 | 6 | 0.25 | 57.0 | 6.0 | 3 | 13.0 | 5 days | $67.20 | ||
| GAA33070 | 7 | 0.25 | 66.0 | 10.0 | 3 | 16.0 | 5 days | $90.60 | ||
| GAA33080 | 8 | 0.25 | 69.0 | 10.0 | 3 | 19.0 | 5 days | $90.60 | ||
| GAA33090 | 9 | 0.36 | 69.0 | 10.0 | 3 | 19.0 | 5 days | $92.90 | ||
| GAA33100 | 10 | 0.36 | 72.0 | 10.0 | 4 | 22.0 | 5 days | $70.60 | ||
| GAA33120 | 12 | 0.5 | 83.0 | 12.0 | 4 | 26.0 | Low stock | $82.00 | ||
| GAA33140 | 14 | 0.55 | 83.0 | 12.0 | 4 | 26.0 | 5 days | $133.10 | ||
| GAA33160 | 16 | 0.55 | 92.0 | 16.0 | 4 | 32.0 | 5 days | $109.30 | ||
| GAA33180 | 18 | 0.55 | 92.0 | 16.0 | 4 | 32.0 | 5 days | $169.20 | ||
| GAA33200 | 20 | 0.55 | 104.0 | 20.0 | 4 | 38.0 | 5 days | $214.40 | ||
| GAA33220 | 22 | 0.55 | 104.0 | 20.0 | 5 | 38.0 | 5 days | $263.50 | ||
| GAA33250 | 25 | 0.55 | 121.0 | 25.0 | 5 | 45.0 | 5 days | $316.50 |
Add (GAA33) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Short Length (Coarse) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GAA33 Tank-Power end mills are HSS-PM multi-flute coarse roughing cutters for high-feed milling.
The short-length, X-Coating design machines carbon steels, alloy steels and stainless steels efficiently. Coarse roughing teeth promote high chip removal while helping minimise cutting-edge breakage. The series is centre cutting from 6 to 20 mm diameters. Larger 22 and 25 mm tools are non-centre cutting for suitable milling setups. Available diameters span 6 to 25 mm with three, four or five flutes. Use these roughing end mills for demanding material removal where short reach is preferred. Chamfer sizes range from 0.25 to 0.55 mm across the available diameters.
- HSS-PM multi-flute coarse roughing end mill
- X-Coating for high-speed cutting
- Suitable for high-feed roughing milling
- Designed for carbon steels alloy steels and stainless steels
- Centre cutting through 20 mm diameter
- 6 to 25 mm diameters with three to five flutes
