(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length

Short-Length Carbide Ball Nose End Mill
  • $55.00INC GST $50.00 EX GST
(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length
(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length
(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length
(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length

(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length

Short-Length Carbide Ball Nose End Mill
  • $55.00INC GST $50.00 EX GST

Code: GM876060

    Key Features
  • Solid carbide two-flute ball nose end mill
  • Short-length GM876 X-Power Pro geometry
  • 30° helix angle
Mill Diameter (mm)
Ball Nose Radius (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Mould and die focus

Specified for pre-hardened steels up to HRC55 in mould and die applications.

Compact ball nose geometry

Short-length construction combines a ball nose cutting edge with a 30° helix.

Useful size selection

Listed options cover R3.0 to R8.0 ball radii with 6 to 16 mm diameters.

SKUMill Diameter (mm)Ball Nose Radius (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)Stock Price Qty Add
GM8760606.0R.3.054.06.027.0 In stock $50.00
GM8760808.0R4.058.08.029.0 In stock $80.00
GM87610010.0R5.066.010.0211.0 In stock $125.10
GM87616016.0R8.082.016.0216.0 Low stock $247.90

Add (GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length to comparison

View Comparison
  • Overview
  • Speeds & Feeds
  • Reviews
Product Description

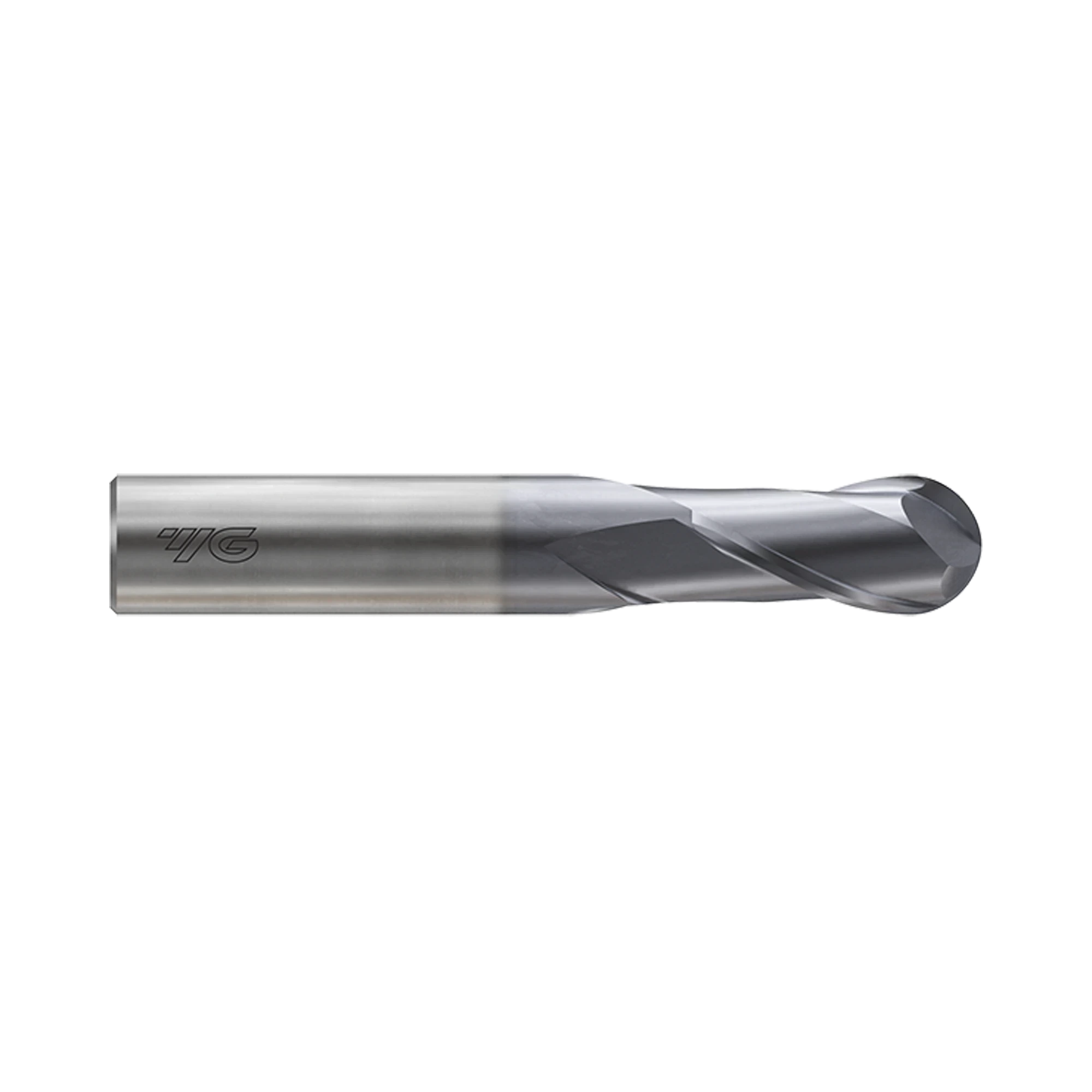

YG-1 GM876 X-Power Pro is a solid carbide two-flute short-length ball nose end mill with Y-Coating. Designed for pre-hardened steels up to HRC55, it supports mould and die machining in dry or wet cutting. Its 30° helix and ball nose cutting edge define the short-length X-Power Pro geometry. The GM876 family covers ball radii from R0.5 to R8.0, while listed variants span R3.0 to R8.0.

Available options use 6, 8, 10 and 16 mm mill diameters for matching machining requirements. This short-length configuration provides a compact ball nose tool within the X-Power Pro range. Y-Coating is specified throughout the GM876 family for this pre-hardened steel application.

  • Solid carbide two-flute ball nose end mill
  • Short-length GM876 X-Power Pro geometry
  • 30° helix angle
  • Y-Coating
  • For pre-hardened steels up to HRC55
  • Suitable for mould and die dry or wet cutting
Product Data

No specifications available.

Speeds & Feeds

MATERIAL P K
NON-ALLOYED STEELS ALLOY STEELS ALLOY STEELS HEAT RESISTANT STEELS HARDENED STEELS CAST IRON
HARDNESS ~HRc30 HRc30~HRc40 HRc45~HRc55
STRENGTH ~1000N/mm2 1000 ~ 1250N/mm2 1500 ~ 2000N/mm2
DIAMETER RPM FEED Vc Fz RPM FEED Vc Fz RPM FEED Vc Fz RPM FEED Vc Fz
R0.5 × 1.0 17650 280 55 0.008 14250 225 45 0.008 6500 100 20 0.008 17490 280 55 0.008
R0.75 × 1.5 17650 390 85 0.011 13600 300 65 0.011 5960 135 30 0.011 17490 390 80 0.011
R1.0 × 2.0 16130 840 100 0.026 11980 550 75 0.023 5240 170 35 0.016 15980 835 100 0.026
R1.25 × 2.5 16130 840 125 0.026 11980 550 95 0.023 5240 170 40 0.016 15980 835 125 0.026
R1.5 × 3.0 14670 760 140 0.026 11200 515 105 0.023 5060 170 50 0.017 14540 755 135 0.026
R2.0 × 4.0 11760 830 150 0.035 9410 595 120 0.032 4700 200 60 0.021 11660 820 145 0.035
R2.5 × 5.0 10240 920 160 0.045 8180 650 130 0.040 4120 200 65 0.024 10150 910 160 0.045
R3.0 × 6.0 9510 1140 180 0.060 7730 930 145 0.060 3560 215 65 0.030 9420 1130 180 0.060
R4.0 × 8.0 8020 1445 200 0.090 6460 1030 160 0.080 2770 245 70 0.044 7950 1430 200 0.090
R5.0 × 10.0 7130 1715 225 0.120 5700 1140 180 0.100 2280 250 70 0.055 7070 1700 220 0.120
R6.0 × 12.0 6540 1960 245 0.150 5200 1245 195 0.120 1960 275 75 0.070 6480 1945 245 0.150
R8.0 × 16.0 5340 1925 270 0.180 4230 1185 215 0.140 1510 275 75 0.091 5290 1910 265 0.181
R10.0 × 20.0 4640 1860 290 0.200 3650 1165 230 0.160 1240 280 80 0.113 4600 1845 290 0.201
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth

All YG-1
