(GM817) X-Power Pro Carbide 4Flute End Mill, Long Length
Y-Coated four-flute long-length solid-carbide end millCode: GM817020
-
Key Features
- Y-Coated solid-carbide construction
- Four-flute 30° helix square-end geometry
- Designed for tool alloy mould and hardened steels
Made in South Korea
Long-reach capability
Long-length geometry supports machining where additional reach is required.
Steel-focused application
Designed for tool steels, alloy steels, mould steels and other hardened materials.
Square-end milling
Square geometry suits milling work requiring flat-bottomed cutting profiles.

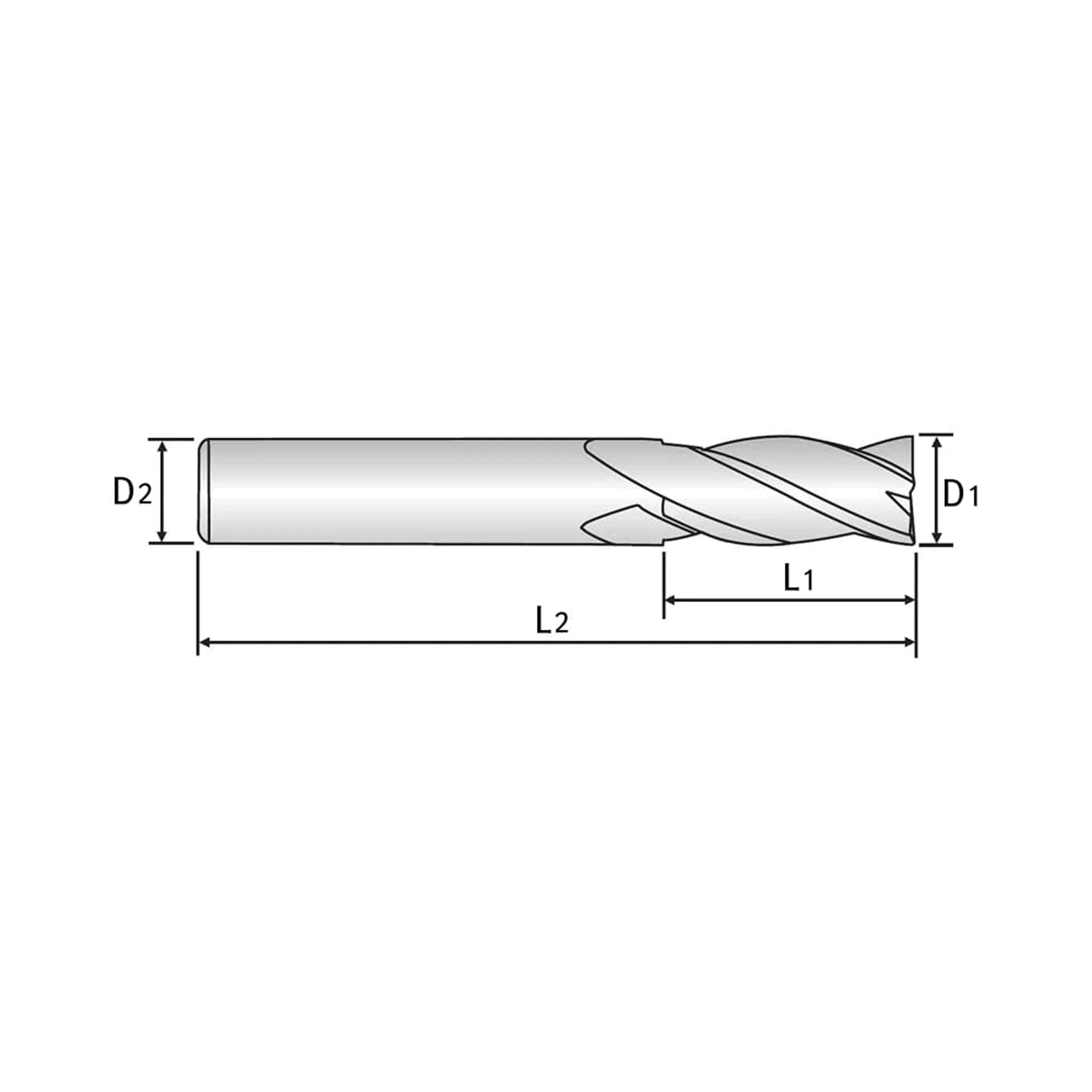

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| GM817020 | 2.0 | 40.0 | 4.0 | 4 | 8.0 | 5 days | $57.50 | ||
| GM817030 | 3.0 | 50.0 | 6.0 | 4 | 12.0 | 5 days | $83.20 | ||
| GM817040 | 4.0 | 50.0 | 6.0 | 4 | 15.0 | In stock | $62.50 | ||
| GM817050 | 5.0 | 60.0 | 6.0 | 4 | 20.0 | In stock | $62.50 | ||
| GM817060 | 6.0 | 60.0 | 6.0 | 4 | 20.0 | In stock | $62.50 | ||
| GM817080 | 8.0 | 70.0 | 8.0 | 4 | 25.0 | 5 days | $106.60 | ||
| GM817100 | 10.0 | 90.0 | 10.0 | 4 | 30.0 | In stock | $118.50 | ||
| GM817120 | 12.0 | 90.0 | 12.0 | 4 | 30.0 | 5 days | $216.20 | ||
| GM817140 | 14.0 | 110.0 | 16.0 | 4 | 40.0 | In stock | $231.80 | ||
| GM817160 | 16.0 | 110.0 | 16.0 | 4 | 50.0 | 5 days | $303.20 | ||
| GM817200 | 20.0 | 110.0 | 20.0 | 4 | 55.0 | 5 days | $669.00 |
Add (GM817) X-Power Pro Carbide 4Flute End Mill, Long Length to comparison
View Comparison- Overview
- Reviews

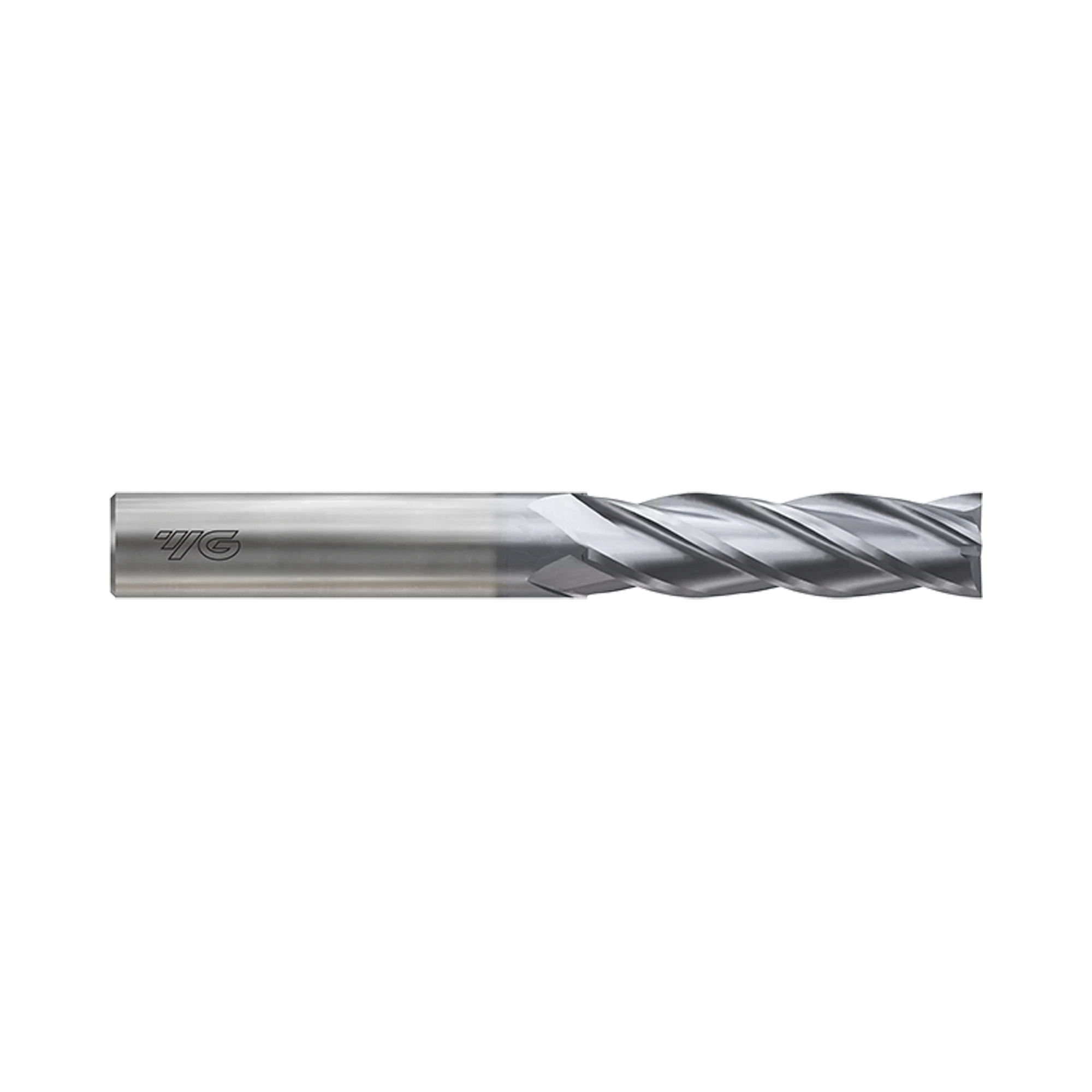

YG-1 GM817 X-Power Pro is a long-length, four-flute solid-carbide square end mill with Y-Coating. It is designed for milling tool steels, alloy steels, mould steels and other hardened materials. Four flutes support better workpiece finishes and increased productivity in suitable machining applications. The 30° helix and square geometry suit long-reach milling where flat-bottomed profiles are required.
Plain-shank diameters span 2.0 to 20.0 mm, providing lengths of cut from 8 to 55 mm. Overall lengths range from 40 to 110 mm throughout the GM817 family. The Y-Coating complements solid-carbide construction for the specified steel machining range. Choose this YG-1 end mill for steel machining demanding extended reach and square-end cutting.
- Y-Coated solid-carbide construction
- Four-flute 30° helix square-end geometry
- Designed for tool alloy mould and hardened steels
- Plain-shank diameters from 2.0 to 20.0 mm
- Lengths of cut from 8 to 55 mm
- Overall lengths from 40 to 110 mm
