(GM834) X-Power Pro Carbide 6Flute End Mill,Extra Long Length (45° Helix)
Y-coated extra-long end mill for hardened materialsCode: GM834060
-
Key Features
- Y-coated solid carbide construction
- Six-flute 45° helix extra-long design
- Designed for machining hardened materials
Made in South Korea
Extended machining reach
Extra-long lengths of cut support milling tasks that require greater tool reach.
Finish milling capability
Six-flute geometry supports high feed rates and superior workpiece finishes.
Built for hardened materials
Y-coated carbide construction is designed for hardened-material machining and dry milling.

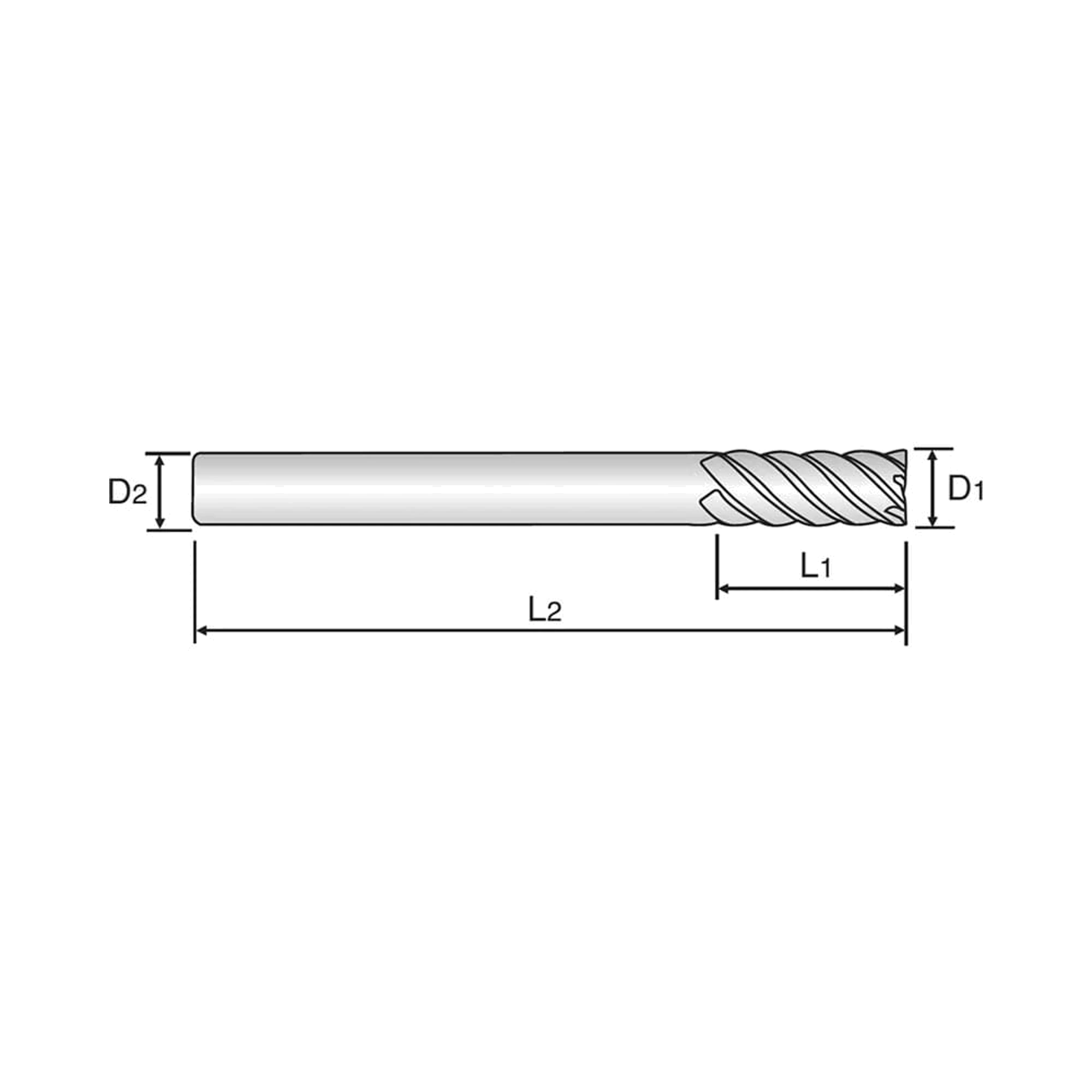

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| GM834060 | 6.0 | 70.0 | 6.0 | 4 | 26.0 | Low stock | $79.30 | ||
| GM834080 | 8.0 | 90.0 | 8.0 | 4 | 36.0 | 5 days | $138.70 | ||
| GM834100 | 10.0 | 100.0 | 10.0 | 4 | 46.0 | 5 days | $215.70 | ||
| GM834120 | 12.0 | 110.0 | 12.0 | 4 | 56.0 | Low stock | $209.60 | ||
| GM834160 | 16.0 | 130.0 | 16.0 | 4 | 66.0 | 5 days | $527.50 | ||
| GM834200 | 20.0 | 140.0 | 20.0 | 4 | 76.0 | 5 days | $826.60 | ||
| GM834250 | 25.0 | 180.0 | 25.0 | 4 | 92.0 | 5 days | $1,550.00 |
Add (GM834) X-Power Pro Carbide 6Flute End Mill,Extra Long Length (45° Helix) to comparison
View Comparison- Overview
- Reviews
YG-1 X-Power Pro GM834 is a Y-coated solid carbide six-flute end mill for hardened materials. Its extra-long 45° helix design supports high-speed cutting and finish milling at high feed rates. The six-flute geometry is designed to produce superior workpiece finishes in demanding milling applications. Y coating provides superior wear resistance and makes the tool suitable for dry milling. Plain-shank diameters range from 6 to 25 mm, with 26 to 92 mm lengths of cut. Overall lengths range from 70 to 180 mm for extended-reach machining requirements. It is recommended for carbon steels, alloy steels, prehardened steels, hardened steels, stainless steels and cast iron.
- Y-coated solid carbide construction
- Six-flute 45° helix extra-long design
- Designed for machining hardened materials
- Supports high-speed cutting and finish milling
- Suitable for dry milling
- Plain-shank diameters from 6 to 25 mm
No specifications available.
