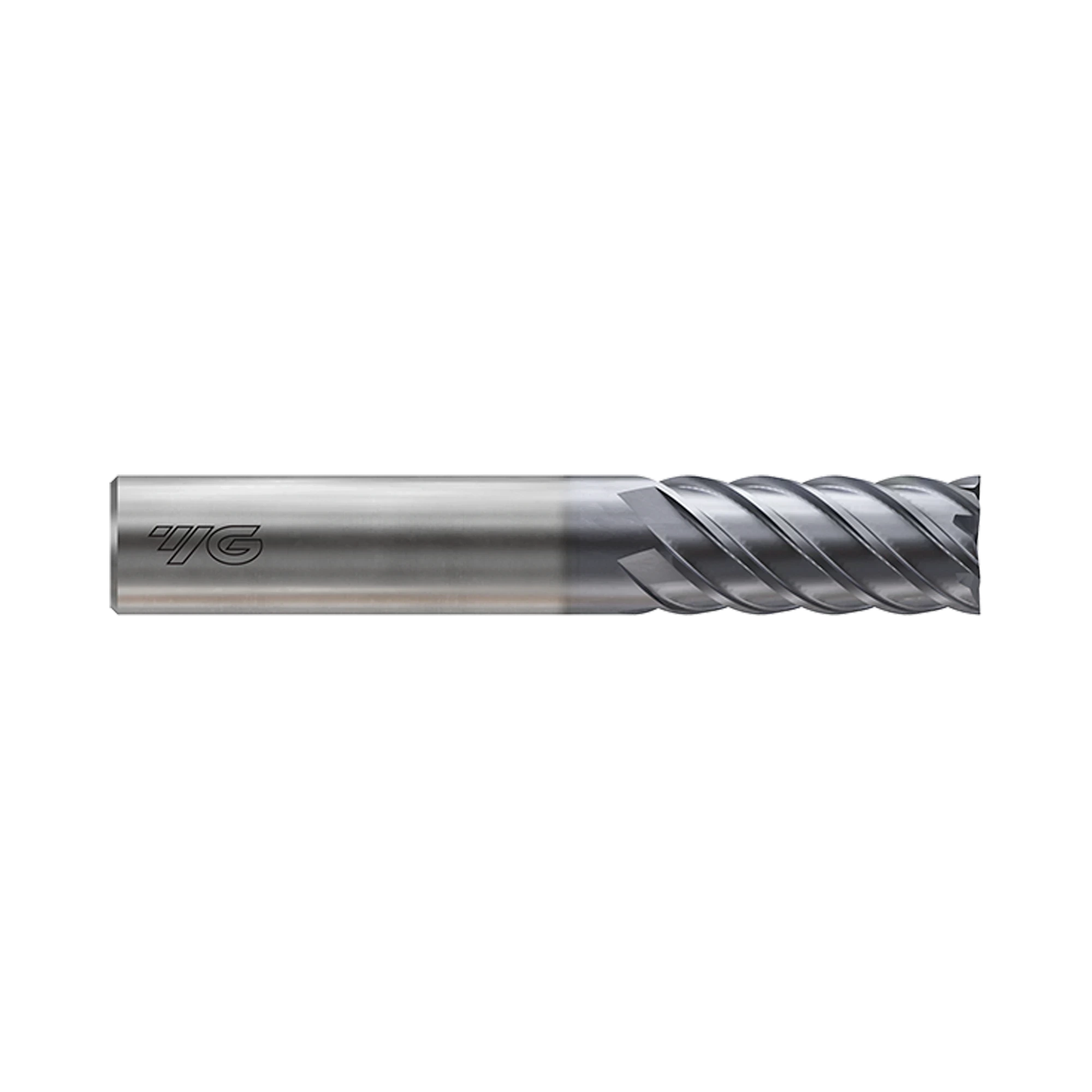

(GM812) X-Power Pro Carbide 6&8Flute End Mill, Long Length (45° Helix)
Long-Length 45° Helix Carbide End MillCode: GM812060
-
Key Features
- Y-coated solid carbide end mill for hardened-material machining
- 45° helix with square cutting edge
- Long-length series with 13 to 38 mm lengths of cut
Made in South Korea
Hardened-material focus
Designed for machining hardened materials, with recommended use across steels and cast iron.
Long-reach cutting
Long-length geometry provides 13 to 38 mm lengths of cut across the range.
Efficient finishing
The 45° helix supports high-speed cutting and finish milling with high feed rates.

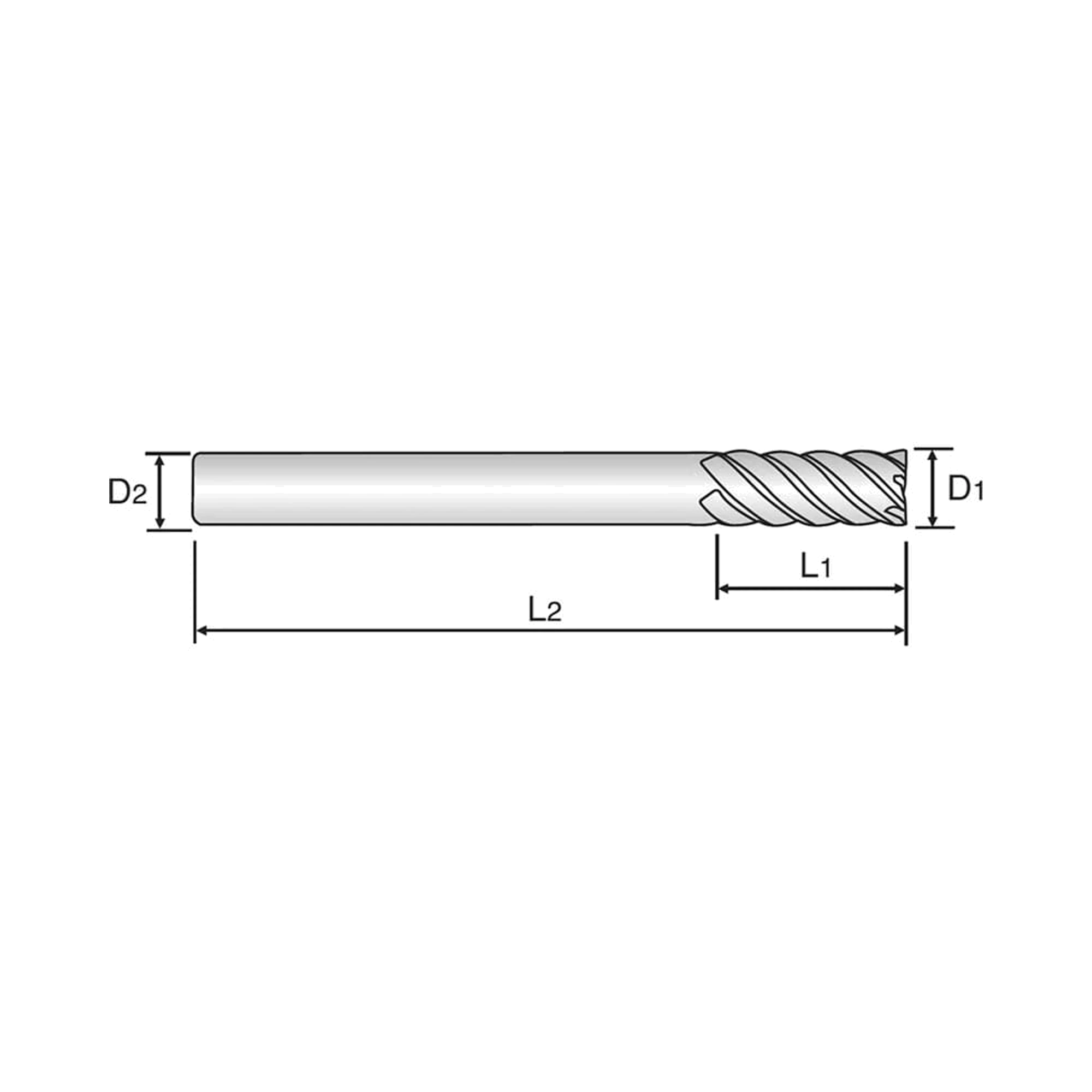

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| GM812060 | 6.0 | 57.0 | 6.0 | 6 | 13.0 | In stock | $61.00 | ||
| GM812080 | 8.0 | 63.0 | 8.0 | 6 | 19.0 | 5 days | $102.80 | ||
| GM812100 | 10.0 | 72.0 | 10.0 | 6 | 22.0 | 5 days | $153.90 | ||
| GM812120 | 12.0 | 83.0 | 12.0 | 6 | 26.0 | 5 days | $209.20 | ||
| GM812160 | 16.0 | 92.0 | 16.0 | 6 | 32.0 | 5 days | $351.80 | ||
| GM812200 | 20.0 | 104.0 | 20.0 | 8 | 38.0 | 5 days | $516.80 |
Add (GM812) X-Power Pro Carbide 6&8Flute End Mill, Long Length (45° Helix) to comparison
View Comparison- Overview
- Reviews
YG-1 GM812 X-Power Pro carbide end mill is a long-length square-profile milling cutter with a 45° helix. It is designed for machining hardened materials and supports high-speed cutting and finish milling. The Y-coated solid carbide construction offers wear resistance and suitability for dry milling. Six-flute options cover 6 to 16 mm diameters, while the 20 mm tool uses eight flutes.
Long-length geometry provides lengths of cut from 13 to 38 mm. It is recommended for carbon steels, alloy steels, prehardened steels, hardened steels, and cast iron. Available mill diameters from 6 to 20 mm suit deeper milling requirements. The series combines six or eight flutes with a square cutting edge.
- Y-coated solid carbide end mill for hardened-material machining
- 45° helix with square cutting edge
- Long-length series with 13 to 38 mm lengths of cut
- Six flutes from 6 to 16 mm and eight flutes at 20 mm
- Designed for high-speed cutting and finish milling
- Suitable for dry milling with strong wear resistance
No specifications available.
