K-2 CARBIDE 2 Flute N 30° Helix Long Ball End Mill (G9438)

  • $34.21INC GST $31.10 EX GST
K-2 CARBIDE 2 Flute N 30° Helix Long Ball End Mill (G9438)
K-2 CARBIDE 2 Flute N 30° Helix Long Ball End Mill (G9438)
New

K-2 CARBIDE 2 Flute N 30° Helix Long Ball End Mill (G9438)

  • $34.21INC GST $31.10 EX GST

Code: G9438020

P M K S
Mill Diameter (mm)
Ball Nose Radius (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

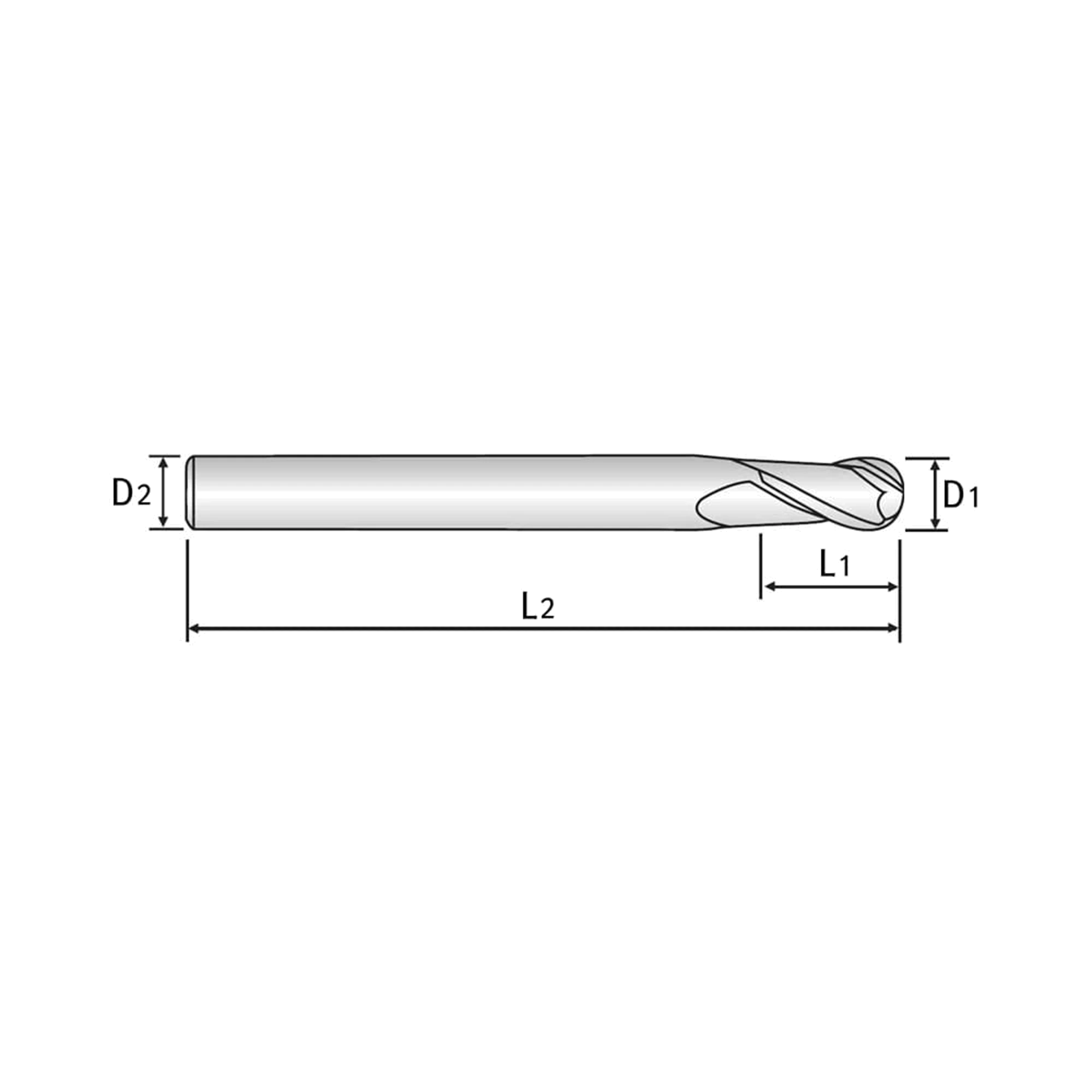

SKUMill Diameter (mm)Ball Nose Radius (mm)Overall length (mm)Shank diameter (mm)Length of cut (mm)Stock Price Qty Add
G94380202R1.038.03.06.0 5 days $31.10
G94380303R1.557.06.07.0 5 days $34.60
G94380404R2.057.06.08.0 In stock $34.60
G94380505R2.557.06.010.0 Low stock $40.70
G94380606R3.057.06.010.0 In stock $41.80
G94380808R4.063.08.016.0 Low stock $55.20
G943810010R5.072.010.019.0 Low stock $86.50
G943812012R6.083.012.022.0 5 days $104.20
G943814014R7.083.014.022.0 5 days $192.40
G943818018R9.092.018.026.0 5 days $278.90
G943820020R10.0104.020.032.0 5 days $254.90

Add K-2 CARBIDE 2 Flute N 30° Helix Long Ball End Mill (G9438) to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Speeds & Feeds
  • Reviews
Product Description

The G9438 series K2 coated carbide milling cutters feature a ball nose for copy milling, full radius grooving & corner radius milling. K2 carbide range from global market leaders YG-1 are the number 1 best selling tool for general purpose milling. Ideal for general milling steel <45HRc, stainless steel, cast iron, copper & aluminium.

  • Ball nose for copy milling, full radius grooving & corner radius milling
  • Special K2 coating for longer tool life, high heat and wear resistance
  • Dry cutting on steel can increase tool life up to 40%
  • Also suitable for general milling of steel, stainless steel, cast iron & non-ferrous
  • Consistent and reliable performance in general machining conditions
  • Made from high-quality micrograin carbide.
  • Manufactured by global market leader YG-1

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape
BALL NOSE
Size Min R1.0
Size Max R10.0
Length
LONG LENGTH
Coating
TiAlN
Product Data
Workpiece Material P M K S
Ball Radius Tolerance 0.02
Cutting Shape Ball Nose
Hardened Steels(HRc40~45) Great
Helix Angle Ball Nose ~30
No. Flutes 2
Shank Type Plain YG-1 Standard
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material Carbide
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9438020 2 3 6 38 0~-0.030 h5 2 G9438030 3 6 7 57 0~-0.030 h5 2 G9438050 5 6 10 57 0~-0.030 h5 2 G9438060 6 6 10 57 0~-0.030 h5 2 G9438080 8 8 16 63 0~-0.030 h5 2 G9438120 12 12 22 83 0~-0.030 h5 2 G9438140 14 14 22 83 0~-0.030 h5 2 G9438160 16 16 26 92 0~-0.030 h5 2 G9438180 18 18 26 92 0~-0.030 h5 2 G9438200 20 20 32 104 0~-0.030 h5 2
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
S Inconel

Great

Good Great Excellent
S Titanium

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent

Speeds & Feeds

Mill Diameter (Ø) Vc fz RPM FEED
2.0800.02612727662
3.01050.02511141557
4.01100.0358745613
5.01250.0457958716
6.01350.067162859
8.01550.08961671098
10.01700.12254111320
12.01900.1550401512
14.02000.16545471501
16.02050.1840781468
18.02150.18838021430
20.02250.20135811440
Mill Diameter (Ø) Vc fz RPM FEED
2.0550.0238754403
3.0800.0238488390
4.0900.0317162444
5.0950.046048484
6.01100.065836700
8.01250.084974796
10.01350.14297859
12.01500.123979955
14.01600.1283638931
16.01600.1413183898
18.01700.1483006890
20.01750.1582785880
Mill Diameter (Ø) Vc fz RPM FEED
2.0800.02612732662
3.01050.02511141557
4.01100.0358754613
5.01250.0457958716
6.01350.067162859
8.01550.08961671098
10.01700.12254111320
12.01900.1550401512
14.02000.16545471501
16.02050.1840781468
18.02150.18838021430
20.02250.20135811440
Mill Diameter (Ø) Vc fz RPM FEED
2.0550.0238754403
3.0800.0238488390
4.0900.0317162444
5.0950.046048484
6.01100.065836700
8.01250.084974796
10.01350.14297859
12.01500.123979955
14.01600.1283638931
16.01600.1413183898
18.01700.1483006890
20.01750.1582785880
Mill Diameter (Ø) Vc fz RPM FEED
2.0800.02612732662
3.01050.02511141557
4.01100.0358754613
5.01250.0457958716
6.01350.067162859
8.01550.08961671098
10.01700.12254111320
12.01900.1550401512
14.02000.16545471501
16.02050.1840781468
18.02150.18838021430
20.02250.20135811440
Mill Diameter (Ø) Vc fz RPM FEED
2.0550.0238754403
3.0800.0238488390
4.0900.0317162444
5.0950.046048484
6.01100.065836700
8.01250.084974796
10.01350.14297859
12.01500.123979955
14.01600.1283638931
16.01600.1413183898
18.01700.1483006890
20.01750.1582785880
Mill Diameter (Ø) Vc fz RPM FEED
2.0650.0110345207
3.0650.0166897221
4.0650.0285173290
5.0650.044138331
6.0650.0533448366
8.0650.0922586476
10.0650.1122069463
12.0650.1311724452
14.0600.1641364447
16.0650.1771293458
18.0600.2091061444
20.0650.21035414
Mill Diameter (Ø) Vc fz RPM FEED
2.01950.00631035372
3.01950.0120690414
4.01950.01315518403
5.01900.01912096460
6.01950.02310345476
8.02000.0347958541
10.01950.0446207546
12.01950.0615173631
14.01900.0734320631
16.01950.073879543
18.01900.0793360531
20.01850.0922944542
Mill Diameter (Ø) Vc fz RPM FEED
2.01950.00631035372
3.01950.0120690414
4.01950.01315518403
5.01900.01912096460
6.01950.02310345476
8.02000.0347958541
10.01950.0446207546
12.01950.0615173631
14.01900.0734320631
16.01950.073879543
18.01900.0793360531
20.01850.0922944542
Mill Diameter (Ø) Vc fz RPM FEED
2.0250.0163979127
3.0350.0163714119
4.0450.0213581150
5.0500.0243183153
6.0500.032653159
8.0500.0461989183
10.0550.0541751189
12.0550.071459204
14.0550.0811251203
16.0600.0911194217
18.0600.11061212
20.0600.111955212
Mill Diameter (Ø) Vc fz RPM FEED
2.0550.0238754403
3.0800.0238488390
4.0900.0317162444
5.0950.046048484
6.01100.065836700
8.01250.084974796
10.01350.14297859
12.01500.123979955
14.01600.1283638931
16.01600.1413183898
18.01700.1483006890
20.01750.1582785880
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9438020 2 3 6 38 0~-0.030 h5 2 G9438030 3 6 7 57 0~-0.030 h5 2 G9438050 5 6 10 57 0~-0.030 h5 2 G9438060 6 6 10 57 0~-0.030 h5 2 G9438080 8 8 16 63 0~-0.030 h5 2 G9438120 12 12 22 83 0~-0.030 h5 2 G9438140 14 14 22 83 0~-0.030 h5 2 G9438160 16 16 26 92 0~-0.030 h5 2 G9438180 18 18 26 92 0~-0.030 h5 2 G9438200 20 20 32 104 0~-0.030 h5 2
