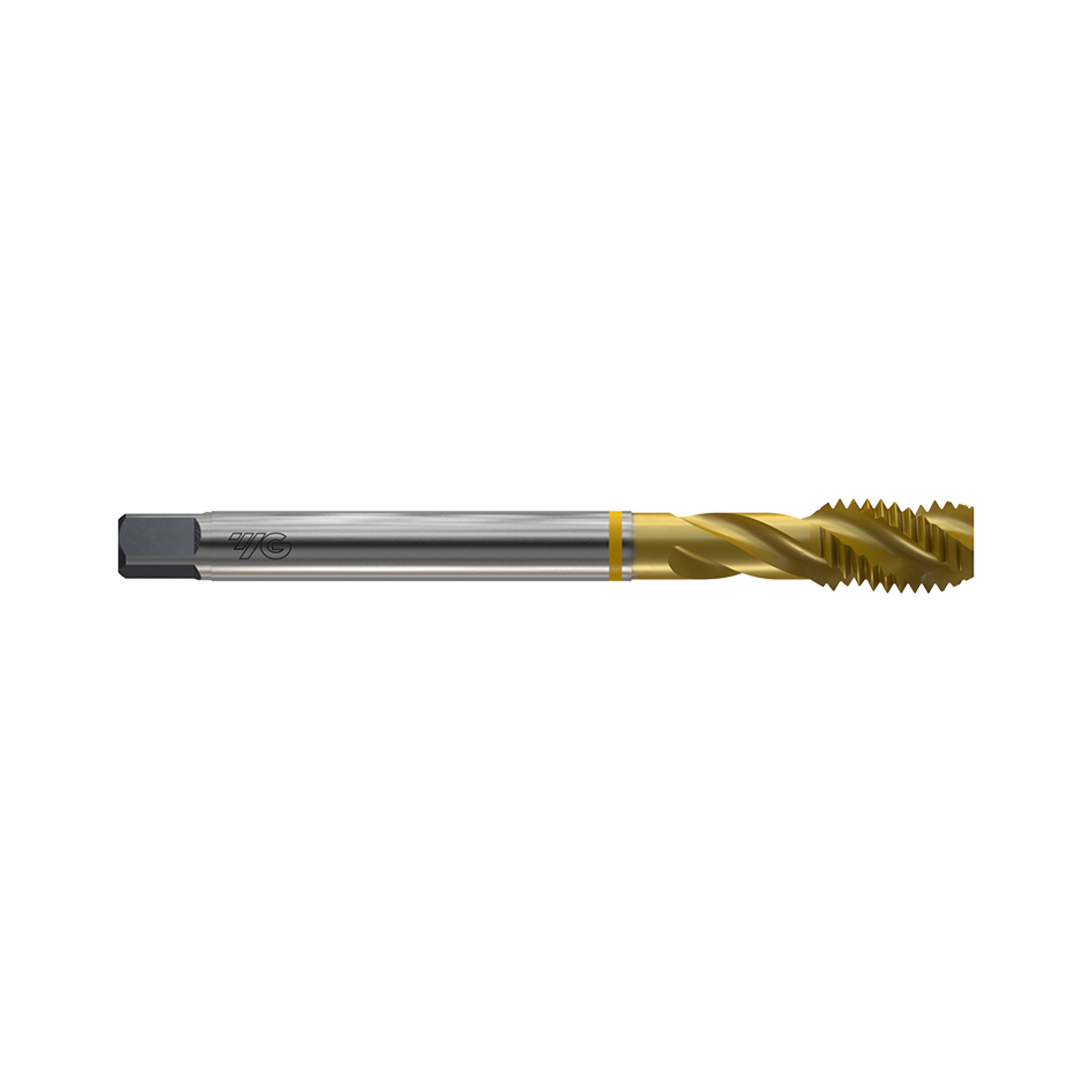

(TD711) HSS-E (M35) Metric Spiral Flute for General Purpose (TiN Coated)
TiN-Coated Spiral Flute Machine Tap for Blind Holes
- SKU
- TD711206
Key features
- TiN-coated HSS-E metric machine tap
- 40° spiral flute supports blind-hole chip evacuation
- 2.5×D hole type
Made in South Korea
Blind-hole chip control
Special flute geometry supports chip evacuation from blind threaded holes.
Controlled metric threading
C-form threads, 6H tolerance and a 60° thread angle support standard metric tapping work.
Useful size coverage
Listed variants cover metric coarse thread sizes from M3 to M30.
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD711206 | M3 | 0.5 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.9 | In stock | $27.30 | ||
| TD711246 | M4 | 0.7 | 7.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | In stock | $27.30 | ||
| TD711286 | M5 | 0.8 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | In stock | $28.90 | ||
| TD711316 | M6 | 1.0 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 6.0 | In stock | $30.10 | ||
| TD711366 | M8 | 1.25 | 13.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 7.8 | In stock | $34.70 | ||
| TD711426 | M10 | 1.5 | 15.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 3 | 9.5 | In stock | $43.10 | ||
| TD711506 | M12 | 1.75 | 18.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 12.0 | In stock | $48.40 | ||
| TD711606 | M16 | 2.0 | 20.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 15.5 | In stock | $72.20 | ||
| TD711706 | M20 | 2.5 | 25.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 19.5 | In stock | $117.00 | ||
| TD711746 | M22 | 2.5 | 25.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 21.0 | Low stock | $171.90 | ||
| TD711786 | M24 | 3.0 | 30.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 4 | 24.0 | In stock | $161.20 | ||
| TD711866 | M27 | 3.0 | 30.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | 24.0 | No stock | $217.90 | ||
| TD711946 | M30 | 3.5 | 35.0 | 180.0 | 70.0 | 22.0 | 18.0 | 21.0 | 4 | 26.5 | Low stock | $278.70 |
Add (TD711) HSS-E (M35) Metric Spiral Flute for General Purpose (TiN Coated) to comparison
View Comparison- Overview
- Specifications
- Work Material
- Reviews

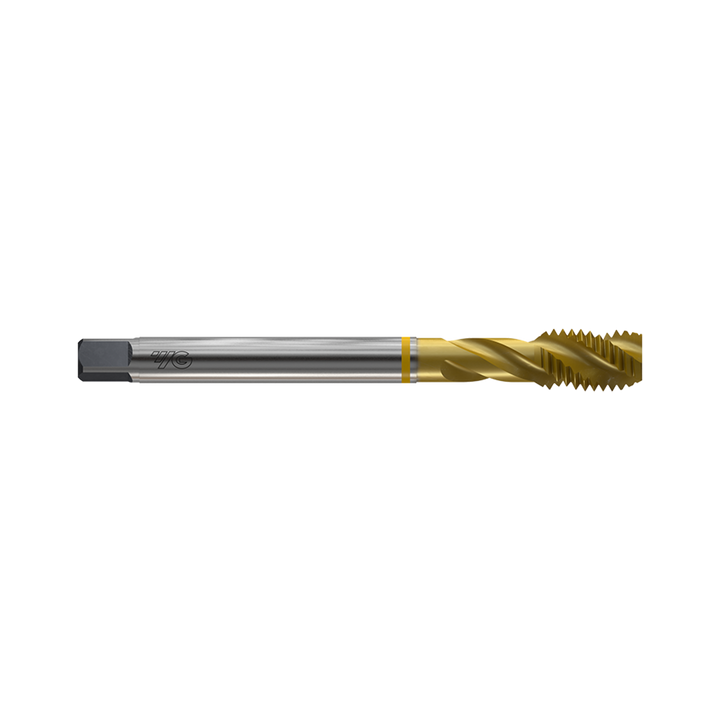

YG-1 TD711 is a TiN-coated HSS-E metric spiral flute machine tap for blind holes. The 40° helix and special flute geometry promote efficient chip evacuation during general-purpose internal threading. Designed for 2.5×D hole depths, it produces C-form metric threads to 6H tolerance. TD711 taps use DIN 371 and DIN 376 shank standards with a 60° thread angle. TiN coating complements the HSS-E construction for workshop machine-tapping applications. Available listed sizes span M3 × 0.5 through M30 × 3.5. Selected variants cover common coarse metric pitches from 0.5 to 3.5 mm. Use the spiral flute form where chips must be lifted from blind threaded holes.
- TiN-coated HSS-E metric machine tap
- 40° spiral flute supports blind-hole chip evacuation
- 2.5×D hole type
- DIN 371 and DIN 376 shank standards
- C-form metric thread with 6H tolerance
- Listed sizes from M3 × 0.5 to M30 × 3.5
No specifications available.
Work materials
VDI 3323 recommendations for this tool.
Steel
8 gradesCast iron
2 gradesStainless steel
2 gradesNon-ferrous materials
6 gradesVDI grade reference18 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Good | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Good | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Good | 300 | 32 |
| 12 | MStainless steel | Good | 200 | 15 |
| 13 | MStainless steel | Good | 240 | 23 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 21 | NWrought aluminium | Good | 60 | - |
| 23 | NCast aluminium | Good | 75 | - |
| 24 | NCast aluminium | Good | 90 | - |
| 25 | NCast aluminium | Excellent | 130 | - |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 28 | NCopper, bronze and brass | Excellent | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
