4G MILL 2 Flute 30°Helix Rib Corner Radius End Mill (SEME61)

$0.00INC GST $0.00 EX GST
Unit price per

4G MILL 2 Flute 30°Helix Rib Corner Radius End Mill (SEME61)

$0.00INC GST $0.00 EX GST Price available on request

Unit price per

Code: SEME61

Work Material

P K H

Made in South Korea

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL 2 Flute 30°Helix Rib Corner Radius End Mill (SEME61) to comparison

View Comparison

Overview
Specifications
Operation
Work Material
Reviews

Product Description

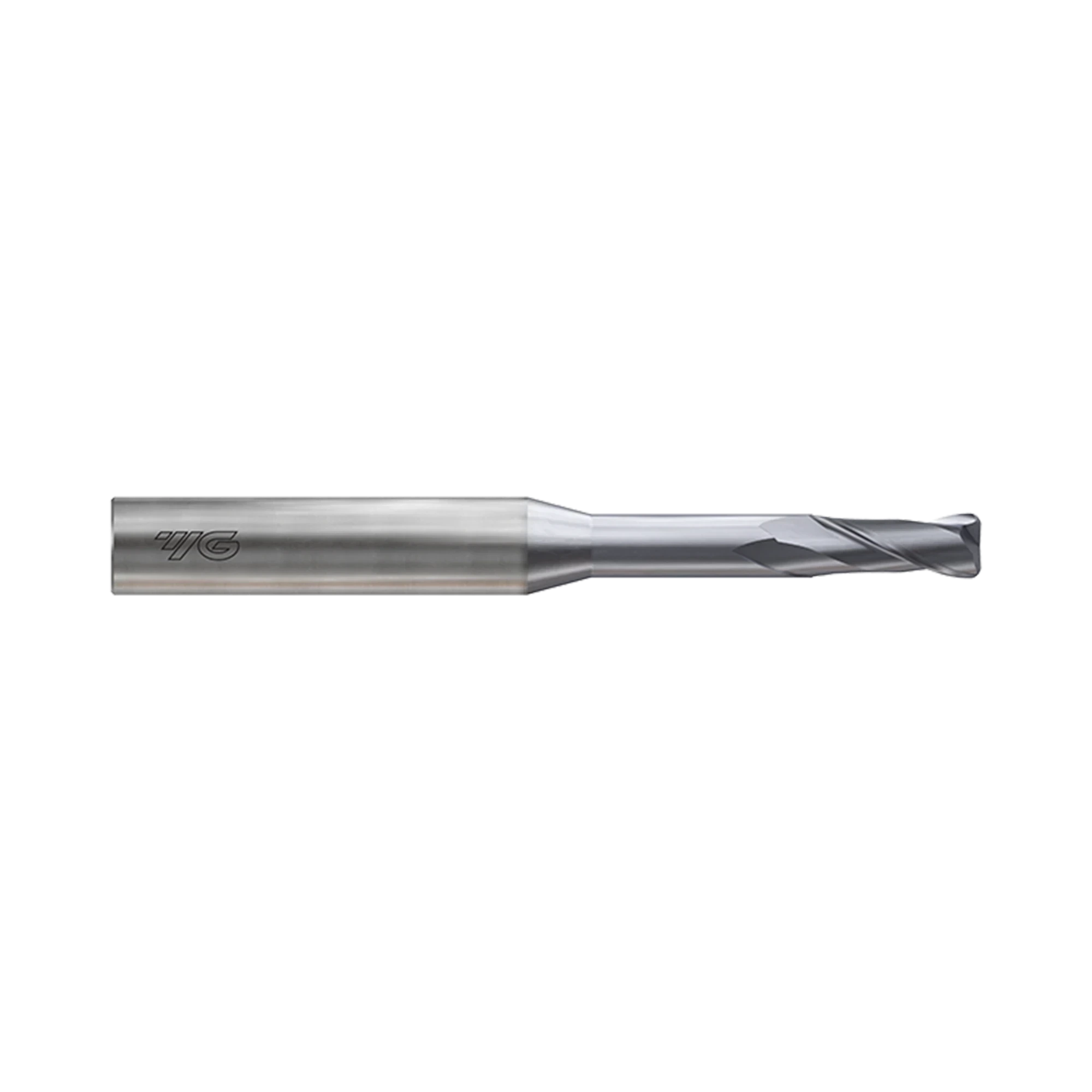

The SEME61 series 2 flute slot drill range is available in diameters ranging from 0.2-20mm with a long neck design to prevent interference from the shank. The 4G Mill range from YG-1 offers unbeatable performance and accuracy in high speed machining of all carbon or alloy steels, pre-hardened steels (up to HRc55), stainless steel and cast iron. The micrograin carbide substrate and Y1200 coating offers extreme cutting life in temperatures up to 1,200°C.

Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
YG-1's Y1200 coating & premium micrograin carbide substrate
HSC - High speed cutting
Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
Available with various corner radius from R0.02mm to R2.0mm

Specifications

Flutes	2
Helix Angle	30°
Cutting Edge Shape	Corner Radius
Size Min	D0.2
Size Max	D20.0
Length	Extended Neck
Coating	Y-Coating

Product Data

Workpiece Material	P K H
Corner Radius Tolerance	0.01, 0.015
Cutting Shape	Corner Radius
Hardened Steels(HRc40~45)	Great
Helix Angle	Square 30
No. Flutes	2
Operation	Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type	Plain
Surface Treatment	YG-1 Y Coating
Tool Material	Carbide

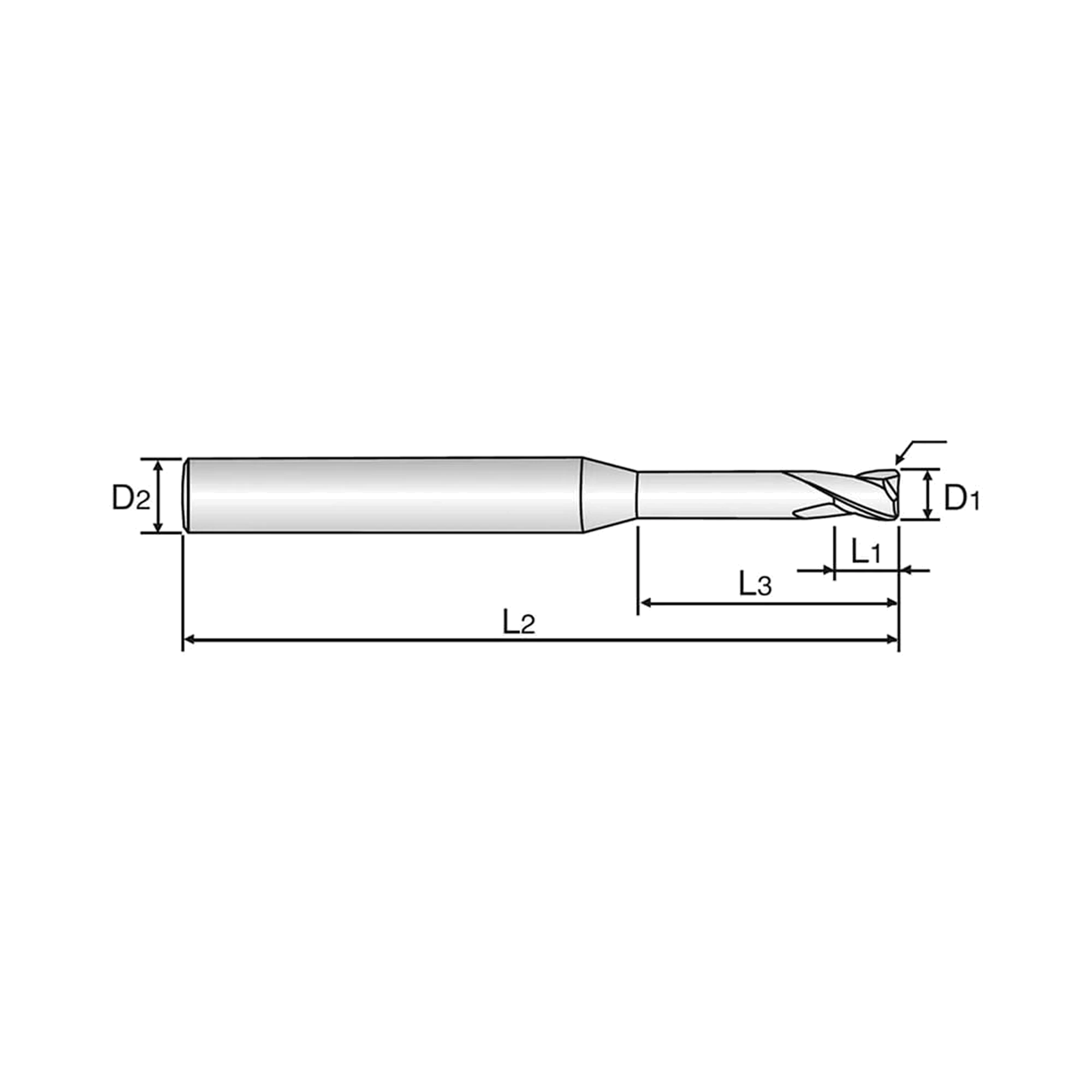

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME6105001 5 6 8 60 0~-0.012 h5 2 SEME6105001E 5 6 8 60 0~-0.012 h5 2 SEME6105002 5 6 8 60 0~-0.012 h5 2 SEME6105010 5 6 8 60 0~-0.012 h5 2 SEME6105015 5 6 8 60 0~-0.012 h5 2 SEME6105020 5 6 8 60 0~-0.012 h5 2 SEME6106001 6 6 9 60 0~-0.012 h5 2 SEME6106001E 6 6 9 60 0~-0.012 h5 2 SEME6106005 6 6 9 60 0~-0.012 h5 2 SEME6106010E 6 6 9 60 0~-0.012 h5 2 SEME6106015 6 6 9 60 0~-0.012 h5 2 SEME6106020 6 6 9 60 0~-0.012 h5 2 SEME6106020E 6 6 9 60 0~-0.012 h5 2 SEME6108001 8 8 12 70 0~-0.015 h5 2 SEME6108005 8 8 12 70 0~-0.015 h5 2 SEME6108005E 8 8 12 70 0~-0.015 h5 2 SEME6108010 8 8 12 70 0~-0.015 h5 2 SEME6108015 8 8 12 70 0~-0.015 h5 2 SEME6108015E 8 8 12 70 0~-0.015 h5 2 SEME6108020 8 8 12 70 0~-0.015 h5 2 SEME6108020E 8 8 12 70 0~-0.015 h5 2 SEME6110001 10 10 15 75 0~-0.015 h5 2 SEME6110001E 10 10 15 75 0~-0.015 h5 2 SEME6110003 10 10 15 75 0~-0.015 h5 2 SEME6110010 10 10 15 75 0~-0.015 h5 2 SEME6110010E 10 10 15 75 0~-0.015 h5 2 SEME6110015 10 10 15 75 0~-0.015 h5 2 SEME6110015E 10 10 15 75 0~-0.015 h5 2 SEME6112005 12 12 18 80 0~-0.015 h5 2 SEME6112005E 12 12 18 80 0~-0.015 h5 2 SEME6112010 12 12 18 80 0~-0.015 h5 2 SEME6112010E 12 12 18 80 0~-0.015 h5 2 SEME6112015 12 12 18 80 0~-0.015 h5 2 SEME6112015E 12 12 18 80 0~-0.015 h5 2 SEME6112020E 12 12 18 80 0~-0.015 h5 2 SEME6116010 16 16 20 100 0~-0.015 h5 2 SEME6120010 20 20 25 100 0~-0.015 h5 2 SEME6120010E 20 20 25 100 0~-0.015 h5 2 SEME610040102 0.4 4 0.6 40 0~-0.012 h5 2 SEME610050102S6SE 0.5 6 0.4 45 0~-0.012 h5 2 SEME610050104 0.5 4 0.7 45 0~-0.012 h5 2 SEME610050104S6SE 0.5 6 0.4 45 0~-0.012 h5 2 SEME610060110 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060202 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060202E 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060203 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060206 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060210 0.6 4 0.9 45 0~-0.012 h5 2 SEME610070102 0.7 4 1.2 45 0~-0.012 h5 2 SEME610070104 0.7 4 1.2 45 0~-0.012 h5 2 SEME610070202 0.7 4 1.2 45 0~-0.012 h5 2 SEME610070210 0.7 4 1.2 45 0~-0.012 h5 2 SEME610080102 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080103 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080108 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080110 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080202 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080202E 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080203 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080204 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080206 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080208 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080210 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080210E 0.8 4 1.2 45 0~-0.012 h5 2 SEME610100105E 1 4 1.5 50 0~-0.012 h5 2 SEME610100108 1 4 1.5 50 0~-0.012 h5 2 SEME610100110 1 4 1.5 50 0~-0.012 h5 2 SEME610100114 1 4 1.5 50 0~-0.012 h5 2 SEME610100203 1 4 1.5 50 0~-0.012 h5 2 SEME610100203E 1 4 1.5 50 0~-0.012 h5 2 SEME610100204 1 4 1.5 50 0~-0.012 h5 2 SEME610100204E 1 4 1.5 50 0~-0.012 h5 2 SEME610100205E 1 4 1.5 50 0~-0.012 h5 2 SEME610100206E 1 4 1.5 50 0~-0.012 h5 2 SEME610100208E 1 4 1.5 50 0~-0.012 h5 2 SEME610100210 1 4 1.5 50 0~-0.012 h5 2 SEME610100212 1 4 1.5 50 0~-0.012 h5 2 SEME610100214 1 4 1.5 50 0~-0.012 h5 2 SEME610100304 1 4 1.5 50 0~-0.012 h5 2 SEME610100308 1 4 1.5 50 0~-0.012 h5 2 SEME610100314E 1 4 1.5 50 0~-0.012 h5 2 SEME610100316 1 4 1.5 50 0~-0.012 h5 2 SEME610100316E 1 4 1.5 50 0~-0.012 h5 2 SEME610100320 1 4 1.5 50 0~-0.012 h5 2 SEME610100320E 1 4 1.5 50 0~-0.012 h5 2 SEME610120106 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120110 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120120 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120203E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120206 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120206E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120210 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120210E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120212 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120216E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120220 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120303 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120303E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120304 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120304E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120306E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120308 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120308E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120310 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120310E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120312 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120316 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120320 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120320E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610150104 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150108 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150110 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150114 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150122 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150206 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150212 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150216 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150226 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150304 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150304E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150306 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150306E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150308E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150310 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150310E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150312 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150314 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150314E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150316 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150316E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150320 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150320E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150322 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150322E 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150326 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150326E 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150506 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150506E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150508 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150508E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150512 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150512E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150516 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150520 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150522 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150526 1.5 4 2.3 60 0~-0.012 h5 2 SEME610200108 2 4 3 50 0~-0.012 h5 2 SEME610200114 2 4 3 50 0~-0.012 h5 2 SEME610200122 2 4 3 60 0~-0.012 h5 2 SEME610200126 2 4 3 60 0~-0.012 h5 2 SEME610200216 2 4 3 50 0~-0.012 h5 2 SEME610200220 2 4 3 50 0~-0.012 h5 2 SEME610200222 2 4 3 60 0~-0.012 h5 2 SEME610200306 2 4 3 50 0~-0.012 h5 2 SEME610200306E 2 4 3 50 0~-0.012 h5 2 SEME610200308 2 4 3 50 0~-0.012 h5 2 SEME610200308E 2 4 3 50 0~-0.012 h5 2 SEME610200310 2 4 3 50 0~-0.012 h5 2 SEME610200310E 2 4 3 50 0~-0.012 h5 2 SEME610200312E 2 4 3 50 0~-0.012 h5 2 SEME610200330 2 4 3 70 0~-0.012 h5 2 SEME610200506 2 4 3 50 0~-0.012 h5 2 SEME610200520 2 4 3 50 0~-0.012 h5 2 SEME610200522E 2 4 3 60 0~-0.012 h5 2 SEME610200530 2 4 3 70 0~-0.012 h5 2 SEME610200530E 2 4 3 70 0~-0.012 h5 2 SEME610250108 2.5 4 4 50 0~-0.012 h5 2 SEME610250114 2.5 4 4 50 0~-0.012 h5 2 SEME610250116 2.5 4 4 50 0~-0.012 h5 2 SEME610250126 2.5 4 4 60 0~-0.012 h5 2 SEME610250210 2.5 4 4 50 0~-0.012 h5 2 SEME610250214 2.5 4 4 50 0~-0.012 h5 2 SEME610250310 2.5 4 4 50 0~-0.012 h5 2 SEME610250330 2.5 4 4 70 0~-0.012 h5 2 SEME610250508 2.5 4 4 50 0~-0.012 h5 2 SEME610250508 2.5 6 4 50 0~-0.012 h5 2 SEME610250508E 2.5 4 4 50 0~-0.012 h5 2 SEME610250510 2.5 4 4 50 0~-0.012 h5 2 SEME610250510 2.5 6 4 50 0~-0.012 h5 2 SEME610250516 2.5 4 4 50 0~-0.012 h5 2 SEME610250516 2.5 6 4 50 0~-0.012 h5 2 SEME610300112E 3 6 4.5 50 0~-0.012 h5 2 SEME610300114 3 6 4.5 60 0~-0.012 h5 2 SEME610300116E 3 6 4.5 60 0~-0.012 h5 2 SEME610300120 3 6 4.5 60 0~-0.012 h5 2 SEME610300120E 3 6 4.5 60 0~-0.012 h5 2 SEME610300126 3 6 4.5 65 0~-0.012 h5 2 SEME610300126E 3 6 4.5 65 0~-0.012 h5 2 SEME610300130 3 6 4.5 70 0~-0.012 h5 2 SEME610300130E 3 6 4.5 70 0~-0.012 h5 2 SEME610300135 3 6 4.5 70 0~-0.012 h5 2 SEME610300135E 3 6 4.5 70 0~-0.012 h5 2 SEME610300140 3 6 4.5 80 0~-0.012 h5 2 SEME610300140E 3 6 4.5 80 0~-0.012 h5 2 SEME610300214 3 6 4.5 60 0~-0.012 h5 2 SEME610300216 3 6 4.5 60 0~-0.012 h5 2 SEME610300226 3 6 4.5 65 0~-0.012 h5 2 SEME610300230 3 6 4.5 70 0~-0.012 h5 2 SEME610300235 3 6 4.5 70 0~-0.012 h5 2 SEME610300240 3 6 4.5 80 0~-0.012 h5 2 SEME610300314 3 6 4.5 60 0~-0.012 h5 2 SEME610300330 3 6 4.5 70 0~-0.012 h5 2 SEME610300510 3 6 4.5 50 0~-0.012 h5 2 SEME610300512 3 6 4.5 50 0~-0.012 h5 2 SEME610300512E 3 6 4.5 50 0~-0.012 h5 2 SEME610300514 3 6 4.5 60 0~-0.012 h5 2 SEME610300516 3 6 4.5 60 0~-0.012 h5 2 SEME610300520 3 6 4.5 60 0~-0.012 h5 2 SEME610300520E 3 6 4.5 60 0~-0.012 h5 2 SEME610300526 3 6 4.5 65 0~-0.012 h5 2 SEME610300526E 3 6 4.5 65 0~-0.012 h5 2 SEME610300530 3 6 4.5 70 0~-0.012 h5 2 SEME610300530E 3 6 4.5 70 0~-0.012 h5 2 SEME610300535 3 6 4.5 70 0~-0.012 h5 2 SEME610300535E 3 6 4.5 70 0~-0.012 h5 2 SEME610300540 3 6 4.5 80 0~-0.012 h5 2 SEME610301008 3 6 4.5 50 0~-0.012 h5 2 SEME610301008E 3 6 4.5 50 0~-0.012 h5 2 SEME610301010 3 6 4.5 50 0~-0.012 h5 2 SEME610301012 3 6 4.5 50 0~-0.012 h5 2 SEME610301012E 3 6 4.5 50 0~-0.012 h5 2 SEME610301014 3 6 4.5 60 0~-0.012 h5 2 SEME610301016 3 6 4.5 60 0~-0.012 h5 2 SEME610301026 3 6 4.5 65 0~-0.012 h5 2 SEME610301026E 3 6 4.5 65 0~-0.012 h5 2 SEME610301030 3 6 4.5 70 0~-0.012 h5 2 SEME610301030E 3 6 4.5 70 0~-0.012 h5 2 SEME610301035 3 6 4.5 70 0~-0.012 h5 2 SEME610301035E 3 6 4.5 70 0~-0.012 h5 2 SEME610400110 4 6 6 50 0~-0.012 h5 2 SEME610400110E 4 6 6 50 0~-0.012 h5 2 SEME610400112 4 6 6 50 0~-0.012 h5 2 SEME610400112E 4 6 6 50 0~-0.012 h5 2 SEME610400114 4 6 6 60 0~-0.012 h5 2 SEME610400114E 4 6 6 60 0~-0.012 h5 2 SEME610400116E 4 6 6 60 0~-0.012 h5 2 SEME610400120 4 6 6 60 0~-0.012 h5 2 SEME610400120E 4 6 6 60 0~-0.012 h5 2 SEME610400126 4 6 6 65 0~-0.012 h5 2 SEME610400126E 4 6 6 65 0~-0.012 h5 2 SEME610400130 4 6 6 70 0~-0.012 h5 2 SEME610400130E 4 6 6 70 0~-0.012 h5 2 SEME610400135 4 6 6 70 0~-0.012 h5 2 SEME610400135E 4 6 6 70 0~-0.012 h5 2 SEME610400140 4 6 6 80 0~-0.012 h5 2 SEME610400140E 4 6 6 80 0~-0.012 h5 2 SEME610400145 4 6 6 90 0~-0.012 h5 2 SEME610400145E 4 6 6 90 0~-0.012 h5 2 SEME610400150 4 6 6 100 0~-0.012 h5 2 SEME610400150E 4 6 6 100 0~-0.012 h5 2 SEME610400220 4 6 6 60 0~-0.012 h5 2 SEME610400230 4 6 6 70 0~-0.012 h5 2 SEME610400235 4 6 6 70 0~-0.012 h5 2 SEME610400310 4 6 6 50 0~-0.012 h5 2 SEME610400312E 4 6 6 50 0~-0.012 h5 2 SEME610400326 4 6 6 65 0~-0.012 h5 2 SEME610400345 4 6 6 90 0~-0.012 h5 2 SEME610400350 4 6 6 100 0~-0.012 h5 2 SEME610400510 4 6 6 50 0~-0.012 h5 2 SEME610400512E 4 6 6 50 0~-0.012 h5 2 SEME610400514 4 6 6 60 0~-0.012 h5 2 SEME610400516 4 6 6 60 0~-0.012 h5 2 SEME610400520 4 6 6 60 0~-0.012 h5 2 SEME610400526 4 6 6 65 0~-0.012 h5 2 SEME610400526E 4 6 6 65 0~-0.012 h5 2 SEME610400530 4 6 6 70 0~-0.012 h5 2 SEME610400530E 4 6 6 70 0~-0.012 h5 2 SEME610400535 4 6 6 70 0~-0.012 h5 2 SEME610400540 4 6 6 80 0~-0.012 h5 2 SEME610400540E 4 6 6 80 0~-0.012 h5 2 SEME610400545 4 6 6 90 0~-0.012 h5 2 SEME610400550 4 6 6 100 0~-0.012 h5 2 SEME610400550E 4 6 6 100 0~-0.012 h5 2 SEME610401010 4 6 6 50 0~-0.012 h5 2 SEME610401010E 4 6 6 50 0~-0.012 h5 2 SEME610401012E 4 6 6 50 0~-0.012 h5 2 SEME610401014 4 6 6 60 0~-0.012 h5 2 SEME610401014E 4 6 6 60 0~-0.012 h5 2 SEME610401016 4 6 6 60 0~-0.012 h5 2 SEME610401016E 4 6 6 60 0~-0.012 h5 2 SEME610401020 4 6 6 60 0~-0.012 h5 2 SEME610401026 4 6 6 65 0~-0.012 h5 2 SEME610401030 4 6 6 70 0~-0.012 h5 2 SEME610401035 4 6 6 70 0~-0.012 h5 2 SEME610401035E 4 6 6 70 0~-0.012 h5 2 SEME610401040 4 6 6 80 0~-0.012 h5 2 SEME610401040E 4 6 6 80 0~-0.012 h5 2 SEME610401045 4 6 6 90 0~-0.012 h5 2 SEME610401050 4 6 6 100 0~-0.012 h5 2 SEME610401050E 4 6 6 100 0~-0.012 h5 2 SEME610600524E 6 6 9 90 0~-0.012 h5 2 SEME6100200201 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200202 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200202E 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200501 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200502 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200502E 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100300201 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300201E 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300202 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300203 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300203E 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300501 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300501E 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300502 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300502S6SE 0.3 6 0.25 40 0~-0.012 h5 2 SEME6100300503 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100400501 0.4 4 0.6 40 0~-0.012 h5 2 SEME6100500501 0.5 4 0.7 45 0~-0.012 h5 2 SEME6100500503 0.5 4 0.7 45 0~-0.012 h5 2 SEME6100500506E 0.5 4 0.7 45 0~-0.012 h5 2 SEME6100600502E 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600503 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600504E 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600506 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600508 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600510 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100700502 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100700504 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100700506 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100700510 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100800502 0.8 4 1.2 45 0~-0.012 h5 2 SEME6100800506 0.8 4 1.2 45 0~-0.012 h5 2 SEME6100800508 0.8 4 1.2 45 0~-0.012 h5 2 SEME6101000503 1 4 1.5 50 0~-0.012 h5 2 SEME6101000504 1 4 1.5 50 0~-0.012 h5 2 SEME6101000505E 1 4 1.5 50 0~-0.012 h5 2 SEME6101000506 1 4 1.5 50 0~-0.012 h5 2 SEME6101000510 1 4 1.5 50 0~-0.012 h5 2 SEME6101000512 1 4 1.5 50 0~-0.012 h5 2 SEME6101000514 1 4 1.5 50 0~-0.012 h5 2 SEME6101000520 1 4 1.5 50 0~-0.012 h5 2 SEME6101000520E 1 4 1.5 50 0~-0.012 h5 2 SEME6101200503 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200503E 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200506 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200506E 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200508 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200510E 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200512 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200516 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200520 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101500506 1.5 4 2.3 50 0~-0.012 h5 2 SEME6101500508 1.5 4 2.3 50 0~-0.012 h5 2 SEME6101500516 1.5 4 2.3 50 0~-0.012 h5 2 SEME6101500522 1.5 4 2.3 60 0~-0.012 h5 2 SEME6101500526 1.5 4 2.3 60 0~-0.012 h5 2 SEME6102005086SE 2 6 3 50 0~-0.012 h5 2 SEME6106003090 6 6 15 90 0~-0.012 h5 2 SEME6106005090 6 6 15 90 0~-0.012 h5 2 SEME6106005090E 6 6 15 90 0~-0.012 h5 2 SEME6106010090 6 6 15 90 0~-0.012 h5 2 SEME6106010090E 6 6 15 90 0~-0.012 h5 2 SEME6108005100E 8 8 20 100 0~-0.015 h5 2 SEME6108010100 8 8 20 100 0~-0.015 h5 2 SEME6110005100 10 10 25 100 0~-0.015 h5 2 SEME6110010100 10 10 25 100 0~-0.015 h5 2 SEME6110010100E 10 10 25 100 0~-0.015 h5 2 SEME6112005110 12 12 30 110 0~-0.015 h5 2 SEME6112005110 12 12 30 110 0~-0.015 h5 2 SEME6112010110 12 12 30 110 0~-0.015 h5 2 SEME6112010110 12 12 30 110 0~-0.015 h5 2 SEME6112010110E 12 12 30 110 0~-0.015 h5 2 SEME6116010150 16 16 35 150 0~-0.015 h5 2 SEME6116010150E 16 16 35 150 0~-0.015 h5 2 SEME6120010150 20 20 40 150 0~-0.015 h5 2 SEME61002002005 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002002015 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002002015E 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002005015 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002005015E 0.2 4 0.3 40 0~-0.012 h5 2 SEME61003005015SE 0.3 4 0.25 40 0~-0.012 h5 2 SEME61004005015 0.4 4 0.6 40 0~-0.012 h5 2

Side Milling

Small Part

Slotting

Die Sinking

Facing

Corner

Helical Interpol

P Carbon Steels

Great

Good Great Excellent

P Alloy Steels

Excellent

Good Great Excellent

P Prehardened Steels

Excellent

Good Great Excellent

K Cast Iron

Great

Good Great Excellent

H Hardened Steels (HRc40~45)

Great

Good Great Excellent

H Hardened Steels (HRc45~55)

Great

Good Great Excellent

Video
