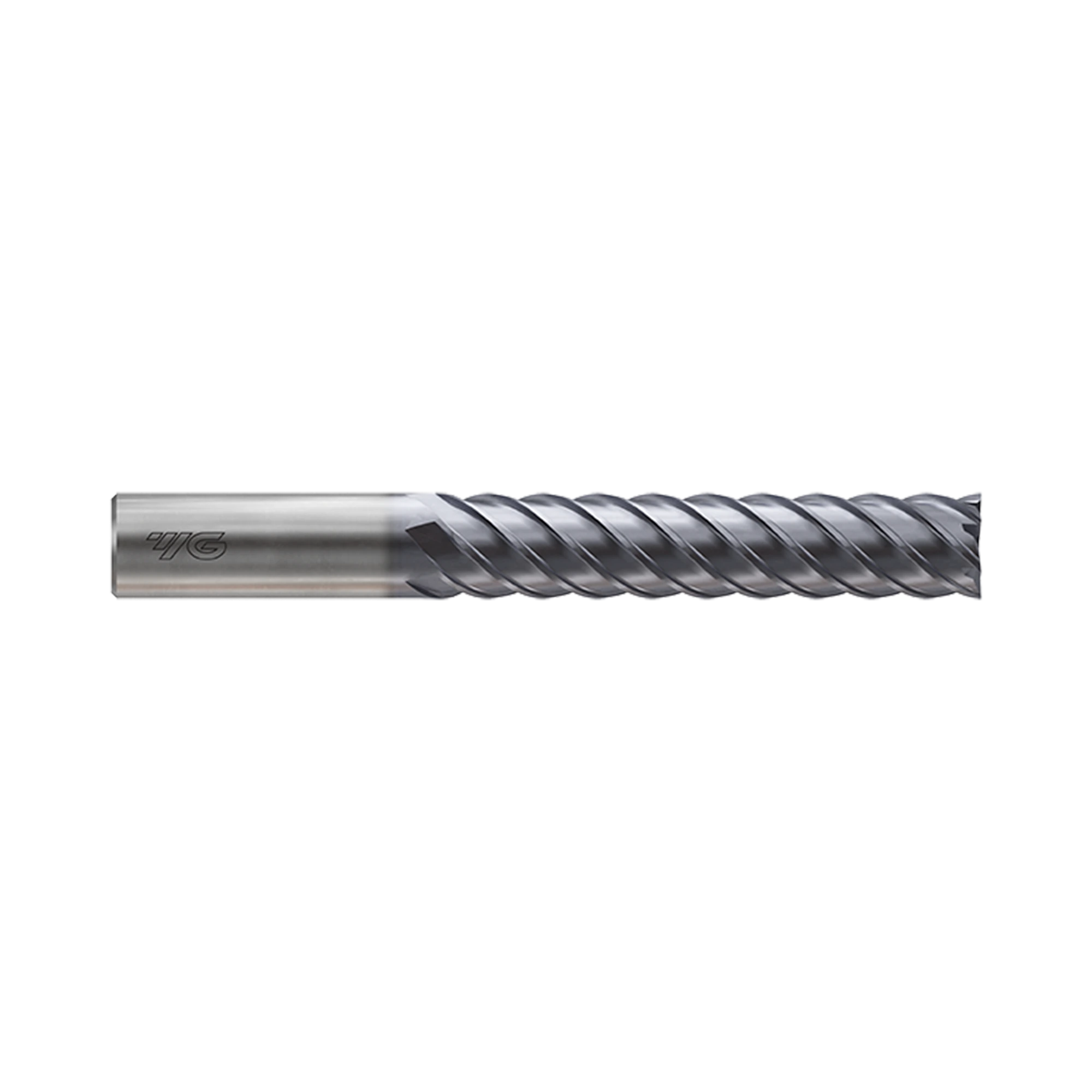

4G MILL 6 Flute 45°Helix End Mill (SEME75)

4G MILL 6 Flute 45°Helix End Mill (SEME75)
4G MILL 6 Flute 45°Helix End Mill (SEME75)
New

4G MILL 6 Flute 45°Helix End Mill (SEME75)

Product Code: SEME75

YG-1 LEGEND 6 flutes No. Flutes: 6 YG-1 LEGEND Y COATING Surface Treatment: YG-1 Y Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45° YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local

The SEME75 series has a 45 degree helix and 6 flutes, available in diameters ranging from 6-20mm. The geometry is designed to give the ultimate surface finish in profiling operations or the highest metal removal rates in trochoidal milling applications. The 4G Mill range from YG-1 offers unbeatable performance and accuracy in high speed machining of all carbon or alloy steels, pre-hardened steels (up to HRc55), stainless steel and cast iron. The micrograin carbide substrate and Y1200 coating offers extreme cutting life in temperatures up to 1,200°C.

  • Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
  • YG-1's Y1200 coating & premium micrograin carbide substrate
  • HSC - High speed cutting
  • Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
  • Exceptional surface finish in profiling operations
  • Can be used for trochoidal machining, high speed milling or normal milling

Specifications

Flutes 6
Helix Angle 45°
Cutting Edge Shape Square
Size Min D6.0
Size Max D20.0
Length -
Coating Y-Coating



Product Data
Workpiece Material P K H
Hardened Steels(HRc40~45) Excellent
Helix Angle Square 45
No. Flutes 6
Operation Facing, Side Milling, Small Part, Trochoidal
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL 6 Flute 45°Helix End Mill (SEME75) to comparison

View Comparison

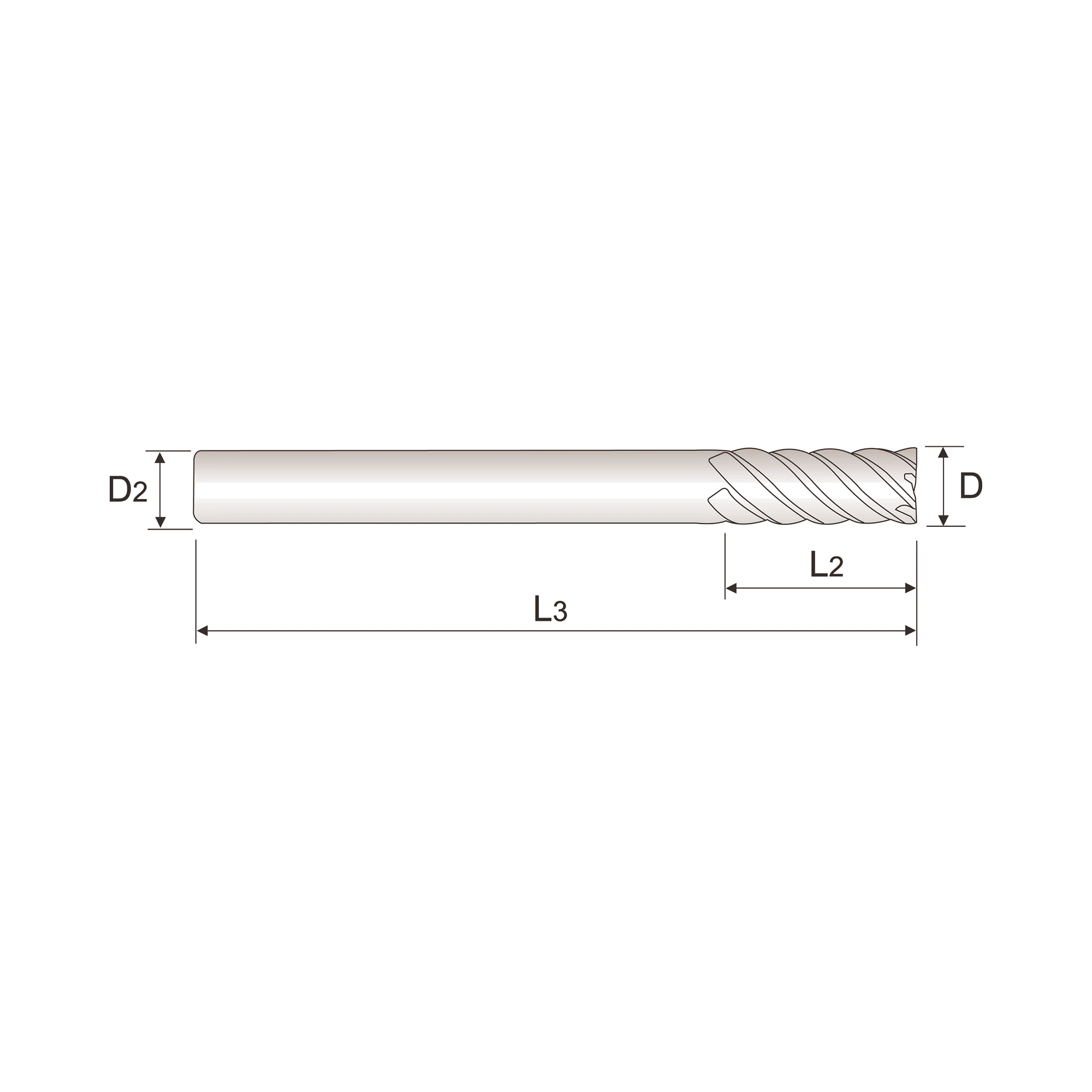

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME75060 6 6 15 60 0~-0.030 h5 6 SEME75060 6 6 15 60 0~-0.030 h5 6 SEME75060E 6 6 15 60 0~-0.030 h5 6 SEME75080 8 8 20 70 0~-0.030 h5 6 SEME75080 8 8 20 70 0~-0.030 h5 6 SEME75080E 8 8 20 70 0~-0.030 h5 6 SEME75100 10 10 25 75 0~-0.030 h5 6 SEME75100 10 10 25 75 0~-0.030 h5 6 SEME75100E 10 10 25 75 0~-0.030 h5 6 SEME75120 12 12 30 80 0~-0.030 h5 6 SEME75120 12 12 30 80 0~-0.030 h5 6 SEME75120E 12 12 30 80 0~-0.030 h5 6 SEME75160 16 16 40 100 0~-0.030 h5 6 SEME75160 16 16 40 100 0~-0.030 h5 6 SEME75160E 16 16 40 100 0~-0.030 h5 6 SEME75200 20 20 45 100 0~-0.030 h5 6 SEME75200 20 20 45 100 0~-0.030 h5 6 SEME75200E 20 20 45 100 0~-0.030 h5 6 SEME7506020 6 6 20 70 0~-0.030 h5 6 SEME7506020 6 6 20 70 0~-0.030 h5 6 SEME7506020E 6 6 20 70 0~-0.030 h5 6 SEME7506030 6 6 30 80 0~-0.030 h5 6 SEME7506030 6 6 30 80 0~-0.030 h5 6 SEME7506030E 6 6 30 80 0~-0.030 h5 6 SEME7508030 8 8 30 80 0~-0.030 h5 6 SEME7508030 8 8 30 80 0~-0.030 h5 6 SEME7508030E 8 8 30 80 0~-0.030 h5 6 SEME7508035 8 8 35 90 0~-0.030 h5 6 SEME7508035 8 8 35 90 0~-0.030 h5 6 SEME7508035E 8 8 35 90 0~-0.030 h5 6 SEME7508040 8 8 40 90 0~-0.030 h5 6 SEME7508040 8 8 40 90 0~-0.030 h5 6 SEME7508040E 8 8 40 90 0~-0.030 h5 6 SEME7510030 10 10 30 80 0~-0.030 h5 6 SEME7510030 10 10 30 80 0~-0.030 h5 6 SEME7510030E 10 10 30 80 0~-0.030 h5 6 SEME7510040 10 10 40 90 0~-0.030 h5 6 SEME7510040 10 10 40 90 0~-0.030 h5 6 SEME7510040E 10 10 40 90 0~-0.030 h5 6 SEME7510050 10 10 50 100 0~-0.030 h5 6 SEME7510050 10 10 50 100 0~-0.030 h5 6 SEME7510050E 10 10 50 100 0~-0.030 h5 6 SEME7512040 12 12 40 90 0~-0.030 h5 6 SEME7512040 12 12 40 90 0~-0.030 h5 6 SEME7512040E 12 12 40 90 0~-0.030 h5 6 SEME7512050 12 12 50 100 0~-0.030 h5 6 SEME7512050 12 12 50 100 0~-0.030 h5 6 SEME7512050E 12 12 50 100 0~-0.030 h5 6 SEME7512060 12 12 60 110 0~-0.030 h5 6 SEME7512060 12 12 60 110 0~-0.030 h5 6 SEME7512060E 12 12 60 110 0~-0.030 h5 6 SEME7516050 16 16 50 110 0~-0.030 h5 6 SEME7516050 16 16 50 110 0~-0.030 h5 6 SEME7516050E 16 16 50 110 0~-0.030 h5 6 SEME7516060 16 16 60 120 0~-0.030 h5 6 SEME7516060 16 16 60 120 0~-0.030 h5 6 SEME7516060E 16 16 60 120 0~-0.030 h5 6 SEME7516090 16 16 90 150 0~-0.030 h5 6 SEME7516090 16 16 90 150 0~-0.030 h5 6 SEME7516090E 16 16 90 150 0~-0.030 h5 6 SEME7520060 20 20 60 120 0~-0.030 h5 6 SEME7520060 20 20 60 120 0~-0.030 h5 6 SEME7520060E 20 20 60 120 0~-0.030 h5 6 SEME7520070 20 20 70 130 0~-0.030 h5 6 SEME7520070 20 20 70 130 0~-0.030 h5 6 SEME7520070E 20 20 70 130 0~-0.030 h5 6 SEME7520090 20 20 90 150 0~-0.030 h5 6 SEME75160110 16 16 110 200 0~-0.030 h5 6 SEME75160110 16 16 110 200 0~-0.030 h5 6 SEME75160110E 16 16 110 200 0~-0.030 h5 6 SEME75200110 20 20 110 200 0~-0.030 h5 6 SEME75200110 20 20 110 200 0~-0.030 h5 6 SEME75200110E 20 20 110 200 0~-0.030 h5 6 SEME7506030110 6 6 30 110 0~-0.030 h5 6 SEME7506030110 6 6 30 110 0~-0.030 h5 6 SEME7506030110E 6 6 30 110 0~-0.030 h5 6 SEME7508040130 8 8 40 130 0~-0.030 h5 6 SEME7508040130 8 8 40 130 0~-0.030 h5 6 SEME7508040130E 8 8 40 130 0~-0.030 h5 6 SEME7510050150 10 10 50 150 0~-0.030 h5 6 SEME7510050150 10 10 50 150 0~-0.030 h5 6 SEME7510050150E 10 10 50 150 0~-0.030 h5 6 SEME7512060150 12 12 60 150 0~-0.030 h5 6 SEME7512060150 12 12 60 150 0~-0.030 h5 6 SEME7512060150E 12 12 60 150 0~-0.030 h5 6 SEME75160110250 16 16 110 250 0~-0.030 h5 6 SEME75160110250 16 16 110 250 0~-0.030 h5 6 SEME75160110250E 16 16 110 250 0~-0.030 h5 6 SEME75200110250 20 20 110 250 0~-0.030 h5 6 SEME75200110250 20 20 110 250 0~-0.030 h5 6 SEME75200110250E 20 20 110 250 0~-0.030 h5 6 SEME75200110300 20 20 110 300 0~-0.030 h5 6 SEME75200110300 20 20 110 300 0~-0.030 h5 6 SEME75200110300E 20 20 110 300 0~-0.030 h5 6

Video

Operation

Side Milling
Small Part
Facing
Trochoidal

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand
