Code: SEMD99002002E
Made in South Korea
| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| SEMD99002002E | 0.2 | R0.02 | 40.0 | 4.0 | 0.4 | 5 days | $89.40 | ||
| SEMD99003002E | 0.3 | R0.02 | 40.0 | 4.0 | 0.6 | 5 days | $77.20 | ||
| SEMD99004005E | 0.4 | R0.05 | 40.0 | 4.0 | 0.8 | 5 days | $77.20 | ||
| SEMD9900501E | 0.5 | R0.1 | 40.0 | 4.0 | 1.0 | 5 days | $63.10 | ||
| SEMD99006005E | 0.6 | R0.05 | 40.0 | 4.0 | 1.2 | 5 days | $63.10 | ||
| SEMD9900701E | 0.7 | R0.1 | 40.0 | 4.0 | 1.4 | 5 days | $63.10 | ||
| SEMD99008005E | 0.8 | R0.05 | 40.0 | 4.0 | 1.6 | 5 days | $63.10 | ||
| SEMD99009005E | 0.9 | R0.05 | 40.0 | 4.0 | 1.8 | 5 days | $63.10 | ||
| SEMD99010034SE | 1 | R0.3 | 50.0 | 4.0 | 2.5 | 5 days | - | ||
| SEMD99012005E | 1.2 | R0.05 | 50.0 | 6.0 | 3.0 | 5 days | $59.50 | ||
| SEMD9901501E | 1.5 | R0.1 | 50.0 | 6.0 | 4.0 | 5 days | $70.30 | ||
| SEMD9902001E | 2 | R0.1 | 50.0 | 6.0 | 6.0 | 5 days | $59.50 | ||
| SEMD9902502E | 2.5 | R0.2 | 60.0 | 6.0 | 7.0 | 5 days | $62.00 | ||
| SEMD9903002E | 3 | R0.2 | 60.0 | 6.0 | 8.0 | 5 days | $62.00 | ||
| SEMD9903501E | 3.5 | R0.1 | 70.0 | 6.0 | 10.0 | 5 days | $64.20 | ||
| SEMD99040014SE | 4 | R0.1 | 70.0 | 4.0 | 10.0 | 5 days | $63.10 | ||
| SEMD9904501E | 4.5 | R0.1 | 80.0 | 6.0 | 11.0 | 5 days | $66.70 | ||
| SEMD9905002E | 5 | R0.2 | 90.0 | 6.0 | 13.0 | 5 days | $69.70 | ||
| SEMD9905501E | 5.5 | R0.1 | 90.0 | 6.0 | 13.0 | 5 days | $69.70 | ||
| SEMD9906002060E | 6 | R0.2 | 60.0 | 6.0 | 15.0 | 5 days | $62.00 | ||
| SEMD9907002E | 7 | R0.2 | 90.0 | 8.0 | 16.0 | 5 days | $107.40 | ||
| SEMD9908003070E | 8 | R0.3 | 70.0 | 8.0 | 20.0 | 5 days | $99.30 | ||
| SEMD9910005075E | 10 | R0.5 | 75.0 | 10.0 | 25.0 | 5 days | $130.60 | ||
| SEMD9911002E | 11 | R0.2 | 110.0 | 12.0 | 25.0 | 5 days | $198.20 | ||
| SEMD9912005080E | 12 | R0.5 | 80.0 | 12.0 | 30.0 | 5 days | $176.50 | ||
| SEMD9914005E | 14 | R0.5 | 150.0 | 16.0 | 35.0 | 5 days | $404.50 | ||
| SEMD9916005E | 16 | R0.5 | 150.0 | 16.0 | 32.0 | 5 days | $476.90 | ||
| SEMD9920005E | 20 | R0.5 | 150.0 | 20.0 | 38.0 | 5 days | $612.30 |
Add CARBIDE, 2 FLUTE CORNER RADIUS (SEMD99) to comparison

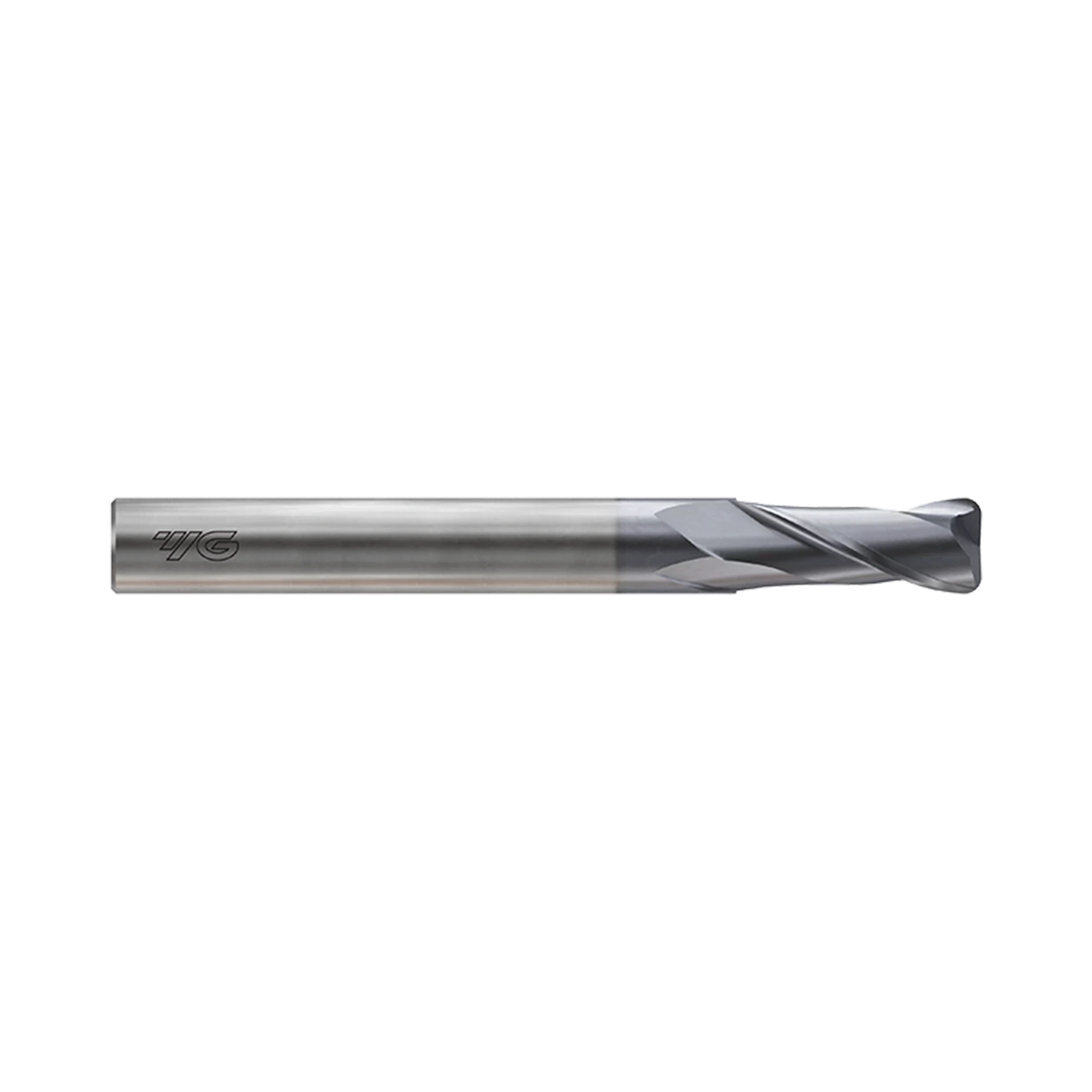

View ComparisonThe SEMD99 series 2 flute slot drill range is available in diameters ranging from 0.2-20mm with a huge range of lengths and corner radii. The 4G Mill range from YG-1 offers unbeatable performance and accuracy in high speed machining of all carbon or alloy steels, pre-hardened steels (up to HRc55), stainless steel and cast iron. The micrograin carbide substrate and Y1200 coating offers extreme cutting life in temperatures up to 1,200°C.
| Workpiece Material | P K H |
| Corner Radius Tolerance | 0.01, 0.015 |
| Cutting Shape | Corner Radius |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Square 30 |
| Length | Regular |
| No. Flutes | 2 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | Corner Radius |
| Size Min | D0.2 |
| Size Max | D20.0 |
| Length | - |
| Coating | Y-Coating |
Carbide End Mills for High Speed & High Accuracy Machining
