Dream Drill 3xD without Coolant Hole, STUB, Straight Shank Type (DH404)

New

Dream Drill 3xD without Coolant Hole, STUB, Straight Shank Type (DH404)

Product Code: DH404

YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND MG Tool Material: MG YG-1 LEGEND DIN 6539 Tool Standard: DIN 6539 YG-1 LEGEND HELIX 30 Helix Angle: 30° YG-1 LEGEND OD_Tol_h7 Tolerance Grade: H7 YG-1 LEGEND SHANK H6 Shank Type: H6

Buy Local

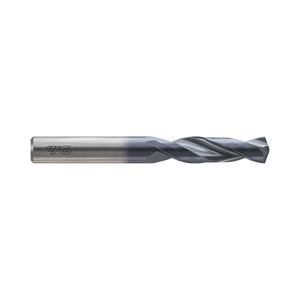

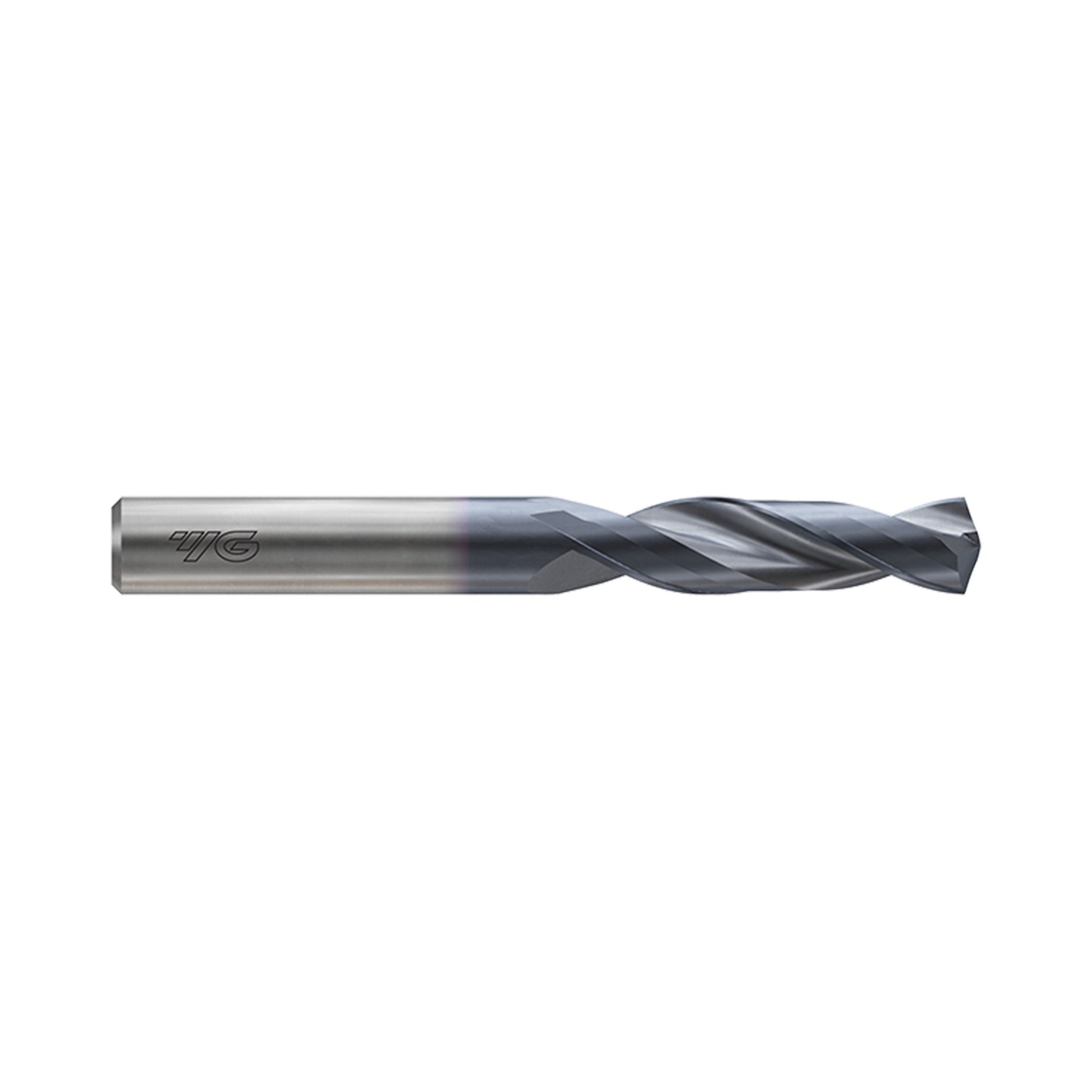

The YG-1 DH404 General Carbide Dream Drills are a stub length drill designed for high performance drilling of Steel up to HRc45 and Cast Iron. These self centering drills can drill to a h7 tolerance which eliminates any reaming operations. Diameters range from 3-20mm and they are supplied with parallel shanks.

  • Micrograin Carbide Substrate
  • TiAlN Coated High Performance Drill
  • 3xD Stub Length
  • Self Centering with 140 degree Drill Point
  • High Performance Drilling on Steel
  • Eliminates Reaming Operations
  • Also Suitable for Stainless Steel Drilling

Specifications

Drilling Depth 3XD
Length STUB
Size Min D3.0
Size Max D20.0
Coating TiAIN



Product Data
Workpiece Material P M K
Helix Angle 30
Operation Blind Drilling, Through Drilling
Shank Type Plain H6
Surface Treatment Titanium Aluminium Nitride Coating
Tolerance Grade H7
Tool Material MG
Tool Standard DIN 6539
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add Dream Drill 3xD without Coolant Hole, STUB, Straight Shank Type (DH404) to comparison

View Comparison

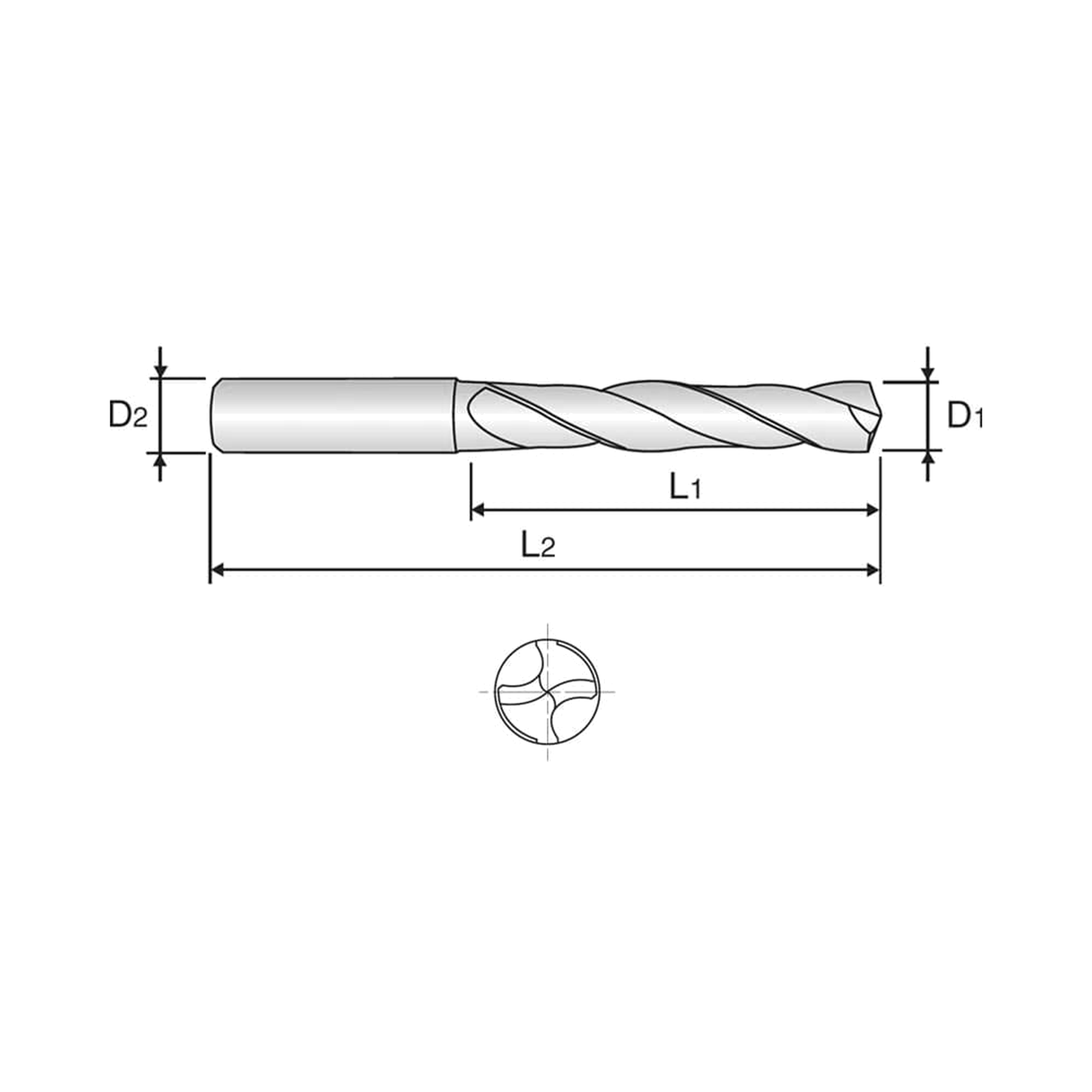

EDP No. OutsideDia Connection Size FluteLength OverAllLength Drilling Depth

Video

Operation

Blind Drilling
Through Drilling

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P High Alloy Steels

Great

Good Great Excellent
P High Carbon Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Tool Steels

Great

Good Great Excellent
M Structural & Low Carbon Steels

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
