Dream Drill 5xD without Coolant Hole, Long, End Mill Shank Type (DH424)

New

Dream Drill 5xD without Coolant Hole, Long, End Mill Shank Type (DH424)

Product Code: DH424

Quantity

Buy Local

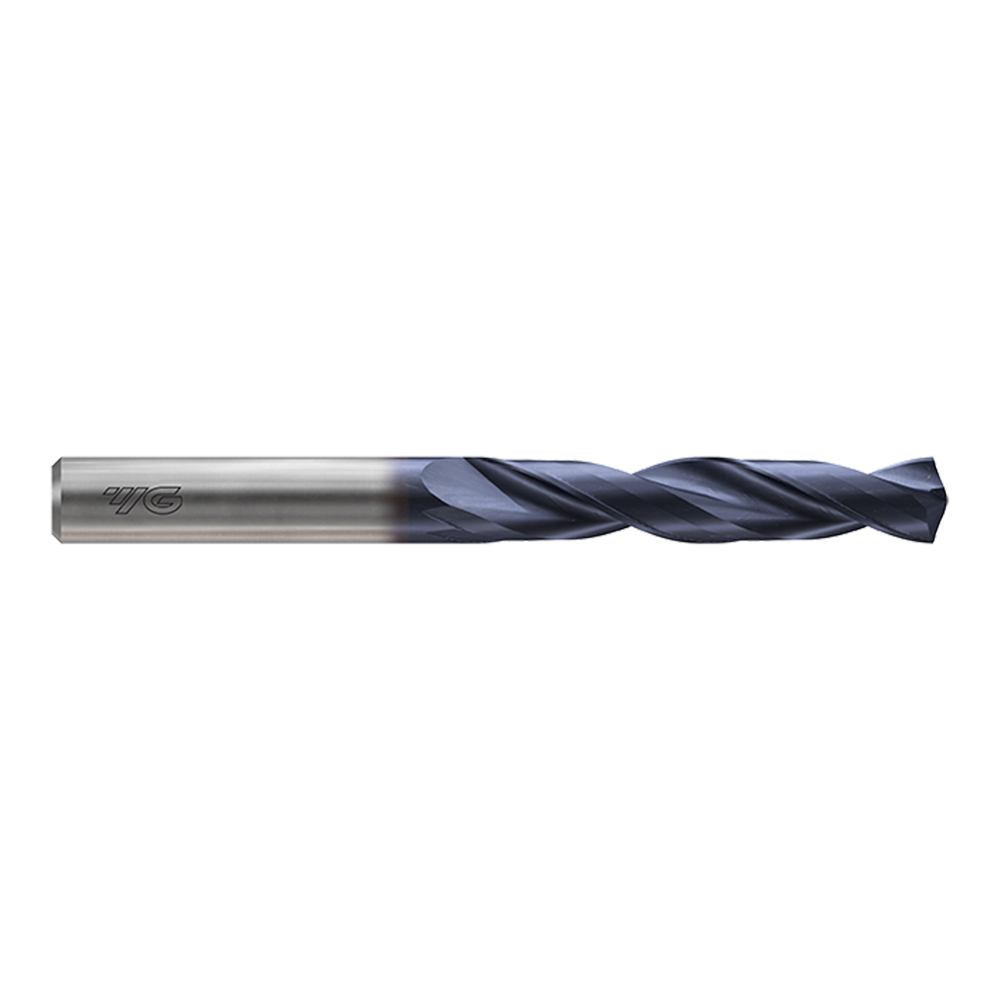

The YG-1 DH424 General Carbide Dream Drills are a stub length drill designed for high performance drilling of Steel up to HRc45 and Cast Iron. These self centering drills can drill to a h7 tolerance which eliminates any reaming operations. Diameters range from 1-20mm and they are supplied with parallel shanks.

Micrograin Carbide Substrate
TiAlN Coated High Performance Drill
5xD Stub Length
Self Centering with 140 degree Drill Point
High Performance Drilling on Steel
Eliminates Reaming Operations
Also Suitable for Stainless Steel Drilling

Specifications

Drilling Depth	5XD
Length	LONG
Size Min	D1.0
Size Max	D20.0
Coating	TiAIN

Product Data

Workpiece Material	P M K
Helix Angle	30
Operation	Blind Drilling, Through Drilling
Shank Type	Plain H6
Surface Treatment	Titanium Aluminium Nitride Coating
Tool Standard	DIN 6537

Made in South Korea

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add Dream Drill 5xD without Coolant Hole, Long, End Mill Shank Type (DH424) to comparison

View Comparison

Specifications Video Operation Work Material

EDP No. OutsideDia Connection Size FluteLength OverAllLength DH424004F 1.588 3 16 55 DH424005F 1.984 3 16 55 DH424006F 2.381 4 21 57 DH424007F 2.778 4 21 57 DH424008F 3.175 6 28 66 DH424009F 3.572 6 28 66 DH424010 1 3 8 55 DH424010 1 3 8 55 DH424010F 3.969 6 36 74 DH424011 1.1 3 12 55 DH424011 1.1 3 12 55 DH424011F 4.366 6 36 74 DH424012 1.2 3 12 55 DH424012 1.2 3 12 55 DH424012F 4.763 6 44 82 DH424013 1.3 3 12 55 DH424013 1.3 3 12 55 DH424013F 5.159 6 44 82 DH424014 1.4 3 12 55 DH424014 1.4 3 12 55 DH424014F 5.556 6 44 82 DH424015 1.5 3 16 55 DH424015 1.5 3 16 55 DH424015F 5.953 8 44 82 DH424016 1.6 3 16 55 DH424016 1.6 3 16 55 DH424016F 6.35 8 53 91 DH424017 1.7 3 16 55 DH424017 1.7 3 16 55 DH424017F 6.747 8 53 91 DH424018 1.8 3 16 55 DH424018 1.8 3 16 55 DH424018F 7.144 8 53 91 DH424019 1.9 3 16 55 DH424019 1.9 3 16 55 DH424019F 7.541 8 53 91 DH424020 2 4 21 57 DH424020 2 4 21 57 DH424020F 7.938 8 53 91 DH424021 2.1 4 21 57 DH424021 2.1 4 21 57 DH424021F 8.334 10 61 103 DH424022 2.2 4 21 57 DH424022 2.2 4 21 57 DH424022F 8.731 10 61 103 DH424023 2.3 4 21 57 DH424023 2.3 4 21 57 DH424023F 9.128 10 61 103 DH424024 2.4 4 21 57 DH424024 2.4 4 21 57 DH424024F 9.525 10 61 103 DH424025 2.5 4 21 57 DH424025 2.5 4 21 57 DH424025F 9.922 10 61 103 DH424026 2.6 4 21 57 DH424026 2.6 4 21 57 DH424026F 10.319 12 71 118 DH424027 2.7 4 21 57 DH424027 2.7 4 21 57 DH424027F 10.716 12 71 118 DH424028 2.8 4 21 57 DH424028 2.8 4 21 57 DH424028F 11.113 12 71 118 DH424029 2.9 4 21 57 DH424029 2.9 4 21 57 DH424029F 11.509 12 71 118 DH424030 3 6 28 66 DH424030F 11.906 12 71 118 DH424030K 3 6 28 66 DH424031 3.1 6 28 66 DH424031F 12.303 14 77 124 DH424031K 3.1 6 28 66 DH424032 3.2 6 28 66 DH424032 3.2 6 28 66 DH424032F 12.7 14 77 124 DH424033 3.3 6 28 66 DH424033K 3.3 6 28 66 DH424034 3.4 6 28 66 DH424034K 3.4 6 28 66 DH424035 3.5 6 28 66 DH424035K 3.5 6 28 66 DH424036 3.6 6 28 66 DH424036F 14.288 16 83 133 DH424036K 3.6 6 28 66 DH424037 3.7 6 28 66 DH424037K 3.7 6 28 66 DH424038 3.8 6 36 74 DH424038K 3.8 6 36 74 DH424039 3.9 6 36 74 DH424039K 3.9 6 36 74 DH424040 4 6 36 74 DH424040F 15.875 16 83 133 DH424040K 4 6 36 74 DH424041 4.1 6 36 74 DH424041K 4.1 6 36 74 DH424042 4.2 6 36 74 DH424042K 4.2 6 36 74 DH424043 4.3 6 36 74 DH424043K 4.3 6 36 74 DH424044 4.4 6 36 74 DH424044K 4.4 6 36 74 DH424045 4.5 6 36 74 DH424045K 4.5 6 36 74 DH424046 4.6 6 36 74 DH424046 4.6 6 36 74 DH424047 4.7 6 36 74 DH424047K 4.7 6 36 74 DH424048 4.8 6 44 82 DH424048F 19.05 20 101 153 DH424048K 4.8 6 44 82 DH424049 4.9 6 44 82 DH424049K 4.9 6 44 82 DH424050 5 6 44 82 DH424050K 5 6 44 82 DH424051 5.1 6 44 82 DH424051 5.1 6 44 82 DH424052 5.2 6 44 82 DH424052K 5.2 6 44 82 DH424053 5.3 6 44 82 DH424053K 5.3 6 44 82 DH424054 5.4 6 44 82 DH424054K 5.4 6 44 82 DH424055 5.5 6 44 82 DH424055K 5.5 6 44 82 DH424056 5.6 6 44 82 DH424056K 5.6 6 44 82 DH424057 5.7 6 44 82 DH424057K 5.7 6 44 82 DH424058 5.8 6 44 82 DH424058K 5.8 6 44 82 DH424059 5.9 6 44 82 DH424059K 5.9 6 44 82 DH424060 6 6 44 82 DH424060K 6 6 44 82 DH424061 6.1 8 53 91 DH424061K 6.1 8 53 91 DH424062 6.2 8 53 91 DH424062K 6.2 8 53 91 DH424063 6.3 8 53 91 DH424063 6.3 8 53 91 DH424064 6.4 8 53 91 DH424064K 6.4 8 53 91 DH424065 6.5 8 53 91 DH424065K 6.5 8 53 91 DH424066 6.6 8 53 91 DH424066K 6.6 8 53 91 DH424067 6.7 8 53 91 DH424067K 6.7 8 53 91 DH424068 6.8 8 53 91 DH424068K 6.8 8 53 91 DH424069 6.9 8 53 91 DH424069K 6.9 8 53 91 DH424070 7 8 53 91 DH424070K 7 8 53 91 DH424071 7.1 8 53 91 DH424071K 7.1 8 53 91 DH424072 7.2 8 53 91 DH424072 7.2 8 53 91 DH424073 7.3 8 53 91 DH424073K 7.3 8 53 91 DH424074 7.4 8 53 91 DH424074K 7.4 8 53 91 DH424075 7.5 8 53 91 DH424075K 7.5 8 53 91 DH424076 7.6 8 53 91 DH424076K 7.6 8 53 91 DH424077 7.7 8 53 91 DH424077 7.7 8 53 91 DH424078 7.8 8 53 91 DH424078K 7.8 8 53 91 DH424079 7.9 8 53 91 DH424079K 7.9 8 53 91 DH424080 8 8 53 91 DH424080K 8 8 53 91 DH424081 8.1 10 61 103 DH424081 8.1 10 61 103 DH424082 8.2 10 61 103 DH424082K 8.2 10 61 103 DH424083 8.3 10 61 103 DH424083K 8.3 10 61 103 DH424084 8.4 10 61 103 DH424084 8.4 10 61 103 DH424085 8.5 10 61 103 DH424085 8.5 10 61 103 DH424086 8.6 10 61 103 DH424086K 8.6 10 61 103 DH424087 8.7 10 61 103 DH424087 8.7 10 61 103 DH424088 8.8 10 61 103 DH424088K 8.8 10 61 103 DH424089 8.9 10 61 103 DH424089 8.9 10 61 103 DH424090 9 10 61 103 DH424090K 9 10 61 103 DH424091 9.1 10 61 103 DH424091 9.1 10 61 103 DH424092 9.2 10 61 103 DH424092K 9.2 10 61 103 DH424093 9.3 10 61 103 DH424093K 9.3 10 61 103 DH424094 9.4 10 61 103 DH424094 9.4 10 61 103 DH424095 9.5 10 61 103 DH424095K 9.5 10 61 103 DH424096 9.6 10 61 103 DH424096 9.6 10 61 103 DH424097 9.7 10 61 103 DH424097 9.7 10 61 103 DH424098 9.8 10 61 103 DH424098 9.8 10 61 103 DH424099 9.9 10 61 103 DH424099K 9.9 10 61 103 DH424100 10 10 61 103 DH424100K 10 10 61 103 DH424101 10.1 12 71 118 DH424101 10.1 12 71 118 DH424102 10.2 12 71 118 DH424102K 10.2 12 71 118 DH424103 10.3 12 71 118 DH424103K 10.3 12 71 118 DH424104 10.4 12 71 118 DH424104 10.4 12 71 118 DH424105 10.5 12 71 118 DH424105 10.5 12 71 118 DH424106 10.6 12 71 118 DH424106 10.6 12 71 118 DH424107 10.7 12 71 118 DH424107 10.7 12 71 118 DH424108 10.8 12 71 118 DH424108K 10.8 12 71 118 DH424109 10.9 12 71 118 DH424109 10.9 12 71 118 DH424110 11 12 71 118 DH424110 11 12 71 118 DH424111 11.1 12 71 118 DH424111 11.1 12 71 118 DH424112 11.2 12 71 118 DH424112 11.2 12 71 118 DH424113 11.3 12 71 118 DH424113 11.3 12 71 118 DH424114 11.4 12 71 118 DH424114 11.4 12 71 118 DH424115 11.5 12 71 118 DH424115 11.5 12 71 118 DH424116 11.5 12 71 118 DH424116 11.5 12 71 118 DH424117 11.7 12 71 118 DH424117 11.7 12 71 118 DH424118 11.8 12 71 118 DH424118K 11.8 12 71 118 DH424119 11.9 12 71 118 DH424119K 11.9 12 71 118 DH424120 12 12 71 118 DH424120 12 12 71 118 DH424121 12.1 14 77 124 DH424122 12.2 14 77 124 DH424123 12.3 14 77 124 DH424123 12.3 14 77 124 DH424124 12.4 14 77 124 DH424125 12.5 14 77 124 DH424125 12.5 14 77 124 DH424126 12.6 14 77 124 DH424127 12.7 14 77 124 DH424128 12.8 14 77 124 DH424128 12.8 14 77 124 DH424129 12.9 14 77 124 DH424130 13 14 77 124 DH424130K 13 14 77 124 DH424131 13.1 14 77 124 DH424132 13.2 14 77 124 DH424133 13.3 14 77 124 DH424134 13.4 14 77 124 DH424135 13.5 14 77 124 DH424135 13.5 14 77 124 DH424136 13.6 14 77 124 DH424137 13.7 14 77 124 DH424138 13.8 14 77 124 DH424138 13.8 14 77 124 DH424139 13.9 14 77 124 DH424140 14 14 77 124 DH424140K 14 14 77 124 DH424141 14.1 16 83 133 DH424142 14.2 16 83 133 DH424143 14.3 16 83 133 DH424144 14.4 16 83 133 DH424145 14.5 16 83 133 DH424145K 14.5 16 83 133 DH424146 14.6 16 83 133 DH424147 14.7 16 83 133 DH424148 14.8 16 83 133 DH424148 14.8 16 83 133 DH424149 14.9 16 83 133 DH424150 15 16 83 133 DH424150K 15 16 83 133 DH424151 15.1 16 83 133 DH424152 15.2 16 83 133 DH424153 15.3 16 83 133 DH424154 15.4 16 83 133 DH424155 15.5 16 83 133 DH424155 15.5 16 83 133 DH424156 15.6 16 83 133 DH424157 15.7 16 83 133 DH424158 15.8 16 83 133 DH424158 15.8 16 83 133 DH424159 15.9 16 83 133 DH424160 16 16 83 133 DH424160K 16 16 83 133 DH424161K 16.1 18 93 143 DH424162K 16.2 18 93 143 DH424163K 16.3 18 93 143 DH424164 16.4 18 93 143 DH424165 16.5 18 93 143 DH424165K 16.5 18 93 143 DH424166 16.6 18 93 143 DH424167 16.7 18 93 143 DH424168 16.8 18 93 143 DH424168K 16.8 18 93 143 DH424169 16.9 18 93 143 DH424170 17 18 93 143 DH424170K 17 18 93 143 DH424171 17.1 18 93 143 DH424172K 17.2 18 93 143 DH424173 17.3 18 93 143 DH424174 17.4 18 93 143 DH424175 17.5 18 93 143 DH424175K 17.5 18 93 143 DH424176 17.6 18 93 143 DH424177 17.7 18 93 143 DH424178 17.8 18 93 143 DH424178 17.8 18 93 143 DH424179 17.9 18 93 143 DH424180 18 18 93 143 DH424180K 18 18 93 143 DH424181 18.1 20 101 153 DH424182K 18.2 20 101 153 DH424183 18.3 20 101 153 DH424184 18.4 20 101 153 DH424185 18.5 20 101 153 DH424185K 18.5 20 101 153 DH424186 18.6 20 101 153 DH424187 18.7 20 101 153 DH424188 18.8 20 101 153 DH424189 18.9 20 101 153 DH424190 19 20 101 153 DH424190K 19 20 101 153 DH424191 19.1 20 101 153 DH424192K 19.2 20 101 153 DH424193 19.3 20 101 153 DH424194 19.4 20 101 153 DH424195 19.5 20 101 153 DH424195 19.5 20 101 153 DH424196 19.6 20 101 153 DH424197 19.7 20 101 153 DH424198 19.8 20 101 153 DH424198 19.8 20 101 153 DH424199 19.9 20 101 153 DH424200 20 20 101 153 DH424200K 20 20 101 153

Video

Operation

Blind Drilling

Through Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent

P Alloy Steels

Excellent

Good Great Excellent

P High Alloy Steels

Excellent

Good Great Excellent

P High Carbon Steels

Great

Good Great Excellent

P Structural Steels

Excellent

Good Great Excellent

P Tool Steels

Excellent

Good Great Excellent

M Stainless Steels

Great

Good Great Excellent

K Cast Iron

Great

Good Great Excellent
