New
No. Flutes: 3-5
Chamfer Angle: 45°
Surface Treatment: YG-1 Y Coating
Tool Material: PM 60
Helix Angle: Square 30°
Periphery Type: Roughing - Fine
Shank Type: Flat
Made in South Korea

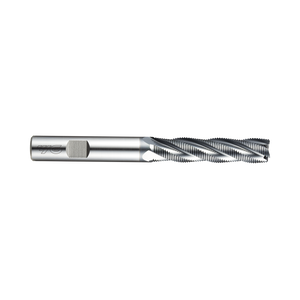

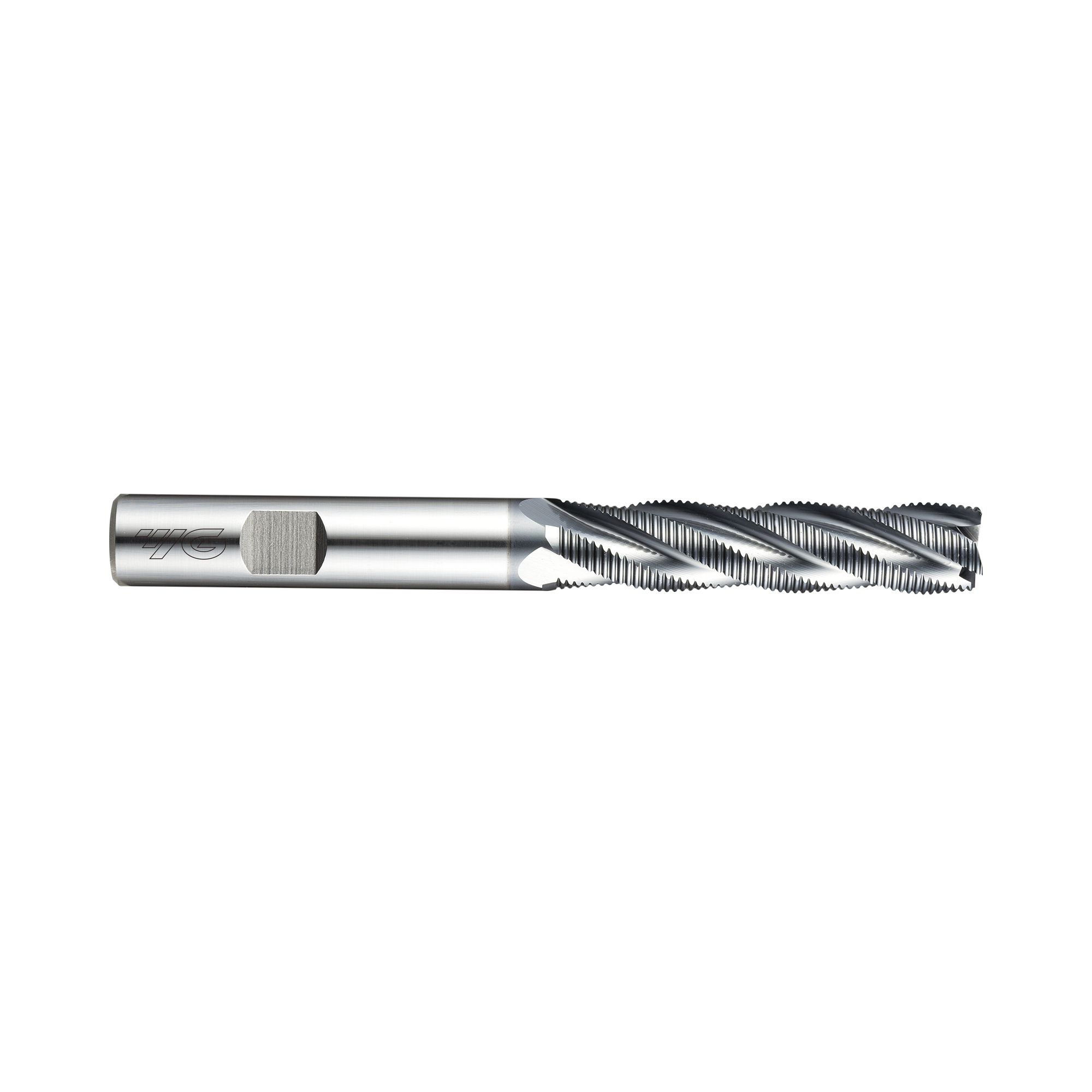

ONLY ONE Multi Flute 30°Helix Long Roughing (Fine) End Mill (GYF98)
Product Code: GYF98
No. Flutes: 3-5
Chamfer Angle: 45°
Surface Treatment: YG-1 Y Coating
Tool Material: PM 60
Helix Angle: Square 30°
Periphery Type: Roughing - Fine
Shank Type: Flat
The YG-1 GYF98 series long length Only One PM60 Powder Metal Cutters have 3-5 flutes and a weldon shank. The fine pitch rippers range in diameter from 6mm-25mm and have a 45° chamfer preparation to protect the cutting edge in demanding roughing operations. They provide excellent performance on stainless steels, pre-hardened steels, carbon steels, alloy steels and cast iron. Ideal for applications where carbide is too brittle, but HSS wears too fast.
- ASP60 Powder Metal substrate gives similar cutting performance and wear resistance to general carbide cutters.
- YG-1's own high performance 'Y1200' coating allows for machining up to 1200°C.
- The most cost effective milling cutters from YG-1 in unstable machining conditions.
- Exceptional tool life and performance on CNC, NC and conventional milling machines in general machining.
- Wide range of geometries including chamfer preps, coarse & fine pitch roughers and multiple helix.
- Available on weldon shanks.
- Fine pitch ripper style is ideal for roughing applications and gives a good surface finish.
Specifications
| Flutes | Multi Flute |
| Helix Angle | 30° |
| Cutting Edge Shape | ROUGHING |
| Size Min | D6.1 |
| Size Max | D25.0 |
| Length | LONG LENGTH (Center Cut) |
| Coating | Y-Coating |
Product Data
| Workpiece Material | P M K |
| Chamfer Angle | 45 |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Square 30 |
| No. Flutes | 3-5 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Periphery Type | Roughing - Fine |
| Shank Type | Flat |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | PM 60 |
Made in South Korea
Add ONLY ONE Multi Flute 30°Helix Long Roughing (Fine) End Mill (GYF98) to comparison
View ComparisonVideo
Operation
Side Milling
Small Part
Slotting
Die Sinking
Facing
Work Material
Carbon Steels
Excellent
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Prehardened Steels
Great
Good
Great
Excellent
Stainless Steels
Excellent
Good
Great
Excellent
Cast Iron
Excellent
Good
Great
Excellent
Hardened Steels (HRc40~45)
Great
Good
Great
Excellent
