Code: GM815020
Made in South Korea

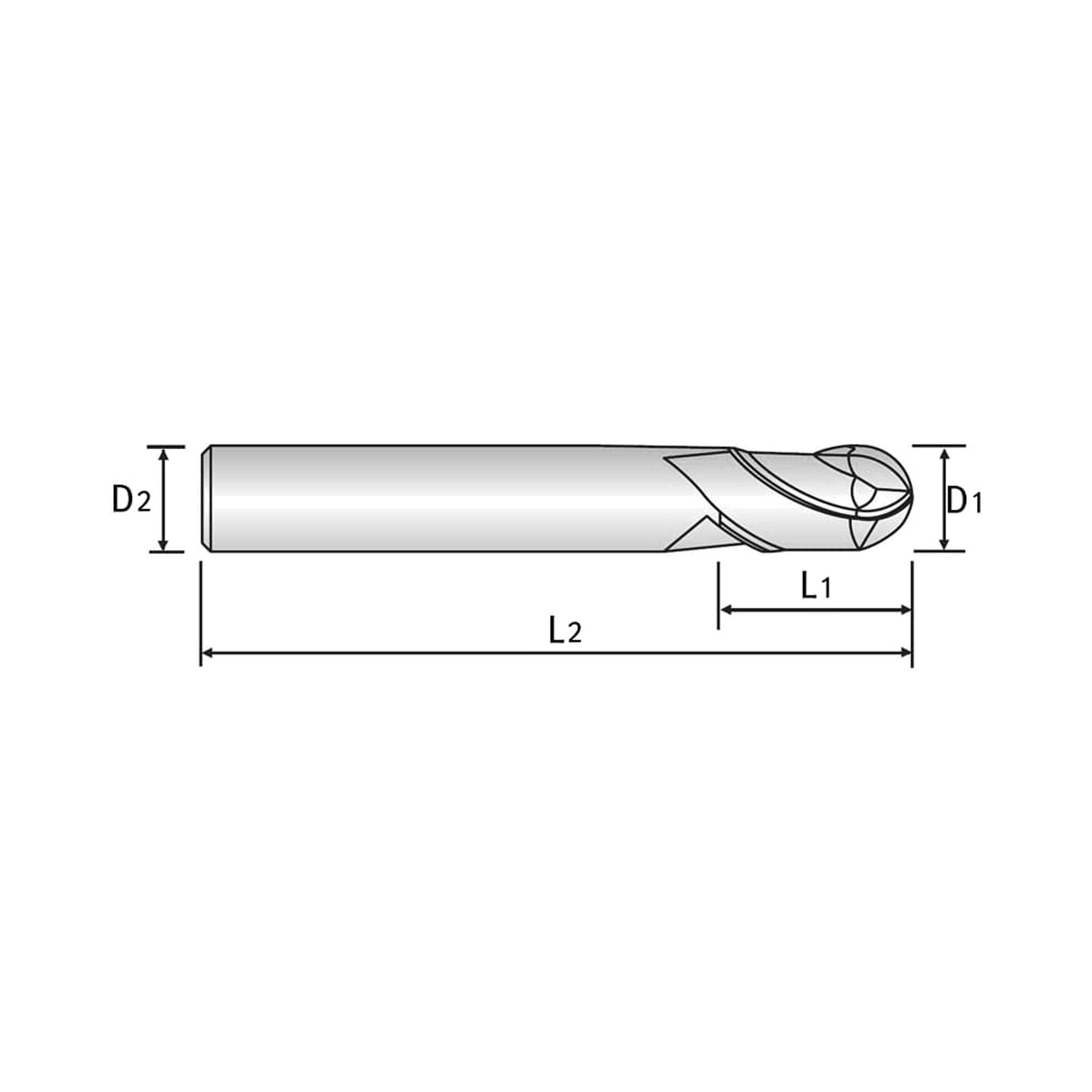

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| GM815020 | 2.0 | R1.0 | 50.0 | 6.0 | 4 | 5.0 | In stock | $65.30 | ||
| GM815030 | 3.0 | R1.5 | 60.0 | 6.0 | 4 | 8.0 | In stock | $65.30 | ||
| GM815040 | 4.0 | R2.0 | 70.0 | 6.0 | 4 | 8.0 | In stock | $67.50 | ||
| GM815050 | 5.0 | R2.5 | 80.0 | 6.0 | 4 | 10.0 | 5 days | - | ||
| GM815060 | 6.0 | R3.0 | 90.0 | 6.0 | 4 | 12.0 | In stock | $73.90 | ||
| GM815080 | 8.0 | R4.0 | 100.0 | 8.0 | 4 | 14.0 | 5 days | $108.80 | ||
| GM815100 | 10.0 | R5.0 | 100.0 | 10.0 | 4 | 18.0 | 5 days | - | ||
| GM815120 | 12.0 | R6.0 | 110.0 | 12.0 | 4 | 22.0 | In stock | $210.60 | ||
| GM815160 | 16.0 | R8.0 | 140.0 | 16.0 | 4 | 30.0 | 5 days | - |

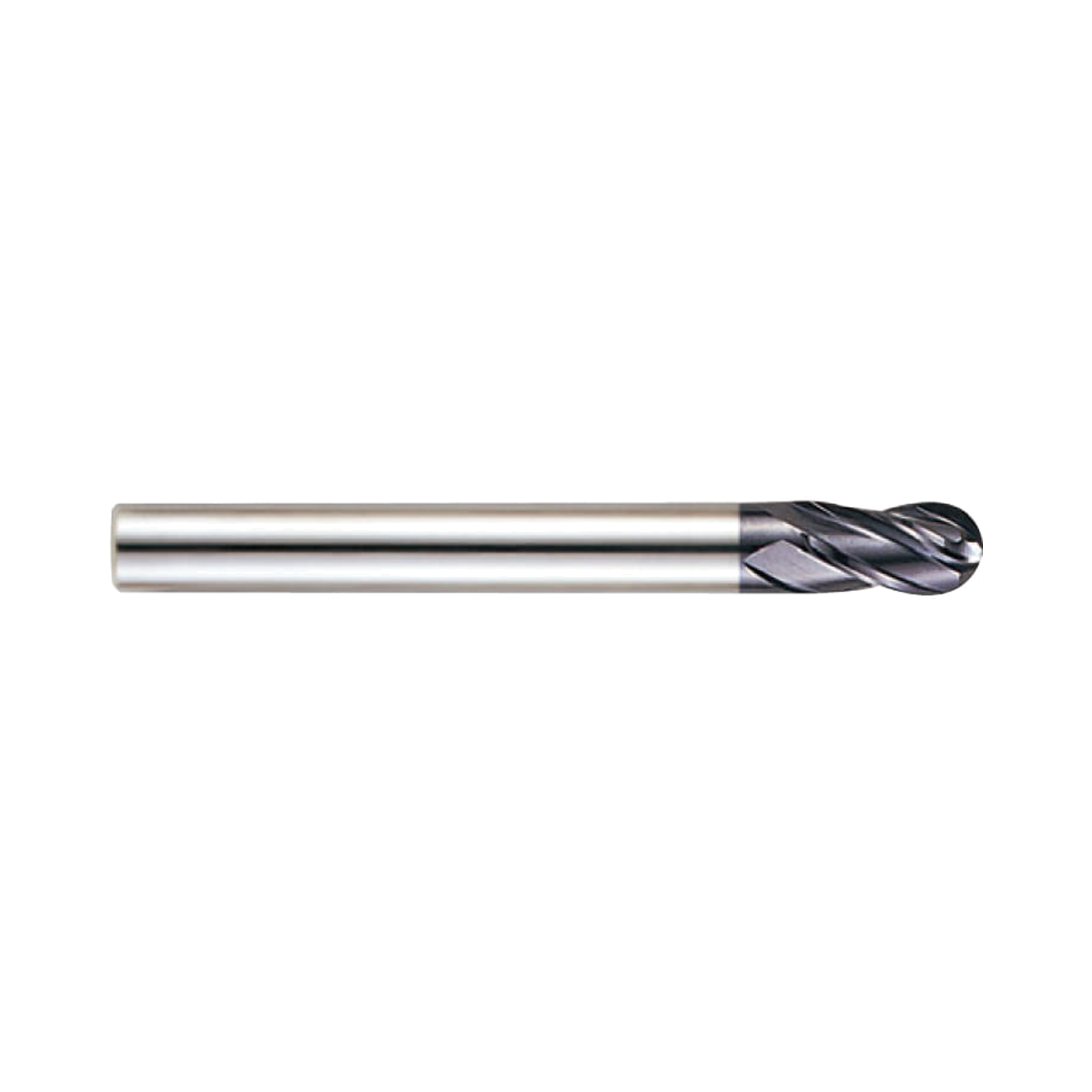

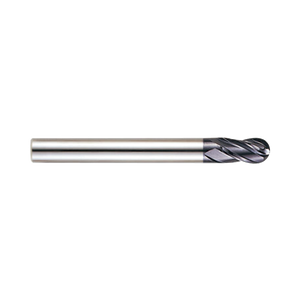

Add (GM815) X-Power Pro Carbide 4Flute Ball Nose End Mill, Long Length to comparison
View ComparisonX-POWER PRO 4 Flute 30° Helix Long End Mill GM815 delivers precise, stable milling. Advanced ‘Z Coating’ with an ultrafine micrograin carbide substrate extends tool life in wet or dry cutting. It machines steels, hardened steels to 55 Rockwell, stainless steel and cast iron with long-reach accuracy. Compared to X-Power, expect 20–30% longer life, over 20% faster cutting, and improved finish across 2–16 mm.
| Workpiece Material | P M K H |
| Ball Radius Tolerance | 0.02 |
| Cutting Shape | Ball Nose |
| Hardened Steels(HRc40~45) | Excellent |
| Helix Angle | Ball Nose 30 |
| Length | Long |
| No. Flutes | 4 |
| Operation | Profiling, Side Milling, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
| Flutes | 4 |
| Helix Angle | 30° |
| Cutting Edge Shape | BALL NOSE |
| Size Min | R1.0 |
| Size Max | R8.0 |
| Length |
Long Length |
| Coating | Y-Coating |
