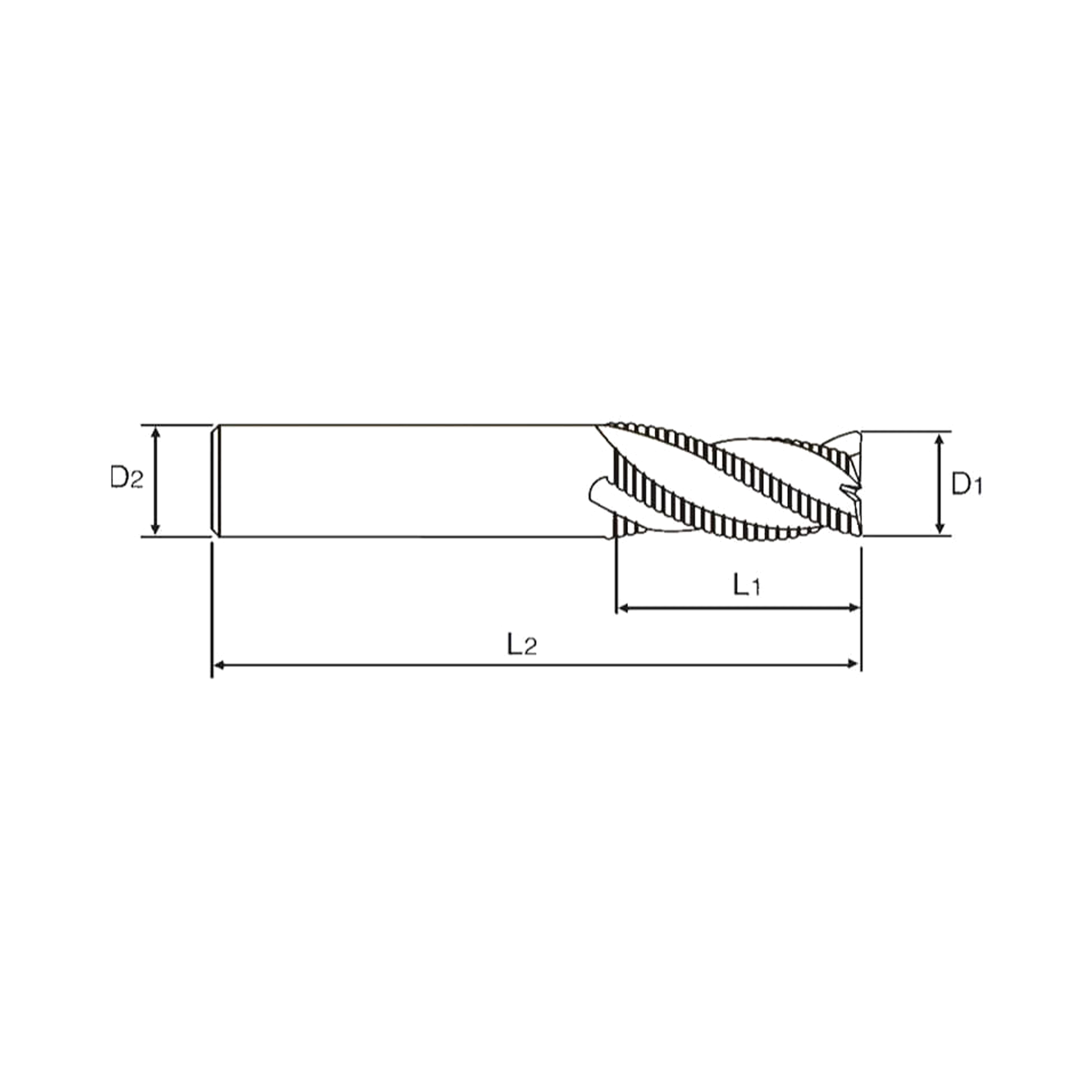

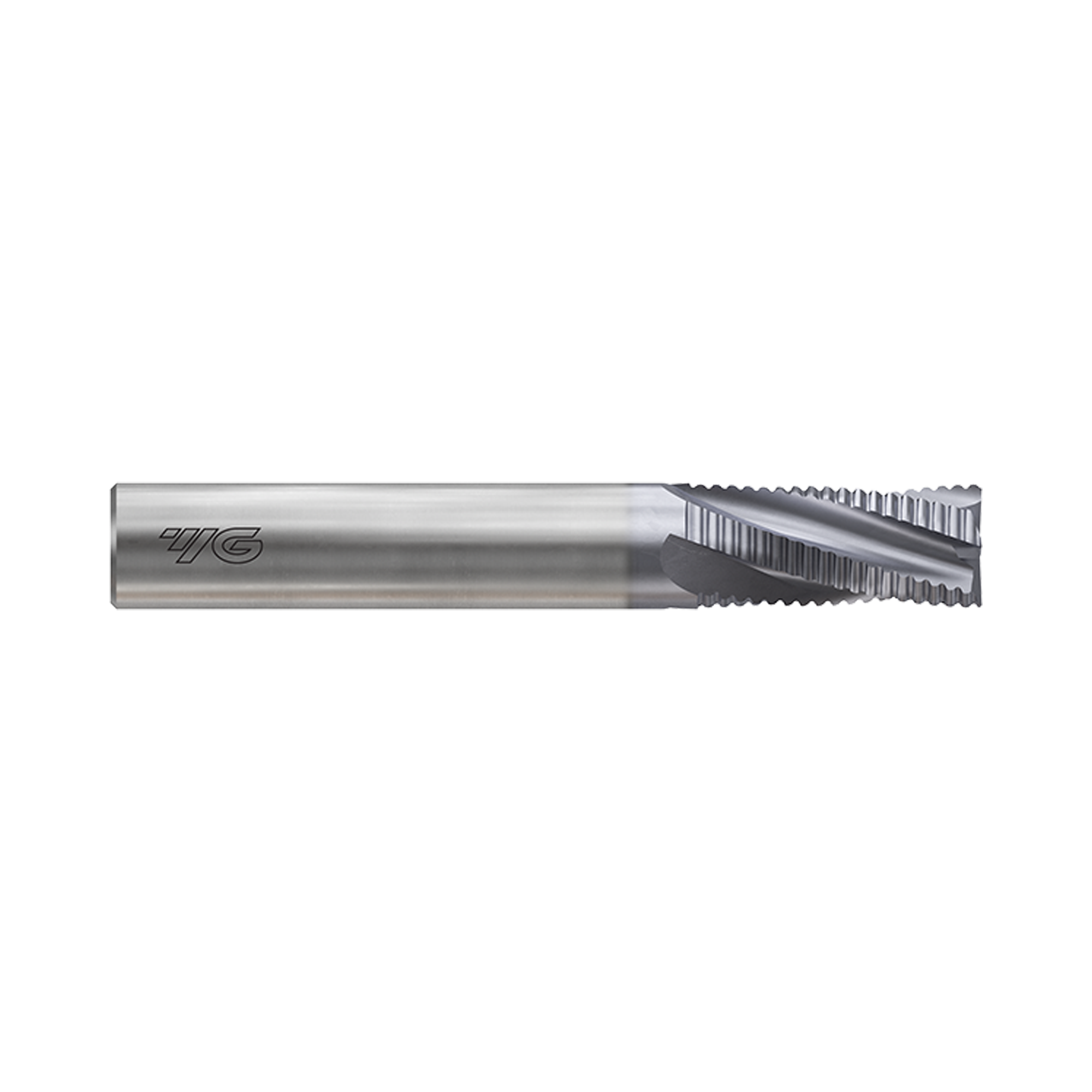

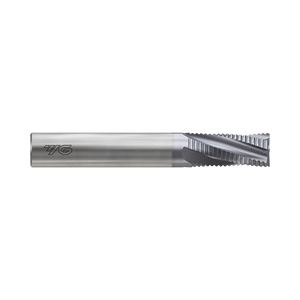

X-POWER PRO Multi Flute 20°Helix Long Roughing End Mill (GM814)
Product Code: GM814
Chamfer Angle: 45°
Surface Treatment: YG-1 Y Coating
Tool Material: Carbide
Helix Angle: Square 20°
Periphery Type: Roughing - Fine
Shank Type: Plain
The YG-1 GM814 series ranges from 6-20mm diameter and has an advanced ‘Z Coating’ with an ultrafine micrograin carbide substrate for exceptional tool life. X-Power Pro milling cutters are suitable for high precision and high speed milling of steels, hardened steels up to 55 Rockwell, stainless steel and cast iron.
- Exceptional performance in high speed milling of steels, hardened steels up to 55 Rockwell, stainless steel and cast iron
- Wet or dry cutting
- Advanced ‘Z Coating’ developed by YG-1 with ultrafine micrograin carbide for exceptional tool life
- Suitable for high precision machining
- Ideal for mould and die, valves, pumps, tool making, automotive and defence industry
- Compared to the original X-Power range, the X-Power pro offers improved tool life by 20-30%, increased cutting speed by over 20% and improved surface finish.
Specifications
| Flutes | 3&4 |
| Helix Angle | 20° |
| Cutting Edge Shape | ROUGHTING |
| Size Min | D6.0 |
| Size Max | D20.0 |
| Length |
Long Length |
| Coating | Y-Coating |
| Workpiece Material | P M K H |
| Chamfer Angle | 45 |
| Hardened Steels(HRc40~45) | Excellent |
| Helix Angle | Square 20 |
| No. Flutes | 3-4 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Periphery Type | Roughing - Fine |
| Shank Type | Plain |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
Made in South Korea
Add X-POWER PRO Multi Flute 20°Helix Long Roughing End Mill (GM814) to comparison
View ComparisonOperation
Work Material
Great
Excellent
Excellent
Great
Great
Excellent
Great
