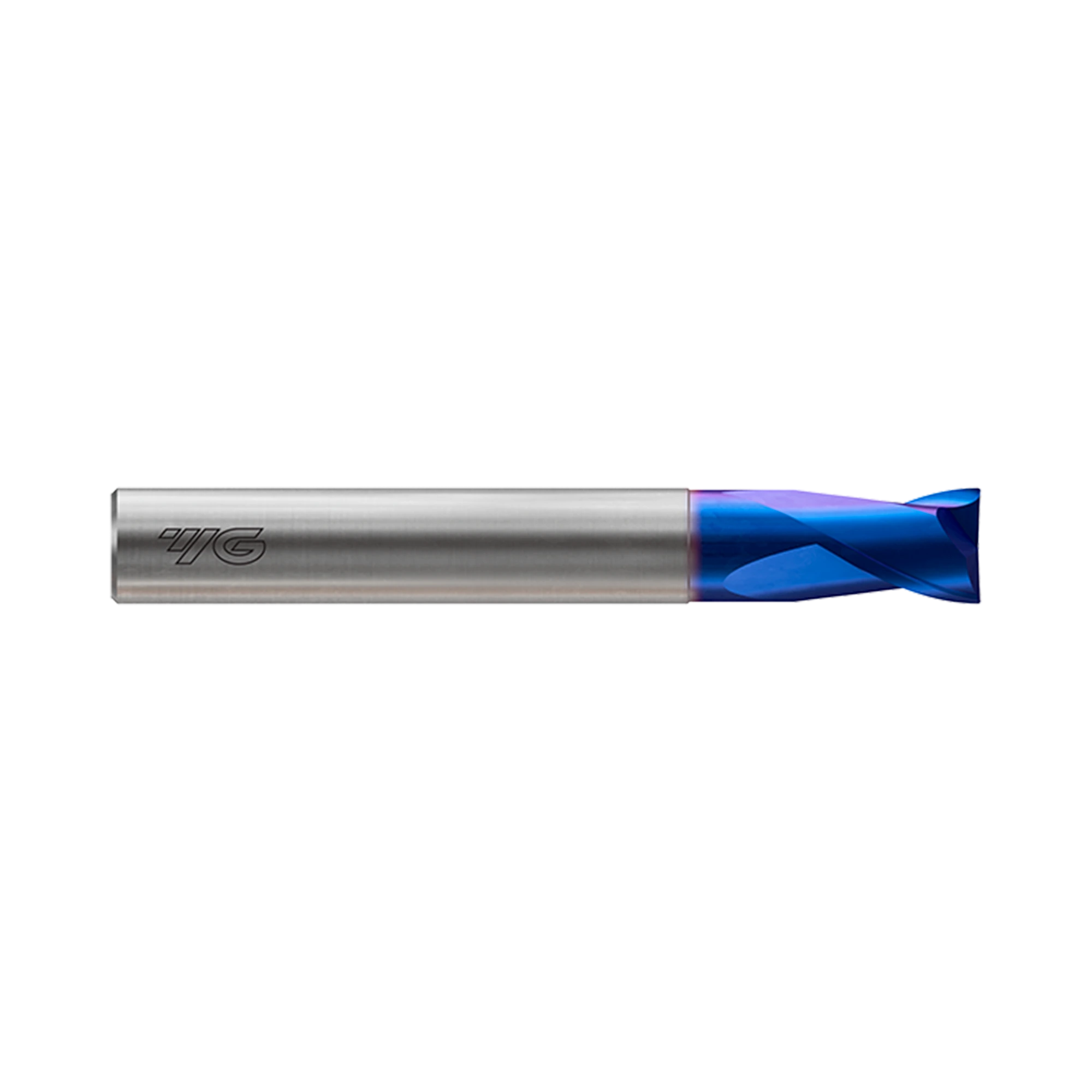

X5070 2 Flute 30°Helix Stub End Mill (G8A36)
Product Code: G8A36
Corner Radius Tolerance: 0.01
Corner Radius Tolerance: 0.015
No. Flutes: 2
Surface Treatment: Blue Coating
Tool Material: Carbide
Helix Angle: Square 30°
Shank Type: Plain

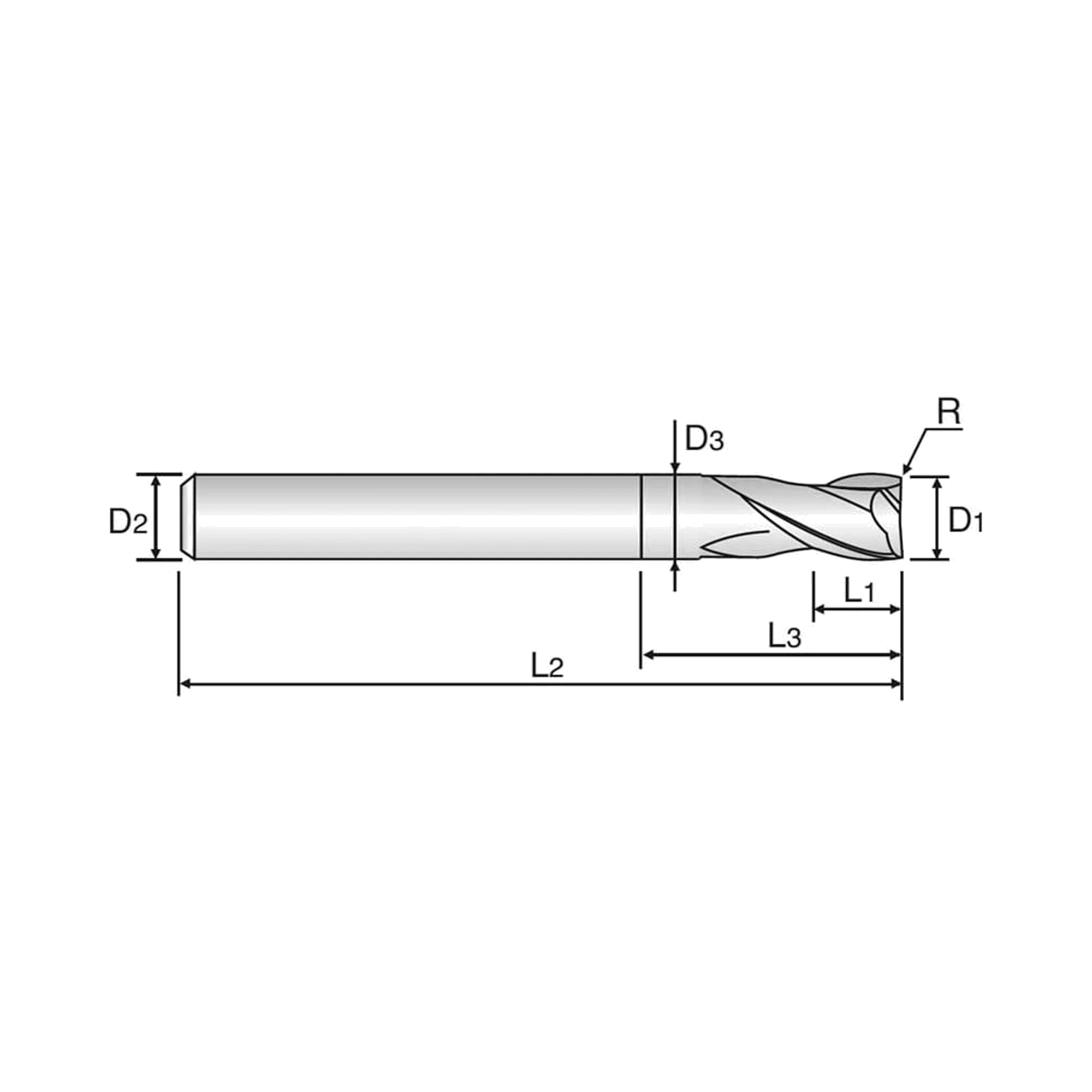

The YG-1 G8A36 series X5070 Blue ultrafine micrograin carbide cutter has 2 flutes and a plain shank. These slot drills have an extended/relieved neck and corner radius. They range in diameter from 0.3mm-16mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.
- Nanograin carbide substrate with blue silicone based coating.
- Dry machining in steels and hardened steeld < HRc70.
- Suitable for machining at extreme cutting speeds.
- High abrasion resistance with a mirror surface finish.
- Strong negative land provides tool strength for high hardness machining.
- Ultimate tool life.
- Can cope with extreme heat (up to 1400°).
- Deep slotting is possible by reduced neck.
- Corner radius for preventing chipping in high speed machining.
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Specifications
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | Corner Radius |
| Size Min | D0.3 |
| Size Max | D20.0 |
| Length | Extended Neck |
| Coating | Blue Coating |
| Workpiece Material | P H |
| Corner Radius Tolerance | 0.01, 0.015 |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Square 30 |
| No. Flutes | 2 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Blue Coating |
| Tool Material | Carbide |
Made in South Korea
Add X5070 2 Flute 30°Helix Stub End Mill (G8A36) to comparison
View ComparisonVideo
Operation
Work Material
Great
Great
Excellent
Excellent
