X5070 4 Flute 30°Helix Stub Corner Radius End Mill (G8A47)

4-Flute Corner-Radius Extended-Neck for HRc45–70

X5070 4 Flute 30°Helix Stub Corner Radius End Mill (G8A47)
$65.72 INC GST $59.75 EX GST
Was $90.31 Save 27%
SKU
G8A47916
Work materials
PH
Tool material Carbide
Surface treatment YG-1 Blue Coating
Mill Diameter (mm)
Corner Radius (mm)
Length Below Shank (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Corner Radius (mm)Length Below Shank (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Neck dia. (mm)CAD filesStock Price Qty Add
G8A479163.0R0.312.055.06.04.02.85STEPDXF In stock $59.75
G8A479173.0R0.316.055.06.04.02.85STEPDXF In stock $59.75
G8A479183.0R0.320.055.06.04.02.85STEPDXF 1-2 Weeks $82.10
G8A470303.0R0.510.055.06.04.02.85– In stock $51.79
G8A479023.0R0.520.055.06.04.02.85STEPDXF Low stock $51.79
G8A479194.0R0.312.055.06.05.03.85STEPDXF In stock $51.79
G8A479214.0R0.320.055.06.05.03.85STEPDXF In stock $43.82
G8A470404.0R0.512.055.06.05.03.85– In stock $59.75
G8A479034.0R0.516.055.06.05.03.85STEPDXF Restocking $82.10
G8A479044.0R0.520.055.06.05.03.85STEPDXF Low stock $82.10
G8A479224.0R1.012.055.06.05.03.85STEPDXF In stock $51.79
G8A470606.0R0.520.060.06.07.05.85STEPDXF No stock $59.75
G8A479056.0R1.020.060.06.07.05.85STEPDXF Low stock $51.79
G8A479066.0R1.520.060.06.07.05.85STEPDXF 1-2 Weeks $97.70
G8A479108.0R0.525.060.08.09.07.7STEPDXF Low stock $78.42
G8A470808.0R1.025.060.08.09.07.7STEPDXF In stock $57.51
G8A479138.0R2.025.060.08.09.07.7STEPDXF Low stock $54.31
G8A4791110.0R0.532.070.010.011.09.7STEPDXF In stock $104.70
G8A4710010.0R1.032.070.010.011.09.7STEPDXF In stock $136.91
G8A4790810.0R1.532.070.010.011.09.7STEPDXF Low stock $88.59
G8A4791410.0R2.032.070.010.011.09.7STEPDXF Low stock $88.59
G8A4791212.0R0.538.080.012.012.011.7STEPDXF 1-2 Weeks $211.50
G8A4712012.0R1.038.080.012.012.011.7DXF 1-2 Weeks $211.50
G8A4791512.0R2.038.080.012.012.011.7STEPDXF Low stock $112.91

Add X5070 4 Flute 30°Helix Stub Corner Radius End Mill (G8A47) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

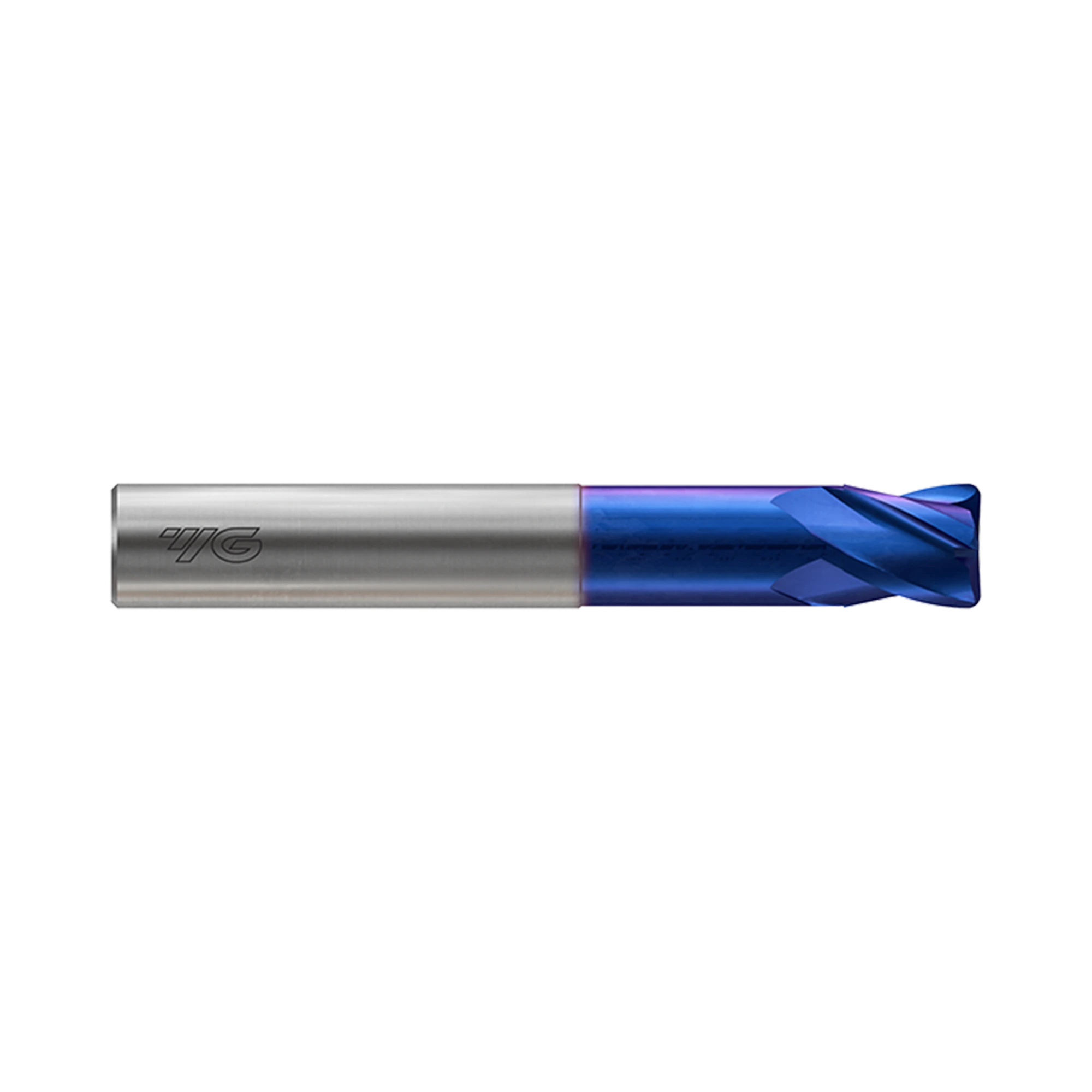

The YG-1 G8A47 series X5070 Blue ultrafine micrograin carbide cutter has 4 flutes and a plain shank. These end mills have an extended/relieved neck and corner radius. They range in diameter from 3mm-12mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.

  • Nanograin carbide substrate with blue silicone based coating.
  • Dry machining in steels and hardened steeld < HRc70.
  • Suitable for machining at extreme cutting speeds.
  • High abrasion resistance with a mirror surface finish.
  • Strong negative land provides tool strength for high hardness machining.
  • Ultimate tool life.
  • Can cope with extreme heat (up to 1400°).
  • High Speed Roughing & Finishing.
  • Deep slotting is possible by reduced neck.
  • Corner radius for preventing chipping in high speed machining.
  • To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Product Data
Workpiece Material P H
Corner Radius Tolerance 0.01, 0.015
Cutting Shape Corner Radius, Roughing
Hardened Steels(HRc40~45) Great
Helix Angle Square 30
Length Extended Neck, Stub
No. Flutes 4
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Blue Coating
Tool Material Carbide
Flutes 4
Helix Angle 30°
Cutting Edge Shape Corner Radius
Size Min D3.0
Size Max D12.0
Length Extended Neck
Coating Blue Coating

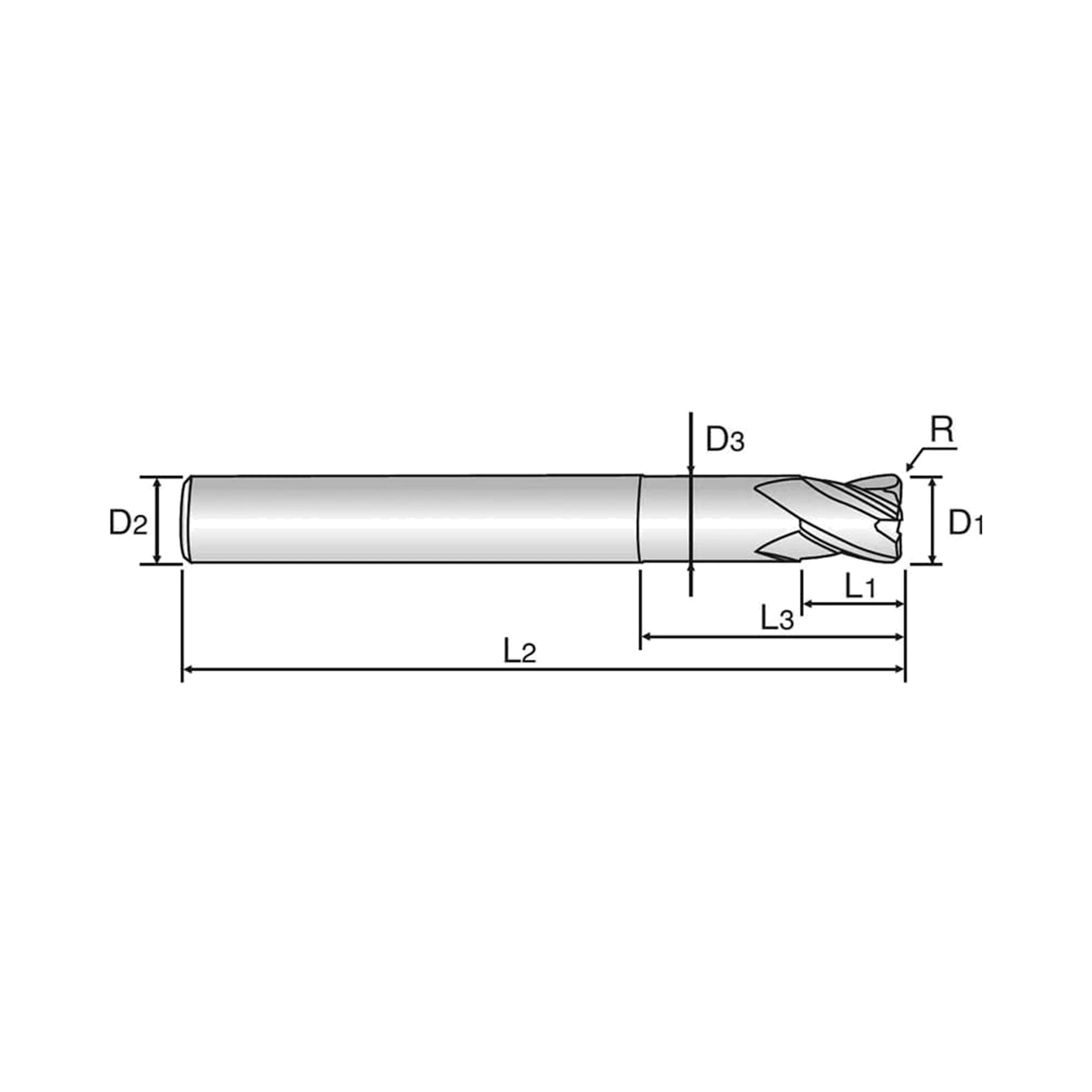

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G8A47030 3 6 4 55 0~-0.012 h5 4 G8A47040 4 6 5 55 0~-0.012 h5 4 G8A47060 6 6 7 60 0~-0.012 h5 4 G8A47080 8 8 9 60 0~-0.015 h5 4 G8A47100 10 10 11 70 0~-0.015 h5 4 G8A47120 12 12 12 80 0~-0.015 h5 4 G8A47901 3 6 4 55 0~-0.012 h5 4 G8A47902 3 6 4 55 0~-0.012 h5 4 G8A47903 4 6 5 55 0~-0.012 h5 4 G8A47904 4 6 5 55 0~-0.012 h5 4 G8A47905 6 6 7 60 0~-0.012 h5 4 G8A47906 6 6 7 60 0~-0.012 h5 4 G8A47907 8 8 9 60 0~-0.015 h5 4 G8A47908 10 10 11 70 0~-0.015 h5 4 G8A47909 12 12 12 80 0~-0.015 h5 4 G8A47910 8 8 9 60 0~-0.015 h5 4 G8A47911 10 10 11 70 0~-0.015 h5 4 G8A47912 12 12 12 80 0~-0.015 h5 4 G8A47913 8 8 9 60 0~-0.015 h5 4 G8A47914 10 10 11 70 0~-0.015 h5 4 G8A47915 12 12 12 80 0~-0.015 h5 4 G8A47916 3 6 4 55 0~-0.012 h5 4 G8A47917 3 6 4 55 0~-0.012 h5 4 G8A47918 3 6 4 55 0~-0.012 h5 4 G8A47919 4 6 5 55 0~-0.012 h5 4 G8A47920 4 6 5 55 0~-0.012 h5 4 G8A47921 4 6 5 55 0~-0.012 h5 4 G8A47922 4 6 5 55 0~-0.012 h5 4
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

4 grades
Non-alloy steel
GoodVDI 5
Low-alloy steel
GoodVDI 8–9
High-alloy and tool steel
GoodVDI 11

Hardened materials

4 grades
Hardened steel
ExcellentVDI 38–39
Chilled cast iron
GoodVDI 40
Hardened cast iron
ExcellentVDI 41
VDI grade reference8 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
5PNon-alloy steelGood30032
8PLow-alloy steelGood30032
9PLow-alloy steelGood35038
11PHigh-alloy and tool steelGood32535
38HHardened steelExcellent55055
39HHardened steelExcellent63060
40HChilled cast ironGood40042
41HHardened cast ironExcellent55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G8A47030 3 6 4 55 0~-0.012 h5 4 G8A47040 4 6 5 55 0~-0.012 h5 4 G8A47060 6 6 7 60 0~-0.012 h5 4 G8A47080 8 8 9 60 0~-0.015 h5 4 G8A47100 10 10 11 70 0~-0.015 h5 4 G8A47120 12 12 12 80 0~-0.015 h5 4 G8A47901 3 6 4 55 0~-0.012 h5 4 G8A47902 3 6 4 55 0~-0.012 h5 4 G8A47903 4 6 5 55 0~-0.012 h5 4 G8A47904 4 6 5 55 0~-0.012 h5 4 G8A47905 6 6 7 60 0~-0.012 h5 4 G8A47906 6 6 7 60 0~-0.012 h5 4 G8A47907 8 8 9 60 0~-0.015 h5 4 G8A47908 10 10 11 70 0~-0.015 h5 4 G8A47909 12 12 12 80 0~-0.015 h5 4 G8A47910 8 8 9 60 0~-0.015 h5 4 G8A47911 10 10 11 70 0~-0.015 h5 4 G8A47912 12 12 12 80 0~-0.015 h5 4 G8A47913 8 8 9 60 0~-0.015 h5 4 G8A47914 10 10 11 70 0~-0.015 h5 4 G8A47915 12 12 12 80 0~-0.015 h5 4 G8A47916 3 6 4 55 0~-0.012 h5 4 G8A47917 3 6 4 55 0~-0.012 h5 4 G8A47918 3 6 4 55 0~-0.012 h5 4 G8A47919 4 6 5 55 0~-0.012 h5 4 G8A47920 4 6 5 55 0~-0.012 h5 4 G8A47921 4 6 5 55 0~-0.012 h5 4 G8A47922 4 6 5 55 0~-0.012 h5 4

Video

X5070 Endmills
