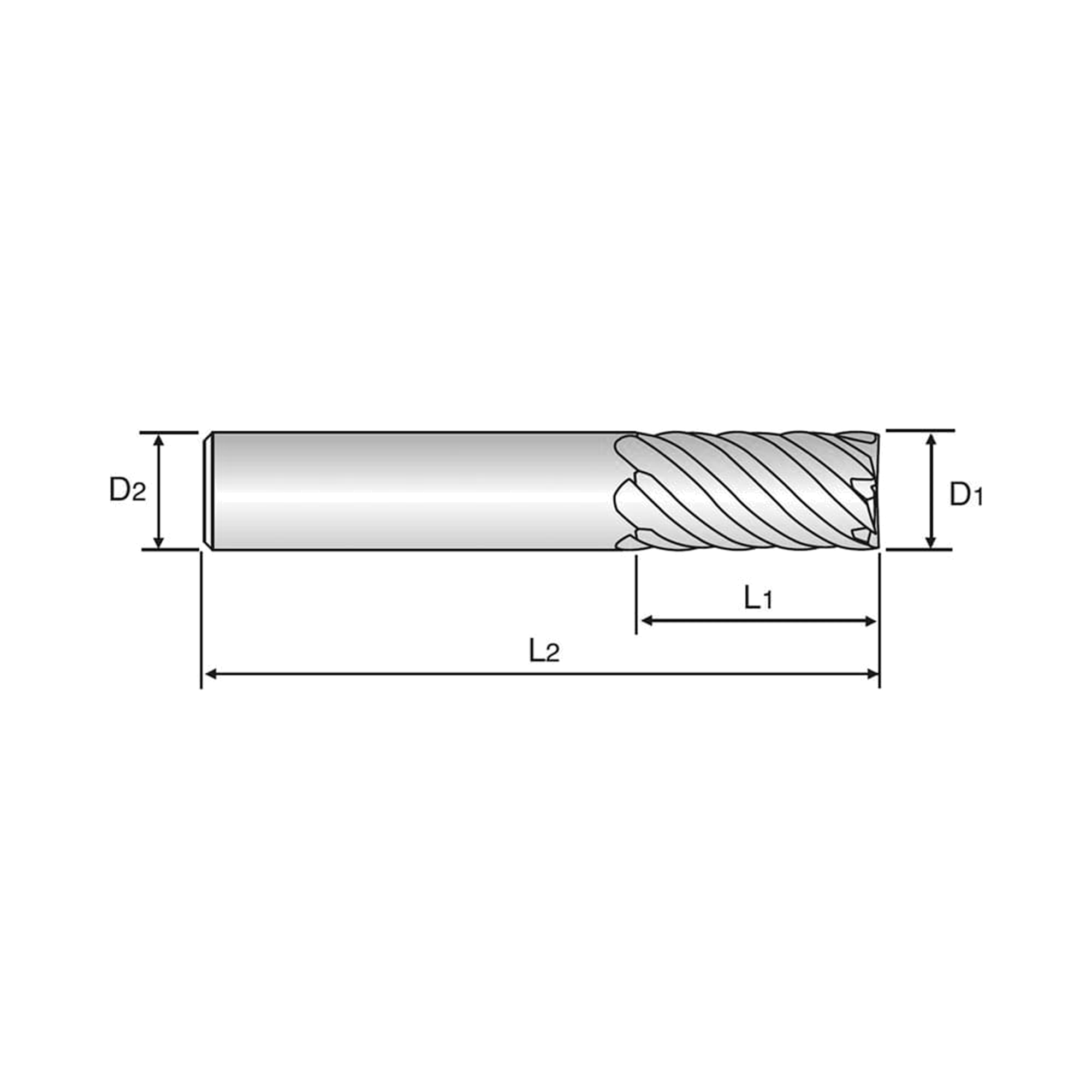

X5070 Multi Flute 45°Helix Long End Mill (G8D63)
Product Code: G8D63
No. Flutes: 6 & 8
Surface Treatment: Blue Coating
Tool Material: Carbide
Helix Angle: Square 45°
Shank Type: Plain

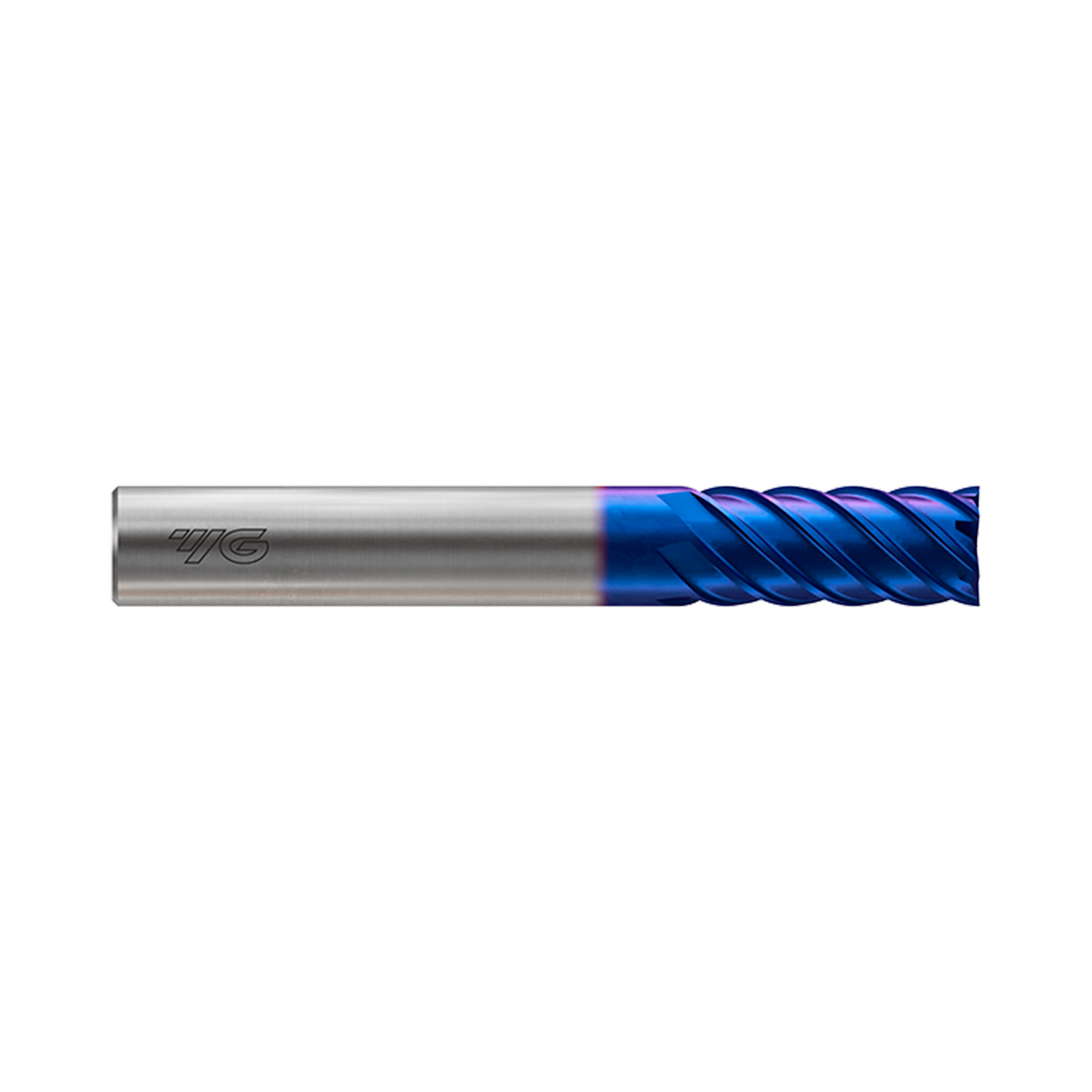

The YG-1 G8D63 series X5070 Blue ultrafine micrograin carbide cutter has 6 flutes and a plain shank. These long length 45° helix angle end mills offer exceptional surface finish, feed rates and tool life. The range is available in diameters from 6mm-25mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.
- Nanograin carbide substrate with blue silicone based coating.
- Dry machining in steels and hardened steeld < HRc70.
- Suitable for machining at extreme cutting speeds.
- High abrasion resistance with a mirror surface finish.
- Strong negative land provides tool strength for high hardness machining.
- Ultimate tool life.
- Can cope with extreme heat (up to 1400°).
- 45° Helix Angle.
- Designed for high abrasion resistance thanks to negative rake angle.
- Can be used for trochoidal machining.
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Specifications
| Flutes | 6&8 |
| Helix Angle | 45° |
| Cutting Edge Shape | Ball Nose |
| Size Min | D6.0 |
| Size Max | D25.0 |
| Length |
Extended Neck |
| Coating | Blue Coating |
| Workpiece Material | P H |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Square 45 |
| No. Flutes | 6 & 8 |
| Operation | Facing, Side Milling, Small Part, Trochoidal |
| Shank Type | Plain |
| Surface Treatment | YG-1 Blue Coating |
| Tool Material | Carbide |
Made in South Korea
Add X5070 Multi Flute 45°Helix Long End Mill (G8D63) to comparison
View ComparisonVideo
Operation
Work Material
Great
Great
Excellent
Excellent
