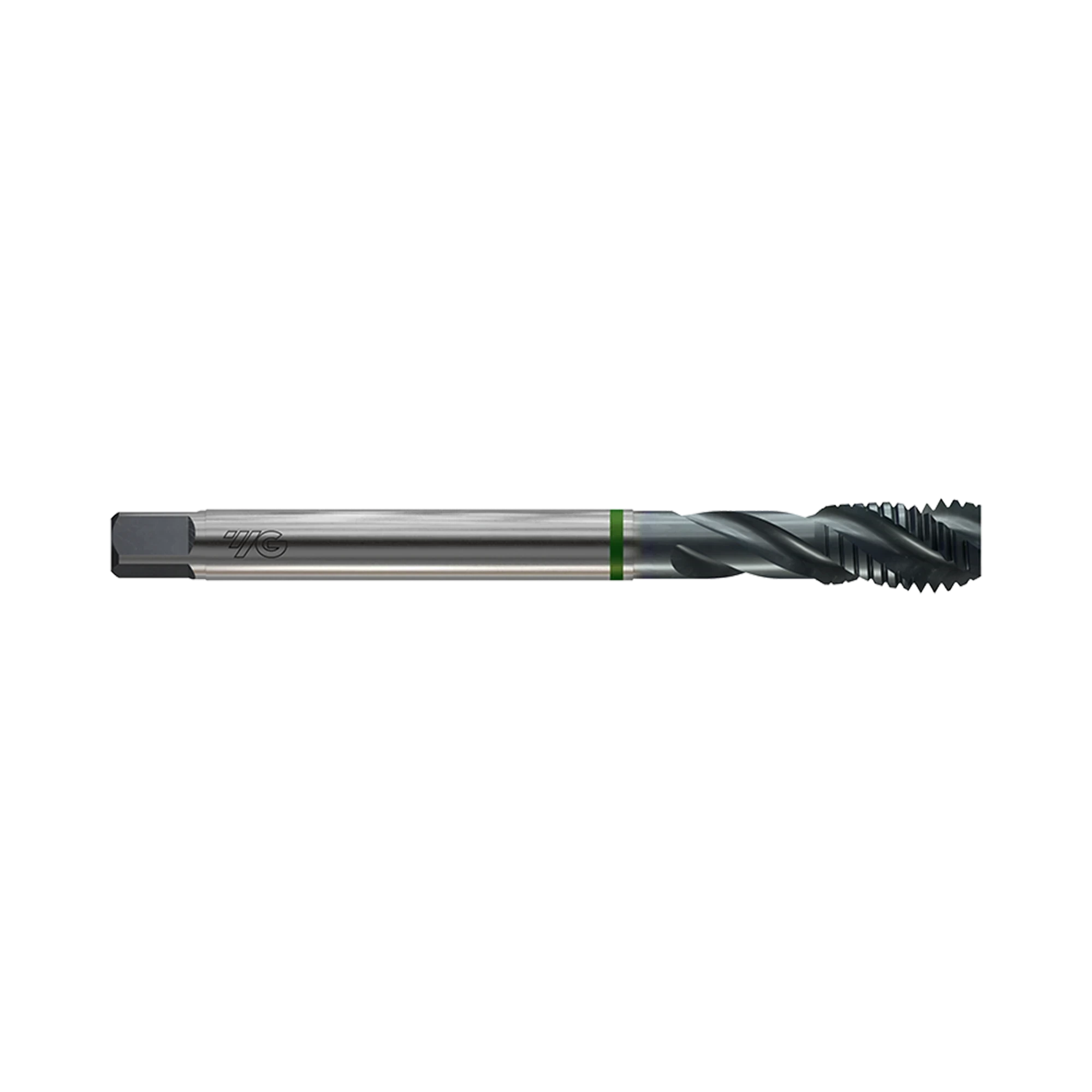

(TB914) HSS-E (M35) Metric Spiral Flute for Stainless Steel

Deep Blind-Hole Metric Spiral Tap for Stainless Steel

(TB914) HSS-E (M35) Metric Spiral Flute for Stainless Steel
$31.79 INC GST $28.90 EX GST
SKU
TB914136
P M

Key features

  • HSS-E (M35) with 5% cobalt for strength and longevity
  • Steam tempered finish for added wear protection
  • Recessed threads for deep blind hole tapping
Size
Pitch (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TB914136M20.48.045.013.02.82.15.031.6 1-2 Weeks $28.90
TB914206M30.56.056.018.03.52.76.032.5 In stock $19.20
TB914246M40.77.063.021.04.53.46.033.3 In stock $19.40
TB914286M50.88.070.025.06.04.98.034.2 In stock $20.00
TB914316M61.010.080.030.06.04.98.035.0 In stock $20.00
TB914346M71.010.080.030.07.05.58.036.0 In stock $25.40
TB914366M81.2513.090.035.08.06.29.036.8 Low stock $25.40
TB914396M91.2513.090.035.09.07.010.037.8 In stock $30.60
TB914426M101.515.0100.039.010.08.011.038.5 In stock $36.20
TB914506M121.7518.0110.044.09.07.010.0310.2 In stock $45.80
TB914546M142.020.0110.044.011.09.012.0312.0 In stock $55.70
TB914606M162.020.0110.044.012.09.012.0314.0 In stock $64.60
TB914656M182.525.0125.050.014.011.014.0415.5 In stock $85.40
TB914706M202.525.0140.054.016.012.015.0417.5 Low stock $101.90
TB914746M222.525.0140.054.018.014.517.0419.5 1-2 Weeks $126.30
TB914786M243.030.0160.060.018.014.517.0421.0 In stock $137.50
TB914866M273.030.0160.060.020.016.019.0424.0 Low stock $197.60
TB914946M303.535.0180.070.022.018.021.0426.5 Low stock $306.00

Add (TB914) HSS-E (M35) Metric Spiral Flute for Stainless Steel to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The YG-1 TB914 Series HSS-E (M35) Spiral Flute Tap is built for precise, high-performance tapping in steel and stainless steel. Its 5% cobalt substrate provides excellent heat and wear resistance, while the steam tempered finish enhances durability. The recessed thread design and spiral flute geometry ensure reliable chip evacuation for deep blind holes during machine tapping.

  • HSS-E (M35) with 5% cobalt for strength and longevity
  • Steam tempered finish for added wear protection
  • Recessed threads for deep blind hole tapping
  • Spiral flute geometry for clean chip evacuation
  • Suitable for steel and stainless steel applications
Product Data
Workpiece Material P M
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Steam Oxide Coating
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape M
Tool Material HSS-E
Tool Standard DIN 371-376
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB914136 M2 0.4 8 45 13 2.8 2.1 5 3 TB914156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TB914176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TB914196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TB914206 M3 0.5 6 56 18 3.5 2.7 6 3 TB914226 M3.5 0.6 7 56 20 4 3 6 3 TB914246 M4 0.7 7 63 21 4.5 3.4 6 3 TB914266 M4.5 0.75 8 70 25 6 4.9 8 3 TB914286 M5 0.8 8 70 25 6 4.9 8 3 TB914316 M6 1 10 80 30 6 4.9 8 3 TB914346 M7 1 10 80 30 7 5.5 8 3 TB914366 M8 1.25 13 90 35 8 6.2 9 3 TB914396 M9 1.25 13 90 35 9 7 10 3 TB914426 M10 1.5 15 100 39 10 8 11 3 TB914466 M11 1.5 17 100 40 8 6.2 9 3 TB914496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TB914506 M12 1.75 18 110 44 9 7 10 3 TB914506F4 M12 1.75 18 110 44 9 7 10 4 TB914546 M14 2 20 110 44 11 9 12 3 TB914546F4 M14 2 20 110 44 11 9 12 4 TB914606 M16 2 20 110 44 12 9 12 3 TB914606F4 M16 2 20 110 44 12 9 12 4 TB914656 M18 2.5 25 125 50 14 11 14 4 TB914706 M20 2.5 25 140 54 16 12 15 4 TB914746 M22 2.5 25 140 54 18 14.5 17 4 TB914786 M24 3 30 160 60 18 14.5 17 4 TB914866 M27 3 30 160 60 20 16 19 4 TB914946 M30 3.5 35 180 70 22 18 21 4
Blind Drilling
P Carbon Steels

Great

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB914136 M2 0.4 8 45 13 2.8 2.1 5 3 TB914156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TB914176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TB914196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TB914206 M3 0.5 6 56 18 3.5 2.7 6 3 TB914226 M3.5 0.6 7 56 20 4 3 6 3 TB914246 M4 0.7 7 63 21 4.5 3.4 6 3 TB914266 M4.5 0.75 8 70 25 6 4.9 8 3 TB914286 M5 0.8 8 70 25 6 4.9 8 3 TB914316 M6 1 10 80 30 6 4.9 8 3 TB914346 M7 1 10 80 30 7 5.5 8 3 TB914366 M8 1.25 13 90 35 8 6.2 9 3 TB914396 M9 1.25 13 90 35 9 7 10 3 TB914426 M10 1.5 15 100 39 10 8 11 3 TB914466 M11 1.5 17 100 40 8 6.2 9 3 TB914496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TB914506 M12 1.75 18 110 44 9 7 10 3 TB914506F4 M12 1.75 18 110 44 9 7 10 4 TB914546 M14 2 20 110 44 11 9 12 3 TB914546F4 M14 2 20 110 44 11 9 12 4 TB914606 M16 2 20 110 44 12 9 12 3 TB914606F4 M16 2 20 110 44 12 9 12 4 TB914656 M18 2.5 25 125 50 14 11 14 4 TB914706 M20 2.5 25 140 54 16 12 15 4 TB914746 M22 2.5 25 140 54 18 14.5 17 4 TB914786 M24 3 30 160 60 18 14.5 17 4 TB914866 M27 3 30 160 60 20 16 19 4 TB914946 M30 3.5 35 180 70 22 18 21 4

YG Tap Inox
