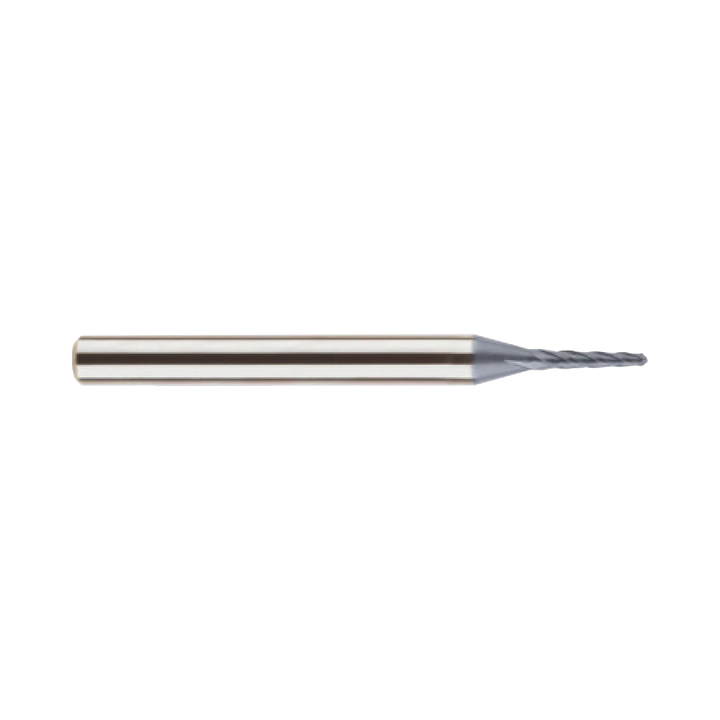

4G MILL 4 Flute 30°Helix Taper Corner Radius End Mill (SEME82)

4G MILL 4 Flute 30°Helix Taper Corner Radius End Mill (SEME82)
4G MILL 4 Flute 30°Helix Taper Corner Radius End Mill (SEME82)
New

4G MILL 4 Flute 30°Helix Taper Corner Radius End Mill (SEME82)

Product Code: SEME82

Corner Radius Tolerance: 0.01 No. Flutes: 4 YG-1 LEGEND Y COATING Surface Treatment: YG-1 Y Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local
  • Due to new coating and geometry, outstanding cutting ability and wear-resistance.
  • Excellent performance when cutting pre-hardened steels up to HRc55 which are used for molds & dies, machine parts, carbon steels and alloy steels.
  • Available various taper and cutting length tools for machining molds and machine parts.
  • Convenience due to marking of large size diameters when using CAM.

SEME82007010104 SEME82007010106 SEME82007010108 SEME82007020104 SEME82007020106 SEME82007020108 SEME82008010104 SEME82008010106 SEME82008010108 SEME82008020104 SEME82008020106 SEME82008020108 SEME82010010104 SEME82010010106 SEME82010010108 SEME82010010110 SEME82010010112 SEME82010010204 SEME82010010206 SEME82010010208 SEME82010010210 SEME82010010212 SEME82010010304 SEME82010010306 SEME82010010308 SEME82010010310 SEME82010010312 SEME82010020104 SEME82010020106 SEME82010020108 SEME82010020110 SEME82010020112 SEME82010020204 SEME82010020206 SEME82010020208 SEME82010020210 SEME82010020212 SEME82010020304 SEME82010020306 SEME82010020308 SEME82010020310 SEME82010020312 SEME82010030104 SEME82010030106 SEME82010030108 SEME82010030110 SEME82010030112 SEME82010030204 SEME82010030206 SEME82010030208 SEME82010030210 SEME82010030212 SEME82010030304 SEME82010030306 SEME82010030308 SEME82010030310 SEME82010030312 SEME82012010106 SEME82012010108 SEME82012010110 SEME82012010112 SEME82012010206 SEME82012010208 SEME82012010210 SEME82012010212 SEME82012010306 SEME82012010308 SEME82012010310 SEME82012010312 SEME82012020106 SEME82012020108 SEME82012020110 SEME82012020112 SEME82012020206 SEME82012020208 SEME82012020210 SEME82012020212 SEME82012020306 SEME82012020308 SEME82012020310 SEME82012020312 SEME82012030106 SEME82012030108 SEME82012030110 SEME82012030112 SEME82012030206 SEME82012030208 SEME82012030210 SEME82012030212 SEME82012030306 SEME82012030308 SEME82012030310 SEME82012030312 SEME82015010106 SEME82015010108 SEME82015010110 SEME82015010112 SEME82015010116 SEME82015010120 SEME82015010206 SEME82015010208 SEME82015010210 SEME82015010212 SEME82015010216 SEME82015010220 SEME82015010306 SEME82015010308 SEME82015010310 SEME82015010312 SEME82015010316 SEME82015010320 SEME82015020106 SEME82015020108 SEME82015020110 SEME82015020112 SEME82015020116 SEME82015020120 SEME82015020206 SEME82015020208 SEME82015020210 SEME82015020212 SEME82015020216 SEME82015020220 SEME82015020306 SEME82015020308 SEME82015020310 SEME82015020312 SEME82015020316 SEME82015020320 SEME82015030106 SEME82015030108 SEME82015030110 SEME82015030112 SEME82015030116 SEME82015030120 SEME82015030206 SEME82015030208 SEME82015030210 SEME82015030212 SEME82015030216 SEME82015030220 SEME82015030306 SEME82015030308 SEME82015030310 SEME82015030312 SEME82015030316 SEME82015030320 SEME82020010108 SEME82020010110 SEME82020010112 SEME82020010116 SEME82020010120 SEME82020010125 SEME82020010208 SEME82020010210 SEME82020010212 SEME82020010216 SEME82020010220 SEME82020010225 SEME82020010308 SEME82020010310 SEME82020010312 SEME82020010316 SEME82020010320 SEME82020010325 SEME82020020108 SEME82020020110 SEME82020020112 SEME82020020116 SEME82020020120 SEME82020020125 SEME82020020208 SEME82020020210 SEME82020020212 SEME82020020216 SEME82020020220 SEME82020020225 SEME82020020308 SEME82020020310 SEME82020020312 SEME82020020316 SEME82020020320 SEME82020020325 SEME82020030108 SEME82020030110 SEME82020030112 SEME82020030116 SEME82020030120 SEME82020030125 SEME82020030208 SEME82020030210 SEME82020030212 SEME82020030216 SEME82020030220 SEME82020030225 SEME82020030308 SEME82020030310 SEME82020030312 SEME82020030316 SEME82020030320 SEME82020030325 SEME82025010110 SEME82025010112 SEME82025010116 SEME82025010120 SEME82025010125 SEME82025010130 SEME82025010210 SEME82025010212 SEME82025010216 SEME82025010220 SEME82025010225 SEME82025010230 SEME82025010310 SEME82025010312 SEME82025010316 SEME82025010320 SEME82025010325 SEME82025010330 SEME82025020110 SEME82025020112 SEME82025020116 SEME82025020120 SEME82025020125 SEME82025020130 SEME82025020210 SEME82025020212 SEME82025020216 SEME82025020220 SEME82025020225 SEME82025020230 SEME82025020310 SEME82025020312 SEME82025020316 SEME82025020320 SEME82025020325 SEME82025020330 SEME82025030110 SEME82025030112 SEME82025030116 SEME82025030120 SEME82025030125 SEME82025030130 SEME82025030210 SEME82025030212 SEME82025030216 SEME82025030220 SEME82025030225 SEME82025030230 SEME82025030310 SEME82025030312 SEME82025030316 SEME82025030320 SEME82025030325 SEME82025030330 SEME820070101504 SEME820070101506 SEME820070101508 SEME820070201504 SEME820070201506 SEME820070201508 SEME820080101504 SEME820080101506 SEME820080101508 SEME820080201504 SEME820080201506 SEME820080201508 SEME820100101504 SEME820100101506 SEME820100101508 SEME820100101510 SEME820100101512 SEME820100201504 SEME820100201506 SEME820100201508 SEME820100201510 SEME820100201512 SEME820100301504 SEME820100301506 SEME820100301508 SEME820100301510 SEME820100301512

Specifications

Flutes 4
Helix Angle 30°
Cutting Edge Shape Corner Radius
Size Min D1.0
Size Max D12.0
Length -
Coating Y-Coating
Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.01
Hardened Steels(HRc40~45) Excellent
Helix Angle Square 30
No. Flutes 4
Operation Corner, Die Sinking, Helical-Interpol, Side Milling, Side Taper, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL 4 Flute 30°Helix Taper Corner Radius End Mill (SEME82) to comparison

View Comparison

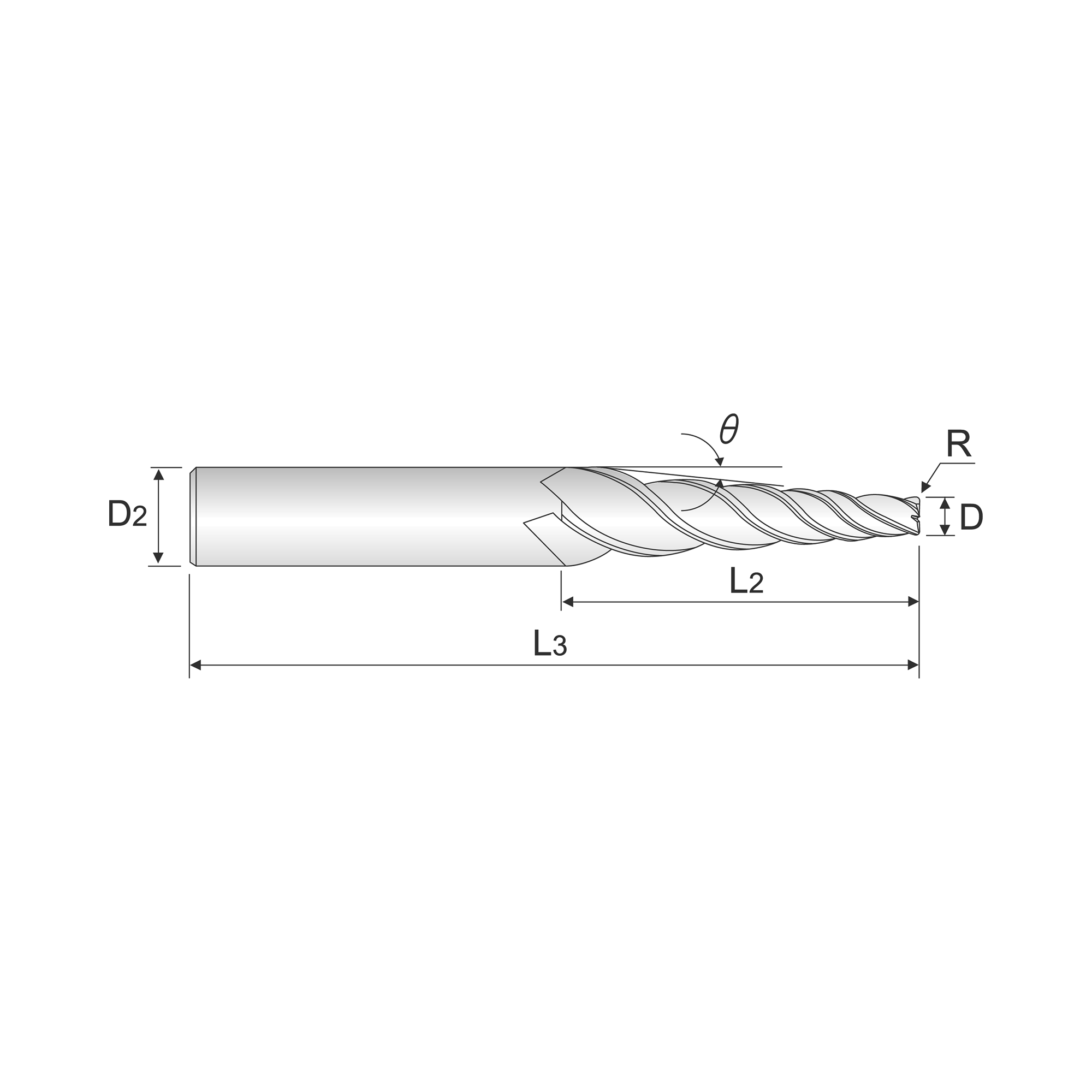

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME82007010104 0 4 4 45 0~-0.030 h5 4 SEME82007010106 0 4 6 45 0~-0.030 h5 4 SEME82007010108 0 4 8 45 0~-0.030 h5 4 SEME82007020104 0 4 4 45 0~-0.030 h5 4 SEME82007020106 0 4 6 45 0~-0.030 h5 4 SEME82007020108 0 4 8 45 0~-0.030 h5 4 SEME82008010104 0.8 4 4 45 0~-0.030 h5 4 SEME82008010106 0 4 6 45 0~-0.030 h5 4 SEME82008010108 0 4 8 45 0~-0.030 h5 4 SEME82008020104 0.8 4 4 45 0~-0.030 h5 4 SEME82008020106 0.8 4 6 45 0~-0.030 h5 4 SEME82008020108 0.8 4 8 45 0~-0.030 h5 4 SEME82010010104 1 4 4 50 0~-0.030 h5 4 SEME82010010106 1 4 6 50 0~-0.030 h5 4 SEME82010010108 1 4 8 50 0~-0.030 h5 4 SEME82010010110 1 4 10 50 0~-0.030 h5 4 SEME82010010112 1 4 12 50 0~-0.030 h5 4 SEME82010010204 1 4 4 50 0~-0.030 h5 4 SEME82010010206 1 4 6 50 0~-0.030 h5 4 SEME82010010208 1 4 8 50 0~-0.030 h5 4 SEME82010010210 1 4 10 50 0~-0.030 h5 4 SEME82010010212 1 4 12 50 0~-0.030 h5 4 SEME82010010304 1 4 4 50 0~-0.030 h5 4 SEME82010010306 1 4 6 50 0~-0.030 h5 4 SEME82010010308 1 4 8 50 0~-0.030 h5 4 SEME82010010310 1 4 10 50 0~-0.030 h5 4 SEME82010010312 1 4 12 50 0~-0.030 h5 4 SEME82010020104 1 4 4 50 0~-0.030 h5 4 SEME82010020106 1 4 6 50 0~-0.030 h5 4 SEME82010020108 1 4 8 50 0~-0.030 h5 4 SEME82010020110 1 4 10 50 0~-0.030 h5 4 SEME82010020112 1 4 12 50 0~-0.030 h5 4 SEME82010020204 1 4 4 50 0~-0.030 h5 4 SEME82010020206 1 4 6 50 0~-0.030 h5 4 SEME82010020208 1 4 8 50 0~-0.030 h5 4 SEME82010020210 1 4 10 50 0~-0.030 h5 4 SEME82010020212 1 4 12 50 0~-0.030 h5 4 SEME82010020304 1 4 4 50 0~-0.030 h5 4 SEME82010020306 1 4 6 50 0~-0.030 h5 4 SEME82010020308 1 4 8 50 0~-0.030 h5 4 SEME82010020310 1 4 10 50 0~-0.030 h5 4 SEME82010020312 1 4 12 50 0~-0.030 h5 4 SEME82010030104 1 4 4 50 0~-0.030 h5 4 SEME82010030106 1 4 6 50 0~-0.030 h5 4 SEME82010030108 1 4 8 50 0~-0.030 h5 4 SEME82010030110 1 4 10 50 0~-0.030 h5 4 SEME82010030112 1 4 12 50 0~-0.030 h5 4 SEME82010030204 1 4 4 50 0~-0.030 h5 4 SEME82010030206 1 4 6 50 0~-0.030 h5 4 SEME82010030208 1 4 8 50 0~-0.030 h5 4 SEME82010030210 1 4 10 50 0~-0.030 h5 4 SEME82010030212 1 4 12 50 0~-0.030 h5 4 SEME82010030304 1 4 4 50 0~-0.030 h5 4 SEME82010030306 1 4 6 50 0~-0.030 h5 4 SEME82010030308 1 4 8 50 0~-0.030 h5 4 SEME82010030310 1 4 10 50 0~-0.030 h5 4 SEME82010030312 1 4 12 50 0~-0.030 h5 4 SEME82012010106 1 4 6 50 0~-0.030 h5 4 SEME82012010108 1.2 4 8 50 0~-0.030 h5 4 SEME82012010110 1.2 4 10 50 0~-0.030 h5 4 SEME82012010112 1 4 12 50 0~-0.030 h5 4 SEME82012010206 1.2 4 6 50 0~-0.030 h5 4 SEME82012010208 1.2 4 8 50 0~-0.030 h5 4 SEME82012010210 1 4 10 50 0~-0.030 h5 4 SEME82012010212 1 4 12 50 0~-0.030 h5 4 SEME82012010306 1.2 4 6 50 0~-0.030 h5 4 SEME82012010308 1.2 4 8 50 0~-0.030 h5 4 SEME82012010310 1.2 4 10 50 0~-0.030 h5 4 SEME82012010312 1 4 12 50 0~-0.030 h5 4 SEME82012020106 1 4 6 50 0~-0.030 h5 4 SEME82012020108 1.2 4 8 50 0~-0.030 h5 4 SEME82012020110 1 4 10 50 0~-0.030 h5 4 SEME82012020112 1 4 12 50 0~-0.030 h5 4 SEME82012020206 1.2 4 6 50 0~-0.030 h5 4 SEME82012020208 1.2 4 8 50 0~-0.030 h5 4 SEME82012020210 1 4 10 50 0~-0.030 h5 4 SEME82012020212 1.2 4 12 50 0~-0.030 h5 4 SEME82012020306 1.2 4 6 50 0~-0.030 h5 4 SEME82012020308 1.2 4 8 50 0~-0.030 h5 4 SEME82012020310 1 4 10 50 0~-0.030 h5 4 SEME82012020312 1.2 4 12 50 0~-0.030 h5 4 SEME82012030106 1 4 6 50 0~-0.030 h5 4 SEME82012030108 1.2 4 8 50 0~-0.030 h5 4 SEME82012030110 1 4 10 50 0~-0.030 h5 4 SEME82012030112 1 4 12 50 0~-0.030 h5 4 SEME82012030206 1 4 6 50 0~-0.030 h5 4 SEME82012030208 1.2 4 8 50 0~-0.030 h5 4 SEME82012030210 1.2 4 10 50 0~-0.030 h5 4 SEME82012030212 1 4 12 50 0~-0.030 h5 4 SEME82012030306 1 4 6 50 0~-0.030 h5 4 SEME82012030308 1.2 4 8 50 0~-0.030 h5 4 SEME82012030310 1 4 10 50 0~-0.030 h5 4 SEME82012030312 1 4 12 50 0~-0.030 h5 4 SEME82015010106 1 4 6 50 0~-0.030 h5 4 SEME82015010108 1.5 4 8 50 0~-0.030 h5 4 SEME82015010110 1 4 10 50 0~-0.030 h5 4 SEME82015010112 1.5 4 12 50 0~-0.030 h5 4 SEME82015010116 1 4 16 50 0~-0.030 h5 4 SEME82015010120 1 4 20 60 0~-0.030 h5 4 SEME82015010206 1.5 4 6 50 0~-0.030 h5 4 SEME82015010208 1.5 4 8 50 0~-0.030 h5 4 SEME82015010210 1.5 4 10 50 0~-0.030 h5 4 SEME82015010212 1 4 12 50 0~-0.030 h5 4 SEME82015010216 1.5 4 16 50 0~-0.030 h5 4 SEME82015010220 1 4 20 60 0~-0.030 h5 4 SEME82015010306 1.5 4 6 50 0~-0.030 h5 4 SEME82015010308 1.5 4 8 50 0~-0.030 h5 4 SEME82015010310 1 4 10 50 0~-0.030 h5 4 SEME82015010312 1 4 12 50 0~-0.030 h5 4 SEME82015010316 1.5 4 16 50 0~-0.030 h5 4 SEME82015010320 1 4 20 60 0~-0.030 h5 4 SEME82015020106 1.5 4 6 50 0~-0.030 h5 4 SEME82015020108 1.5 4 8 50 0~-0.030 h5 4 SEME82015020110 1 4 10 50 0~-0.030 h5 4 SEME82015020112 1 4 12 50 0~-0.030 h5 4 SEME82015020116 1 4 16 50 0~-0.030 h5 4 SEME82015020120 1.5 4 20 60 0~-0.030 h5 4 SEME82015020206 1.5 4 6 50 0~-0.030 h5 4 SEME82015020208 1 4 8 50 0~-0.030 h5 4 SEME82015020210 1 4 10 50 0~-0.030 h5 4 SEME82015020212 1.5 4 12 50 0~-0.030 h5 4 SEME82015020216 1 4 16 50 0~-0.030 h5 4 SEME82015020220 1.5 4 20 60 0~-0.030 h5 4 SEME82015020306 1.5 4 6 50 0~-0.030 h5 4 SEME82015020308 1 4 8 50 0~-0.030 h5 4 SEME82015020310 1 4 10 50 0~-0.030 h5 4 SEME82015020312 1 4 12 50 0~-0.030 h5 4 SEME82015020316 1.5 4 16 50 0~-0.030 h5 4 SEME82015020320 1.5 4 20 60 0~-0.030 h5 4 SEME82015030106 1.5 4 6 50 0~-0.030 h5 4 SEME82015030108 1 4 8 50 0~-0.030 h5 4 SEME82015030110 1 4 10 50 0~-0.030 h5 4 SEME82015030112 1 4 12 50 0~-0.030 h5 4 SEME82015030116 1.5 4 16 50 0~-0.030 h5 4 SEME82015030120 1.5 4 20 60 0~-0.030 h5 4 SEME82015030206 1.5 4 6 50 0~-0.030 h5 4 SEME82015030208 1 4 8 50 0~-0.030 h5 4 SEME82015030210 1 4 10 50 0~-0.030 h5 4 SEME82015030212 1.5 4 12 50 0~-0.030 h5 4 SEME82015030216 1.5 4 16 50 0~-0.030 h5 4 SEME82015030220 1 4 20 60 0~-0.030 h5 4 SEME82015030306 1 4 6 50 0~-0.030 h5 4 SEME82015030308 1.5 4 8 50 0~-0.030 h5 4 SEME82015030310 1 4 10 50 0~-0.030 h5 4 SEME82015030312 1 4 12 50 0~-0.030 h5 4 SEME82015030316 1.5 4 16 50 0~-0.030 h5 4 SEME82015030320 1.5 4 20 60 0~-0.030 h5 4 SEME82020010108 2 4 8 50 0~-0.030 h5 4 SEME82020010110 2 4 10 50 0~-0.030 h5 4 SEME82020010112 2 4 12 50 0~-0.030 h5 4 SEME82020010116 2 4 16 50 0~-0.030 h5 4 SEME82020010120 2 4 20 60 0~-0.030 h5 4 SEME82020010125 2 4 25 60 0~-0.030 h5 4 SEME82020010208 2 4 8 50 0~-0.030 h5 4 SEME82020010210 2 4 10 50 0~-0.030 h5 4 SEME82020010212 2 4 12 50 0~-0.030 h5 4 SEME82020010216 2 4 16 50 0~-0.030 h5 4 SEME82020010220 2 4 20 60 0~-0.030 h5 4 SEME82020010225 2 4 25 60 0~-0.030 h5 4 SEME82020010308 2 4 8 50 0~-0.030 h5 4 SEME82020010310 2 4 10 50 0~-0.030 h5 4 SEME82020010312 2 4 12 50 0~-0.030 h5 4 SEME82020010316 2 4 16 50 0~-0.030 h5 4 SEME82020010320 2 6 20 60 0~-0.030 h5 4 SEME82020010325 2 6 25 60 0~-0.030 h5 4 SEME82020020108 2 4 8 50 0~-0.030 h5 4 SEME82020020110 2 4 10 50 0~-0.030 h5 4 SEME82020020112 2 4 12 50 0~-0.030 h5 4 SEME82020020116 2 4 16 50 0~-0.030 h5 4 SEME82020020120 2 4 20 60 0~-0.030 h5 4 SEME82020020125 2 4 25 60 0~-0.030 h5 4 SEME82020020208 2 4 8 50 0~-0.030 h5 4 SEME82020020210 2 4 10 50 0~-0.030 h5 4 SEME82020020212 2 4 12 50 0~-0.030 h5 4 SEME82020020216 2 4 16 50 0~-0.030 h5 4 SEME82020020220 2 4 20 60 0~-0.030 h5 4 SEME82020020225 2 4 25 60 0~-0.030 h5 4 SEME82020020308 2 4 8 50 0~-0.030 h5 4 SEME82020020310 2 4 10 50 0~-0.030 h5 4 SEME82020020312 2 4 12 50 0~-0.030 h5 4 SEME82020020316 2 4 16 50 0~-0.030 h5 4 SEME82020020320 2 6 20 60 0~-0.030 h5 4 SEME82020020325 2 6 25 60 0~-0.030 h5 4 SEME82020030108 2 4 8 50 0~-0.030 h5 4 SEME82020030110 2 4 10 50 0~-0.030 h5 4 SEME82020030112 2 4 12 50 0~-0.030 h5 4 SEME82020030116 2 4 16 50 0~-0.030 h5 4 SEME82020030120 2 4 20 60 0~-0.030 h5 4 SEME82020030125 2 4 25 60 0~-0.030 h5 4 SEME82020030208 2 4 8 50 0~-0.030 h5 4 SEME82020030210 2 4 10 50 0~-0.030 h5 4 SEME82020030212 2 4 12 50 0~-0.030 h5 4 SEME82020030216 2 4 16 50 0~-0.030 h5 4 SEME82020030220 2 4 20 60 0~-0.030 h5 4 SEME82020030225 2 4 25 60 0~-0.030 h5 4 SEME82020030308 2 4 8 50 0~-0.030 h5 4 SEME82020030310 2 4 10 50 0~-0.030 h5 4 SEME82020030312 2 4 12 50 0~-0.030 h5 4 SEME82020030316 2 4 16 50 0~-0.030 h5 4 SEME82020030320 2 6 20 60 0~-0.030 h5 4 SEME82020030325 2 6 25 60 0~-0.030 h5 4 SEME82025010110 2.5 4 10 50 0~-0.030 h5 4 SEME82025010112 2.5 4 12 50 0~-0.030 h5 4 SEME82025010116 2 4 16 50 0~-0.030 h5 4 SEME82025010120 2 4 20 60 0~-0.030 h5 4 SEME82025010125 2.5 4 25 60 0~-0.030 h5 4 SEME82025010130 2 4 30 60 0~-0.030 h5 4 SEME82025010210 2 4 10 50 0~-0.030 h5 4 SEME82025010212 2 4 12 50 0~-0.030 h5 4 SEME82025010216 2.5 4 16 50 0~-0.030 h5 4 SEME82025010220 2 4 20 60 0~-0.030 h5 4 SEME82025010225 2.5 6 25 60 0~-0.030 h5 4 SEME82025010230 2 6 30 60 0~-0.030 h5 4 SEME82025010310 2.5 4 10 50 0~-0.030 h5 4 SEME82025010312 2.5 4 12 50 0~-0.030 h5 4 SEME82025010316 2 6 16 50 0~-0.030 h5 4 SEME82025010320 2 6 20 60 0~-0.030 h5 4 SEME82025010325 2.5 6 25 60 0~-0.030 h5 4 SEME82025010330 2 6 30 60 0~-0.030 h5 4 SEME82025020110 2.5 4 10 50 0~-0.030 h5 4 SEME82025020112 2 4 12 50 0~-0.030 h5 4 SEME82025020116 2.5 4 16 50 0~-0.030 h5 4 SEME82025020120 2.5 4 20 60 0~-0.030 h5 4 SEME82025020125 2 4 25 60 0~-0.030 h5 4 SEME82025020130 2 4 30 60 0~-0.030 h5 4 SEME82025020210 2.5 4 10 50 0~-0.030 h5 4 SEME82025020212 2.5 4 12 50 0~-0.030 h5 4 SEME82025020216 2 4 16 50 0~-0.030 h5 4 SEME82025020220 2 4 20 60 0~-0.030 h5 4 SEME82025020225 2.5 6 25 60 0~-0.030 h5 4 SEME82025020230 2 6 30 60 0~-0.030 h5 4 SEME82025020310 2.5 4 10 50 0~-0.030 h5 4 SEME82025020312 2 4 12 50 0~-0.030 h5 4 SEME82025020316 2.5 6 16 50 0~-0.030 h5 4 SEME82025020320 2.5 6 20 60 0~-0.030 h5 4 SEME82025020325 2.5 6 25 60 0~-0.030 h5 4 SEME82025020330 2 6 30 60 0~-0.030 h5 4 SEME82025030110 2.5 4 10 50 0~-0.030 h5 4 SEME82025030112 2 4 12 50 0~-0.030 h5 4 SEME82025030116 2.5 4 16 50 0~-0.030 h5 4 SEME82025030120 2 4 20 60 0~-0.030 h5 4 SEME82025030125 2 4 25 60 0~-0.030 h5 4 SEME82025030130 2.5 4 30 60 0~-0.030 h5 4 SEME82025030210 2.5 4 10 50 0~-0.030 h5 4 SEME82025030212 2.5 4 12 50 0~-0.030 h5 4 SEME82025030216 2 4 16 50 0~-0.030 h5 4 SEME82025030220 2.5 4 20 60 0~-0.030 h5 4 SEME82025030225 2 6 25 60 0~-0.030 h5 4 SEME82025030230 2 6 30 60 0~-0.030 h5 4 SEME82025030310 2.5 4 10 50 0~-0.030 h5 4 SEME82025030312 2 4 12 50 0~-0.030 h5 4 SEME82025030316 2.5 6 16 50 0~-0.030 h5 4 SEME82025030320 2 6 20 60 0~-0.030 h5 4 SEME82025030325 2 6 25 60 0~-0.030 h5 4 SEME82025030330 2 6 30 60 0~-0.030 h5 4 SEME820070101504 0 4 4 45 0~-0.030 h5 4 SEME820070101506 0 4 6 45 0~-0.030 h5 4 SEME820070101508 0 4 8 45 0~-0.030 h5 4 SEME820070201504 0 4 4 45 0~-0.030 h5 4 SEME820070201506 0 4 6 45 0~-0.030 h5 4 SEME820070201508 0 4 8 45 0~-0.030 h5 4 SEME820080101504 0 4 4 45 0~-0.030 h5 4 SEME820080101506 0 4 6 45 0~-0.030 h5 4 SEME820080101508 0 4 8 45 0~-0.030 h5 4 SEME820080201504 0.8 4 4 45 0~-0.030 h5 4 SEME820080201506 0 4 6 45 0~-0.030 h5 4 SEME820080201508 0 4 8 45 0~-0.030 h5 4 SEME820100101504 1 4 4 50 0~-0.030 h5 4 SEME820100101506 1 4 6 50 0~-0.030 h5 4 SEME820100101508 1 4 8 50 0~-0.030 h5 4 SEME820100101510 1 4 10 50 0~-0.030 h5 4 SEME820100101512 1 4 12 50 0~-0.030 h5 4 SEME820100201504 1 4 4 50 0~-0.030 h5 4 SEME820100201506 1 4 6 50 0~-0.030 h5 4 SEME820100201508 1 4 8 50 0~-0.030 h5 4 SEME820100201510 1 4 10 50 0~-0.030 h5 4 SEME820100201512 1 4 12 50 0~-0.030 h5 4 SEME820100301504 1 4 4 50 0~-0.030 h5 4 SEME820100301506 1 4 6 50 0~-0.030 h5 4 SEME820100301508 1 4 8 50 0~-0.030 h5 4 SEME820100301510 1 4 10 50 0~-0.030 h5 4 SEME820100301512 1 4 12 50 0~-0.030 h5 4

Video

Operation

Side Milling
Small Part
Slotting
Die Sinking
Corner
Helical Interpol
Side Taper

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
