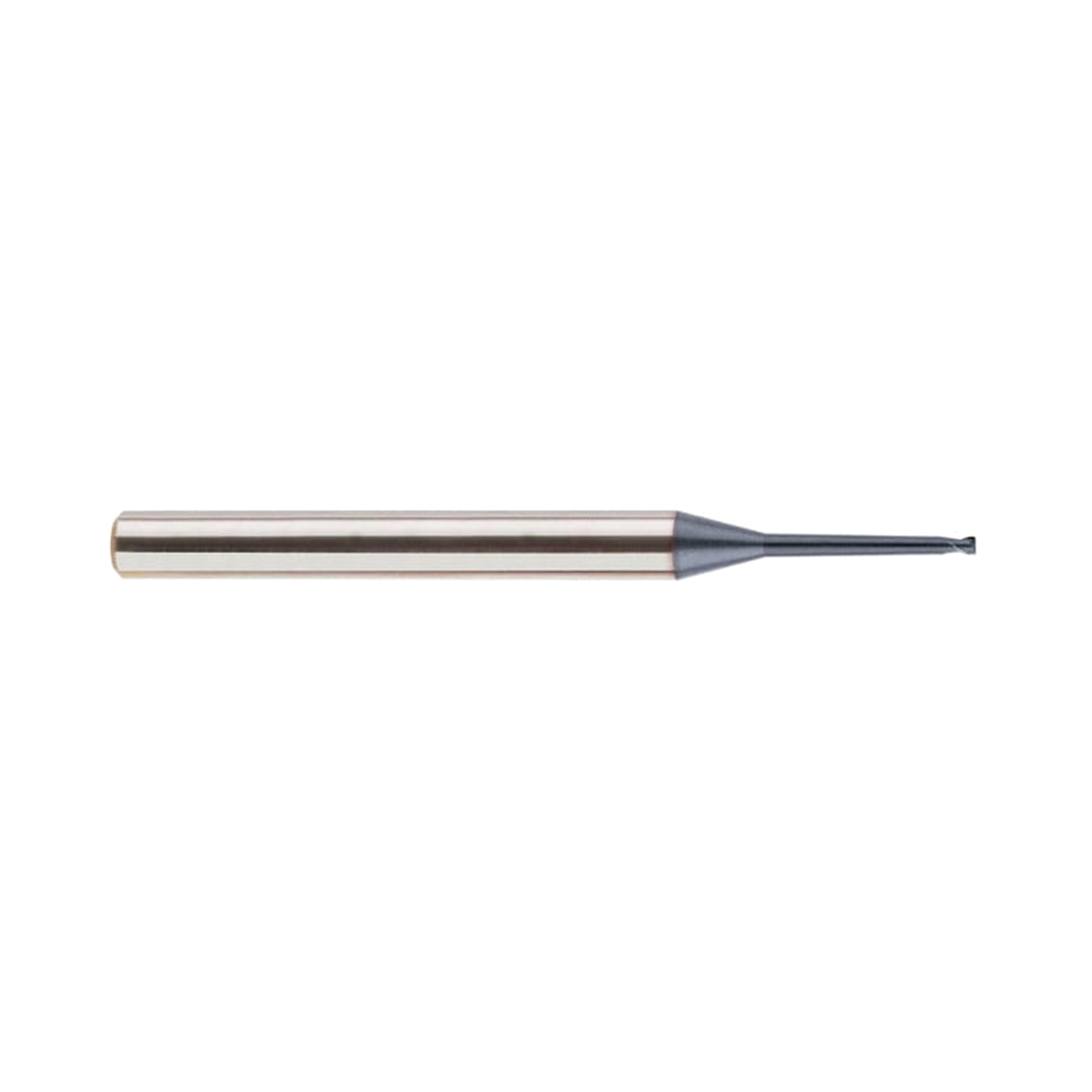

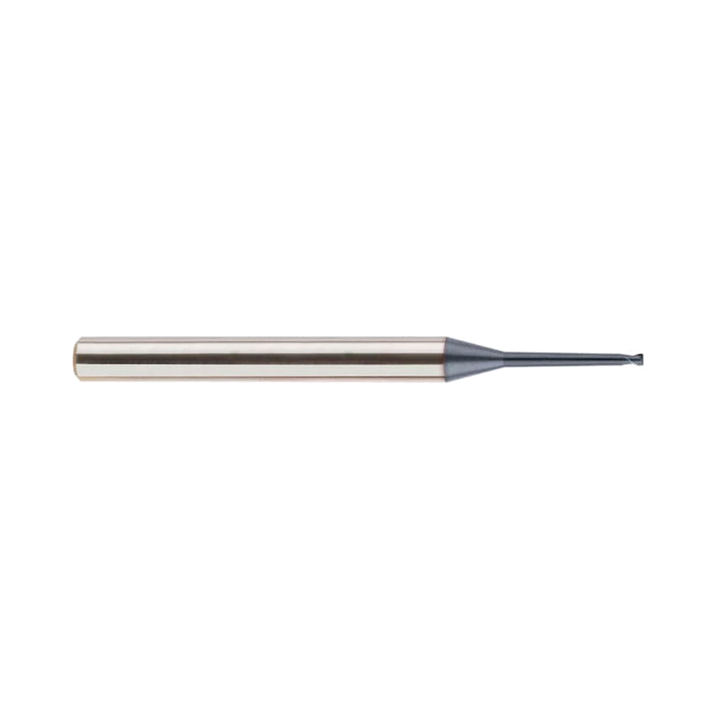

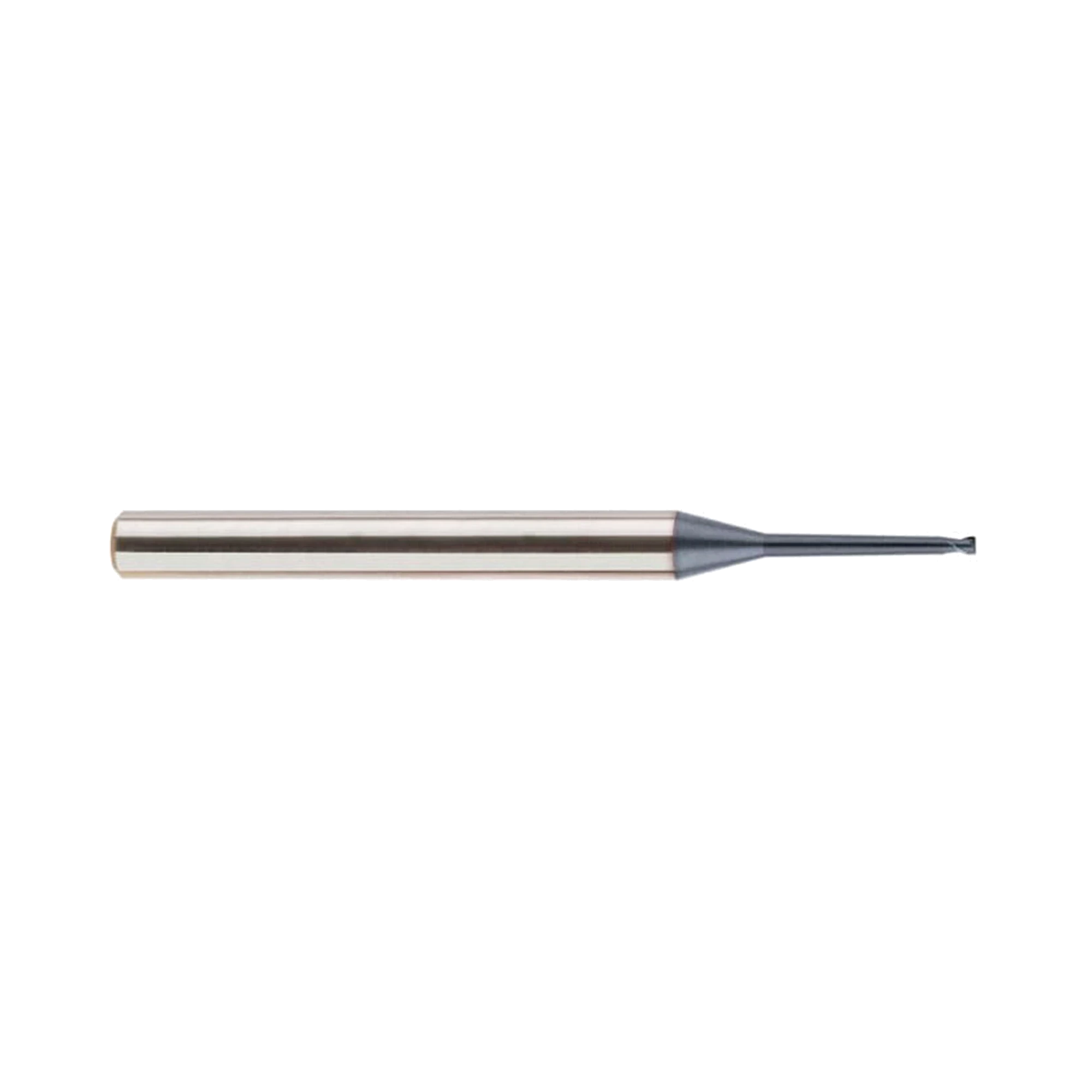

4G MILL 2 Flute 30°Helix Taper Neck Corner Radius End Mill (SEME62)

4G MILL 2 Flute 30°Helix Taper Neck Corner Radius End Mill (SEME62)
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SEME62
P K H
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL 2 Flute 30°Helix Taper Neck Corner Radius End Mill (SEME62) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The SEME61 series 2 flute slot drill range is available in diameters ranging from 0.2-20mm with a long neck design to prevent interference from the shank. The 4G Mill range from YG-1 offers unbeatable performance and accuracy in high speed machining of all carbon or alloy steels, pre-hardened steels (up to HRc55), stainless steel and cast iron. The micrograin carbide substrate and Y1200 coating offers extreme cutting life in temperatures up to 1,200°C.

  • Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
  • YG-1's Y1200 coating & premium micrograin carbide substrate
  • HSC - High speed cutting
  • Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
  • Available with various corner radius from R0.02mm to R2.0mm

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape Corner Radius
Size Min D0.1
Size Max D20.0
Length Taper Neck
Coating Y-Coating



Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.01
Hardened Steels(HRc40~45) Great
Helix Angle Square 30
No. Flutes 2
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide

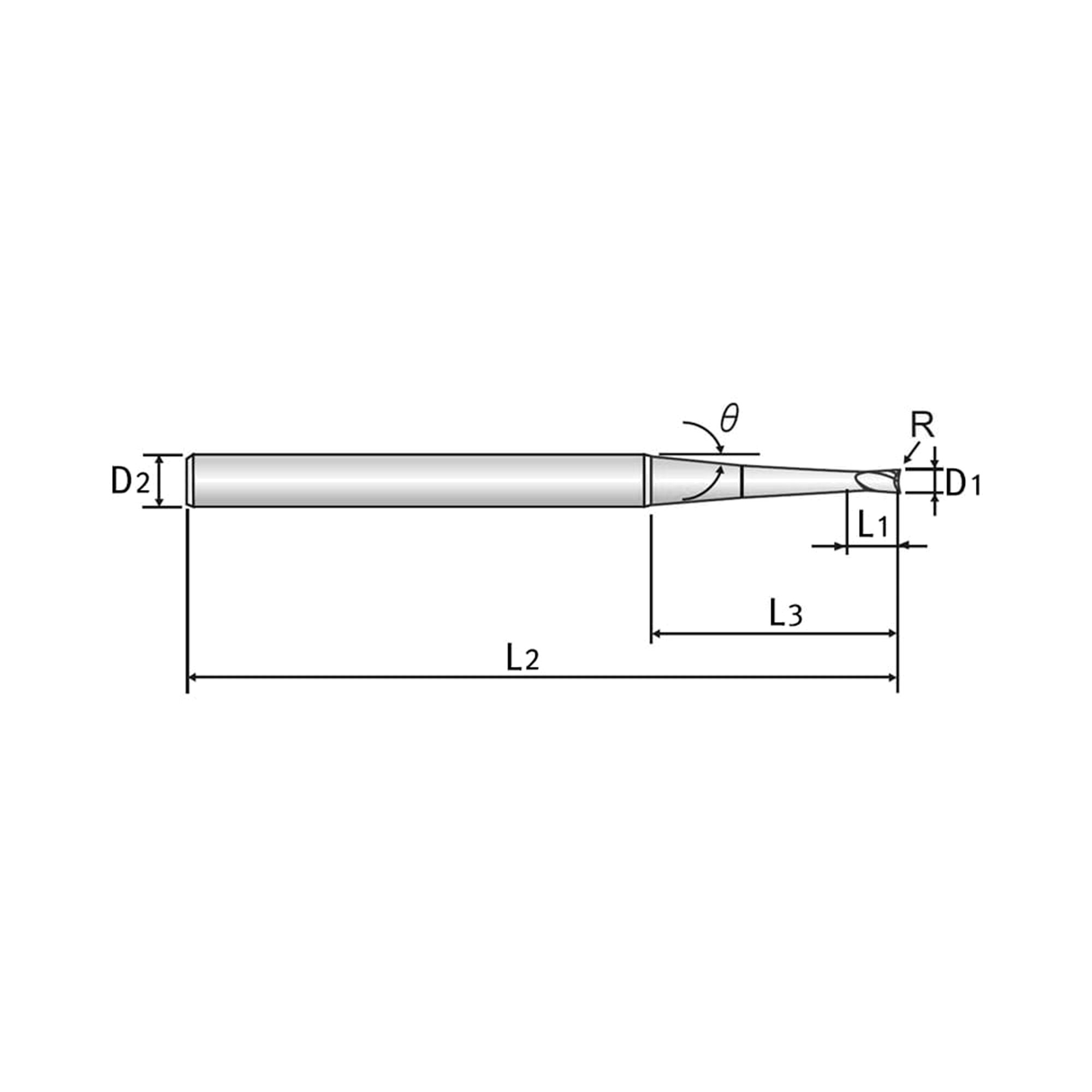

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME62004010102 0.4 0.6 2 50 0~-0.012 h5 2 SEME62004010103 0.4 0.6 3 50 0~-0.012 h5 2 SEME62004010104 0.4 0.6 4 50 0~-0.012 h5 2 SEME62004010105 0.4 0.6 5 50 0~-0.012 h5 2 SEME62004010106 0.4 0.6 6 50 0~-0.012 h5 2 SEME62004010202 0.4 0.6 2 50 0~-0.012 h5 2 SEME62004010203 0.4 0.6 3 50 0~-0.012 h5 2 SEME62004010204 0.4 0.6 4 50 0~-0.012 h5 2 SEME62004010205 0.4 0.6 5 50 0~-0.012 h5 2 SEME62004010206 0.4 0.6 6 50 0~-0.012 h5 2 SEME62005010104 0.5 0.7 4 50 0~-0.012 h5 2 SEME62005010106 0.5 0.7 6 50 0~-0.012 h5 2 SEME62005010108 0.5 0.7 8 50 0~-0.012 h5 2 SEME62005010110 0.5 0.7 10 50 0~-0.012 h5 2 SEME62005010204 0.5 0.7 4 50 0~-0.012 h5 2 SEME62005010206 0.5 0.7 6 50 0~-0.012 h5 2 SEME62005010208 0.5 0.7 8 50 0~-0.012 h5 2 SEME62005010210 0.5 0.7 10 50 0~-0.012 h5 2 SEME62006010104 0.6 0.9 4 50 0~-0.012 h5 2 SEME62006010106 0.6 0.9 6 50 0~-0.012 h5 2 SEME62006010108 0.6 0.9 8 50 0~-0.012 h5 2 SEME62006010110 0.6 0.9 10 50 0~-0.012 h5 2 SEME62006010112 0.6 0.9 12 50 0~-0.012 h5 2 SEME62006010204 0.6 0.9 4 50 0~-0.012 h5 2 SEME62006010206 0.6 0.9 6 50 0~-0.012 h5 2 SEME62006010208 0.6 0.9 8 50 0~-0.012 h5 2 SEME62006010210 0.6 0.9 10 50 0~-0.012 h5 2 SEME62006010212 0.6 0.9 12 50 0~-0.012 h5 2 SEME62006020104 0.6 0.9 4 50 0~-0.012 h5 2 SEME62006020106 0.6 0.9 6 50 0~-0.012 h5 2 SEME62006020108 0.6 0.9 8 50 0~-0.012 h5 2 SEME62006020110 0.6 0.9 10 50 0~-0.012 h5 2 SEME62006020112 0.6 0.9 12 50 0~-0.012 h5 2 SEME62006020204 0.6 0.9 4 50 0~-0.012 h5 2 SEME62006020206 0.6 0.9 6 50 0~-0.012 h5 2 SEME62006020208 0.6 0.9 8 50 0~-0.012 h5 2 SEME62006020210 0.6 0.9 10 50 0~-0.012 h5 2 SEME62006020212 0.6 0.9 12 50 0~-0.012 h5 2 SEME62008010104 0.8 1.2 4 50 0~-0.012 h5 2 SEME62008010106 0.8 1.2 6 50 0~-0.012 h5 2 SEME62008010108 0.8 1.2 8 50 0~-0.012 h5 2 SEME62008010110 0.8 1.2 10 50 0~-0.012 h5 2 SEME62008010112 0.8 1.2 12 50 0~-0.012 h5 2 SEME62008010116 0.8 1.2 16 50 0~-0.012 h5 2 SEME62008010204 0.8 1.2 4 50 0~-0.012 h5 2 SEME62008010206 0.8 1.2 6 50 0~-0.012 h5 2 SEME62008010208 0.8 1.2 8 50 0~-0.012 h5 2 SEME62008010210 0.8 1.2 10 50 0~-0.012 h5 2 SEME62008010212 0.8 1.2 12 50 0~-0.012 h5 2 SEME62008010216 0.8 1.2 16 50 0~-0.012 h5 2 SEME62008020104 0.8 1.2 4 50 0~-0.012 h5 2 SEME62008020106 0.8 1.2 6 50 0~-0.012 h5 2 SEME62008020108 0.8 1.2 8 50 0~-0.012 h5 2 SEME62008020110 0.8 1.2 10 50 0~-0.012 h5 2 SEME62008020112 0.8 1.2 12 50 0~-0.012 h5 2 SEME62008020116 0.8 1.2 16 50 0~-0.012 h5 2 SEME62008020204 0.8 1.2 4 50 0~-0.012 h5 2 SEME62008020206 0.8 1.2 6 50 0~-0.012 h5 2 SEME62008020208 0.8 1.2 8 50 0~-0.012 h5 2 SEME62008020210 0.8 1.2 10 50 0~-0.012 h5 2 SEME62008020212 0.8 1.2 12 50 0~-0.012 h5 2 SEME62008020216 0.8 1.2 16 50 0~-0.012 h5 2 SEME62010010106 1 1.5 6 50 0~-0.012 h5 2 SEME62010010108 1 1.5 8 50 0~-0.012 h5 2 SEME62010010110 1 1.5 10 50 0~-0.012 h5 2 SEME62010010112 1 1.5 12 50 0~-0.012 h5 2 SEME62010010116 1 1.5 16 50 0~-0.012 h5 2 SEME62010010120 1 1.5 20 50 0~-0.012 h5 2 SEME62010010125 1 1.5 25 60 0~-0.012 h5 2 SEME62010010130 1 1.5 30 70 0~-0.012 h5 2 SEME62010010140 1 1.5 40 80 0~-0.012 h5 2 SEME62010010150 1 1.5 50 90 0~-0.012 h5 2 SEME62010010206 1 1.5 6 50 0~-0.012 h5 2 SEME62010010208 1 1.5 8 50 0~-0.012 h5 2 SEME62010010210 1 1.5 10 50 0~-0.012 h5 2 SEME62010010212 1 1.5 12 50 0~-0.012 h5 2 SEME62010010216 1 1.5 16 50 0~-0.012 h5 2 SEME62010010220 1 1.5 20 50 0~-0.012 h5 2 SEME62010010225 1 1.5 25 60 0~-0.012 h5 2 SEME62010010230 1 1.5 30 70 0~-0.012 h5 2 SEME62010010240 1 1.5 40 80 0~-0.012 h5 2 SEME62010010250 1 1.5 50 90 0~-0.012 h5 2 SEME62010020106 1 1.5 6 50 0~-0.012 h5 2 SEME62010020108 1 1.5 8 50 0~-0.012 h5 2 SEME62010020110 1 1.5 10 50 0~-0.012 h5 2 SEME62010020112 1 1.5 12 50 0~-0.012 h5 2 SEME62010020116 1 1.5 16 50 0~-0.012 h5 2 SEME62010020120 1 1.5 20 50 0~-0.012 h5 2 SEME62010020125 1 1.5 25 60 0~-0.012 h5 2 SEME62010020130 1 1.5 30 70 0~-0.012 h5 2 SEME62010020140 1 1.5 40 80 0~-0.012 h5 2 SEME62010020150 1 1.5 50 90 0~-0.012 h5 2 SEME62010020206 1 1.5 6 50 0~-0.012 h5 2 SEME62010020208 1 1.5 8 50 0~-0.012 h5 2 SEME62010020210 1 1.5 10 50 0~-0.012 h5 2 SEME62010020212 1 1.5 12 50 0~-0.012 h5 2 SEME62010020216 1 1.5 16 50 0~-0.012 h5 2 SEME62010020220 1 1.5 20 50 0~-0.012 h5 2 SEME62010020225 1 1.5 25 60 0~-0.012 h5 2 SEME62010020230 1 1.5 30 70 0~-0.012 h5 2 SEME62010020240 1 1.5 40 80 0~-0.012 h5 2 SEME62010020250 1 1.5 50 90 0~-0.012 h5 2 SEME62012010108 1.2 1.8 8 50 0~-0.012 h5 2 SEME62012010112 1.2 1.8 12 50 0~-0.012 h5 2 SEME62012010116 1.2 1.8 16 50 0~-0.012 h5 2 SEME62012010120 1.2 1.8 20 50 0~-0.012 h5 2 SEME62012010125 1.2 1.8 25 60 0~-0.012 h5 2 SEME62012010130 1.2 1.8 30 70 0~-0.012 h5 2 SEME62012010208 1.2 1.8 8 50 0~-0.012 h5 2 SEME62012010212 1.2 1.8 12 50 0~-0.012 h5 2 SEME62012010216 1.2 1.8 16 50 0~-0.012 h5 2 SEME62012010220 1.2 1.8 20 50 0~-0.012 h5 2 SEME62012010225 1.2 1.8 25 60 0~-0.012 h5 2 SEME62012010230 1.2 1.8 30 70 0~-0.012 h5 2 SEME62012020108 1.2 1.8 8 50 0~-0.012 h5 2 SEME62012020112 1.2 1.8 12 50 0~-0.012 h5 2 SEME62012020116 1.2 1.8 16 50 0~-0.012 h5 2 SEME62012020120 1.2 1.8 20 50 0~-0.012 h5 2 SEME62012020125 1.2 1.8 25 60 0~-0.012 h5 2 SEME62012020130 1.2 1.8 30 70 0~-0.012 h5 2 SEME62012020208 1.2 1.8 8 50 0~-0.012 h5 2 SEME62012020212 1.2 1.8 12 50 0~-0.012 h5 2 SEME62012020216 1.2 1.8 16 50 0~-0.012 h5 2 SEME62012020220 1.2 1.8 20 50 0~-0.012 h5 2 SEME62012020225 1.2 1.8 25 60 0~-0.012 h5 2 SEME62012020230 1.2 1.8 30 70 0~-0.012 h5 2 SEME62015010108 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015010110 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015010112 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015010116 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015010120 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015010125 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015010130 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015010140 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015010150 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015010208 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015010210 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015010212 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015010216 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015010220 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015010225 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015010230 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015010240 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015010250 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015020108 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015020110 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015020112 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015020116 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015020120 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015020125 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015020130 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015020140 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015020150 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015020208 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015020210 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015020212 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015020216 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015020220 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015020225 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015020230 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015020240 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015020250 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015030108 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015030110 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015030112 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015030116 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015030120 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015030125 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015030130 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015030140 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015030150 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015030208 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015030210 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015030212 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015030216 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015030220 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015030225 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015030230 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015030240 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015030250 1.5 2.3 50 90 0~-0.012 h5 2 SEME62020010110 2 2 10 50 0~-0.012 h5 2 SEME62020010112 2 2 12 50 0~-0.012 h5 2 SEME62020010116 2 2 16 50 0~-0.012 h5 2 SEME62020010120 2 2 20 50 0~-0.012 h5 2 SEME62020010125 2 2 25 60 0~-0.012 h5 2 SEME62020010130 2 2 30 70 0~-0.012 h5 2 SEME62020010140 2 2 40 80 0~-0.012 h5 2 SEME62020010150 2 2 50 100 0~-0.012 h5 2 SEME62020010160 2 2 60 100 0~-0.012 h5 2 SEME62020010180 2 2 80 140 0~-0.012 h5 2 SEME62020010210 2 2 10 50 0~-0.012 h5 2 SEME62020010212 2 2 12 50 0~-0.012 h5 2 SEME62020010216 2 2 16 50 0~-0.012 h5 2 SEME62020010220 2 2 20 50 0~-0.012 h5 2 SEME62020010225 2 2 25 60 0~-0.012 h5 2 SEME62020010230 2 2 30 70 0~-0.012 h5 2 SEME62020010240 2 2 40 80 0~-0.012 h5 2 SEME62020010250 2 2 50 100 0~-0.012 h5 2 SEME62020010260 2 2 60 100 0~-0.012 h5 2 SEME62020010280 2 2 80 140 0~-0.012 h5 2 SEME62020020110 2 2 10 50 0~-0.012 h5 2 SEME62020020112 2 2 12 50 0~-0.012 h5 2 SEME62020020116 2 2 16 50 0~-0.012 h5 2 SEME62020020120 2 2 20 50 0~-0.012 h5 2 SEME62020020125 2 2 25 60 0~-0.012 h5 2 SEME62020020130 2 2 30 70 0~-0.012 h5 2 SEME62020020140 2 2 40 80 0~-0.012 h5 2 SEME62020020150 2 2 50 100 0~-0.012 h5 2 SEME62020020160 2 2 60 100 0~-0.012 h5 2 SEME62020020180 2 2 80 140 0~-0.012 h5 2 SEME62020020210 2 2 10 50 0~-0.012 h5 2 SEME62020020212 2 2 12 50 0~-0.012 h5 2 SEME62020020216 2 2 16 50 0~-0.012 h5 2 SEME62020020220 2 2 20 50 0~-0.012 h5 2 SEME62020020225 2 2 25 60 0~-0.012 h5 2 SEME62020020230 2 2 30 70 0~-0.012 h5 2 SEME62020020240 2 2 40 80 0~-0.012 h5 2 SEME62020020250 2 2 50 100 0~-0.012 h5 2 SEME62020020260 2 2 60 100 0~-0.012 h5 2 SEME62020020280 2 2 80 140 0~-0.012 h5 2 SEME62020030110 2 2 10 50 0~-0.012 h5 2 SEME62020030112 2 2 12 50 0~-0.012 h5 2 SEME62020030116 2 2 16 50 0~-0.012 h5 2 SEME62020030120 2 2 20 50 0~-0.012 h5 2 SEME62020030125 2 2 25 60 0~-0.012 h5 2 SEME62020030130 2 2 30 70 0~-0.012 h5 2 SEME62020030140 2 2 40 80 0~-0.012 h5 2 SEME62020030150 2 2 50 100 0~-0.012 h5 2 SEME62020030160 2 2 60 100 0~-0.012 h5 2 SEME62020030180 2 2 80 140 0~-0.012 h5 2 SEME62020030210 2 2 10 50 0~-0.012 h5 2 SEME62020030212 2 2 12 50 0~-0.012 h5 2 SEME62020030216 2 2 16 50 0~-0.012 h5 2 SEME62020030220 2 2 20 50 0~-0.012 h5 2 SEME62020030225 2 2 25 60 0~-0.012 h5 2 SEME62020030230 2 2 30 70 0~-0.012 h5 2 SEME62020030240 2 2 40 80 0~-0.012 h5 2 SEME62020030250 2 2 50 100 0~-0.012 h5 2 SEME62020030260 2 2 60 100 0~-0.012 h5 2 SEME62020030280 2 2 80 140 0~-0.012 h5 2 SEME62020050110 2 2 10 50 0~-0.012 h5 2 SEME62020050112 2 2 12 50 0~-0.012 h5 2 SEME62020050116 2 2 16 50 0~-0.012 h5 2 SEME62020050120 2 2 20 50 0~-0.012 h5 2 SEME62020050125 2 2 25 60 0~-0.012 h5 2 SEME62020050130 2 2 30 70 0~-0.012 h5 2 SEME62020050140 2 2 40 80 0~-0.012 h5 2 SEME62020050150 2 2 50 100 0~-0.012 h5 2 SEME62020050160 2 2 60 100 0~-0.012 h5 2 SEME62020050180 2 2 80 140 0~-0.012 h5 2 SEME62020050210 2 2 10 50 0~-0.012 h5 2 SEME62020050212 2 2 12 50 0~-0.012 h5 2 SEME62020050216 2 2 16 50 0~-0.012 h5 2 SEME62020050220 2 2 20 50 0~-0.012 h5 2 SEME62020050225 2 2 25 60 0~-0.012 h5 2 SEME62020050230 2 2 30 70 0~-0.012 h5 2 SEME62020050240 2 2 40 80 0~-0.012 h5 2 SEME62020050250 2 2 50 100 0~-0.012 h5 2 SEME62020050260 2 2 60 100 0~-0.012 h5 2 SEME62020050280 2 2 80 140 0~-0.012 h5 2 SEME62030020116 3 4.5 16 60 0~-0.012 h5 2 SEME62030020120 3 4.5 20 65 0~-0.012 h5 2 SEME62030020130 3 4.5 30 70 0~-0.012 h5 2 SEME62030020140 3 4.5 40 80 0~-0.012 h5 2 SEME62030020150 3 4.5 50 90 0~-0.012 h5 2 SEME62030020160 3 4.5 60 100 0~-0.012 h5 2 SEME62030020216 3 4.5 16 60 0~-0.012 h5 2 SEME62030020220 3 4.5 20 65 0~-0.012 h5 2 SEME62030020230 3 4.5 30 70 0~-0.012 h5 2 SEME62030020240 3 4.5 40 80 0~-0.012 h5 2 SEME62030020250 3 4.5 50 90 0~-0.012 h5 2 SEME62030020260 3 4.5 60 100 0~-0.012 h5 2 SEME62030020270 3 4.5 70 120 0~-0.012 h5 2 SEME62030030116 3 4.5 16 60 0~-0.012 h5 2 SEME62030030120 3 4.5 20 65 0~-0.012 h5 2 SEME62030030130 3 4.5 30 70 0~-0.012 h5 2 SEME62030030140 3 4.5 40 80 0~-0.012 h5 2 SEME62030030150 3 4.5 50 90 0~-0.012 h5 2 SEME62030030160 3 4.5 60 100 0~-0.012 h5 2 SEME62030030216 3 4.5 16 60 0~-0.012 h5 2 SEME62030030220 3 4.5 20 65 0~-0.012 h5 2 SEME62030030230 3 4.5 30 70 0~-0.012 h5 2 SEME62030030240 3 4.5 40 80 0~-0.012 h5 2 SEME62030030250 3 4.5 50 90 0~-0.012 h5 2 SEME62030030260 3 4.5 60 100 0~-0.012 h5 2 SEME62030030270 3 4.5 70 120 0~-0.012 h5 2 SEME62030050116 3 4.5 16 60 0~-0.012 h5 2 SEME62030050120 3 4.5 20 65 0~-0.012 h5 2 SEME62030050130 3 4.5 30 70 0~-0.012 h5 2 SEME62030050140 3 4.5 40 80 0~-0.012 h5 2 SEME62030050150 3 4.5 50 90 0~-0.012 h5 2 SEME62030050160 3 4.5 60 100 0~-0.012 h5 2 SEME62030050216 3 4.5 16 60 0~-0.012 h5 2 SEME62030050220 3 4.5 20 65 0~-0.012 h5 2 SEME62030050230 3 4.5 30 70 0~-0.012 h5 2 SEME62030050240 3 4.5 40 80 0~-0.012 h5 2 SEME62030050250 3 4.5 50 90 0~-0.012 h5 2 SEME62030050260 3 4.5 60 100 0~-0.012 h5 2 SEME62030050270 3 4.5 70 120 0~-0.012 h5 2 SEME62040020140 4 6 40 90 0~-0.012 h5 2 SEME62040020150 4 6 50 100 0~-0.012 h5 2 SEME62040020160 4 6 60 110 0~-0.012 h5 2 SEME62040020170 4 6 70 120 0~-0.012 h5 2 SEME62040020240 4 6 40 90 0~-0.012 h5 2 SEME62040020250 4 6 50 100 0~-0.012 h5 2 SEME62040020260 4 6 60 110 0~-0.012 h5 2 SEME62040020270 4 6 70 120 0~-0.012 h5 2 SEME62040030140 4 6 40 90 0~-0.012 h5 2 SEME62040030150 4 6 50 100 0~-0.012 h5 2 SEME62040030160 4 6 60 110 0~-0.012 h5 2 SEME62040030170 4 6 70 120 0~-0.012 h5 2 SEME62040030240 4 6 40 90 0~-0.012 h5 2 SEME62040030250 4 6 50 100 0~-0.012 h5 2 SEME62040030260 4 6 60 110 0~-0.012 h5 2 SEME62040030270 4 6 70 120 0~-0.012 h5 2 SEME62040050140 4 6 40 90 0~-0.012 h5 2 SEME62040050150 4 6 50 100 0~-0.012 h5 2 SEME62040050160 4 6 60 110 0~-0.012 h5 2 SEME62040050170 4 6 70 120 0~-0.012 h5 2 SEME62040050240 4 6 40 90 0~-0.012 h5 2 SEME62040050250 4 6 50 100 0~-0.012 h5 2 SEME62040050260 4 6 60 110 0~-0.012 h5 2 SEME62040050270 4 6 70 120 0~-0.012 h5 2 SEME620020050101 0.2 0.3 1 40 0~-0.012 h5 2 SEME620020050102 0.2 0.3 2 40 0~-0.012 h5 2 SEME620020050103 0.2 0.3 3 40 0~-0.012 h5 2 SEME620020050201 0.2 0.3 1 40 0~-0.012 h5 2 SEME620020050202 0.2 0.3 2 40 0~-0.012 h5 2 SEME620020050203 0.2 0.3 3 40 0~-0.012 h5 2 SEME620030050102 0.3 0.5 2 40 0~-0.012 h5 2 SEME620030050103 0.3 0.5 3 40 0~-0.012 h5 2 SEME620030050104 0.3 0.5 4 40 0~-0.012 h5 2 SEME620030050105 0.3 0.5 5 40 0~-0.012 h5 2 SEME620030050202 0.3 0.5 2 40 0~-0.012 h5 2 SEME620030050203 0.3 0.5 3 40 0~-0.012 h5 2 SEME620030050204 0.3 0.5 4 40 0~-0.012 h5 2 SEME620030050205 0.3 0.5 5 40 0~-0.012 h5 2 SEME620040050102 0.4 0.6 2 50 0~-0.012 h5 2 SEME620040050103 0.4 0.6 3 50 0~-0.012 h5 2 SEME620040050104 0.4 0.6 4 50 0~-0.012 h5 2 SEME620040050105 0.4 0.6 5 50 0~-0.012 h5 2 SEME620040050106 0.4 0.6 6 50 0~-0.012 h5 2 SEME620040050202 0.4 0.6 2 50 0~-0.012 h5 2 SEME620040050203 0.4 0.6 3 50 0~-0.012 h5 2 SEME620040050204 0.4 0.6 4 50 0~-0.012 h5 2 SEME620040050205 0.4 0.6 5 50 0~-0.012 h5 2 SEME620040050206 0.4 0.6 6 50 0~-0.012 h5 2 SEME620050050104 0.5 0.7 4 50 0~-0.012 h5 2 SEME620050050106 0.5 0.7 6 50 0~-0.012 h5 2 SEME620050050108 0.5 0.7 8 50 0~-0.012 h5 2 SEME620050050110 0.5 0.7 10 50 0~-0.012 h5 2 SEME620050050204 0.5 0.7 4 50 0~-0.012 h5 2 SEME620050050206 0.5 0.7 6 50 0~-0.012 h5 2 SEME620050050208 0.5 0.7 8 50 0~-0.012 h5 2 SEME620050050210 0.5 0.7 10 50 0~-0.012 h5 2
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
K

Grey cast iron

Good Good
HRc
1026
HB
180260
K

Nodular cast iron

Good Good
HRc
325
HB
160250
K

Malleable cast iron

Good Good
HRc
21
HB
130230
H

Hardened steels & cast irons

Excellent Excellent
HRc
384041
HB
400630

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME62004010102 0.4 0.6 2 50 0~-0.012 h5 2 SEME62004010103 0.4 0.6 3 50 0~-0.012 h5 2 SEME62004010104 0.4 0.6 4 50 0~-0.012 h5 2 SEME62004010105 0.4 0.6 5 50 0~-0.012 h5 2 SEME62004010106 0.4 0.6 6 50 0~-0.012 h5 2 SEME62004010202 0.4 0.6 2 50 0~-0.012 h5 2 SEME62004010203 0.4 0.6 3 50 0~-0.012 h5 2 SEME62004010204 0.4 0.6 4 50 0~-0.012 h5 2 SEME62004010205 0.4 0.6 5 50 0~-0.012 h5 2 SEME62004010206 0.4 0.6 6 50 0~-0.012 h5 2 SEME62005010104 0.5 0.7 4 50 0~-0.012 h5 2 SEME62005010106 0.5 0.7 6 50 0~-0.012 h5 2 SEME62005010108 0.5 0.7 8 50 0~-0.012 h5 2 SEME62005010110 0.5 0.7 10 50 0~-0.012 h5 2 SEME62005010204 0.5 0.7 4 50 0~-0.012 h5 2 SEME62005010206 0.5 0.7 6 50 0~-0.012 h5 2 SEME62005010208 0.5 0.7 8 50 0~-0.012 h5 2 SEME62005010210 0.5 0.7 10 50 0~-0.012 h5 2 SEME62006010104 0.6 0.9 4 50 0~-0.012 h5 2 SEME62006010106 0.6 0.9 6 50 0~-0.012 h5 2 SEME62006010108 0.6 0.9 8 50 0~-0.012 h5 2 SEME62006010110 0.6 0.9 10 50 0~-0.012 h5 2 SEME62006010112 0.6 0.9 12 50 0~-0.012 h5 2 SEME62006010204 0.6 0.9 4 50 0~-0.012 h5 2 SEME62006010206 0.6 0.9 6 50 0~-0.012 h5 2 SEME62006010208 0.6 0.9 8 50 0~-0.012 h5 2 SEME62006010210 0.6 0.9 10 50 0~-0.012 h5 2 SEME62006010212 0.6 0.9 12 50 0~-0.012 h5 2 SEME62006020104 0.6 0.9 4 50 0~-0.012 h5 2 SEME62006020106 0.6 0.9 6 50 0~-0.012 h5 2 SEME62006020108 0.6 0.9 8 50 0~-0.012 h5 2 SEME62006020110 0.6 0.9 10 50 0~-0.012 h5 2 SEME62006020112 0.6 0.9 12 50 0~-0.012 h5 2 SEME62006020204 0.6 0.9 4 50 0~-0.012 h5 2 SEME62006020206 0.6 0.9 6 50 0~-0.012 h5 2 SEME62006020208 0.6 0.9 8 50 0~-0.012 h5 2 SEME62006020210 0.6 0.9 10 50 0~-0.012 h5 2 SEME62006020212 0.6 0.9 12 50 0~-0.012 h5 2 SEME62008010104 0.8 1.2 4 50 0~-0.012 h5 2 SEME62008010106 0.8 1.2 6 50 0~-0.012 h5 2 SEME62008010108 0.8 1.2 8 50 0~-0.012 h5 2 SEME62008010110 0.8 1.2 10 50 0~-0.012 h5 2 SEME62008010112 0.8 1.2 12 50 0~-0.012 h5 2 SEME62008010116 0.8 1.2 16 50 0~-0.012 h5 2 SEME62008010204 0.8 1.2 4 50 0~-0.012 h5 2 SEME62008010206 0.8 1.2 6 50 0~-0.012 h5 2 SEME62008010208 0.8 1.2 8 50 0~-0.012 h5 2 SEME62008010210 0.8 1.2 10 50 0~-0.012 h5 2 SEME62008010212 0.8 1.2 12 50 0~-0.012 h5 2 SEME62008010216 0.8 1.2 16 50 0~-0.012 h5 2 SEME62008020104 0.8 1.2 4 50 0~-0.012 h5 2 SEME62008020106 0.8 1.2 6 50 0~-0.012 h5 2 SEME62008020108 0.8 1.2 8 50 0~-0.012 h5 2 SEME62008020110 0.8 1.2 10 50 0~-0.012 h5 2 SEME62008020112 0.8 1.2 12 50 0~-0.012 h5 2 SEME62008020116 0.8 1.2 16 50 0~-0.012 h5 2 SEME62008020204 0.8 1.2 4 50 0~-0.012 h5 2 SEME62008020206 0.8 1.2 6 50 0~-0.012 h5 2 SEME62008020208 0.8 1.2 8 50 0~-0.012 h5 2 SEME62008020210 0.8 1.2 10 50 0~-0.012 h5 2 SEME62008020212 0.8 1.2 12 50 0~-0.012 h5 2 SEME62008020216 0.8 1.2 16 50 0~-0.012 h5 2 SEME62010010106 1 1.5 6 50 0~-0.012 h5 2 SEME62010010108 1 1.5 8 50 0~-0.012 h5 2 SEME62010010110 1 1.5 10 50 0~-0.012 h5 2 SEME62010010112 1 1.5 12 50 0~-0.012 h5 2 SEME62010010116 1 1.5 16 50 0~-0.012 h5 2 SEME62010010120 1 1.5 20 50 0~-0.012 h5 2 SEME62010010125 1 1.5 25 60 0~-0.012 h5 2 SEME62010010130 1 1.5 30 70 0~-0.012 h5 2 SEME62010010140 1 1.5 40 80 0~-0.012 h5 2 SEME62010010150 1 1.5 50 90 0~-0.012 h5 2 SEME62010010206 1 1.5 6 50 0~-0.012 h5 2 SEME62010010208 1 1.5 8 50 0~-0.012 h5 2 SEME62010010210 1 1.5 10 50 0~-0.012 h5 2 SEME62010010212 1 1.5 12 50 0~-0.012 h5 2 SEME62010010216 1 1.5 16 50 0~-0.012 h5 2 SEME62010010220 1 1.5 20 50 0~-0.012 h5 2 SEME62010010225 1 1.5 25 60 0~-0.012 h5 2 SEME62010010230 1 1.5 30 70 0~-0.012 h5 2 SEME62010010240 1 1.5 40 80 0~-0.012 h5 2 SEME62010010250 1 1.5 50 90 0~-0.012 h5 2 SEME62010020106 1 1.5 6 50 0~-0.012 h5 2 SEME62010020108 1 1.5 8 50 0~-0.012 h5 2 SEME62010020110 1 1.5 10 50 0~-0.012 h5 2 SEME62010020112 1 1.5 12 50 0~-0.012 h5 2 SEME62010020116 1 1.5 16 50 0~-0.012 h5 2 SEME62010020120 1 1.5 20 50 0~-0.012 h5 2 SEME62010020125 1 1.5 25 60 0~-0.012 h5 2 SEME62010020130 1 1.5 30 70 0~-0.012 h5 2 SEME62010020140 1 1.5 40 80 0~-0.012 h5 2 SEME62010020150 1 1.5 50 90 0~-0.012 h5 2 SEME62010020206 1 1.5 6 50 0~-0.012 h5 2 SEME62010020208 1 1.5 8 50 0~-0.012 h5 2 SEME62010020210 1 1.5 10 50 0~-0.012 h5 2 SEME62010020212 1 1.5 12 50 0~-0.012 h5 2 SEME62010020216 1 1.5 16 50 0~-0.012 h5 2 SEME62010020220 1 1.5 20 50 0~-0.012 h5 2 SEME62010020225 1 1.5 25 60 0~-0.012 h5 2 SEME62010020230 1 1.5 30 70 0~-0.012 h5 2 SEME62010020240 1 1.5 40 80 0~-0.012 h5 2 SEME62010020250 1 1.5 50 90 0~-0.012 h5 2 SEME62012010108 1.2 1.8 8 50 0~-0.012 h5 2 SEME62012010112 1.2 1.8 12 50 0~-0.012 h5 2 SEME62012010116 1.2 1.8 16 50 0~-0.012 h5 2 SEME62012010120 1.2 1.8 20 50 0~-0.012 h5 2 SEME62012010125 1.2 1.8 25 60 0~-0.012 h5 2 SEME62012010130 1.2 1.8 30 70 0~-0.012 h5 2 SEME62012010208 1.2 1.8 8 50 0~-0.012 h5 2 SEME62012010212 1.2 1.8 12 50 0~-0.012 h5 2 SEME62012010216 1.2 1.8 16 50 0~-0.012 h5 2 SEME62012010220 1.2 1.8 20 50 0~-0.012 h5 2 SEME62012010225 1.2 1.8 25 60 0~-0.012 h5 2 SEME62012010230 1.2 1.8 30 70 0~-0.012 h5 2 SEME62012020108 1.2 1.8 8 50 0~-0.012 h5 2 SEME62012020112 1.2 1.8 12 50 0~-0.012 h5 2 SEME62012020116 1.2 1.8 16 50 0~-0.012 h5 2 SEME62012020120 1.2 1.8 20 50 0~-0.012 h5 2 SEME62012020125 1.2 1.8 25 60 0~-0.012 h5 2 SEME62012020130 1.2 1.8 30 70 0~-0.012 h5 2 SEME62012020208 1.2 1.8 8 50 0~-0.012 h5 2 SEME62012020212 1.2 1.8 12 50 0~-0.012 h5 2 SEME62012020216 1.2 1.8 16 50 0~-0.012 h5 2 SEME62012020220 1.2 1.8 20 50 0~-0.012 h5 2 SEME62012020225 1.2 1.8 25 60 0~-0.012 h5 2 SEME62012020230 1.2 1.8 30 70 0~-0.012 h5 2 SEME62015010108 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015010110 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015010112 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015010116 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015010120 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015010125 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015010130 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015010140 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015010150 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015010208 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015010210 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015010212 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015010216 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015010220 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015010225 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015010230 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015010240 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015010250 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015020108 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015020110 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015020112 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015020116 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015020120 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015020125 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015020130 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015020140 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015020150 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015020208 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015020210 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015020212 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015020216 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015020220 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015020225 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015020230 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015020240 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015020250 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015030108 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015030110 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015030112 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015030116 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015030120 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015030125 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015030130 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015030140 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015030150 1.5 2.3 50 90 0~-0.012 h5 2 SEME62015030208 1.5 2.3 8 50 0~-0.012 h5 2 SEME62015030210 1.5 2.3 10 50 0~-0.012 h5 2 SEME62015030212 1.5 2.3 12 50 0~-0.012 h5 2 SEME62015030216 1.5 2.3 16 50 0~-0.012 h5 2 SEME62015030220 1.5 2.3 20 50 0~-0.012 h5 2 SEME62015030225 1.5 2.3 25 60 0~-0.012 h5 2 SEME62015030230 1.5 2.3 30 70 0~-0.012 h5 2 SEME62015030240 1.5 2.3 40 80 0~-0.012 h5 2 SEME62015030250 1.5 2.3 50 90 0~-0.012 h5 2 SEME62020010110 2 2 10 50 0~-0.012 h5 2 SEME62020010112 2 2 12 50 0~-0.012 h5 2 SEME62020010116 2 2 16 50 0~-0.012 h5 2 SEME62020010120 2 2 20 50 0~-0.012 h5 2 SEME62020010125 2 2 25 60 0~-0.012 h5 2 SEME62020010130 2 2 30 70 0~-0.012 h5 2 SEME62020010140 2 2 40 80 0~-0.012 h5 2 SEME62020010150 2 2 50 100 0~-0.012 h5 2 SEME62020010160 2 2 60 100 0~-0.012 h5 2 SEME62020010180 2 2 80 140 0~-0.012 h5 2 SEME62020010210 2 2 10 50 0~-0.012 h5 2 SEME62020010212 2 2 12 50 0~-0.012 h5 2 SEME62020010216 2 2 16 50 0~-0.012 h5 2 SEME62020010220 2 2 20 50 0~-0.012 h5 2 SEME62020010225 2 2 25 60 0~-0.012 h5 2 SEME62020010230 2 2 30 70 0~-0.012 h5 2 SEME62020010240 2 2 40 80 0~-0.012 h5 2 SEME62020010250 2 2 50 100 0~-0.012 h5 2 SEME62020010260 2 2 60 100 0~-0.012 h5 2 SEME62020010280 2 2 80 140 0~-0.012 h5 2 SEME62020020110 2 2 10 50 0~-0.012 h5 2 SEME62020020112 2 2 12 50 0~-0.012 h5 2 SEME62020020116 2 2 16 50 0~-0.012 h5 2 SEME62020020120 2 2 20 50 0~-0.012 h5 2 SEME62020020125 2 2 25 60 0~-0.012 h5 2 SEME62020020130 2 2 30 70 0~-0.012 h5 2 SEME62020020140 2 2 40 80 0~-0.012 h5 2 SEME62020020150 2 2 50 100 0~-0.012 h5 2 SEME62020020160 2 2 60 100 0~-0.012 h5 2 SEME62020020180 2 2 80 140 0~-0.012 h5 2 SEME62020020210 2 2 10 50 0~-0.012 h5 2 SEME62020020212 2 2 12 50 0~-0.012 h5 2 SEME62020020216 2 2 16 50 0~-0.012 h5 2 SEME62020020220 2 2 20 50 0~-0.012 h5 2 SEME62020020225 2 2 25 60 0~-0.012 h5 2 SEME62020020230 2 2 30 70 0~-0.012 h5 2 SEME62020020240 2 2 40 80 0~-0.012 h5 2 SEME62020020250 2 2 50 100 0~-0.012 h5 2 SEME62020020260 2 2 60 100 0~-0.012 h5 2 SEME62020020280 2 2 80 140 0~-0.012 h5 2 SEME62020030110 2 2 10 50 0~-0.012 h5 2 SEME62020030112 2 2 12 50 0~-0.012 h5 2 SEME62020030116 2 2 16 50 0~-0.012 h5 2 SEME62020030120 2 2 20 50 0~-0.012 h5 2 SEME62020030125 2 2 25 60 0~-0.012 h5 2 SEME62020030130 2 2 30 70 0~-0.012 h5 2 SEME62020030140 2 2 40 80 0~-0.012 h5 2 SEME62020030150 2 2 50 100 0~-0.012 h5 2 SEME62020030160 2 2 60 100 0~-0.012 h5 2 SEME62020030180 2 2 80 140 0~-0.012 h5 2 SEME62020030210 2 2 10 50 0~-0.012 h5 2 SEME62020030212 2 2 12 50 0~-0.012 h5 2 SEME62020030216 2 2 16 50 0~-0.012 h5 2 SEME62020030220 2 2 20 50 0~-0.012 h5 2 SEME62020030225 2 2 25 60 0~-0.012 h5 2 SEME62020030230 2 2 30 70 0~-0.012 h5 2 SEME62020030240 2 2 40 80 0~-0.012 h5 2 SEME62020030250 2 2 50 100 0~-0.012 h5 2 SEME62020030260 2 2 60 100 0~-0.012 h5 2 SEME62020030280 2 2 80 140 0~-0.012 h5 2 SEME62020050110 2 2 10 50 0~-0.012 h5 2 SEME62020050112 2 2 12 50 0~-0.012 h5 2 SEME62020050116 2 2 16 50 0~-0.012 h5 2 SEME62020050120 2 2 20 50 0~-0.012 h5 2 SEME62020050125 2 2 25 60 0~-0.012 h5 2 SEME62020050130 2 2 30 70 0~-0.012 h5 2 SEME62020050140 2 2 40 80 0~-0.012 h5 2 SEME62020050150 2 2 50 100 0~-0.012 h5 2 SEME62020050160 2 2 60 100 0~-0.012 h5 2 SEME62020050180 2 2 80 140 0~-0.012 h5 2 SEME62020050210 2 2 10 50 0~-0.012 h5 2 SEME62020050212 2 2 12 50 0~-0.012 h5 2 SEME62020050216 2 2 16 50 0~-0.012 h5 2 SEME62020050220 2 2 20 50 0~-0.012 h5 2 SEME62020050225 2 2 25 60 0~-0.012 h5 2 SEME62020050230 2 2 30 70 0~-0.012 h5 2 SEME62020050240 2 2 40 80 0~-0.012 h5 2 SEME62020050250 2 2 50 100 0~-0.012 h5 2 SEME62020050260 2 2 60 100 0~-0.012 h5 2 SEME62020050280 2 2 80 140 0~-0.012 h5 2 SEME62030020116 3 4.5 16 60 0~-0.012 h5 2 SEME62030020120 3 4.5 20 65 0~-0.012 h5 2 SEME62030020130 3 4.5 30 70 0~-0.012 h5 2 SEME62030020140 3 4.5 40 80 0~-0.012 h5 2 SEME62030020150 3 4.5 50 90 0~-0.012 h5 2 SEME62030020160 3 4.5 60 100 0~-0.012 h5 2 SEME62030020216 3 4.5 16 60 0~-0.012 h5 2 SEME62030020220 3 4.5 20 65 0~-0.012 h5 2 SEME62030020230 3 4.5 30 70 0~-0.012 h5 2 SEME62030020240 3 4.5 40 80 0~-0.012 h5 2 SEME62030020250 3 4.5 50 90 0~-0.012 h5 2 SEME62030020260 3 4.5 60 100 0~-0.012 h5 2 SEME62030020270 3 4.5 70 120 0~-0.012 h5 2 SEME62030030116 3 4.5 16 60 0~-0.012 h5 2 SEME62030030120 3 4.5 20 65 0~-0.012 h5 2 SEME62030030130 3 4.5 30 70 0~-0.012 h5 2 SEME62030030140 3 4.5 40 80 0~-0.012 h5 2 SEME62030030150 3 4.5 50 90 0~-0.012 h5 2 SEME62030030160 3 4.5 60 100 0~-0.012 h5 2 SEME62030030216 3 4.5 16 60 0~-0.012 h5 2 SEME62030030220 3 4.5 20 65 0~-0.012 h5 2 SEME62030030230 3 4.5 30 70 0~-0.012 h5 2 SEME62030030240 3 4.5 40 80 0~-0.012 h5 2 SEME62030030250 3 4.5 50 90 0~-0.012 h5 2 SEME62030030260 3 4.5 60 100 0~-0.012 h5 2 SEME62030030270 3 4.5 70 120 0~-0.012 h5 2 SEME62030050116 3 4.5 16 60 0~-0.012 h5 2 SEME62030050120 3 4.5 20 65 0~-0.012 h5 2 SEME62030050130 3 4.5 30 70 0~-0.012 h5 2 SEME62030050140 3 4.5 40 80 0~-0.012 h5 2 SEME62030050150 3 4.5 50 90 0~-0.012 h5 2 SEME62030050160 3 4.5 60 100 0~-0.012 h5 2 SEME62030050216 3 4.5 16 60 0~-0.012 h5 2 SEME62030050220 3 4.5 20 65 0~-0.012 h5 2 SEME62030050230 3 4.5 30 70 0~-0.012 h5 2 SEME62030050240 3 4.5 40 80 0~-0.012 h5 2 SEME62030050250 3 4.5 50 90 0~-0.012 h5 2 SEME62030050260 3 4.5 60 100 0~-0.012 h5 2 SEME62030050270 3 4.5 70 120 0~-0.012 h5 2 SEME62040020140 4 6 40 90 0~-0.012 h5 2 SEME62040020150 4 6 50 100 0~-0.012 h5 2 SEME62040020160 4 6 60 110 0~-0.012 h5 2 SEME62040020170 4 6 70 120 0~-0.012 h5 2 SEME62040020240 4 6 40 90 0~-0.012 h5 2 SEME62040020250 4 6 50 100 0~-0.012 h5 2 SEME62040020260 4 6 60 110 0~-0.012 h5 2 SEME62040020270 4 6 70 120 0~-0.012 h5 2 SEME62040030140 4 6 40 90 0~-0.012 h5 2 SEME62040030150 4 6 50 100 0~-0.012 h5 2 SEME62040030160 4 6 60 110 0~-0.012 h5 2 SEME62040030170 4 6 70 120 0~-0.012 h5 2 SEME62040030240 4 6 40 90 0~-0.012 h5 2 SEME62040030250 4 6 50 100 0~-0.012 h5 2 SEME62040030260 4 6 60 110 0~-0.012 h5 2 SEME62040030270 4 6 70 120 0~-0.012 h5 2 SEME62040050140 4 6 40 90 0~-0.012 h5 2 SEME62040050150 4 6 50 100 0~-0.012 h5 2 SEME62040050160 4 6 60 110 0~-0.012 h5 2 SEME62040050170 4 6 70 120 0~-0.012 h5 2 SEME62040050240 4 6 40 90 0~-0.012 h5 2 SEME62040050250 4 6 50 100 0~-0.012 h5 2 SEME62040050260 4 6 60 110 0~-0.012 h5 2 SEME62040050270 4 6 70 120 0~-0.012 h5 2 SEME620020050101 0.2 0.3 1 40 0~-0.012 h5 2 SEME620020050102 0.2 0.3 2 40 0~-0.012 h5 2 SEME620020050103 0.2 0.3 3 40 0~-0.012 h5 2 SEME620020050201 0.2 0.3 1 40 0~-0.012 h5 2 SEME620020050202 0.2 0.3 2 40 0~-0.012 h5 2 SEME620020050203 0.2 0.3 3 40 0~-0.012 h5 2 SEME620030050102 0.3 0.5 2 40 0~-0.012 h5 2 SEME620030050103 0.3 0.5 3 40 0~-0.012 h5 2 SEME620030050104 0.3 0.5 4 40 0~-0.012 h5 2 SEME620030050105 0.3 0.5 5 40 0~-0.012 h5 2 SEME620030050202 0.3 0.5 2 40 0~-0.012 h5 2 SEME620030050203 0.3 0.5 3 40 0~-0.012 h5 2 SEME620030050204 0.3 0.5 4 40 0~-0.012 h5 2 SEME620030050205 0.3 0.5 5 40 0~-0.012 h5 2 SEME620040050102 0.4 0.6 2 50 0~-0.012 h5 2 SEME620040050103 0.4 0.6 3 50 0~-0.012 h5 2 SEME620040050104 0.4 0.6 4 50 0~-0.012 h5 2 SEME620040050105 0.4 0.6 5 50 0~-0.012 h5 2 SEME620040050106 0.4 0.6 6 50 0~-0.012 h5 2 SEME620040050202 0.4 0.6 2 50 0~-0.012 h5 2 SEME620040050203 0.4 0.6 3 50 0~-0.012 h5 2 SEME620040050204 0.4 0.6 4 50 0~-0.012 h5 2 SEME620040050205 0.4 0.6 5 50 0~-0.012 h5 2 SEME620040050206 0.4 0.6 6 50 0~-0.012 h5 2 SEME620050050104 0.5 0.7 4 50 0~-0.012 h5 2 SEME620050050106 0.5 0.7 6 50 0~-0.012 h5 2 SEME620050050108 0.5 0.7 8 50 0~-0.012 h5 2 SEME620050050110 0.5 0.7 10 50 0~-0.012 h5 2 SEME620050050204 0.5 0.7 4 50 0~-0.012 h5 2 SEME620050050206 0.5 0.7 6 50 0~-0.012 h5 2 SEME620050050208 0.5 0.7 8 50 0~-0.012 h5 2 SEME620050050210 0.5 0.7 10 50 0~-0.012 h5 2

Video

Carbide End Mills for High Speed & High Accuracy Machining

You Might Also Like

Excision

(G9D68) X-Speed rougher, 4&5Flute Multiple Helix Corner Radius Roughing End Mill, Long Length, Flat

From $125.29INC GST
From $113.90 EX GST
Available in Mill Diameter (mm)
6 8 10 +3
Low stock
YG-1 LEGEND 4-5 flutes YG-1 LEGEND X COATING YG-1 LEGEND CARBIDE YG-1 LEGEND M-HELIX YG-1 LEGEND SHANK FLAT YG-1 LEGEND SHANK PLAIN
Request Quote

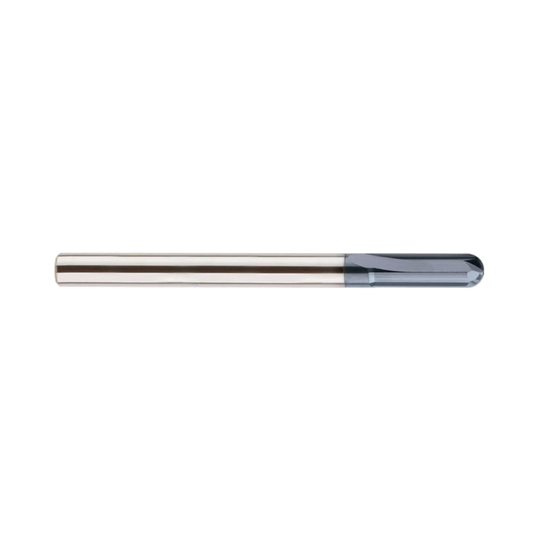

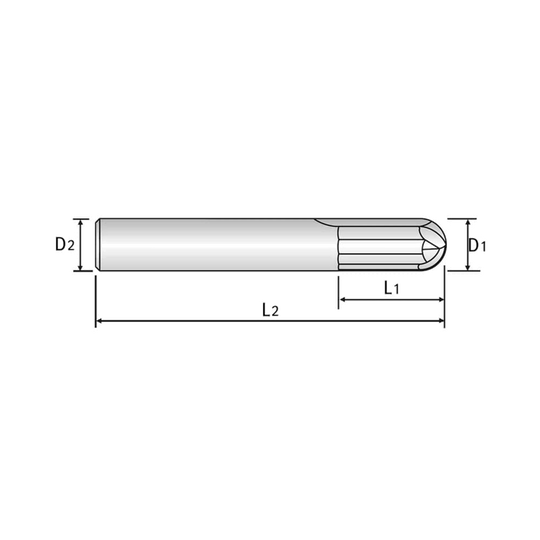

4G MILL 2 Flute 0°Helix Helix Ball End Mill (SEME58) 4G MILL 2 Flute 0°Helix Helix Ball End Mill (SEME58)
