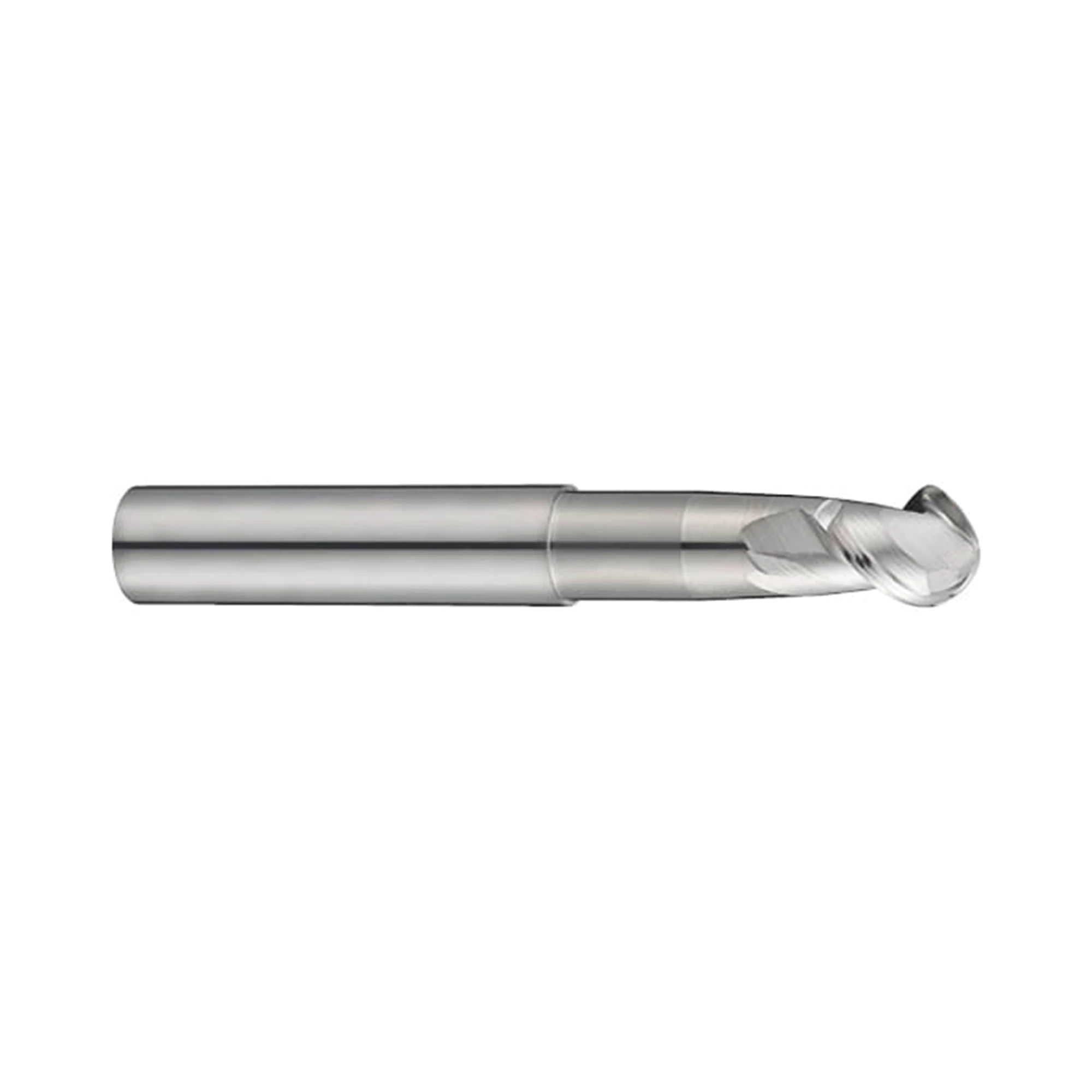

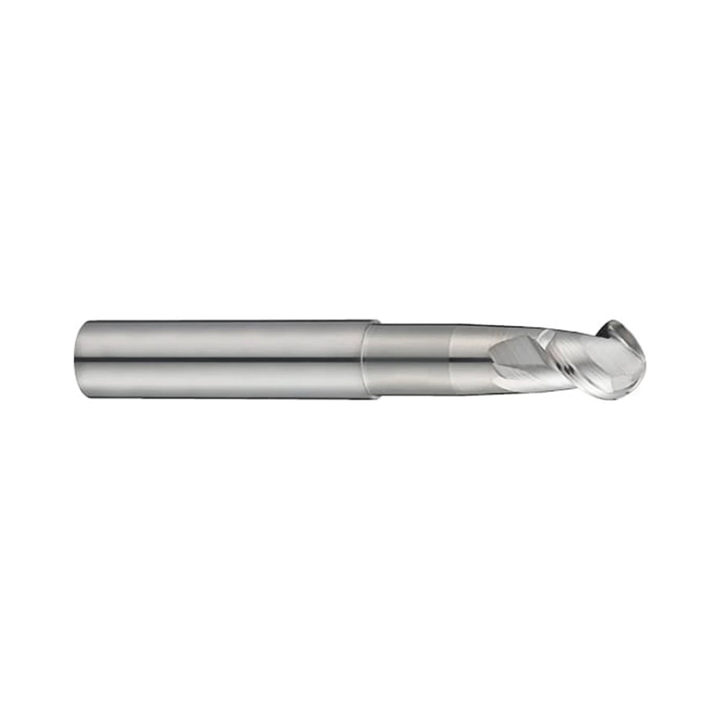

(E5910) Alu-Power Carbide 2Flute Ball Nose End Mill, Plain Shank
50° helix necked ball nose end millCode: E5910060
-
Key Features
- Solid carbide two-flute ball nose end mill with 50° helix
- Necked plain-shank form for aluminium and copper machining
- Uncoated cutting geometry
Made in South Korea
Aluminium and copper focus
Specified for excellent results on aluminium and copper materials, including copper alloys.
Cleaner chip flow
Mirror-surface flutes support chip evacuation while helping achieve an excellent surface finish.
Necked ball-nose range
Six plain-shank sizes provide R3.0 to R10.0 ball-nose radii with lengths below shank up to 50 mm.

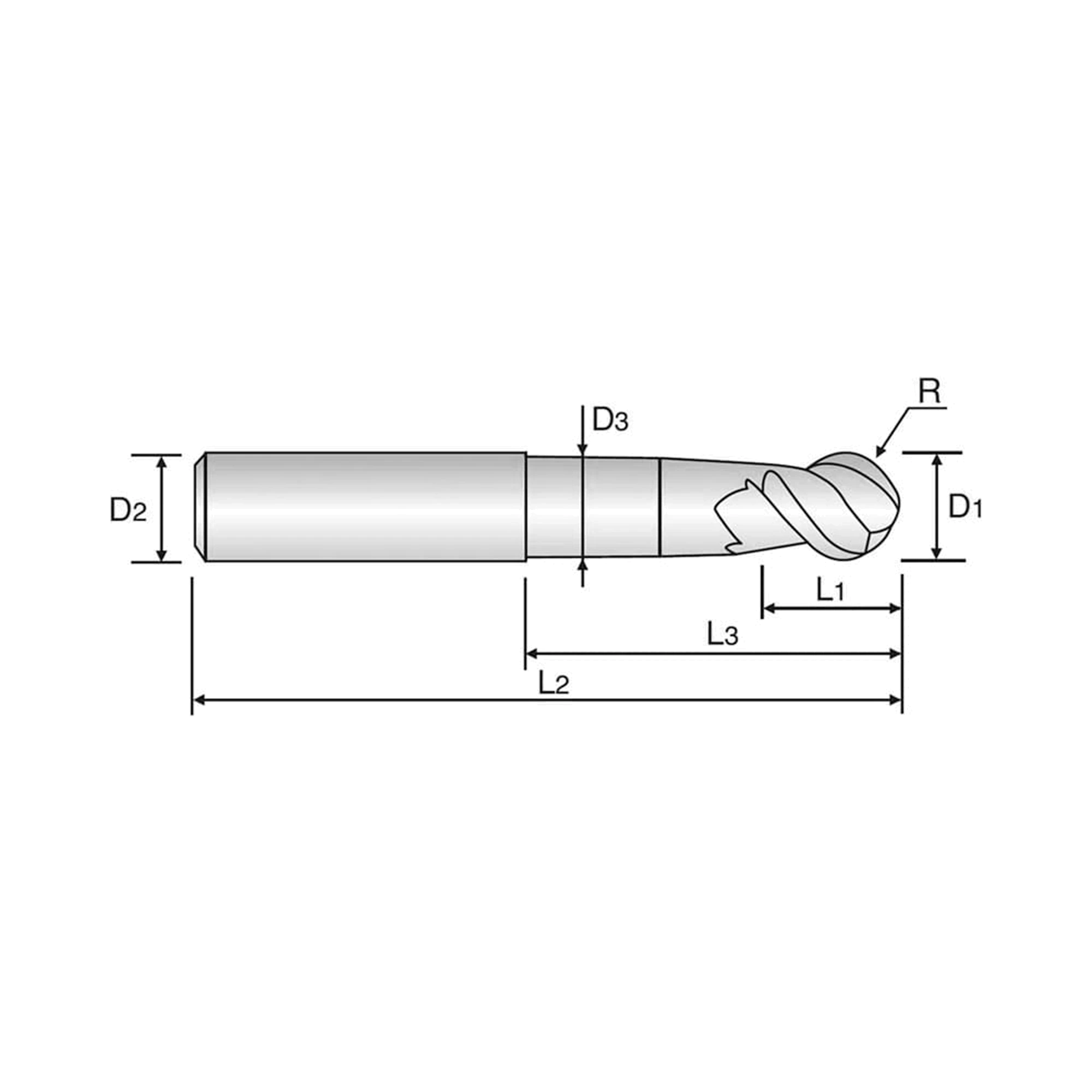

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E5910060 | 6.0 | R3.0 | 55.0 | 6.0 | 5.5 | 25.0 | 5.4 | Quantity unavailable | $45.80 | ||
| E5910080 | 8.0 | R4.0 | 65.0 | 8.0 | 7.0 | 30.0 | 7.2 | No stock | $73.70 | ||
| E5910100 | 10.0 | R5.0 | 75.0 | 10.0 | 8.5 | 35.0 | 9.0 | In stock | $97.30 | ||
| E5910120 | 12.0 | R6.0 | 75.0 | 12.0 | 10.5 | 40.0 | 11.0 | In stock | $126.70 | ||
| E5910160 | 16.0 | R8.0 | 90.0 | 16.0 | 14.0 | 50.0 | 14.5 | In stock | $213.10 | ||
| E5910200 | 20.0 | R10.0 | 100.0 | 20.0 | 17.0 | 50.0 | 18.0 | Low stock | $318.80 |
Add (E5910) Alu-Power Carbide 2Flute Ball Nose End Mill, Plain Shank to comparison
View Comparison- Overview
- Speeds & Feeds
- Reviews
The YG-1 E5910 Alu-Power solid carbide ball nose end mill combines two flutes with a 50° helix. Its necked, plain-shank design is intended for machining aluminium, copper and copper-alloy materials. Uncoated construction retains the series cutting geometry without an applied surface coating. Mirror-surface flutes support excellent chip evacuation and surface finish.
Optimised cutting edges are specified to increase tool life in suitable material groups. Available diameters span 6.0 to 20.0 mm, with ball-nose radii from R3.0 to R10.0. Length below shank ranges from 25 to 50 mm throughout this family. Each listed size uses a matching plain shank diameter for secure toolholding.
- Solid carbide two-flute ball nose end mill with 50° helix
- Necked plain-shank form for aluminium and copper machining
- Uncoated cutting geometry
- Mirror-surface flutes for chip evacuation and surface finish
- Optimised cutting edges for increased tool life
- 6.0 to 20.0 mm diameters with R3.0 to R10.0 ball radii
No specifications available.
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 270 | 0.049 | 14400 | 1400 |
| 8.0 | 280 | 0.071 | 11200 | 1600 |
| 10.0 | 350 | 0.084 | 11200 | 1880 |
| 12.0 | 420 | 0.107 | 11200 | 2400 |
| 16.0 | 440 | 0.123 | 8800 | 2160 |
| 20.0 | 350 | 0.157 | 5600 | 1760 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 85 | 0.040 | 4400 | 350 |
| 8.0 | 85 | 0.060 | 3360 | 400 |
| 10.0 | 105 | 0.069 | 3360 | 465 |
| 12.0 | 125 | 0.089 | 3360 | 600 |
| 16.0 | 135 | 0.101 | 2640 | 535 |
| 20.0 | 105 | 0.131 | 1680 | 440 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
