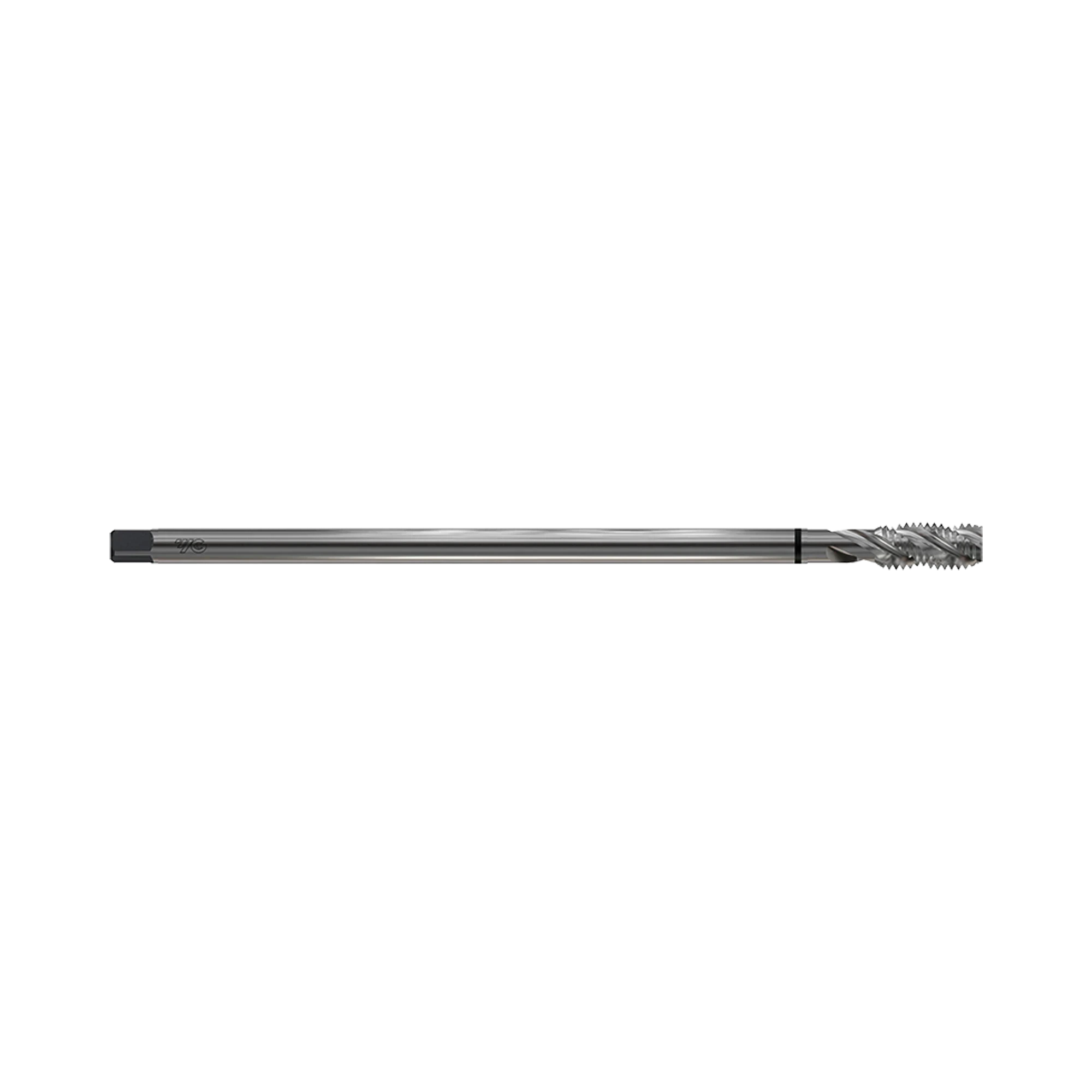

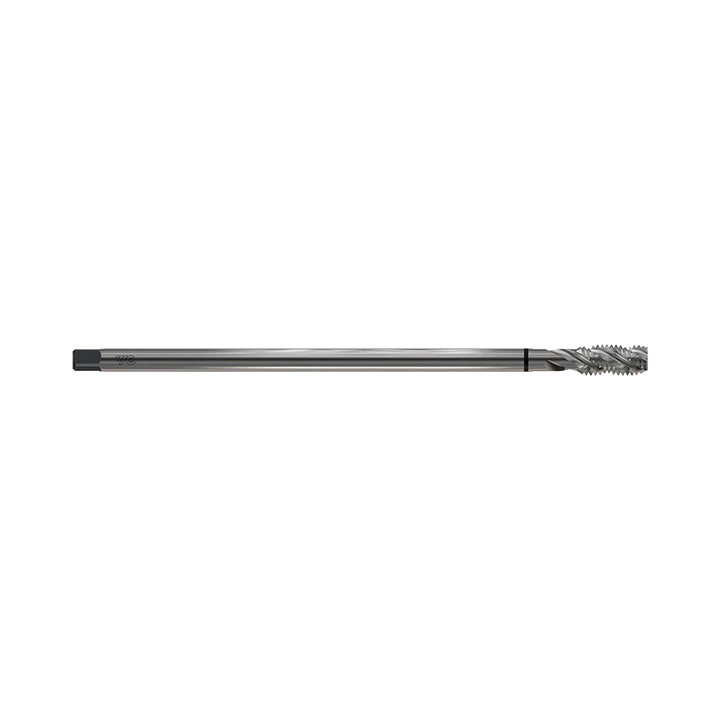

(TC633) HSS-E (M35) Metric Spiral Flute Long Shank Combo Tap for Multi Purpose
Long-shank HSS-E combo tap for ISO metric coarse threads
- SKU
- TC633206
Key features
- Patented special tap geometry for correct thread profiles and extended tool life
- R40 spiral flutes for chip evacuation during blind-hole tapping
- Bright finish with ISO metric coarse threads to DIN 13
Made in South Korea
Correct Thread Profiles
Patented special tap geometry supports accurate ISO metric coarse internal threads.
Blind-Hole Chip Evacuation
R40 spiral flutes provide flute space for effective chip evacuation.
Long-Shank Reach
The range provides 100 to 280 mm overall lengths for extended-reach applications.
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC633206 | M3 | 0.5 | 11.0 | 100.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | 1-2 Weeks | $48.80 | ||
| TC633246 | M4 | 0.7 | 13.0 | 125.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | 1-2 Weeks | $48.80 | ||
| TC633286 | M5 | 0.8 | 15.0 | 140.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | 1-2 Weeks | $50.80 | ||
| TC633316 | M6 | 1.0 | 17.0 | 160.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | Low stock | $52.60 | ||
| TC633366 | M8 | 1.25 | 20.0 | 180.0 | 35.0 | 6.0 | 4.9 | 8.0 | 3 | 6.8 | Low stock | $81.60 | ||
| TC633426 | M10 | 1.5 | 22.0 | 200.0 | 39.0 | 7.0 | 5.5 | 8.0 | 3 | 8.5 | Low stock | $82.60 | ||
| TC633506 | M12 | 1.75 | 24.0 | 220.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | Low stock | $136.40 | ||
| TC633546 | M14 | 2.0 | 26.0 | 220.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | 1-2 Weeks | $161.00 | ||
| TC633606 | M16 | 2.0 | 27.0 | 220.0 | 44.0 | 12.0 | 12.0 | 12.0 | 3 | 14.0 | Low stock | $203.10 | ||
| TC633706 | M20 | 2.5 | 32.0 | 280.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | Low stock | $278.10 |
Add (TC633) HSS-E (M35) Metric Spiral Flute Long Shank Combo Tap for Multi Purpose to comparison
View Comparison- Overview
- Specifications
- Work Material
- Reviews
YG-1 TC633 is an HSS-E metric spiral flute long shank combo tap with 2.5×D capacity. Special patented tap geometry supports multi-purpose threading, correct thread profiles and extended tool life. R40 spiral flutes provide chip evacuation for blind-hole tapping in supported engineering materials. Bright-finish tools produce ISO metric coarse threads to DIN 13 with a 6H tolerance. The long-shank configuration extends overall lengths from 100 to 280 mm across M3 to M20. The range covers M3 × 0.5 through M20 × 2.5 metric coarse threads. Suitable materials include steel, stainless steel, cast iron, aluminium and copper alloys. It features three flutes through M16, while the M20 size has four flutes.
- Patented special tap geometry for correct thread profiles and extended tool life
- R40 spiral flutes for chip evacuation during blind-hole tapping
- Bright finish with ISO metric coarse threads to DIN 13
- 2.5×D threading capacity with a long-shank configuration
- M3 × 0.5 to M20 × 2.5 metric coarse thread range
- Recommended for steel stainless steel cast iron aluminium and copper alloys
No specifications available.
Work materials
VDI 3323 recommendations for this tool.
Steel
10 gradesCast iron
4 gradesStainless steel
3 gradesNon-ferrous materials
4 gradesVDI grade reference21 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Good | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Good | 200 | 15 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 23 | NCast aluminium | Excellent | 75 | - |
| 26 | NCopper, bronze and brass | Excellent | 110 | - |
| 27 | NCopper, bronze and brass | Excellent | 90 | - |
| 28 | NCopper, bronze and brass | Excellent | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
