(TC283) HSS-E (M35) Metric Gun Point for Hardened
HSS-E spiral point taps for hardened steel through holes
- SKU
- TC283136
Key features
- HSS-E M35 machine taps for hardened steel
- Spiral point geometry for through-hole threading
- Suitable for through holes up to 3.0×D deep
Made in South Korea
Hardened steel focus
Designed within the YG TAP HARDENED STEEL range for hardened steel machining.
Through-hole capability
Spiral point geometry supports through-hole threading to a maximum 3.0×D depth.
Useful metric range
Metric coarse thread sizes cover M2 through M30 for common internal threading requirements.
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC283136 | M2 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.6 | 1-2 Weeks | - | ||
| TC283156 | M2.2 | 0.45 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.75 | 1-2 Weeks | - | ||
| TC283176 | M2.5 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 1.9 | 1-2 Weeks | - | ||
| TC283206 | M3 | 0.5 | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.05 | 1-2 Weeks | $29.90 | ||
| TC283246 | M4 | 0.7 | 13.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 2.1 | In stock | $29.90 | ||
| TC283266 | M4.5 | 0.75 | 14.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 2.5 | 1-2 Weeks | - | ||
| TC283286 | M5 | 0.8 | 15.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 3.3 | 1-2 Weeks | - | ||
| TC283316 | M6 | 1.0 | 17.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 3.7 | In stock | $29.90 | ||
| TC283346 | M7 | 1.0 | 17.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 4.2 | 1-2 Weeks | - | ||
| TC283366 | M8 | 1.25 | 20.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 5.0 | In stock | $31.60 | ||
| TC283426 | M10 | 1.5 | 22.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 3 | 6.0 | Low stock | $37.90 | ||
| TC283506 | M12 | 1.75 | 24.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 6.8 | Low stock | $44.60 | ||
| TC283546 | M14 | 2.0 | 26.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 8.5 | 1-2 Weeks | - | ||
| TC283606 | M16 | 2.0 | 27.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 10.2 | 1-2 Weeks | - | ||
| TC283656 | M18 | 2.5 | 30.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | 12.0 | 1-2 Weeks | - | ||
| TC283706 | M20 | 2.5 | 32.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 14.0 | 1-2 Weeks | - | ||
| TC283746 | M22 | 2.5 | 32.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 15.5 | 1-2 Weeks | - | ||
| TC283786 | M24 | 3.0 | 34.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 4 | 17.5 | 1-2 Weeks | - | ||
| TC283866 | M27 | 3.0 | 36.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | 19.5 | 1-2 Weeks | - | ||
| TC283946 | M30 | 3.5 | 40.0 | 180.0 | 70.0 | 22.0 | 18.0 | 21.0 | 4 | 21.0 | 1-2 Weeks | - |
Add (TC283) HSS-E (M35) Metric Gun Point for Hardened to comparison
View Comparison- Overview
- Specifications
- Work Material
- Reviews

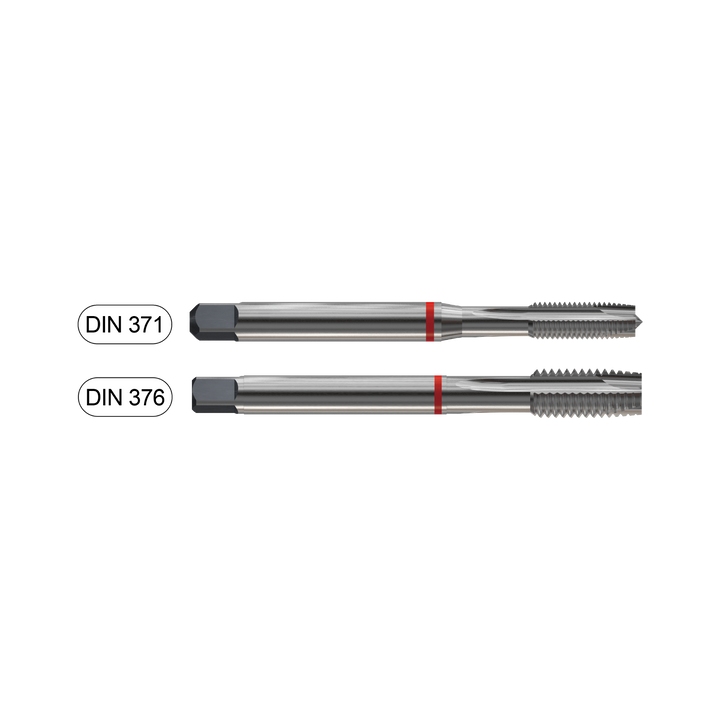

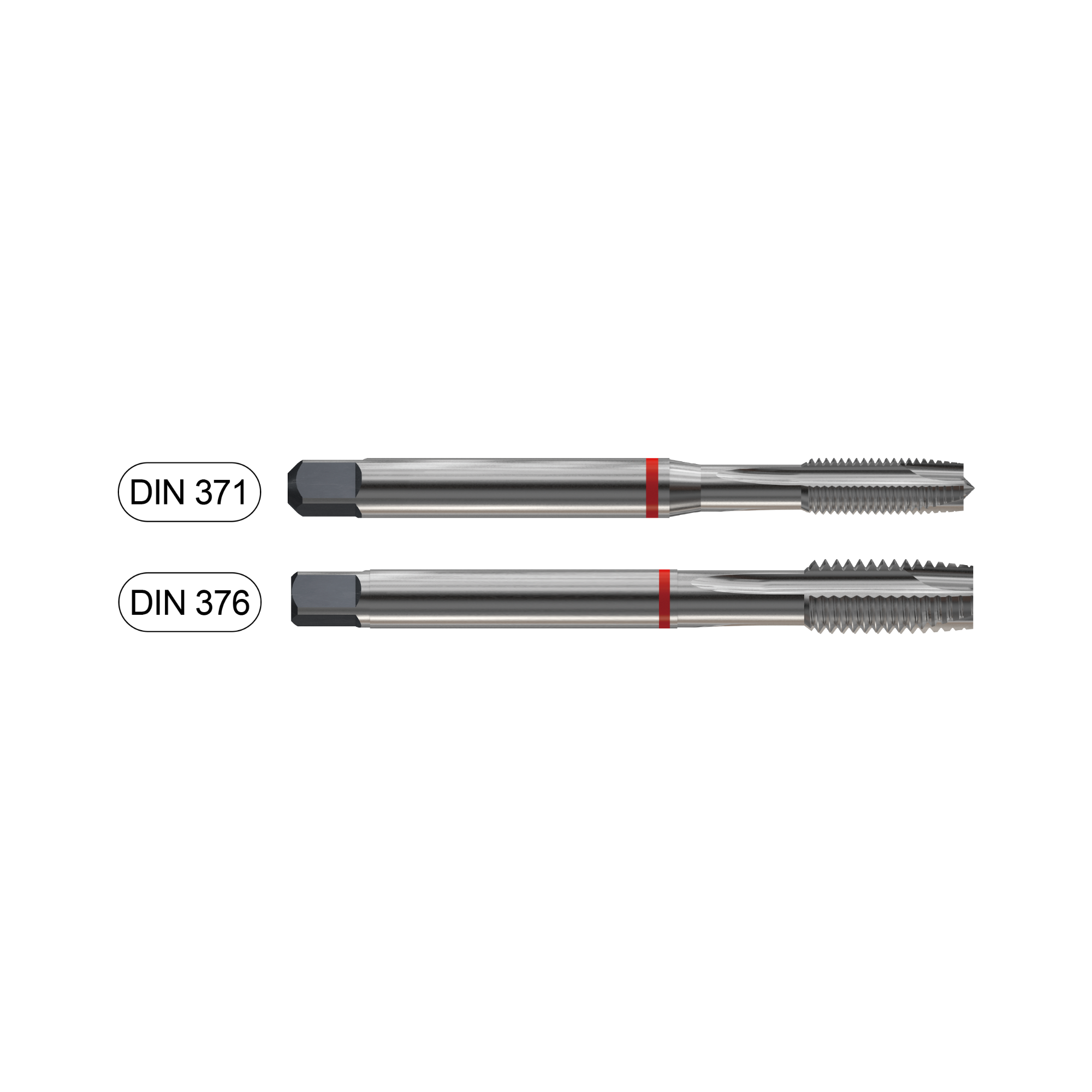

YG-1 TC283 HSS-E (M35) metric gun point machine taps are built for hardened-steel through-hole threading. They combine a spiral point geometry with a thick web for productive through-hole tapping. Suitable for holes up to 3.0×D deep, they suit hardened steel machining applications. The series provides ISO metric coarse threads from M2 × 0.4 through M30 × 3.5. The bright-finish taps have a B chamfer lead, 6H thread tolerance and 60° thread angle. Nominal diameters span M2 to M30, with matching metric coarse pitches listed for each size. Thread lengths range from 8 mm to 40 mm across the available sizes.
- HSS-E M35 machine taps for hardened steel
- Spiral point geometry for through-hole threading
- Suitable for through holes up to 3.0×D deep
- Bright finish with B chamfer lead
- ISO metric coarse threads from M2 × 0.4 to M30 × 3.5
- 6H thread tolerance and 60° thread angle
No specifications available.
Work materials
VDI 3323 recommendations for this tool.
Steel
3 gradesNon-ferrous materials
1 gradeStainless steel
1 gradeVDI grade reference5 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 7 | PLow-alloy steel | Good | 275 | 29 |
| 8 | PLow-alloy steel | Good | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 14 | MStainless steel | Good | 180 | 10 |
| 26 | NCopper, bronze and brass | Good | 110 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
