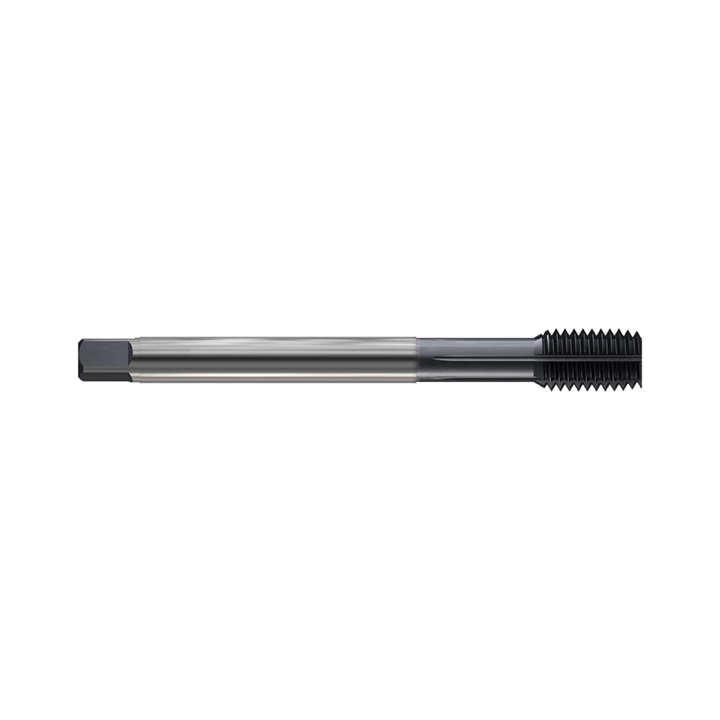

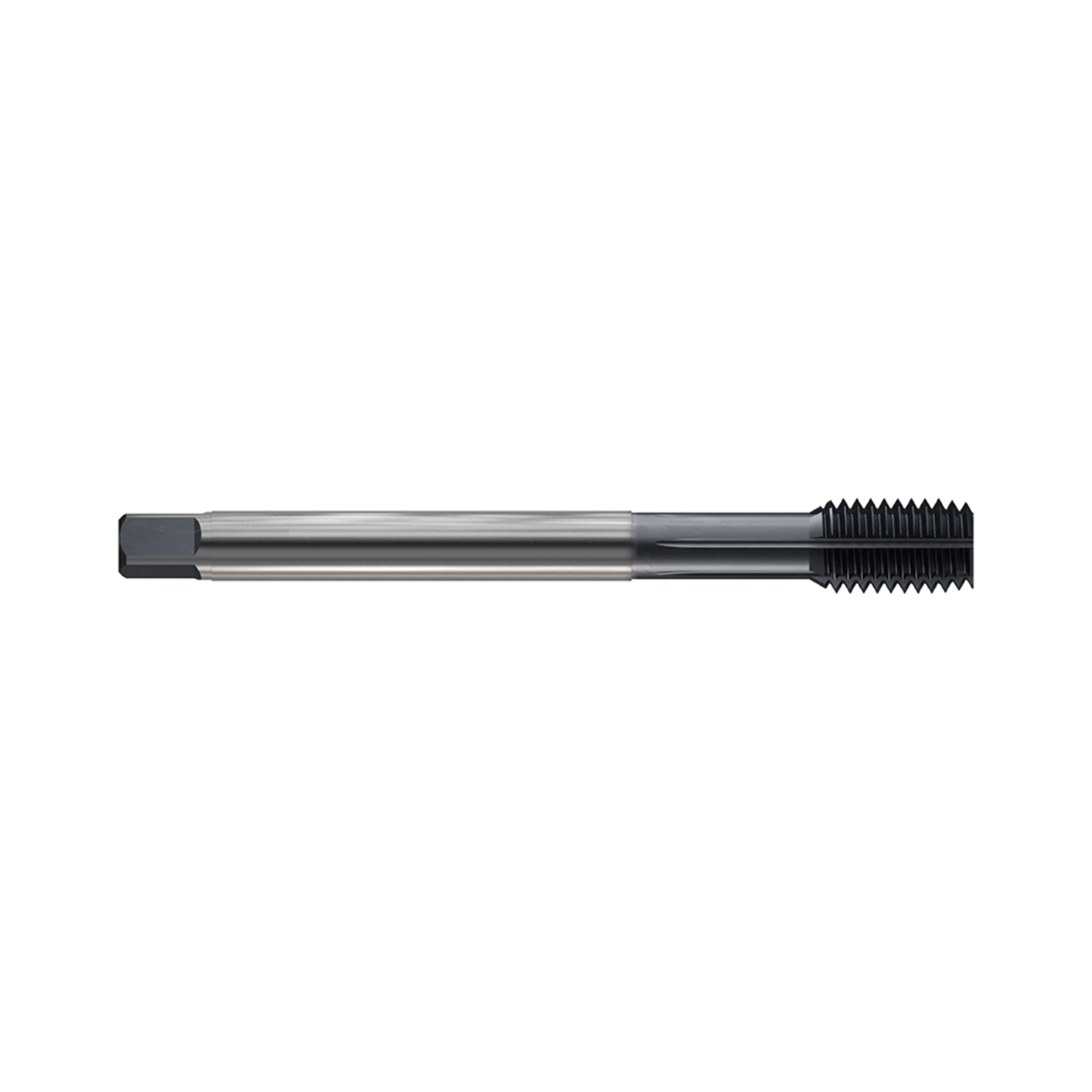

(TE733) HSS-E (M35) Metric Fine Cold Forming Tap with Oil Grooves

Steam-Nitride Cold Forming for Soft Materials
  • $52.80INC GST $48.00 EX GST

(TE733) HSS-E (M35) Metric Fine Cold Forming Tap with Oil Grooves

Steam-Nitride Cold Forming for Soft Materials
  • $52.80INC GST $48.00 EX GST

Code: TE733446

P M N
    Key Features
  • DIN371/DIN374 compliant
  • HSS-E (M35) substrate
  • Metric Fine cold forming
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)Tapping drill dia. (mm)Stock Price Qty Add
TE733446M101.018.090.036.07.05.58.09.5 5 days $48.00
TE733556M141.522.0100.040.011.09.012.013.25 5 days $88.50
TE733616M161.522.0100.040.012.09.012.015.25 5 days $102.90

Add (TE733) HSS-E (M35) Metric Fine Cold Forming Tap with Oil Grooves to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

TE733 DIN371/DIN374 Cold Forming Nitride Steam Homo tap for metric fine threads. HSS-E (M35) with oil grooves promotes reliable lubrication and smooth forming. Designed for soft materials with at least 8–10% elongation for chipless threading. Requires larger pre-drill holes than cutting taps to achieve correct thread fill.

  • DIN371/DIN374 compliant
  • HSS-E (M35) substrate
  • Metric Fine cold forming
  • Oil grooves support lubrication
  • For materials with ≥8–10% elongation
Product Data
Workpiece Material P M N
Operation Blind Drilling, Through Drilling
Surface Treatment Nitride Steam Oxide Coating
Thread Angle 60
Thread Class 6HX
Thread Form C
Thread Shape MF
Tool Material HSS-E
Tool Standard DIN 374
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TE733256 M4 0.5 10 63 21 2.8 2.1 5 5 TE733296 M5 0.5 11 70 25 3.5 2.7 6 5 TE733326 M6 0.75 13 80 30 4.5 3.4 6 5 TE733336 M6 0.5 13 80 30 4.5 3.4 6 5 TE733356 M7 0.75 14 80 30 5.5 4.3 7 5 TE733376 M8 1 17 90 36 6 4.9 8 5 TE733386 M8 0.75 14 80 30 6 4.9 8 5 TE733436 M10 1.25 22 100 40 7 5.5 8 5 TE733446 M10 1 18 90 36 7 5.5 8 5 TE733456 M10 0.75 18 90 36 7 5.5 8 5 TE733516 M12 1.5 22 100 40 9 7 10 5 TE733526 M12 1.25 22 100 40 9 7 10 5 TE733536 M12 1 18 100 40 9 7 10 5 TE733556 M14 1.5 22 100 40 11 9 12 5 TE733566 M14 1.25 22 100 40 11 9 12 5 TE733616 M16 1.5 22 100 40 12 9 12 6 TE733676 M18 1.5 25 110 44 14 11 14 6 TE733726 M20 1.5 25 125 50 16 12 15 6
Blind Drilling
Through Drilling
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Great

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TE733256 M4 0.5 10 63 21 2.8 2.1 5 5 TE733296 M5 0.5 11 70 25 3.5 2.7 6 5 TE733326 M6 0.75 13 80 30 4.5 3.4 6 5 TE733336 M6 0.5 13 80 30 4.5 3.4 6 5 TE733356 M7 0.75 14 80 30 5.5 4.3 7 5 TE733376 M8 1 17 90 36 6 4.9 8 5 TE733386 M8 0.75 14 80 30 6 4.9 8 5 TE733436 M10 1.25 22 100 40 7 5.5 8 5 TE733446 M10 1 18 90 36 7 5.5 8 5 TE733456 M10 0.75 18 90 36 7 5.5 8 5 TE733516 M12 1.5 22 100 40 9 7 10 5 TE733526 M12 1.25 22 100 40 9 7 10 5 TE733536 M12 1 18 100 40 9 7 10 5 TE733556 M14 1.5 22 100 40 11 9 12 5 TE733566 M14 1.25 22 100 40 11 9 12 5 TE733616 M16 1.5 22 100 40 12 9 12 6 TE733676 M18 1.5 25 110 44 14 11 14 6 TE733726 M20 1.5 25 125 50 16 12 15 6
