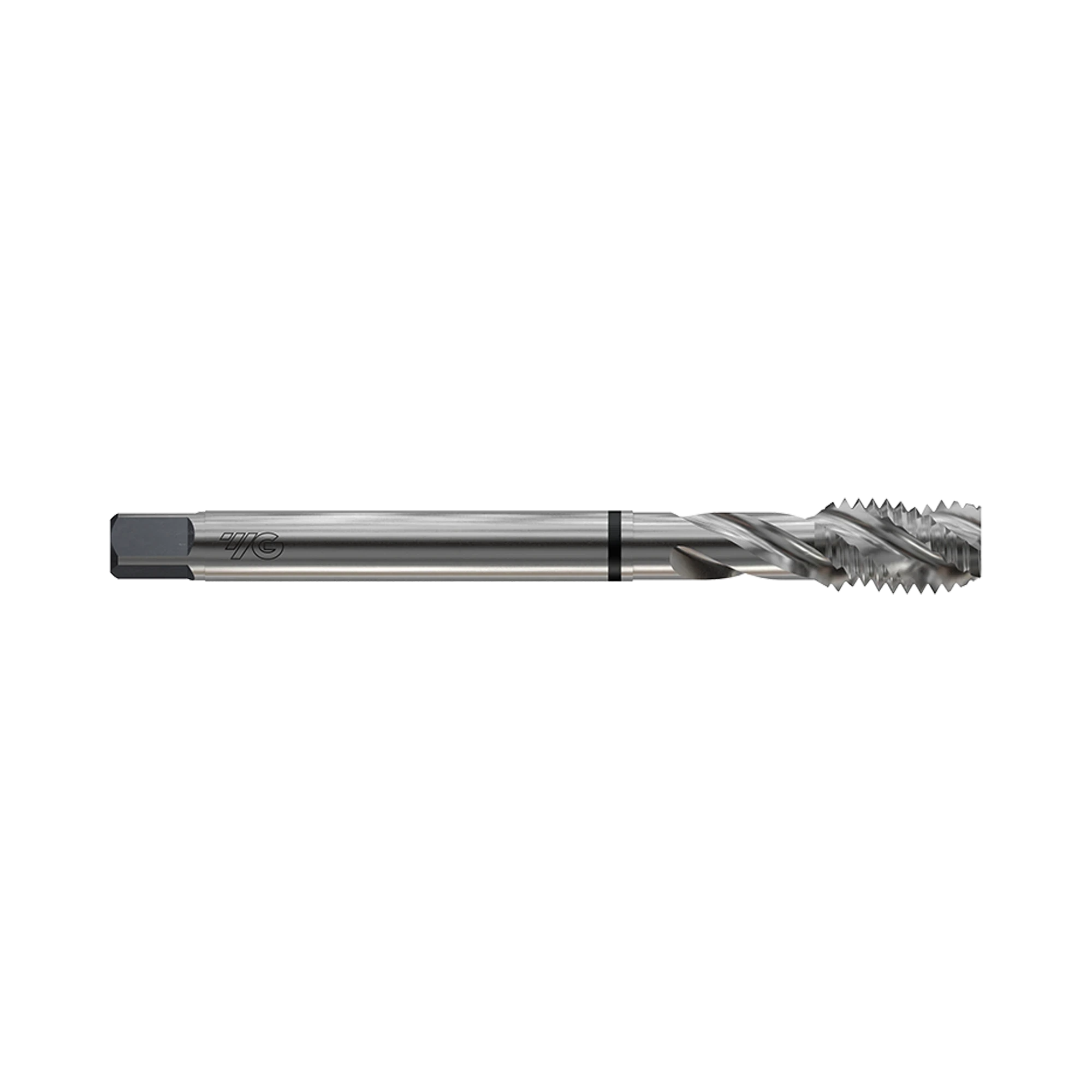

DIN371/DIN374 COMBO Spiral Flute Bright (TC864)

DIN371/DIN374 COMBO Spiral Flute Bright (TC864)
DIN371/DIN374 COMBO Spiral Flute Bright (TC864)
New

DIN371/DIN374 COMBO Spiral Flute Bright (TC864)

Product Code: TC864

Thread Class: 2B YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND UNF Thread Shape: UNF YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND BRIGHT Surface Treatment: Bright YG-1 LEGEND HSS-E Tool Material: HSS-E YG-1 LEGEND DIN 371-374 Tool Standard: DIN 371-374 YG-1 LEGEND HELIX SQUARE 40 Helix Angle: Square 40°
Buy Local
  • For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
  • YG-1 company has a patent.
Product Data
Workpiece Material P M K N
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Bright
Thread Angle 60
Thread Class 2B
Thread Form C
Thread Shape UNF
Tool Material HSS-E
Tool Standard DIN 371-374
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN374 COMBO Spiral Flute Bright (TC864) to comparison

View Comparison
EDP No. Size TPI Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC864182 #4 48 6 56 18 3.5 2.7 6 3 TC864182 #4 48 6 56 18 3.5 2.7 6 3 TC864222 #5 44 7 56 18 3.5 2.7 6 3 TC864222 #5 44 7 56 18 3.5 2.7 6 3 TC864262 #6 40 7 56 20 4 3 6 3 TC864262 #6 40 7 56 20 4 3 6 3 TC864302 #8 36 8 63 21 4.5 3.4 6 3 TC864302 #8 36 8 63 21 4.5 3.4 6 3 TC864342 #10 32 10 70 25 6 4.9 8 3 TC864342 #10 32 10 70 25 6 4.9 8 3 TC864382 #12 28 10 80 30 6 4.9 8 3 TC864382 #12 28 10 80 30 6 4.9 8 3 TC864422 1/4 28 10 80 30 7 5.5 8 3 TC864422 1/4 28 10 80 30 7 5.5 8 3 TC864462 5/16 24 10 90 35 8 6.2 9 3 TC864462 5/16 24 10 90 35 8 6.2 9 3 TC864502 3/8 24 10 100 39 9 7 10 3 TC864502 3/8 24 10 100 39 9 7 10 3 TC864542 7/16 20 13 100 40 8 6.2 9 3 TC864542 7/16 20 13 100 40 8 6.2 9 3 TC864582 1/2 20 13 100 40 9 7 10 3 TC864582 1/2 20 13 100 40 9 7 10 3 TC864622 9/16 18 15 100 40 11 9 12 3 TC864622 9/16 18 15 100 40 11 9 12 3 TC864662 5/8 18 15 100 40 12 9 12 3 TC864662 5/8 18 15 100 40 12 9 12 3 TC864722 3/4 16 17 110 44 14 11 14 4 TC864722 3/4 16 17 110 44 14 11 14 4 TC864762 7/8 14 17 125 50 18 14.5 17 4 TC864762 7/8 14 17 125 50 18 14.5 17 4 TC864802 1" 12 20 140 54 20 16 19 4 TC864802 1" 12 20 140 54 20 16 19 4

Operation

Blind Drilling

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Great

Good Great Excellent
