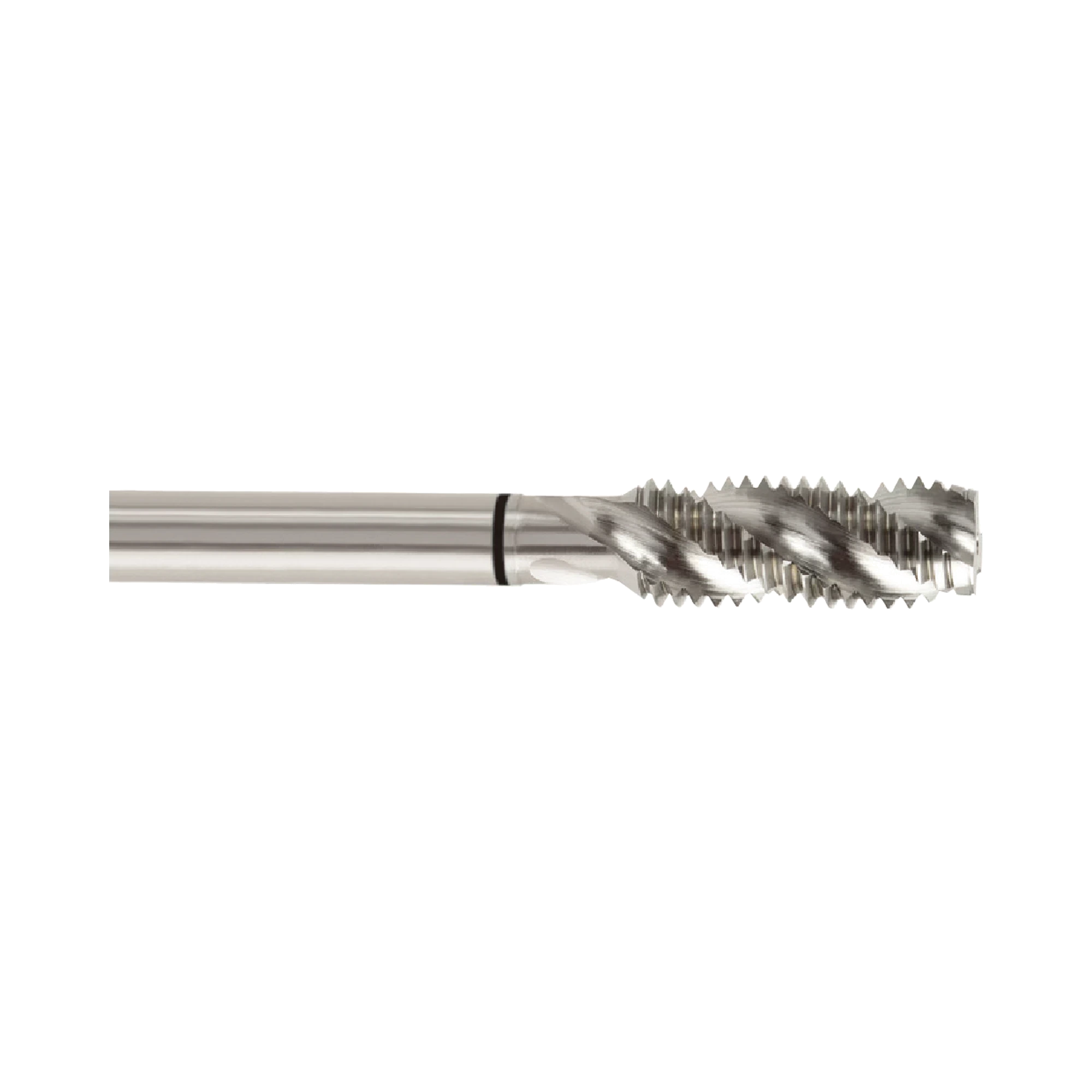

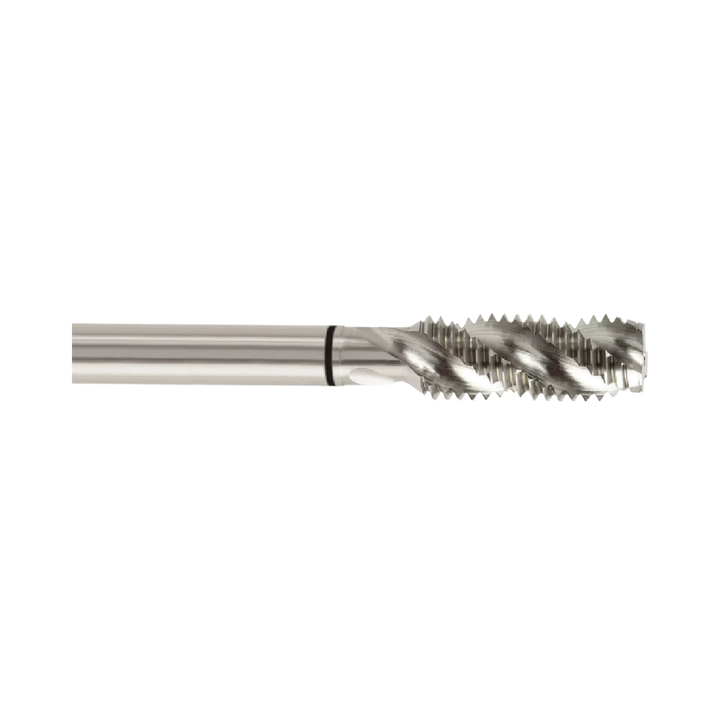

(TC804) HSS-E (M35) Metric Spiral Flute Combo Tap for Multi Purpose

HSS-E spiral flute combo tap for blind holes

(TC804) HSS-E (M35) Metric Spiral Flute Combo Tap for Multi Purpose
$42.13 INC GST $38.30 EX GST
SKU
TC804136
Work materials
PMKN

Key features

  • HSS-E combo tap for multi-purpose metric threading
  • R40 spiral flute geometry for blind-hole applications
  • Specified for blind holes up to 2.5xD deep
Size
Pitch (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Blind-hole capability

Specified for blind holes up to 2.5xD, with R40 spiral flutes and a C chamfer lead

Broad metric range

Covers metric thread sizes from M2 x 0.4 through to M30 x 3.5

Standardised tap format

DIN 371/376 configuration provides a defined format for machine threading applications

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TC804136M20.48.045.013.02.82.15.031.6 1-2 Weeks $38.30
TC804156M2.20.458.045.013.02.82.15.031.75 1-2 Weeks $43.40
TC804196M2.30.48.045.013.02.82.15.031.9 1-2 Weeks $50.20
TC804176M2.50.459.050.015.02.82.15.032.05 1-2 Weeks $40.70
TC804496M2.60.459.050.015.02.82.15.032.1 1-2 Weeks $39.80
TC804206M30.56.056.018.03.52.76.032.5 In stock $30.10
TC804226M3.50.67.056.020.04.03.06.032.9 1-2 Weeks $37.80
TC804246M40.77.063.021.04.53.46.033.3 In stock $30.10
TC804266M4.50.758.070.025.06.04.98.033.7 1-2 Weeks $36.60
TC804286M50.88.070.025.06.04.98.034.2 In stock $33.60
TC804316M61.010.080.030.06.04.98.035.0 In stock $33.60
TC804346M71.010.080.030.07.05.58.036.0 1-2 Weeks $29.20
TC804366M81.2513.090.035.08.06.29.036.8 In stock $37.20
TC804396M91.2513.090.035.09.07.010.037.8 1-2 Weeks $35.00
TC804426M101.515.0100.039.010.08.011.038.5 In stock $49.80
TC804466M111.517.0100.040.08.06.29.039.5 1-2 Weeks $47.20
TC804506M121.7518.0110.044.09.07.010.0310.2 In stock $63.40
TC804546M142.020.0110.044.011.09.012.0312.0 In stock $83.90
TC804606M162.020.0110.044.012.09.012.0314.0 In stock $101.20
TC804656M182.525.0125.050.014.011.014.0415.5 1-2 Weeks $125.40
TC804706M202.525.0140.054.016.012.015.0417.5 Low stock $161.80
TC804746M222.525.0140.054.018.014.517.0419.5 1-2 Weeks $140.20
TC804786M243.030.0160.060.018.014.517.0421.0 Low stock $232.90
TC804866M273.030.0160.060.020.016.019.0424.0 1-2 Weeks $219.20
TC804946M303.535.0180.070.022.018.021.0426.5 Low stock $280.20

Add (TC804) HSS-E (M35) Metric Spiral Flute Combo Tap for Multi Purpose to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 TC804 HSS-E combo spiral flute tap is a bright metric threading tool for blind holes. This DIN 371/376 series provides multi-purpose tapping with R40 spiral flutes and a C chamfer lead. Its HSS-E configuration is specified for blind holes with depths up to 2.5xD.

Available thread sizes extend from M2 x 0.4 to M30 x 3.5. A DIN 2197 C chamfer lead is applied throughout the listed TC804 range. The bright surface treatment defines this variant family without an additional coating claim. This combination supports metric internal-thread work where blind-hole threading is required. TC804 is listed within YG-1 HSS-E taps for multi-purpose applications.

  • HSS-E combo tap for multi-purpose metric threading
  • R40 spiral flute geometry for blind-hole applications
  • Specified for blind holes up to 2.5xD deep
  • DIN 2197 C chamfer lead
  • DIN 371/376 standard configuration
  • Metric sizes from M2 x 0.4 to M30 x 3.5
Product Data

No specifications available.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC804B36 M36 4 40 200 200 28 22 25 4 TC804136 M2 0.4 8 45 13 2.8 2.1 5 3 TC804136 M2 0.4 8 45 13 2.8 2.1 5 3 TC804156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC804156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC804176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC804176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC804196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC804196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC804206 M3 0.5 6 56 18 3.5 2.7 6 3 TC804206 M3 0.5 6 56 18 3.5 2.7 6 3 TC804226 M3.5 0.6 7 56 20 4 3 6 3 TC804226 M3.5 0.6 7 56 20 4 3 6 3 TC804246 M4 0.7 7 63 21 4.5 3.4 6 3 TC804246 M4 0.7 7 63 21 4.5 3.4 6 3 TC804266 M4.5 0.75 8 70 25 6 4.9 8 3 TC804266 M4.5 0.75 8 70 25 6 4.9 8 3 TC804286 M5 0.8 8 70 25 6 4.9 8 3 TC804286 M5 0.8 8 70 25 6 4.9 8 3 TC804316 M6 1 10 80 30 6 4.9 8 3 TC804316 M6 1 10 80 30 6 4.9 8 3 TC804346 M7 1 10 80 30 7 5.5 8 3 TC804346 M7 1 10 80 30 7 5.5 8 3 TC804366 M8 1.25 13 90 35 8 6.2 9 3 TC804366 M8 1.25 13 90 35 8 6.2 9 3 TC804396 M9 1.25 13 90 35 9 7 10 3 TC804396 M9 1.25 13 90 35 9 7 10 3 TC804426 M10 1.5 15 100 39 10 8 11 3 TC804426 M10 1.5 15 100 39 10 8 11 3 TC804466 M11 1.5 17 100 40 8 6.2 9 3 TC804466 M11 1.5 17 100 40 8 6.2 9 3 TC804496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC804496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC804506 M12 1.75 18 110 44 9 7 10 3 TC804506 M12 1.75 18 110 44 9 7 10 3 TC804546 M14 2 20 110 44 11 9 12 3 TC804546 M14 2 20 110 44 11 9 12 3 TC804606 M16 2 20 110 44 12 9 12 3 TC804606 M16 2 20 110 44 12 9 12 3 TC804656 M18 2.5 25 125 50 14 11 14 4 TC804656 M18 2.5 25 125 50 14 11 14 4 TC804706 M20 2.5 25 140 54 16 12 15 4 TC804706 M20 2.5 25 140 54 16 12 15 4 TC804746 M22 2.5 25 140 54 18 14.5 17 4 TC804746 M22 2.5 25 140 54 18 14.5 17 4 TC804786 M24 3 30 160 60 18 14.5 17 4 TC804786 M24 3 30 160 60 18 14.5 17 4 TC804866 M27 3 30 160 60 20 16 19 4 TC804866 M27 3 30 160 60 20 16 19 4 TC804946 M30 3.5 35 180 70 22 18 21 4 TC804946 M30 3.5 35 180 70 22 18 21 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

10 grades
Non-alloy steel
ExcellentVDI 2–5
GoodVDI 1
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
GoodVDI 10

Cast iron

4 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Non-ferrous materials

4 grades
Cast aluminium
ExcellentVDI 23
Copper, bronze and brass
ExcellentVDI 26–28
VDI grade reference21 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
23NCast aluminiumExcellent75-
26NCopper, bronze and brassExcellent110-
27NCopper, bronze and brassExcellent90-
28NCopper, bronze and brassExcellent100-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC804B36 M36 4 40 200 200 28 22 25 4 TC804136 M2 0.4 8 45 13 2.8 2.1 5 3 TC804136 M2 0.4 8 45 13 2.8 2.1 5 3 TC804156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC804156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC804176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC804176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC804196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC804196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC804206 M3 0.5 6 56 18 3.5 2.7 6 3 TC804206 M3 0.5 6 56 18 3.5 2.7 6 3 TC804226 M3.5 0.6 7 56 20 4 3 6 3 TC804226 M3.5 0.6 7 56 20 4 3 6 3 TC804246 M4 0.7 7 63 21 4.5 3.4 6 3 TC804246 M4 0.7 7 63 21 4.5 3.4 6 3 TC804266 M4.5 0.75 8 70 25 6 4.9 8 3 TC804266 M4.5 0.75 8 70 25 6 4.9 8 3 TC804286 M5 0.8 8 70 25 6 4.9 8 3 TC804286 M5 0.8 8 70 25 6 4.9 8 3 TC804316 M6 1 10 80 30 6 4.9 8 3 TC804316 M6 1 10 80 30 6 4.9 8 3 TC804346 M7 1 10 80 30 7 5.5 8 3 TC804346 M7 1 10 80 30 7 5.5 8 3 TC804366 M8 1.25 13 90 35 8 6.2 9 3 TC804366 M8 1.25 13 90 35 8 6.2 9 3 TC804396 M9 1.25 13 90 35 9 7 10 3 TC804396 M9 1.25 13 90 35 9 7 10 3 TC804426 M10 1.5 15 100 39 10 8 11 3 TC804426 M10 1.5 15 100 39 10 8 11 3 TC804466 M11 1.5 17 100 40 8 6.2 9 3 TC804466 M11 1.5 17 100 40 8 6.2 9 3 TC804496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC804496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC804506 M12 1.75 18 110 44 9 7 10 3 TC804506 M12 1.75 18 110 44 9 7 10 3 TC804546 M14 2 20 110 44 11 9 12 3 TC804546 M14 2 20 110 44 11 9 12 3 TC804606 M16 2 20 110 44 12 9 12 3 TC804606 M16 2 20 110 44 12 9 12 3 TC804656 M18 2.5 25 125 50 14 11 14 4 TC804656 M18 2.5 25 125 50 14 11 14 4 TC804706 M20 2.5 25 140 54 16 12 15 4 TC804706 M20 2.5 25 140 54 16 12 15 4 TC804746 M22 2.5 25 140 54 18 14.5 17 4 TC804746 M22 2.5 25 140 54 18 14.5 17 4 TC804786 M24 3 30 160 60 18 14.5 17 4 TC804786 M24 3 30 160 60 18 14.5 17 4 TC804866 M27 3 30 160 60 20 16 19 4 TC804866 M27 3 30 160 60 20 16 19 4 TC804946 M30 3.5 35 180 70 22 18 21 4 TC804946 M30 3.5 35 180 70 22 18 21 4

Combo Tap
