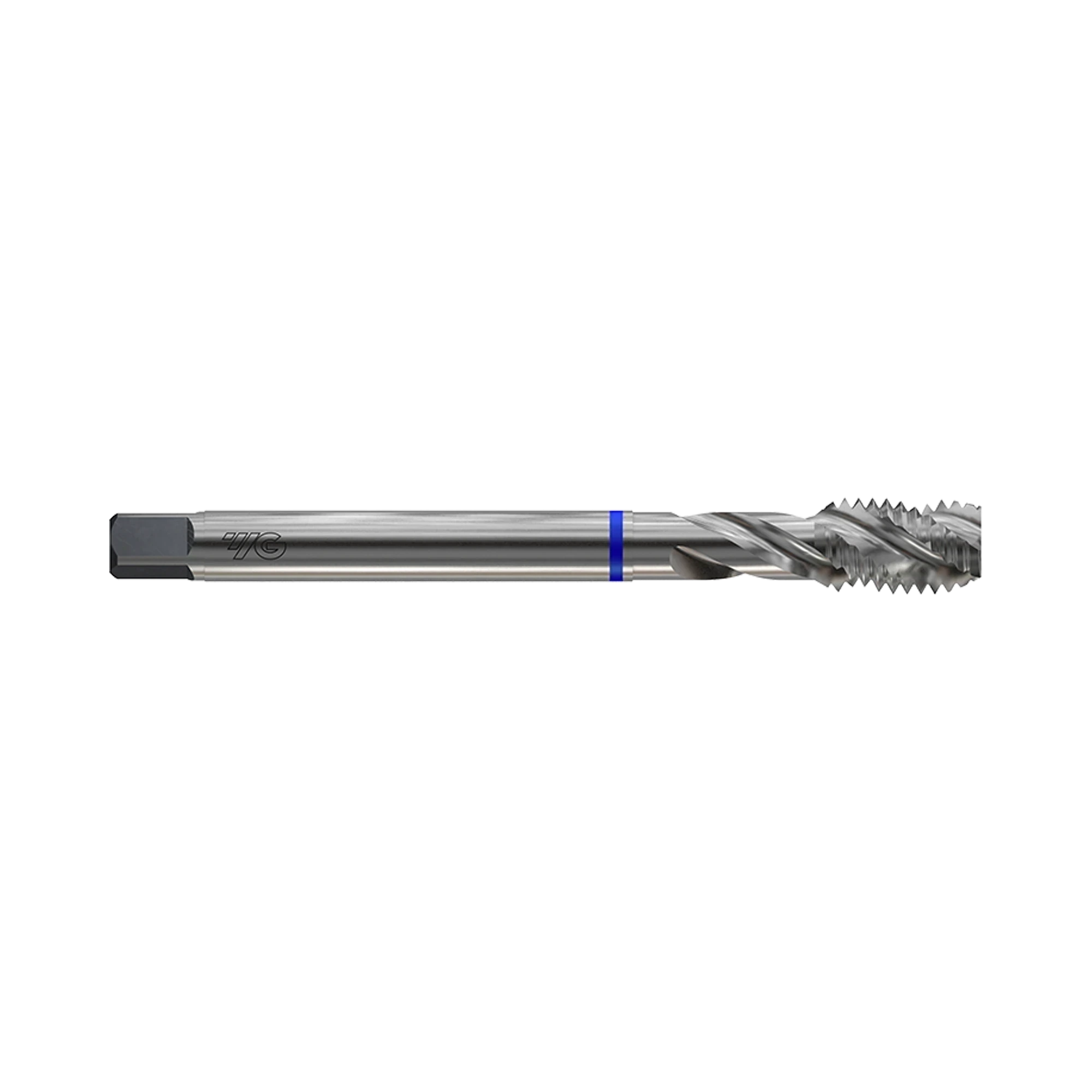

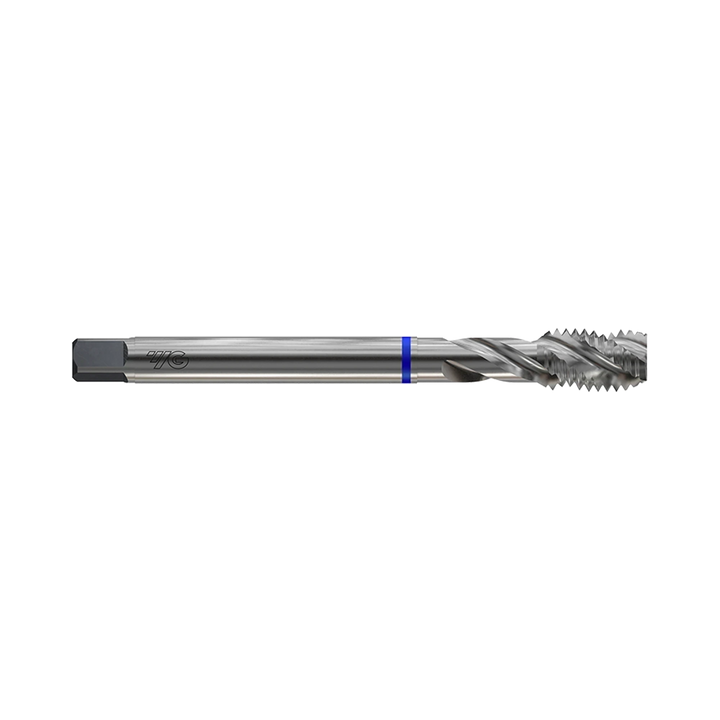

(TC163) HSS-E (M35) Metric Spiral Flute for Aluminum
R45 spiral flute taps for blind-hole aluminium threading
- SKU
- TC163946
Key features
- HSS-E spiral flute machine taps for aluminium wrought alloys
- R45 spiral flute geometry for blind-hole tapping
- Large chip gullets help reduce chip clogging
Made in South Korea
For blind holes
R45 spiral flute geometry supports chip evacuation when tapping blind holes.
Built for aluminium
The TC163 series is specified for long-chipping aluminium wrought alloys.
Broad metric coverage
Metric coarse thread sizes extend from M2 to M30 for varied component requirements.
| SKU | Size | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC163136 | M2 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 2 | 1.6 | 1-2 Weeks | $31.90 | ||
| TC163156 | M2.2 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 2 | 1.75 | 1-2 Weeks | $40.30 | ||
| TC163196 | M2.3 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 2 | 1.9 | 1-2 Weeks | $43.80 | ||
| TC163176 | M2.5 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 2 | 2.05 | 1-2 Weeks | $32.40 | ||
| TC163206 | M3 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 2 | 2.5 | In stock | $24.80 | ||
| TC163226 | M3.5 | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 2 | 2.9 | 1-2 Weeks | $31.80 | ||
| TC163246 | M4 | 7.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 2 | 3.3 | In stock | $24.80 | ||
| TC163266 | M4.5 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 2 | 3.7 | 1-2 Weeks | $30.00 | ||
| TC163286 | M5 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 2 | 4.2 | In stock | $26.40 | ||
| TC163316 | M6 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 2 | 5.0 | In stock | $26.40 | ||
| TC163346 | M7 | 10.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 2 | 6.0 | 1-2 Weeks | $30.90 | ||
| TC163366 | M8 | 13.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 2 | 6.8 | 1-2 Weeks | $30.90 | ||
| TC163396 | M9 | 13.0 | 90.0 | 35.0 | 9.0 | 7.0 | 10.0 | 2 | 7.8 | 1-2 Weeks | $41.10 | ||
| TC163426 | M10 | 15.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 2 | 8.5 | In stock | $36.30 | ||
| TC163466 | M11 | 17.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 2 | 9.5 | 1-2 Weeks | $47.20 | ||
| TC163506 | M12 | 18.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 2 | 10.2 | In stock | $48.20 | ||
| TC163546 | M14 | 20.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | 1-2 Weeks | $54.20 | ||
| TC163606 | M16 | 20.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | In stock | $61.40 | ||
| TC163706 | M20 | 25.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 3 | 17.5 | 1-2 Weeks | $108.00 | ||
| TC163746 | M22 | 25.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 3 | 19.5 | 1-2 Weeks | $133.90 | ||
| TC163786 | M24 | 30.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 3 | 21.0 | 1-2 Weeks | $166.80 | ||
| TC163866 | M27 | 30.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 3 | 24.0 | 1-2 Weeks | $209.40 | ||
| TC163946 | M30 | 35.0 | 180.0 | 70.0 | 22.0 | 18.0 | 21.0 | 3 | 26.5 | 1-2 Weeks | $267.80 |
Add (TC163) HSS-E (M35) Metric Spiral Flute for Aluminum to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 TC163 HSS-E metric spiral flute machine taps are bright tools for blind-hole threading aluminium wrought alloys. R45 flute geometry and large chip gullets guide chips away, helping prevent clogging in threading operations. These machine taps cut ISO metric coarse threads, providing a focused solution for aluminium component manufacture. Form C lead and 6H thread tolerance support the series’ specified thread-form configuration. The TC163 range covers M2 to M30, including DIN 371 shanks through M10 and DIN 376 from M11. Two or three flutes are specified according to the selected thread size. The bright surface treatment is specified throughout this dedicated YG TAP ALU series.
- HSS-E spiral flute machine taps for aluminium wrought alloys
- R45 spiral flute geometry for blind-hole tapping
- Large chip gullets help reduce chip clogging
- Bright finish with Form C lead and 6H tolerance
- ISO metric coarse thread sizes from M2 to M30
- DIN 371 shanks through M10 and DIN 376 from M11
