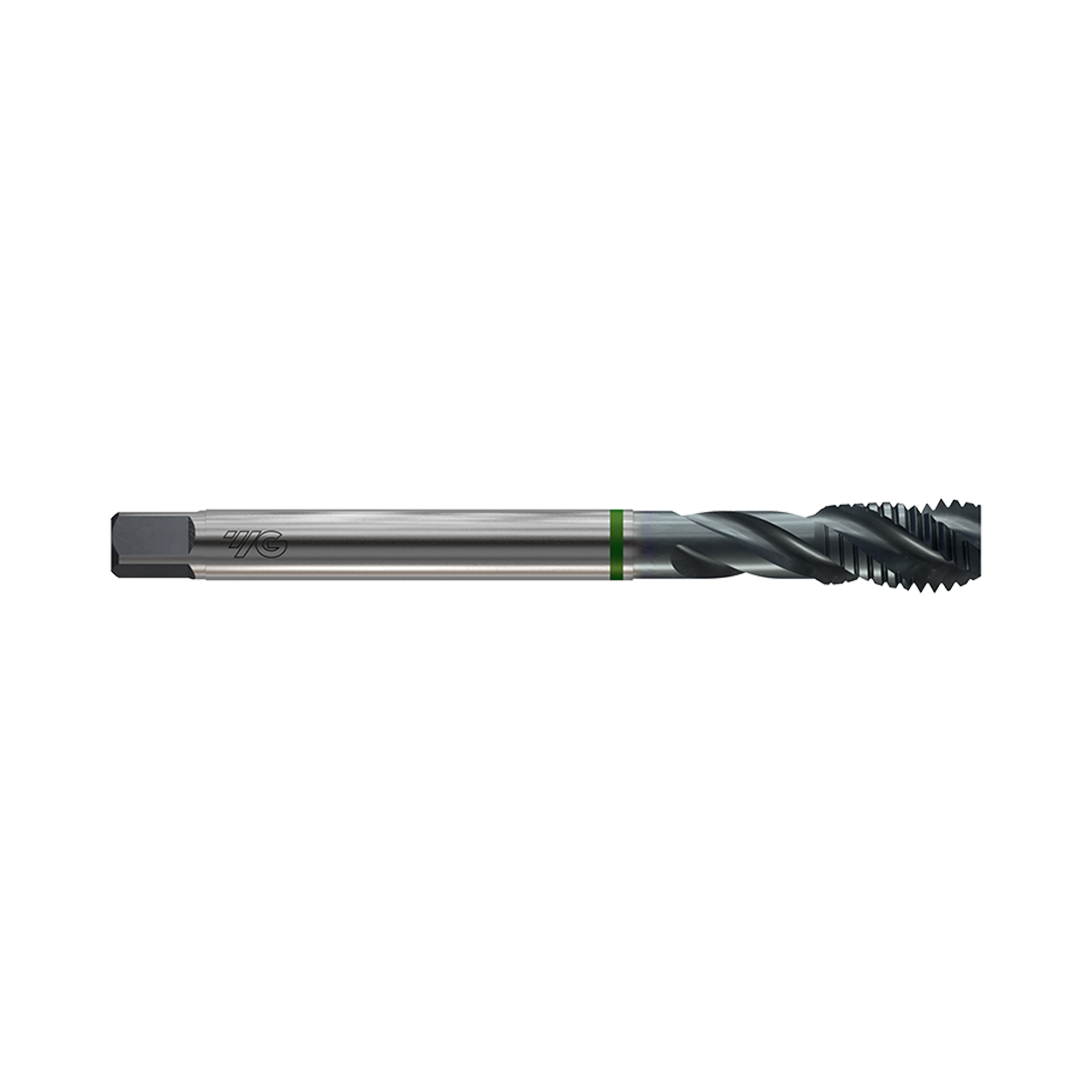

DIN371/DIN376 Spiral Flute TiCN Recessed Thread (TI914)

Product Code: TI914

YG-1 LEGEND 6H Thread Class: 6H YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND M Thread Shape: M YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND TiCN Surface Treatment: Titanium Carbon Nitride Coating YG-1 LEGEND HSS-E Tool Material: HSS-E YG-1 LEGEND DIN 371-376 Tool Standard: DIN 371-376 YG-1 LEGEND HELIX SQUARE 40 Helix Angle: Square 40°
Buy Local
  • With recessed threads for machine tapping of deep blind holes.
  • Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
Product Data
Workpiece Material P M
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Titanium Carbon Nitride Coating
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape M
Tool Material HSS-E
Tool Standard DIN 371-376
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 Spiral Flute TiCN Recessed Thread (TI914) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TI914136 M2 0.4 8 45 13 2.8 2.1 5 3 TI914156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TI914176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TI914196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TI914206 M3 0.5 6 56 18 3.5 2.7 6 3 TI914226 M3.5 0.6 7 56 20 4 3 6 3 TI914246 M4 0.7 7 63 21 4.5 3.4 6 3 TI914266 M4.5 0.75 8 70 25 6 4.9 8 3 TI914286 M5 0.8 8 70 25 6 4.9 8 3 TI914316 M6 1 10 80 30 6 4.9 8 3 TI914346 M7 1 10 80 30 7 5.5 8 3 TI914366 M8 1.25 13 90 35 8 6.2 9 3 TI914396 M9 1.25 13 90 35 9 7 10 3 TI914426 M10 1.5 15 100 39 10 8 11 3 TI914466 M11 1.5 17 100 40 8 6.2 9 3 TI914496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TI914506 M12 1.75 18 110 44 9 7 10 3 TI914506F4 M12 1.75 18 110 44 9 7 10 4 TI914546 M14 2 20 110 44 11 9 12 3 TI914546F4 M14 2 20 110 44 11 9 12 4 TI914606 M16 2 20 110 44 12 9 12 3 TI914606F4 M16 2 20 110 44 12 9 12 4 TI914656 M18 2.5 25 125 50 14 11 14 4 TI914706 M20 2.5 25 140 54 16 12 15 4 TI914746 M22 2.5 25 140 54 18 14.5 17 4 TI914786 M24 3 30 160 60 18 14.5 17 4 TI914866 M27 3 30 160 60 20 16 19 4 TI914946 M30 3.5 35 180 70 22 18 21 4

Operation

Blind Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

YG Tap Inox

You Might Also Like

New
DIN371/DIN376 Spiral Flute Bright (TR813) DIN371/DIN376 Spiral Flute Bright (TR813)

DIN371/DIN376 Spiral Flute Bright (TR813)

TR813

YG-1 LEGEND 6H YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND BRIGHT YG-1 LEGEND HSS PM YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New
DIN371/DIN376 Spiral Flute Steam Homo (TQ813) DIN371/DIN376 Spiral Flute Steam Homo (TQ813)

DIN371/DIN376 Spiral Flute Steam Homo (TQ813)

TQ813

YG-1 LEGEND 6H YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND STEAM HOMO YG-1 LEGEND HSS PM YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New
DIN371/DIN376 Spiral Flute Hardslick Recessed Thread (TCH14) DIN371/DIN376 Spiral Flute Hardslick Recessed Thread (TCH14)

DIN371/DIN376 Spiral Flute Hardslick Recessed Thread (TCH14)

TCH14

YG-1 LEGEND 6H YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New
DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE18) DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE18)

DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE18)

TBE18

YG-1 LEGEND 7G YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND STEAM HOMO YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New
DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE17) DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE17)

DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE17)

TBE17

YG-1 LEGEND 6G YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND STEAM HOMO YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New
DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE16) DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE16)

DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE16)

TBE16

YG-1 LEGEND 6H+0.1 YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND STEAM HOMO YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New
DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE15) DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE15)

DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TBE15)

TBE15

YG-1 LEGEND 4H YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND STEAM HOMO YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New
DIN371/DIN374 Spiral Flute Steam Homo (TB924) DIN371/DIN374 Spiral Flute Steam Homo (TB924)

DIN371/DIN374 Spiral Flute Steam Homo (TB924)

TB924

YG-1 LEGEND FORM C YG-1 LEGEND UNF YG-1 LEGEND 60° YG-1 LEGEND STEAM HOMO YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-374 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New

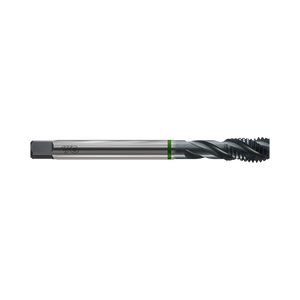

DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TB914) DIN371/DIN376 Spiral Flute Steam Homo Recessed Thread (TB914)
