DIN371/DIN376 SYNCHRO Spiral Flute TiN (TTS41-IC)

DIN371/DIN376 SYNCHRO Spiral Flute TiN (TTS41-IC)
DIN371/DIN376 SYNCHRO Spiral Flute TiN (TTS41-IC)
New

DIN371/DIN376 SYNCHRO Spiral Flute TiN (TTS41-IC)

Product Code: TTS41-IC

YG-1 LEGEND 6HX Thread Class: 6HX YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND M Thread Shape: M YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND TiN Surface Treatment: Titanium Nitride Coating YG-1 LEGEND HSS PM Tool Material: HSS PM YG-1 LEGEND DIN 371-376 Tool Standard: DIN 371-376 YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45°
Buy Local

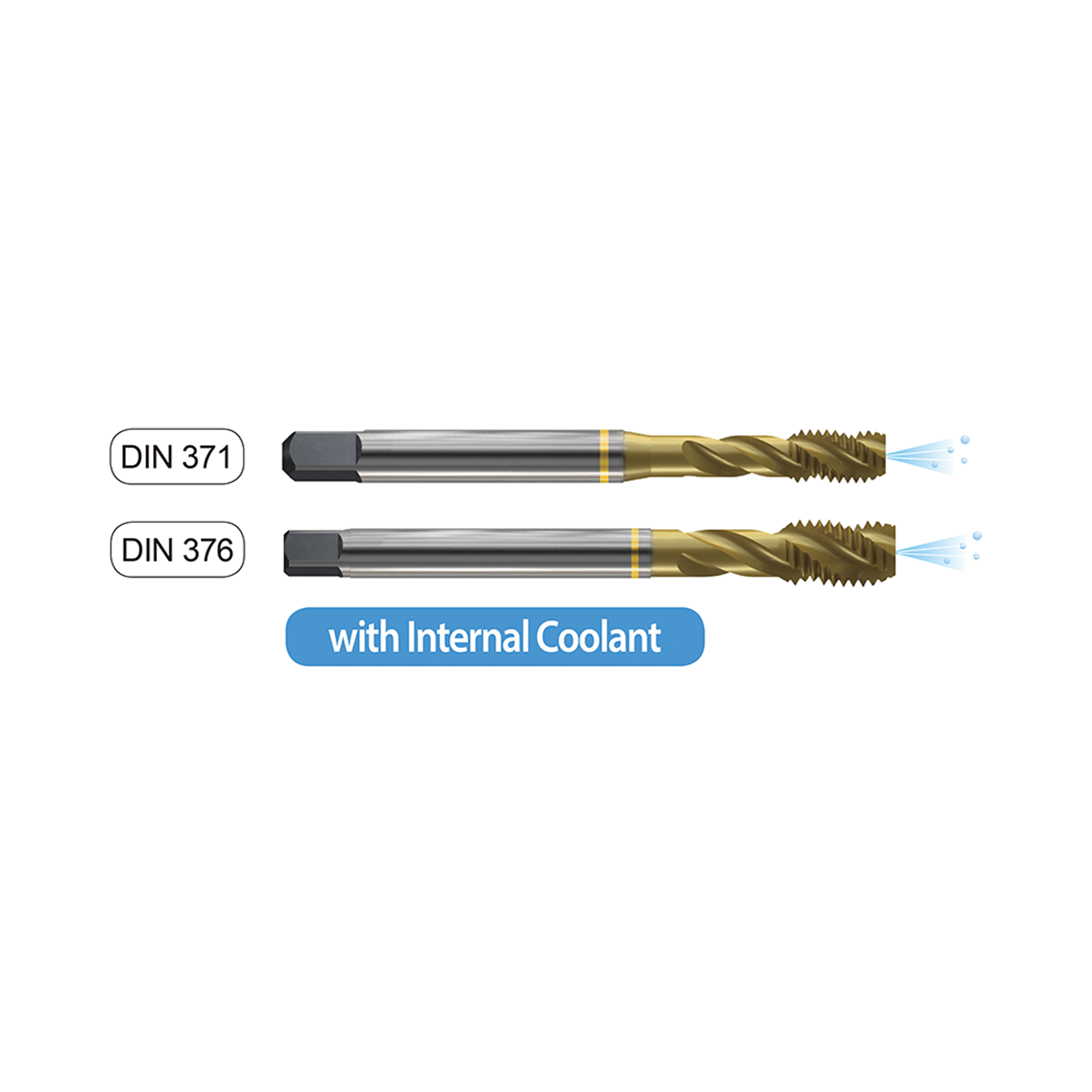

  • Coated HSS-PM(Powder Metallurgy) Taps for high-speed tapping on rigid CNC machines or equivalent machines
  • Up to 3 times faster in tapping compared to conventional taps
  • For high-speed synchro tapping, synchro holder for increasing tool life and thread quality is recommended
  • High precision threads
  • With Internal Coolant
Product Data
Workpiece Material P M K N
Helix Angle Square 45
Operation Blind Drilling
Surface Treatment Titanium Nitride Coating
Thread Angle 60
Thread Class 6HX
Thread Form C
Thread Shape M
Tool Material HSS PM
Tool Standard DIN 371-376
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 SYNCHRO Spiral Flute TiN (TTS41-IC) to comparison

View Comparison

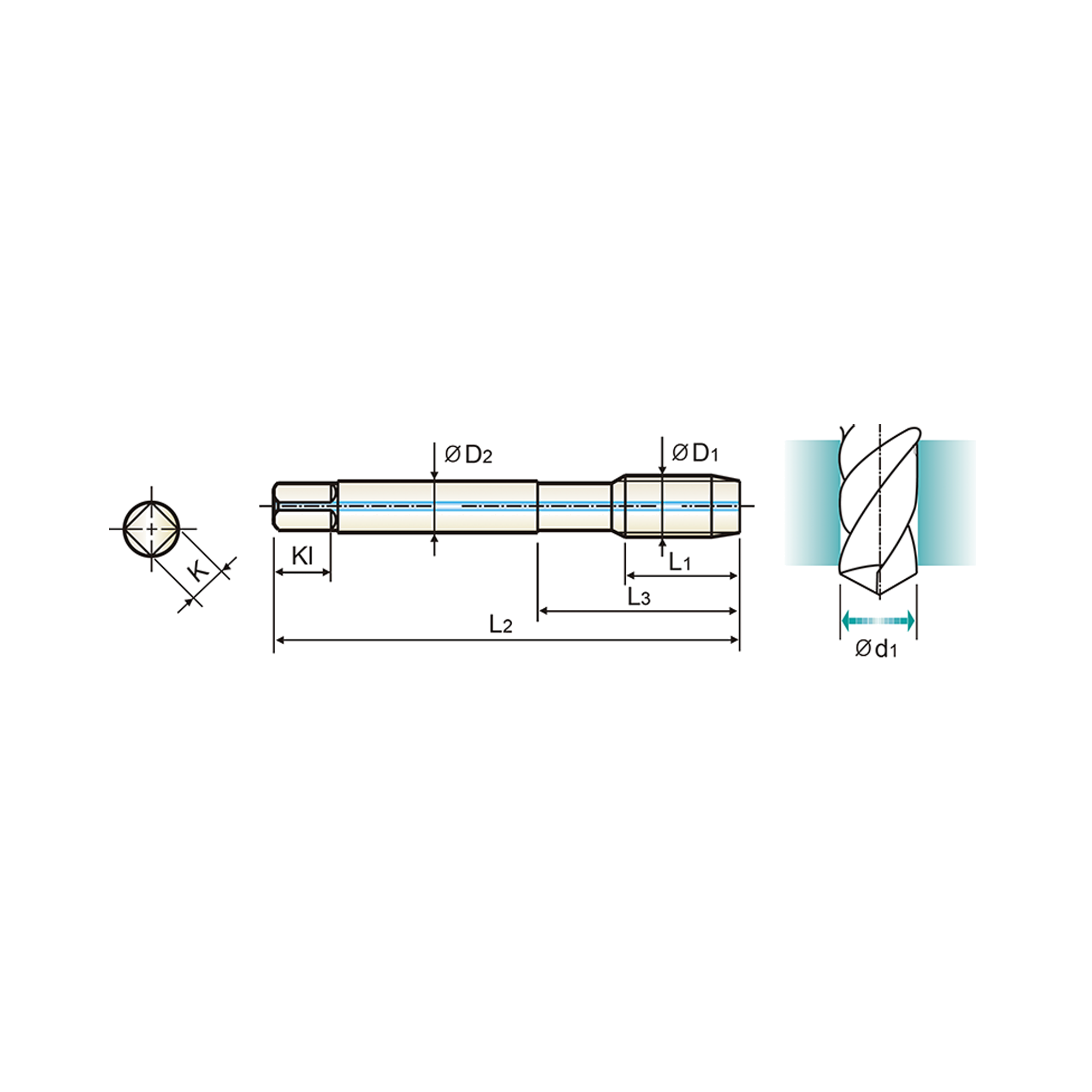

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Dia TTS41316IC M6 1 10 80 30 6 4.9 8 3 5 TTS41366IC M8 1.25 13 90 35 8 6.2 9 3 6.75 TTS41426IC M10 1.5 15 100 39 10 8 11 3 8.5 TTS41506IC M12 1.75 18 110 44 9 7 10 3 10.2 TTS41546IC M14 2 20 110 52 11 9 12 3 12 TTS41606IC M16 2 20 110 52 12 9 12 3 14 TTS41656IC M18 2.5 25 125 66 14 11 14 4 15.5 TTS41706IC M20 2.5 25 140 72 16 12 15 4 17.5

Operation

Blind Drilling

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Great

Good Great Excellent
N Copper

Great

Good Great Excellent
N Plastic

Great

Good Great Excellent
