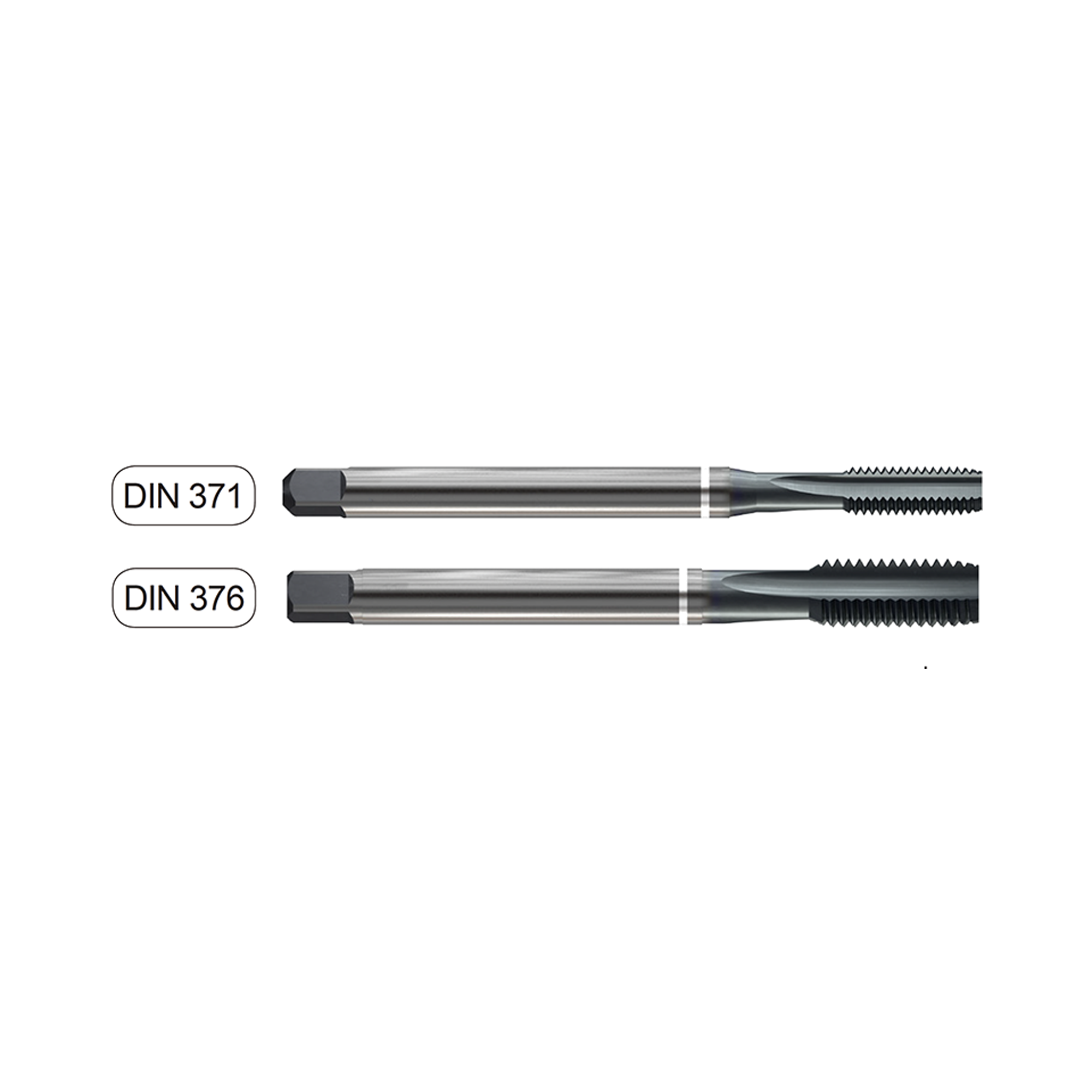

DIN371/DIN376 SYNCHRO Straight Flute TiCN (TKS35)

DIN371/DIN376 SYNCHRO Straight Flute TiCN (TKS35)
DIN371/DIN376 SYNCHRO Straight Flute TiCN (TKS35)
New

DIN371/DIN376 SYNCHRO Straight Flute TiCN (TKS35)

Product Code: TKS35

YG-1 LEGEND 6HX Thread Class: 6HX YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND M Thread Shape: M YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND TiCN Surface Treatment: Titanium Carbon Nitride Coating YG-1 LEGEND HSS PM Tool Material: HSS PM YG-1 LEGEND DIN 371-376 Tool Standard: DIN 371-376
Buy Local
  • Coated HSS-PM(Powder Metallurgy) Taps for high-speed tapping on rigid CNC machines or equivalent machines
  • Up to 3 times faster in tapping compared to conventional taps
  • For high-speed synchro tapping, synchro holder for increasing tool life and thread quality is recommended
  • High precision threads
Product Data
Workpiece Material P K N
Operation Blind Drilling, Through Drilling
Surface Treatment Titanium Carbon Nitride Coating
Thread Angle 60
Thread Class 6HX
Thread Form C
Thread Shape M
Tool Material HSS PM
Tool Standard DIN 371-376
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 SYNCHRO Straight Flute TiCN (TKS35) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Dia TKS35206 M3 0.5 6 56 18 3.5 2.7 6 3 2.5 TKS35246 M4 0.7 7 63 21 4.5 3.4 6 3 3.3 TKS35286 M5 0.8 8 70 25 6 4.9 8 3 4.2 TKS35316 M6 1 10 80 30 6 4.9 8 3 5 TKS35366 M8 1.25 13 90 35 8 6.2 9 3 6.75 TKS35426 M10 1.5 15 100 39 10 8 11 4 8.5 TKS35506 M12 1.75 18 110 44 9 7 10 4 10.2 TKS35546 M14 2 20 110 44 11 9 12 4 12 TKS35606 M16 2 20 110 44 12 9 12 4 14 TKS35656 M18 2.5 25 125 50 14 11 14 4 15.5 TKS35706 M20 2.5 25 140 54 16 12 15 4 17.5

Operation

Blind Drilling
Through Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Great

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Aluminium

Great

Good Great Excellent
