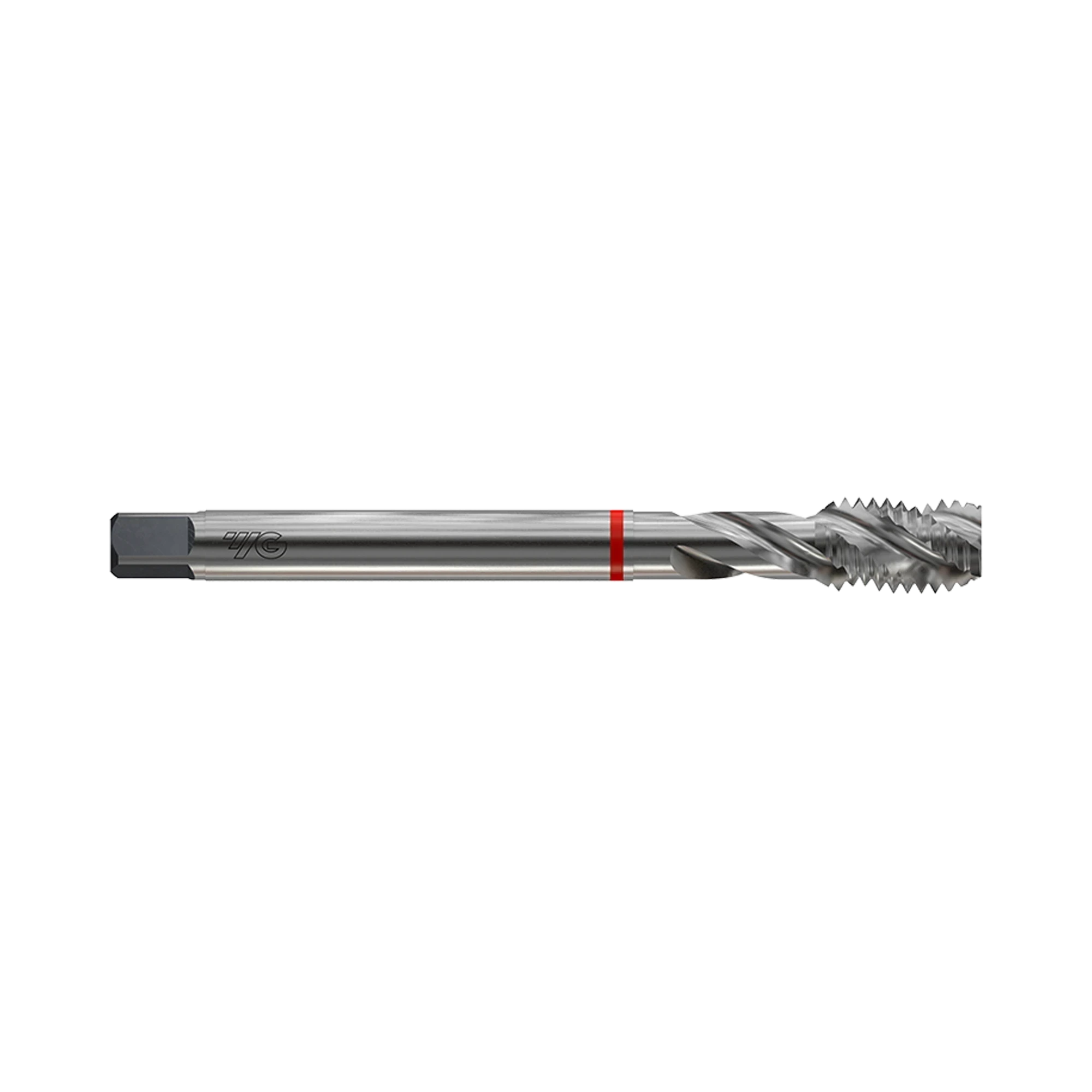

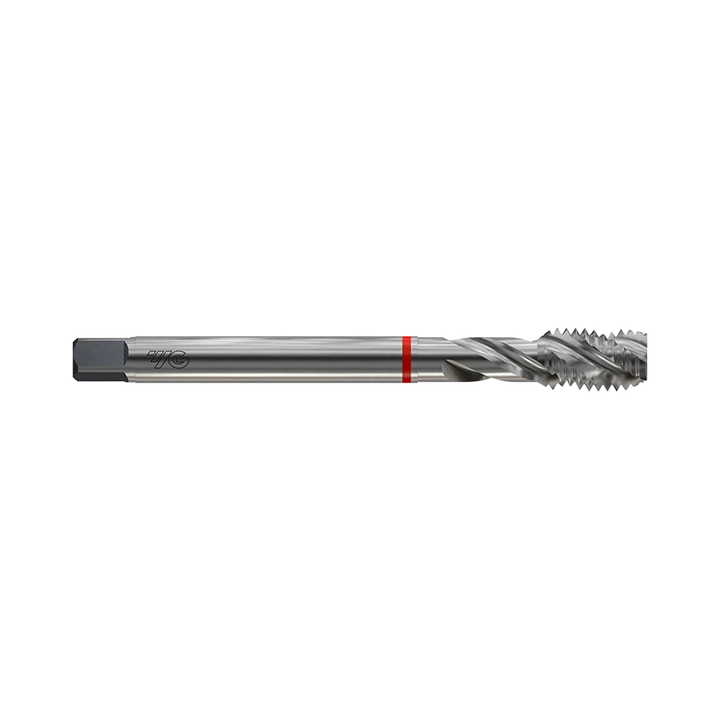

(TC413) HSS-E (M35) Metric Fine Spiral Flute for Steel

Metric Fine Bright-Finish Spiral Tap
  • $0.00INC GST $0.00 EX GST
(TC413) HSS-E (M35) Metric Fine Spiral Flute for Steel

(TC413) HSS-E (M35) Metric Fine Spiral Flute for Steel

Metric Fine Bright-Finish Spiral Tap
  • $0.00INC GST $0.00 EX GST Price available on request

Code: TC413766

P
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUTitleThread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesStock Price Qty Add
TC413766Default Title17.0125.050.018.014.517.04 5 days -

Add (TC413) HSS-E (M35) Metric Fine Spiral Flute for Steel to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
Product Data
Workpiece Material P
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Bright
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape MF
Tool Material HSS-E
Tool Standard DIN 374
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC413256 M4 0.5 5 63 21 2.8 2.1 5 3 TC413296 M5 0.5 5 70 25 3.5 2.7 6 3 TC413326 M6 0.75 8 80 30 4.5 3.4 6 3 TC413336 M6 0.5 5 80 30 4.5 3.4 6 3 TC413356 M7 0.75 10 80 30 5.5 4.3 7 3 TC413376 M8 1 10 90 36 6 4.9 8 3 TC413386 M8 0.75 8 80 30 6 4.9 8 3 TC413436 M10 1.25 16 100 40 7 5.5 8 3 TC413446 M10 1 10 90 36 7 5.5 8 3 TC413456 M10 0.75 10 90 36 7 5.5 8 3 TC413516 M12 1.5 15 100 40 9 7 10 3 TC413526 M12 1.25 15 100 40 9 7 10 3 TC413536 M12 1 11 100 40 9 7 10 3 TC413556 M14 1.5 15 100 40 11 9 12 3 TC413566 M14 1.25 15 100 40 11 9 12 3 TC413616 M16 1.5 15 100 40 12 9 12 3 TC413676 M18 1.5 17 110 44 14 11 14 4 TC413726 M20 1.5 17 125 50 16 12 15 4 TC413766 M22 1.5 17 125 50 18 14.5 17 4 TC413806 M24 1.5 20 140 54 18 14.5 17 4
Blind Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
P High Alloyed

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC413256 M4 0.5 5 63 21 2.8 2.1 5 3 TC413296 M5 0.5 5 70 25 3.5 2.7 6 3 TC413326 M6 0.75 8 80 30 4.5 3.4 6 3 TC413336 M6 0.5 5 80 30 4.5 3.4 6 3 TC413356 M7 0.75 10 80 30 5.5 4.3 7 3 TC413376 M8 1 10 90 36 6 4.9 8 3 TC413386 M8 0.75 8 80 30 6 4.9 8 3 TC413436 M10 1.25 16 100 40 7 5.5 8 3 TC413446 M10 1 10 90 36 7 5.5 8 3 TC413456 M10 0.75 10 90 36 7 5.5 8 3 TC413516 M12 1.5 15 100 40 9 7 10 3 TC413526 M12 1.25 15 100 40 9 7 10 3 TC413536 M12 1 11 100 40 9 7 10 3 TC413556 M14 1.5 15 100 40 11 9 12 3 TC413566 M14 1.25 15 100 40 11 9 12 3 TC413616 M16 1.5 15 100 40 12 9 12 3 TC413676 M18 1.5 17 110 44 14 11 14 4 TC413726 M20 1.5 17 125 50 16 12 15 4 TC413766 M22 1.5 17 125 50 18 14.5 17 4 TC413806 M24 1.5 20 140 54 18 14.5 17 4
