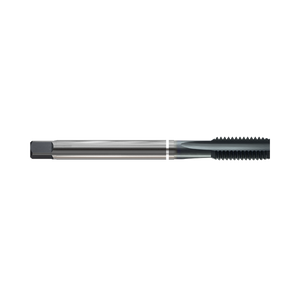

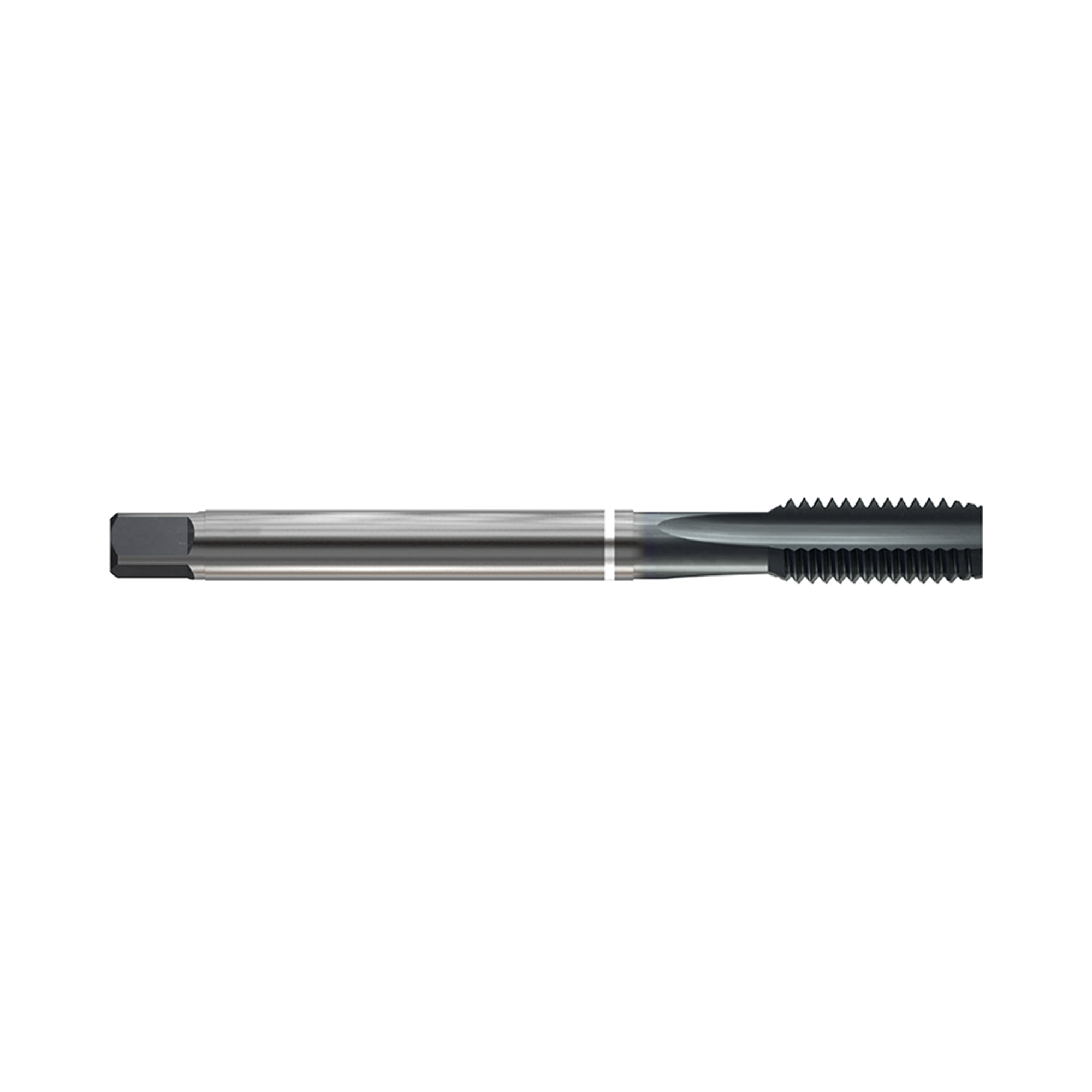

DIN374 SYNCHRO Straight Flute TiCN (TKS36)

DIN374 SYNCHRO Straight Flute TiCN (TKS36)
DIN374 SYNCHRO Straight Flute TiCN (TKS36)
New

DIN374 SYNCHRO Straight Flute TiCN (TKS36)

Product Code: TKS36

YG-1 LEGEND 6HX Thread Class: 6HX YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND MF Thread Shape: MF YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND TiCN Surface Treatment: Titanium Carbon Nitride Coating YG-1 LEGEND HSS PM Tool Material: HSS PM YG-1 LEGEND DIN 374 Tool Standard: DIN 374
Buy Local
  • Coated HSS-PM(Powder Metallurgy) Taps for high-speed tapping on rigid CNC machines or equivalent machines
  • Up to 3 times faster in tapping compared to conventional taps
  • For high-speed synchro tapping, synchro holder for increasing tool life and thread quality is recommended
  • High precision threads
Product Data
Workpiece Material P K N
Operation Blind Drilling, Through Drilling
Surface Treatment Titanium Carbon Nitride Coating
Thread Angle 60
Thread Class 6HX
Thread Form C
Thread Shape MF
Tool Material HSS PM
Tool Standard DIN 374
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN374 SYNCHRO Straight Flute TiCN (TKS36) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Dia TKS36376 M8 1 10 90 36 6 4.9 8 3 7 TKS36436 M10 1.25 13 100 40 7 5.5 8 4 8.75 TKS36446 M10 1 10 90 40 7 5.5 8 4 9 TKS36516 M12 1.5 15 100 40 9 7 10 4 10.5 TKS36526 M12 1.25 13 100 40 9 7 10 4 10.75 TKS36556 M14 1.5 15 100 40 11 9 12 4 12.5 TKS36616 M16 1.5 15 100 40 12 9 12 4 14.5 TKS36676 M18 1.5 17 110 44 14 11 14 4 16.5 TKS36726 M20 1.5 17 125 50 16 12 15 4 18.5

Operation

Blind Drilling
Through Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Great

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Aluminium

Great

Good Great Excellent

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand
