(DH424) Dream Drill 5XD without Coolant Hole

TiAlN-Coated Solid Carbide 5XD Drill

(DH424) Dream Drill 5XD without Coolant Hole
$60.06 INC GST $54.60 EX GST
SKU
DH424010
Work materials
PMKH

Key features

  • TiAlN-coated solid carbide construction supports durable drilling
  • 5XD drilling design without coolant holes
  • R-thinning supports self-centring and chip breaking
Tool material Carbide
Surface treatment Titanium Aluminium Nitride
Drill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Controlled chip handling

R-thinning supports self-centring and chip breaking for controlled holemaking.

Stable cutting action

Wave-shaped cutting edges and negative lands support low thrust and stable torque.

Purpose-built flute form

Optimised flute geometry supports drilling strength and smooth chip evacuation.

SKUDrill Diameter (mm)Overall length (mm)Shank dia. (mm)Flute length (mm)CAD filesStock Price Qty Add
DH4240101.055.03.08.0STEPDXF In stock $54.60
DH4240111.155.03.012.0STEPDXF 1-2 Weeks $54.60
DH4240121.255.03.012.0STEPDXF Low stock $54.60
DH4240131.355.03.012.0STEPDXF Low stock $54.60
DH4240141.455.03.012.0STEPDXF 1-2 Weeks $54.60
DH4240151.555.03.016.0STEPDXF In stock $54.60
DH4240161.655.03.016.0STEPDXF Low stock $54.60
DH4240171.755.03.016.0STEPDXF In stock $54.60
DH4240181.855.03.016.0STEPDXF 1-2 Weeks $54.60
DH4240191.955.03.016.0STEPDXF Low stock $54.60
DH4240202.057.04.021.0STEPDXF Low stock $80.50
DH4240212.157.04.021.0STEPDXF In stock $83.40
DH4240222.257.04.021.0STEPDXF In stock $80.50
DH4240232.357.04.021.0STEPDXF 1-2 Weeks $80.50
DH4240242.457.04.021.0STEPDXF In stock $80.50
DH4240252.557.04.021.0STEPDXF Low stock $80.50
DH4240262.657.04.021.0STEPDXF 1-2 Weeks $80.50
DH4240272.757.04.021.0STEPDXF In stock $80.50
DH4240282.857.04.021.0STEPDXF In stock $80.50
DH4240292.957.04.021.0STEPDXF Low stock $80.50
DH4240303.066.06.028.0STEPDXF In stock $80.50
DH4240313.166.06.028.0STEPDXF 1-2 Weeks $80.50
DH4240323.266.06.028.0STEPDXF Low stock $80.50
DH4240333.366.06.028.0STEPDXF In stock $80.50
DH4240343.466.06.028.0STEPDXF 1-2 Weeks $80.50
DH4240353.566.06.028.0STEPDXF Low stock $80.50
DH4240363.666.06.028.0STEPDXF 1-2 Weeks $102.40
DH4240373.766.06.028.0STEPDXF In stock $80.50
DH4240383.874.06.036.0STEPDXF 1-2 Weeks $80.50
DH4240393.974.06.036.0STEPDXF Low stock $80.50
DH4240404.074.06.036.0STEPDXF Low stock $80.50
DH4240414.174.06.036.0STEPDXF 1-2 Weeks $80.50
DH4240424.274.06.036.0STEPDXF In stock $80.50
DH4240434.374.06.036.0STEPDXF Low stock $80.50
DH4240444.474.06.036.0STEPDXF In stock $80.50
DH4240454.574.06.036.0STEPDXF In stock $80.50
DH4240464.674.06.036.0STEPDXF 1-2 Weeks $80.50
DH4240474.774.06.036.0STEPDXF 1-2 Weeks $80.50
DH4240484.882.06.044.0STEPDXF In stock $80.50
DH4240494.982.06.044.0STEPDXF 1-2 Weeks $80.50
DH4240505.082.06.044.0STEPDXF In stock $80.50
DH4240515.182.06.044.0STEPDXF 1-2 Weeks $80.50
DH4240525.282.06.044.0STEPDXF 1-2 Weeks $80.50
DH4240535.382.06.044.0STEPDXF 1-2 Weeks $80.50
DH4240545.482.06.044.0STEPDXF Low stock $80.50
DH4240555.582.06.044.0STEPDXF Low stock $80.50
DH4240565.682.06.044.0STEPDXF 1-2 Weeks $80.50
DH4240575.782.06.044.0STEPDXF Low stock $80.50
DH4240585.882.06.044.0STEPDXF Low stock $80.50
DH4240595.982.06.044.0STEPDXF Low stock $80.50
DH4240606.082.06.044.0STEPDXF In stock $80.50
DH4240616.191.08.053.0STEPDXF 1-2 Weeks $126.70
DH4240626.291.08.053.0STEPDXF Low stock $99.40
DH4240636.391.08.053.0STEPDXF In stock $110.60
DH4240646.491.08.053.0STEPDXF 1-2 Weeks $110.60
DH4240656.591.08.053.0STEPDXF Low stock $99.40
DH4240666.691.08.053.0STEPDXF Low stock $99.40
DH4240676.791.08.053.0STEPDXF 1-2 Weeks $126.70
DH4240686.891.08.053.0STEPDXF In stock $99.40
DH4240696.991.08.053.0STEPDXF Low stock $99.40
DH4240707.091.08.053.0STEPDXF Low stock $99.40
DH4240717.191.08.053.0STEPDXF In stock $99.40
DH4240727.291.08.053.0STEPDXF 1-2 Weeks $99.40
DH4240737.391.08.053.0STEPDXF 1-2 Weeks $99.40
DH4240747.491.08.053.0STEPDXF Low stock $99.40
DH4240757.591.08.053.0STEPDXF 1-2 Weeks $99.40
DH4240767.691.08.053.0STEPDXF 1-2 Weeks $99.40
DH4240777.791.08.053.0STEPDXF 1-2 Weeks $99.40
DH4240787.891.08.053.0STEPDXF 1-2 Weeks $99.40
DH4240797.991.08.053.0STEPDXF 1-2 Weeks $126.70
DH4240808.091.08.053.0STEPDXF In stock $99.40
DH4240818.1103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240828.2103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240838.3103.010.061.0STEPDXF 1-2 Weeks $162.80
DH4240848.4103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240858.5103.010.061.0STEPDXF Low stock $132.50
DH4240868.6103.010.061.0STEPDXF In stock $132.50
DH4240878.7103.010.061.0STEPDXF 1-2 Weeks $162.80
DH4240888.8103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240898.9103.010.061.0STEPDXF 1-2 Weeks $162.80
DH4240909.0103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240919.1103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240929.2103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240939.3103.010.061.0STEPDXF Low stock $132.50
DH4240949.4103.010.061.0STEPDXF Low stock $132.50
DH4240959.5103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240969.6103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240979.7103.010.061.0STEPDXF 1-2 Weeks $132.50
DH4240989.8103.010.061.0STEPDXF Low stock $132.50
DH4240999.9103.010.061.0STEPDXF 1-2 Weeks $162.80
DH42410010.0103.010.061.0STEPDXF In stock $132.50
DH42410110.1118.012.071.0STEPDXF 1-2 Weeks $270.30
DH42410210.2118.012.071.0STEPDXF Low stock $212.20
DH42410310.3118.012.071.0STEPDXF 1-2 Weeks $212.20
DH42410410.4118.012.071.0STEPDXF 1-2 Weeks $270.30
DH42410510.5118.012.071.0STEPDXF Low stock $212.20
DH42410610.6118.012.071.0STEPDXF 1-2 Weeks $212.20
DH42410710.7118.012.071.0STEPDXF 1-2 Weeks $2,118.10
DH42410810.8118.012.071.0STEPDXF 1-2 Weeks $212.20
DH42410910.9118.012.071.0STEPDXF 1-2 Weeks $270.30
DH42411011.0118.012.071.0STEPDXF Low stock $212.20
DH42411111.1118.012.071.0STEPDXF 1-2 Weeks $212.20
DH42411211.2118.012.071.0STEPDXF 1-2 Weeks $212.20
DH42411311.3118.012.071.0STEPDXF 1-2 Weeks $212.20
DH42411411.4118.012.071.0STEPDXF 1-2 Weeks $270.30
DH42411511.5118.012.071.0STEPDXF 1-2 Weeks $270.30
DH42411611.6118.012.071.0STEPDXF 1-2 Weeks $270.30
DH42411711.7118.012.071.0STEPDXF 1-2 Weeks $270.30
DH42411811.8118.012.071.0STEPDXF 1-2 Weeks $270.30
DH42411911.9118.012.071.0STEPDXF 1-2 Weeks $212.20
DH42412012.0118.012.071.0STEPDXF Low stock $212.20
DH42412512.5124.014.077.0STEPDXF 1-2 Weeks $269.80
DH42413013.0124.014.077.0STEPDXF Low stock $269.80
DH42413513.5124.014.077.0STEPDXF 1-2 Weeks $269.80
DH42414014.0124.014.077.0STEPDXF Low stock $269.80
DH42414514.5133.016.083.0STEPDXF 1-2 Weeks $358.80
DH42415015.0133.016.083.0STEPDXF 1-2 Weeks $281.60
DH42415515.5133.016.083.0STEPDXF 1-2 Weeks $358.80
DH42416016.0133.016.083.0STEPDXF 1-2 Weeks $281.60
DH42416516.5143.018.093.0STEPDXF 1-2 Weeks $511.90
DH42417017.0143.018.093.0STEPDXF 1-2 Weeks $401.80
DH42417517.5143.018.093.0STEPDXF 1-2 Weeks $401.80
DH42418018.0143.018.093.0STEPDXF 1-2 Weeks $415.00
DH42418518.5153.020.0101.0STEPDXF 1-2 Weeks $621.60
DH42419019.0153.020.0101.0STEPDXF 1-2 Weeks $621.60
DH42419519.5153.020.0101.0STEPDXF 1-2 Weeks $488.00
DH42420020.0153.020.0101.0STEPDXF 1-2 Weeks $488.00

Add (DH424) Dream Drill 5XD without Coolant Hole to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

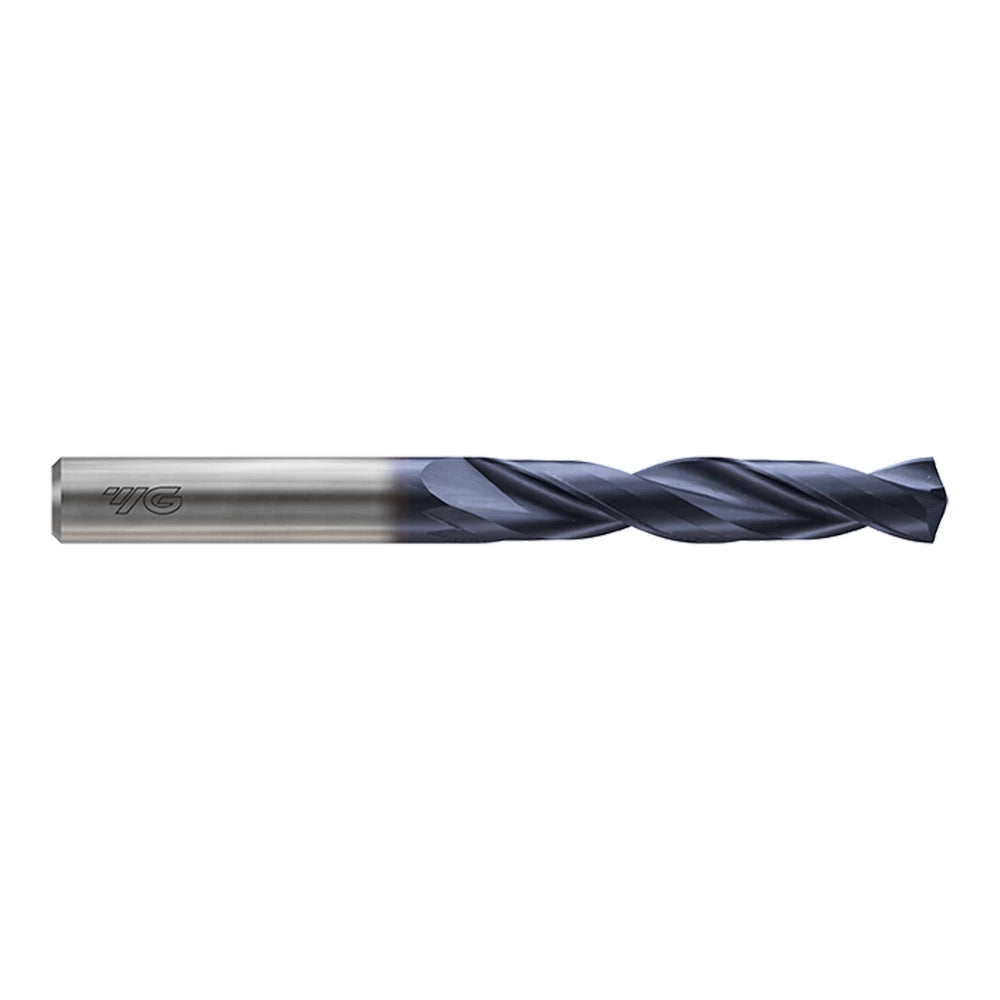

YG-1 DH424 Dream Drill is a TiAlN-coated solid carbide 5XD drill without coolant holes. It is designed for general drilling in steel, cast steel, cast iron and malleable cast iron. R-thinning supports self-centring and chip breaking during controlled 5XD holemaking. Wave-shaped cutting edges and negative lands promote low thrust, stable torque and longer tool life. Optimised flute geometry supports drilling strength and smooth chip evacuation. The 5XD design suits applications requiring deeper general-purpose holes without internal coolant supply. Its solid carbide construction provides a durable platform for production drilling operations. This long-series family covers nominal drill diameters from 1.0 mm to 10.9 mm.

  • TiAlN-coated solid carbide construction supports durable drilling
  • 5XD drilling design without coolant holes
  • R-thinning supports self-centring and chip breaking
  • Wave-shaped cutting edges and negative lands support low thrust
  • Optimised flutes support smooth chip evacuation
  • Nominal drill diameters span 1.0 mm to 10.9 mm
Product Data
Helix Angle 30­°
Hole Type Blind, Through
Outside Diameter Tolerance m7
Point Angle 140°
Shank Diameter Tolerance
Surface Treatment Titanium Aluminium Nitride, Titanium Aluminium Nitride Coating
Tool Material Carbide
Tool Standard DIN 6537

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

10 grades
Non-alloy steel
ExcellentVDI 2–4
GoodVDI 5
Low-alloy steel
ExcellentVDI 6–7
GoodVDI 8–9
High-alloy and tool steel
ExcellentVDI 10
GoodVDI 11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15
GoodVDI 16
Nodular cast iron
ExcellentVDI 17
GoodVDI 18
Malleable cast iron
ExcellentVDI 19
GoodVDI 20

Stainless steel

2 grades
Stainless steel
GoodVDI 12–13

Hardened materials

1 grade
Hardened steel
GoodVDI 38
VDI grade reference19 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelGood30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelGood30032
9PLow-alloy steelGood35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelGood32535
12MStainless steelGood20015
13MStainless steelGood24023
15KGrey cast ironExcellent18010
16KGrey cast ironGood26026
17KNodular cast ironExcellent1603
18KNodular cast ironGood25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironGood23021
38HHardened steelGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
