(E5400) Carbide Drill Mill 90deg

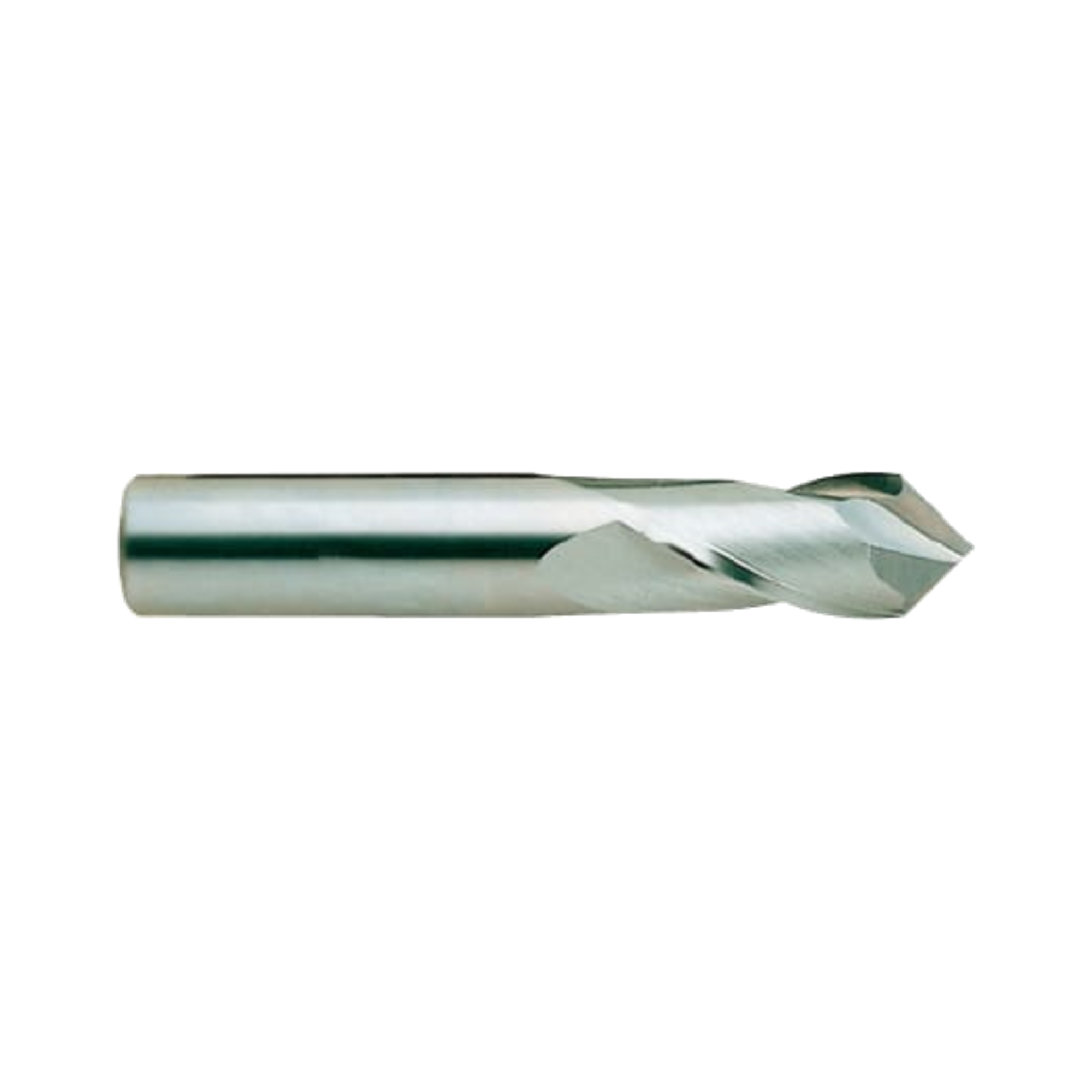

YG-1 E5400 product photograph · transparent
$61.82 INC GST $56.20 EX GST
SKU
E5400030
Work materials
PMK
Tool material Carbide
Surface treatment Bright
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)CAD filesStock Price Qty Add
E54000303.050.04.026.0STEP In stock $56.20
E54000404.050.05.028.0STEPDXF Low stock $58.30
E54000505.050.06.0210.0STEPDXF 1-2 Weeks $66.70
E54000606.060.08.0212.0DXF 1-2 Weeks $75.00
E54000808.070.010.0216.0STEPDXF 1-2 Weeks $104.10
E540010010.070.012.0218.0STEPDXF Low stock $131.20
E540012012.070.012.0220.0STEPDXF Low stock $131.20
E540014014.080.014.0224.0STEPDXF 1-2 Weeks $204.40
E540016016.080.016.0226.0STEPDXF Low stock $187.40
E540020020.0100.020.0232.0STEPDXF Low stock $331.00

Add (E5400) Carbide Drill Mill 90deg to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

Performs many drilling and milling operations not presently done with the standard End mill.
Among the many vertical milling machine operations the Drill Mill performs are: Drilling, Slotting, NC Milling, Drilling & Slotting, Profile Milling & Chamfering.

Product Data
Workpiece Material P M K
Cutting Shape Square
Helix Angle Square 30
Length Regular
No. Flutes 2
Shank Type 6535HA
Surface Treatment Bright
Tool Material Carbide
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E5400030 3 4 6 50 h9 h5 2 E5400030 3 4 6 50 h9 h5 2 E5400040 4 5 8 50 h9 h5 2 E5400040 4 5 8 50 h9 h5 2 E5400050 5 6 10 50 h9 h5 2 E5400050 5 6 10 50 h9 h5 2 E5400060 6 8 12 60 h9 h5 2 E5400060 6 8 12 60 h9 h5 2 E5400080 8 10 16 70 h9 h5 2 E5400080 8 10 16 70 h9 h5 2 E5400100 10 12 18 70 h9 h5 2 E5400100 10 12 18 70 h9 h5 2 E5400120 12 12 20 70 d9 h5 2 E5400120 12 12 20 70 d9 h5 2 E5400140 14 14 24 80 d9 h5 2 E5400160 16 16 26 80 d9 h5 2 E5400160 16 16 26 80 d9 h5 2 E5400200 20 20 32 100 d9 h5 2 E5400200 20 20 32 100 d9 h5 2

Work materials

Material recommendations for this tool.

ExcellentGood

Steel

Carbon Steels
Good
Alloy Steels
Excellent
Prehardened Steels
Excellent

Cast iron

Cast Iron
Good

Stainless steel

Stainless Steels
Good

These are broad material recommendations; specific VDI grades are not stated.
