(EMB72) V7 INOX, 5Flute Variable Helix Angle End Mill, Plain Shank

Plain-shank 5-flute variable helix carbide end mill

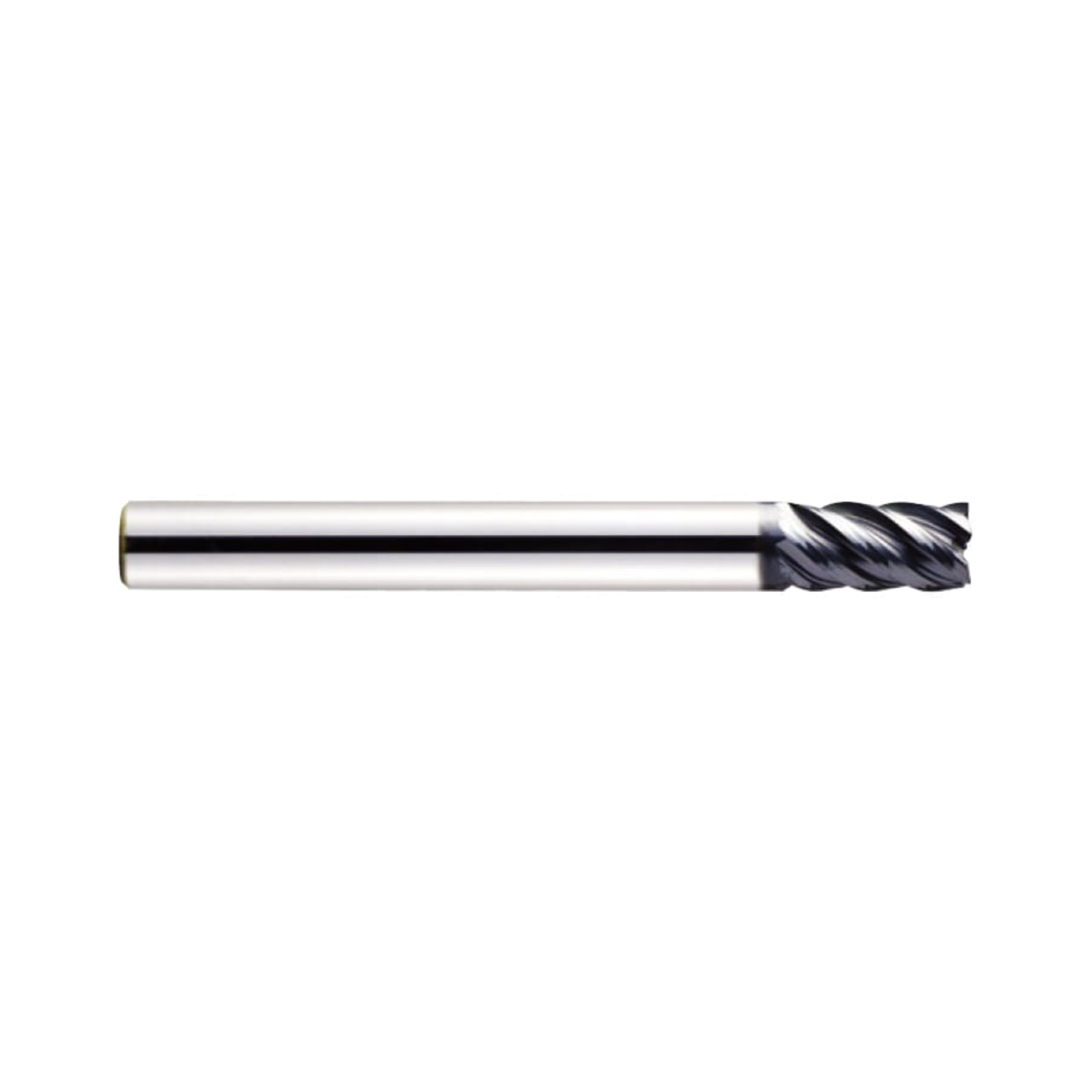

YG-1 EMB72 product photograph · transparent
$52.93 INC GST $48.12 EX GST
SKU
EMB72060
Work materials
PMKS

Key features

  • Solid-carbide five-flute long-length end mill
  • Variable helix geometry with special vibration-reducing flute design
  • Plain-shank EMB72 series
Tool material Carbide
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Reduced vibration

Special flute geometry is designed to eliminate vibration during machining.

Broad material suitability

Supports milling of steels, stainless steels, cast iron, tool steels and titanium alloys.

Long cutting reach

Long-length geometry provides 13 to 38 mm lengths of cut across the range.

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)CAD filesStock Price Qty Add
EMB720606.00.157.06.013.0STEPDXF In stock $48.12
EMB720808.00.163.08.019.0STEPDXF In stock $66.18
EMB7210010.00.172.010.022.0STEPDXF In stock $98.63
EMB7212012.00.183.012.026.0STEPDXF In stock $123.33
EMB7214014.00.283.014.026.0STEPDXF 1-2 Weeks $166.14
EMB7216016.00.292.016.032.0STEPDXF Low stock $217.69
EMB7218018.00.292.018.032.0STEPDXF 1-2 Weeks $308.04
EMB7220020.00.2104.020.038.0STEPDXF Low stock $334.81
EMB7225025.00.2104.025.038.0STEPDXF 1-2 Weeks $464.13

Add (EMB72) V7 INOX, 5Flute Variable Helix Angle End Mill, Plain Shank to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

YG-1 V7 INOX EMB72 is a plain-shank solid-carbide five-flute long-length end mill with variable helix geometry. The special flute geometry eliminates vibrations for milling mild and stainless steels, cast iron, tool steels and titanium alloys. It also suits prehardened steels and low-hardness materials under 40 HRC, supporting broad production machining requirements. The range covers 6 to 25 mm mill diameters, with 13 to 38 mm lengths of cut. Chamfers are 0.1 mm through 12 mm diameters and 0.2 mm from 14 to 25 mm. Designed for high-speed milling, it supports deeper cuts, high metal removal rates and excellent workpiece finishes.

  • Solid-carbide five-flute long-length end mill
  • Variable helix geometry with special vibration-reducing flute design
  • Plain-shank EMB72 series
  • For mild steels stainless steels cast iron tool steels and titanium alloys
  • Suitable for prehardened steels and low-hardness materials under 40 HRC
  • Available in 6 to 25 mm mill diameters
Product Data
Cutting Shape Square
Length Long
No. Flutes 5
Tool Material Carbide

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–2
GoodVDI 3–5
Low-alloy steel
ExcellentVDI 6
GoodVDI 7–9
High-alloy and tool steel
ExcellentVDI 10
GoodVDI 11

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Superalloys & titanium

7 grades
Heat-resistant superalloys
GoodVDI 31–35
Titanium alloys
ExcellentVDI 36–37
VDI grade reference27 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelGood25025
4PNon-alloy steelGood27028
5PNon-alloy steelGood30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelGood27529
8PLow-alloy steelGood30032
9PLow-alloy steelGood35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelGood32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
31SHeat-resistant superalloysGood20015
32SHeat-resistant superalloysGood28030
33SHeat-resistant superalloysGood25025
34SHeat-resistant superalloysGood35038
35SHeat-resistant superalloysGood32034
36STitanium alloysExcellent--
37STitanium alloysExcellent--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
