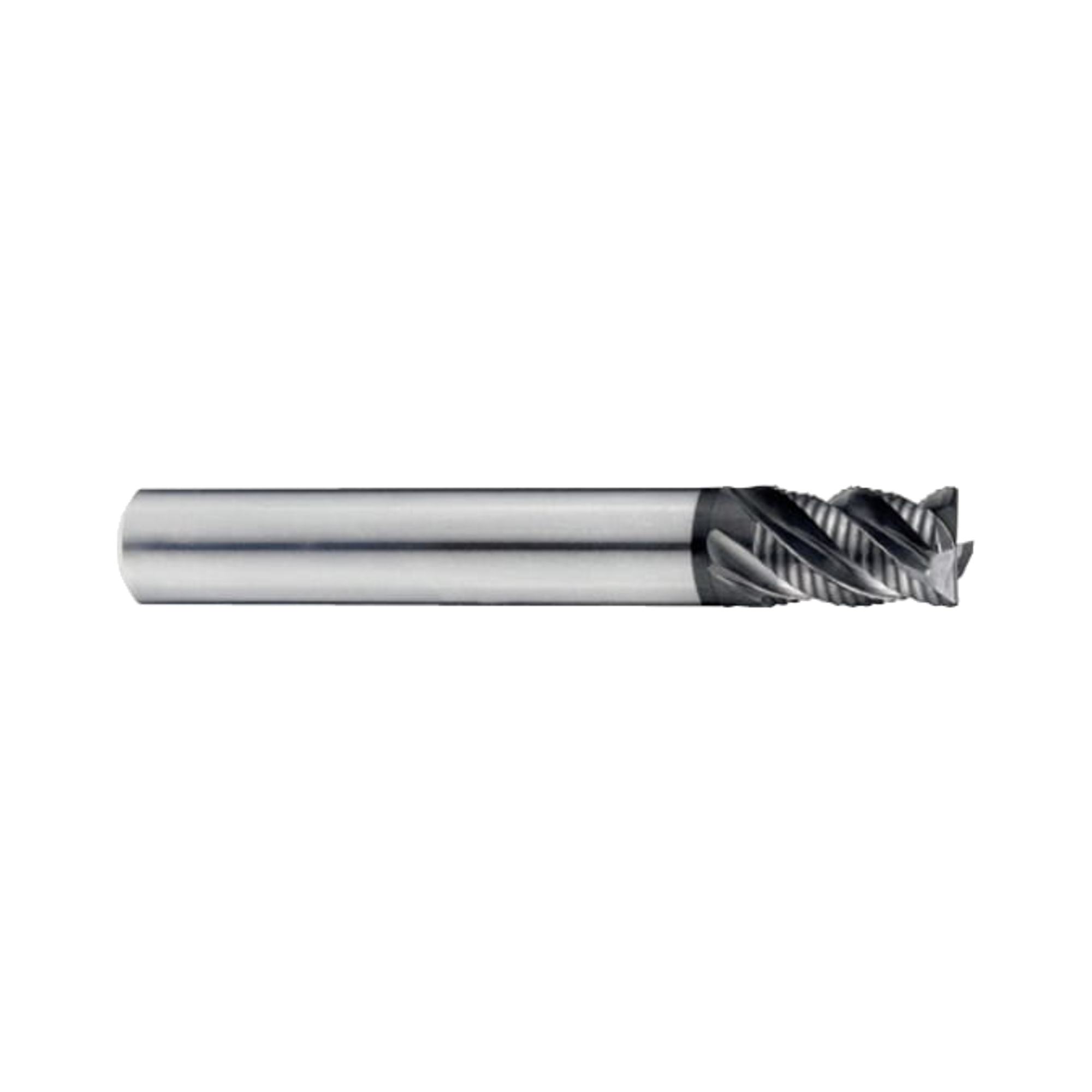

(G9D76) 4G Mill, X-Speed rougher, 4&5Flute Multiple Helix Corner Radius Roughing End Mill, Long Leng
Carbide multiple helix corner radius rougherCode: G9D76060
-
Key Features
- Solid carbide corner radius roughing end mill
- Multiple helix flute design aids chip evacuation and vibration reduction
- Optimised roughing tooth profile reduces cutting forces
Made in South Korea
Heavy-cutting geometry
Special tool geometry supports high feed rates and demanding roughing cuts.
Controlled chip flow
Unique flute design improves chip evacuation while helping reduce vibration.
Roughing versatility
Strong end teeth support plunge milling and pocket milling operations.
| SKU | Mill Diameter (mm) | Corner Radius | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| G9D76060 | 6 | R0.50 | 57.0 | 6.0 | 4 | 9.0 | 5 days | $113.90 | ||
| G9D76080 | 8 | R0.50 | 63.0 | 8.0 | 4 | 12.0 | Low stock | $92.60 | ||
| G9D76100 | 10 | R0.50 | 72.0 | 10.0 | 4 | 15.0 | Low stock | $137.20 | ||
| G9D76120 | 12 | R0.50 | 83.0 | 12.0 | 4 | 18.0 | 5 days | $199.20 | ||
| G9D76160 | 16 | R1.0 | 92.0 | 16.0 | 5 | 24.0 | 5 days | $280.70 | ||
| G9D76200 | 20 | R1.0 | 104.0 | 20.0 | 5 | 30.0 | 5 days | $467.60 |
Add (G9D76) 4G Mill, X-Speed rougher, 4&5Flute Multiple Helix Corner Radius Roughing End Mill, Long Leng to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 G9D76 4G Mill X-Speed rougher is a solid carbide corner radius roughing end mill with multiple helix geometry. Designed for high-feed heavy cutting, it supports roughing, plunge milling and pocket milling applications. The unique flute design promotes chip evacuation while helping reduce vibration during demanding machining. An optimal roughing tooth profile reduces cutting forces for more controlled high-load milling. Custom engineered X coating supports long tool life and chip evacuation. Available in 6 to 20 mm diameters, with 0.5 or 1.0 mm corner radii. Four-flute models cover 6 to 12 mm, while 16 to 20 mm models use five flutes. All G9D76 variants use a plain shank for straightforward toolholding.
- Solid carbide corner radius roughing end mill
- Multiple helix flute design aids chip evacuation and vibration reduction
- Optimised roughing tooth profile reduces cutting forces
- Strong end teeth support plunge and pocket milling
- X coating supports tool life and chip evacuation
- 6 to 20 mm diameters with four or five flutes
