(XSEMD98) i-Smart 4G Mill, Modular Head, 2Flute Ball Nose End Mill

2 Flute Ball Nose Carbide Modular Head

(XSEMD98) i-Smart 4G Mill, Modular Head, 2Flute Ball Nose End Mill
$0.00 INC GST $0.00 EX GST Price available on request
SKU
XSEMD98100

Key features

  • Carbide modular head for i-Smart modular end mill systems
  • Two-flute ball nose cutting geometry
  • 30° helix with centre-match design
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Modular Tooling Format

Use the head with a compatible i-Smart modular end mill holder.

Ball Nose Range

Choose from R5.0 to R16.0 radii for ball-nose milling requirements.

Defined Accuracy

Specified radius and diameter tolerances support controlled tool selection.

Add (XSEMD98) i-Smart 4G Mill, Modular Head, 2Flute Ball Nose End Mill to comparison

View Comparison
  • Overview
  • Specifications
  • Reviews
Product Description

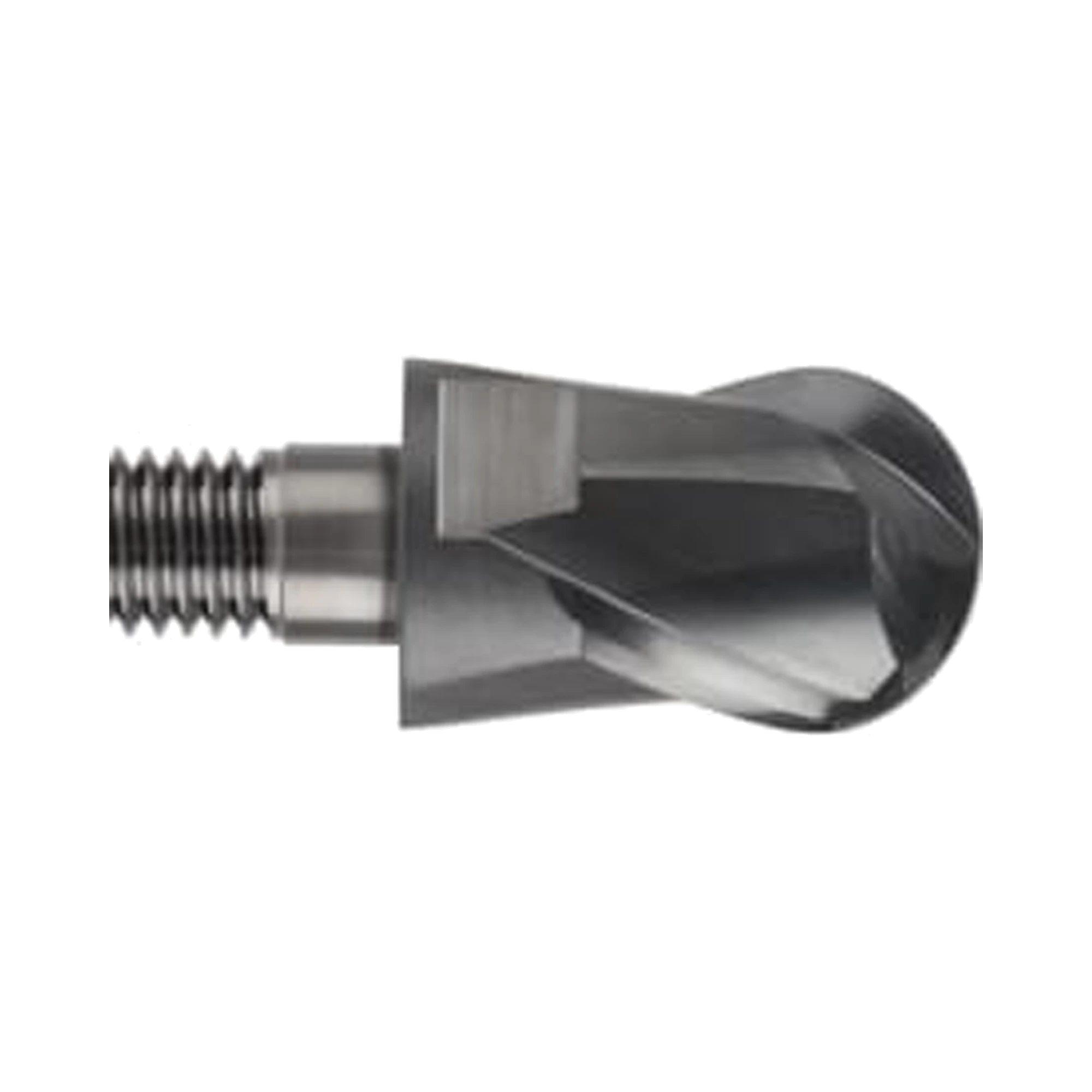

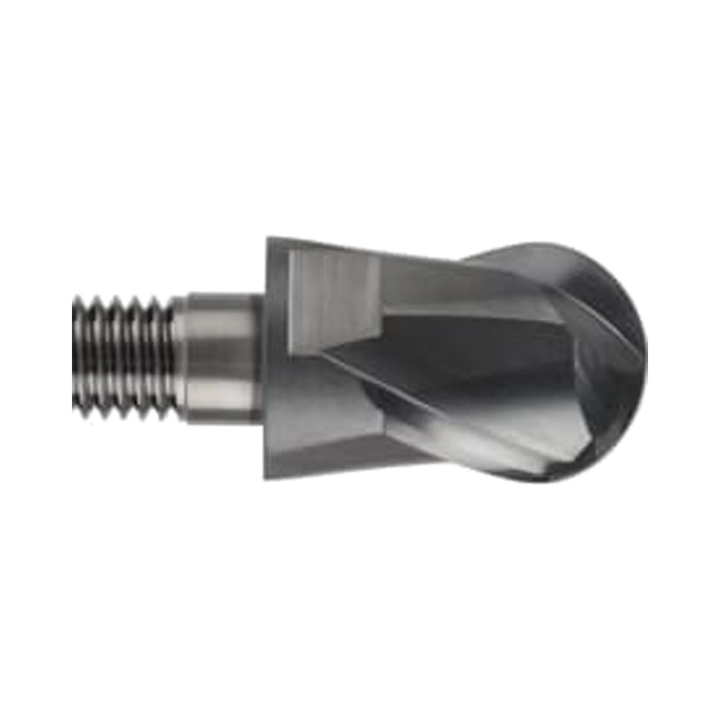

YG-1 XSEMD98 i-Smart carbide modular heads are two-flute ball nose end mills with Y-Coating. They provide centre-match ball-nose cutting for use with compatible i-Smart modular end mill holders. The series combines a 30° helix with radii from R5.0 to R16.0. Available head diameters span 10 to 32 mm, corresponding to the listed ball radii. Radius tolerance is ±0.01 mm and mill diameter tolerance is 0 to -0.02 mm. Specified SKUs cover R5, R6, R8, R10, R12.5, R15 and R16 ball-nose options. Select the modular head size required for the intended ball-nose milling operation. The replaceable-head format supports configuration of an i-Smart modular end mill system.

  • Carbide modular head for i-Smart modular end mill systems
  • Two-flute ball nose cutting geometry
  • 30° helix with centre-match design
  • Y-Coating
  • R5.0 to R16.0 ball radii
  • ±0.01 mm radius tolerance
Product Data

No specifications available.

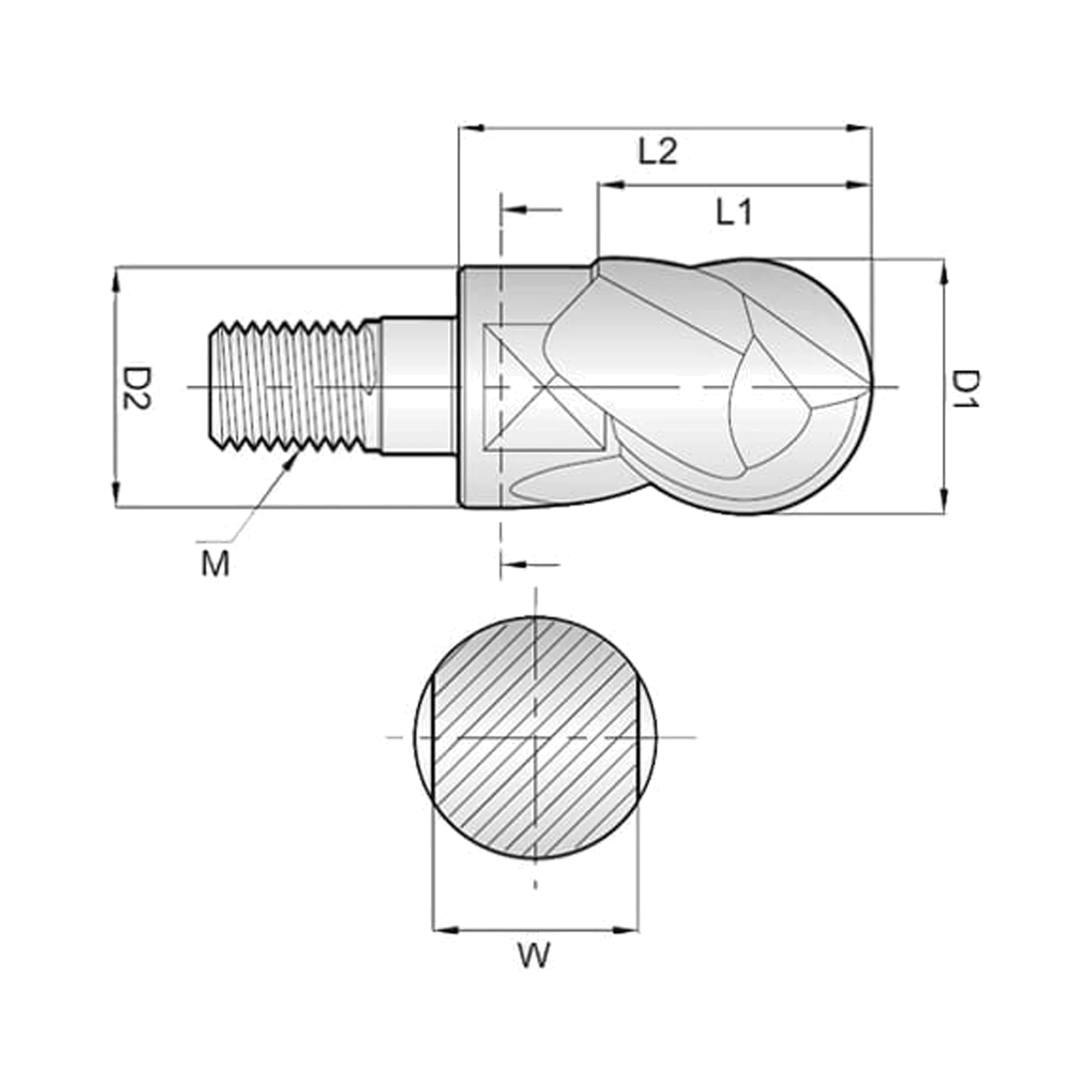

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEMD98100 10 9 10 17.5 8 M6 2 XSEMD98120 12 11 12 20.5 10 M6 2 XSEMD98160 16 15 16 25.5 13 M8 2 XSEMD98200 20 19 20 30 17 M10 2 XSEMD98250 25 24 25 37 22 M12 2 XSEMD98300 30 29 30 43 27 M16 2 XSEMD98320 32 31 32 45 27 M16 2
EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEMD98100 10 9 10 17.5 8 M6 2 XSEMD98120 12 11 12 20.5 10 M6 2 XSEMD98160 16 15 16 25.5 13 M8 2 XSEMD98200 20 19 20 30 17 M10 2 XSEMD98250 25 24 25 37 22 M12 2 XSEMD98300 30 29 30 43 27 M16 2 XSEMD98320 32 31 32 45 27 M16 2
