(XSEME59) i-Smart 4G Mill, Modular Head, 3Flute Ball Nose End Mill

Y-Coated Three-Flute Centre-Match Ball Nose Modular Head

(XSEME59) i-Smart 4G Mill, Modular Head, 3Flute Ball Nose End Mill
$0.00 INC GST $0.00 EX GST Price available on request
SKU
XSEME59100

Key features

  • Carbide modular head with three flute centre-match ball nose geometry
  • Y-Coating
  • 30° helix
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Modular connection

M6 to M16 coupling threads support the listed i-Smart modular head sizes.

Centre-match geometry

Three-flute ball nose geometry provides the specified centre-match cutting configuration.

Broad material suitability

Recommended material groups include steels, stainless steel, grey cast iron and nodular cast iron.

Add (XSEME59) i-Smart 4G Mill, Modular Head, 3Flute Ball Nose End Mill to comparison

View Comparison
  • Overview
  • Specifications
  • Reviews
Product Description

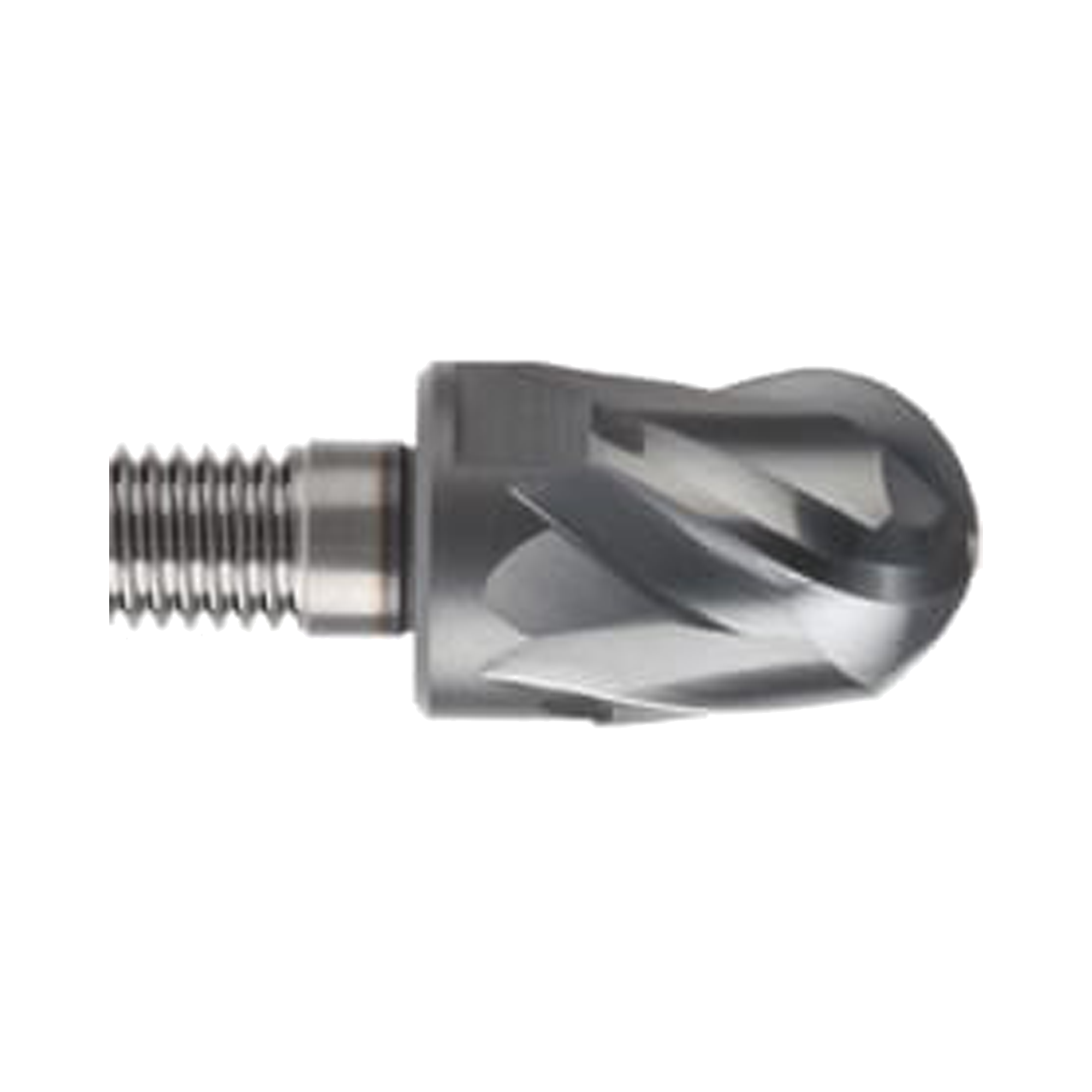

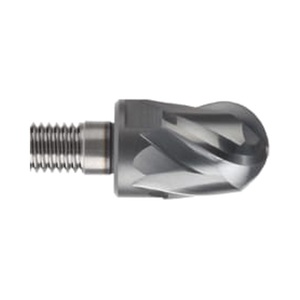

YG-1 XSEME59 i-Smart carbide modular head is a Y-coated, three-flute centre-match ball nose end mill. Designed for compatible modular assemblies, it machines steel, stainless steel, grey cast iron and nodular cast iron. Y-Coating supports the specified cutting geometry, while the 30° helix maintains the series configuration. Available diameters span 10 to 32 mm, with ball radii from R5.0 to R16.0. Modular coupling threads range from M6 to M16 to suit the listed head sizes. The series provides ±0.01 mm radius tolerance and zero to minus 0.02 mm diameter tolerance. YG-1 lists XSEME59 for non-alloy, low-alloy and high-alloy steels, including tool steel.

  • Carbide modular head with three flute centre-match ball nose geometry
  • Y-Coating
  • 30° helix
  • 10 to 32 mm mill diameters with R5.0 to R16.0 ball radii
  • M6 to M16 coupling threads
  • Recommended for steel stainless steel and selected cast irons
Product Data

No specifications available.

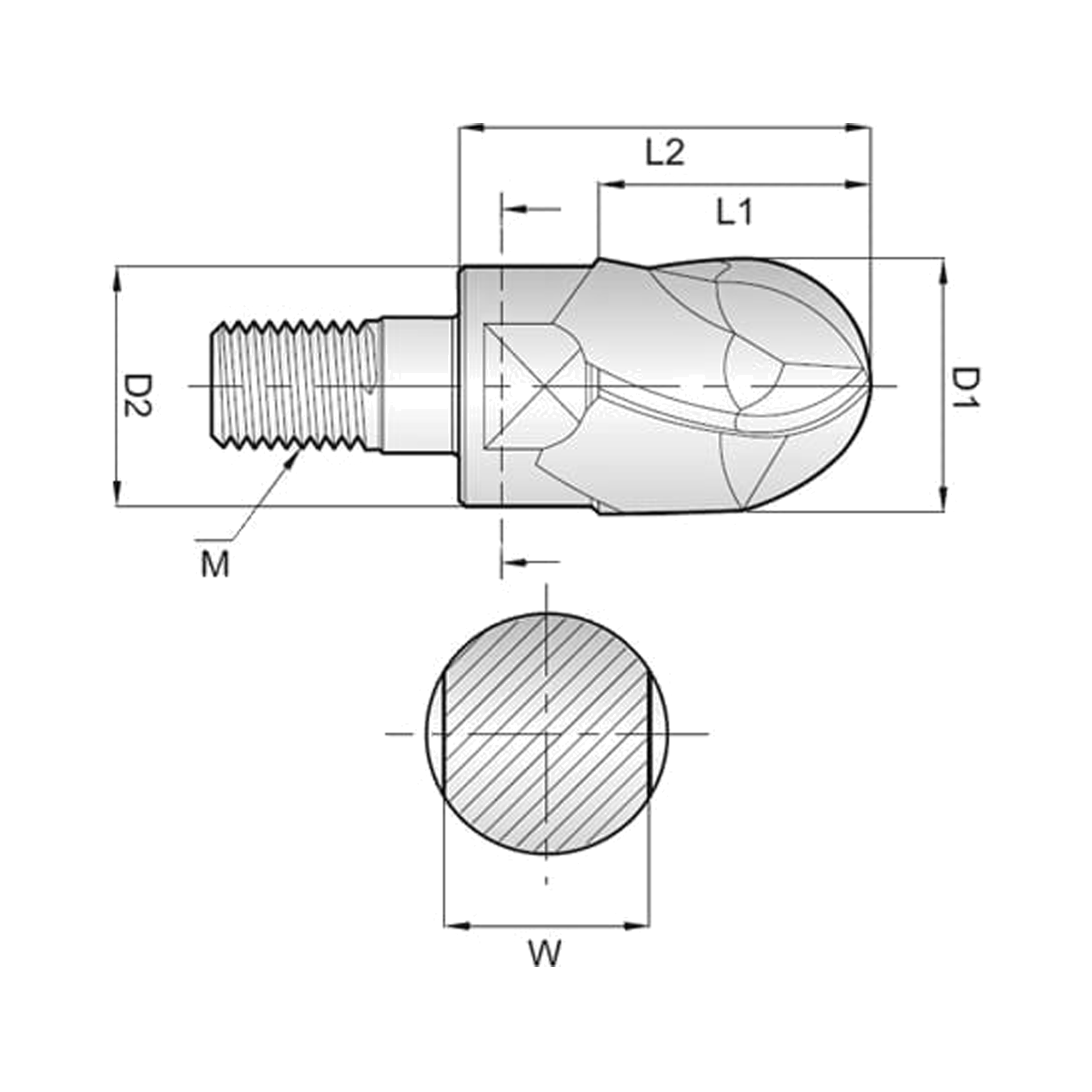

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME59100 10 9 10 17.5 8 M6 2 XSEME59120 12 11 12 20.5 10 M6 2 XSEME59160 16 15 16 25.5 13 M8 2 XSEME59200 20 19 20 30 17 M10 2 XSEME59250 25 24 25 37 22 M12 2 XSEME59300 30 29 30 43 27 M16 2 XSEME59320 32 31 32 45 27 M16 2
EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME59100 10 9 10 17.5 8 M6 2 XSEME59120 12 11 12 20.5 10 M6 2 XSEME59160 16 15 16 25.5 13 M8 2 XSEME59200 20 19 20 30 17 M10 2 XSEME59250 25 24 25 37 22 M12 2 XSEME59300 30 29 30 43 27 M16 2 XSEME59320 32 31 32 45 27 M16 2
