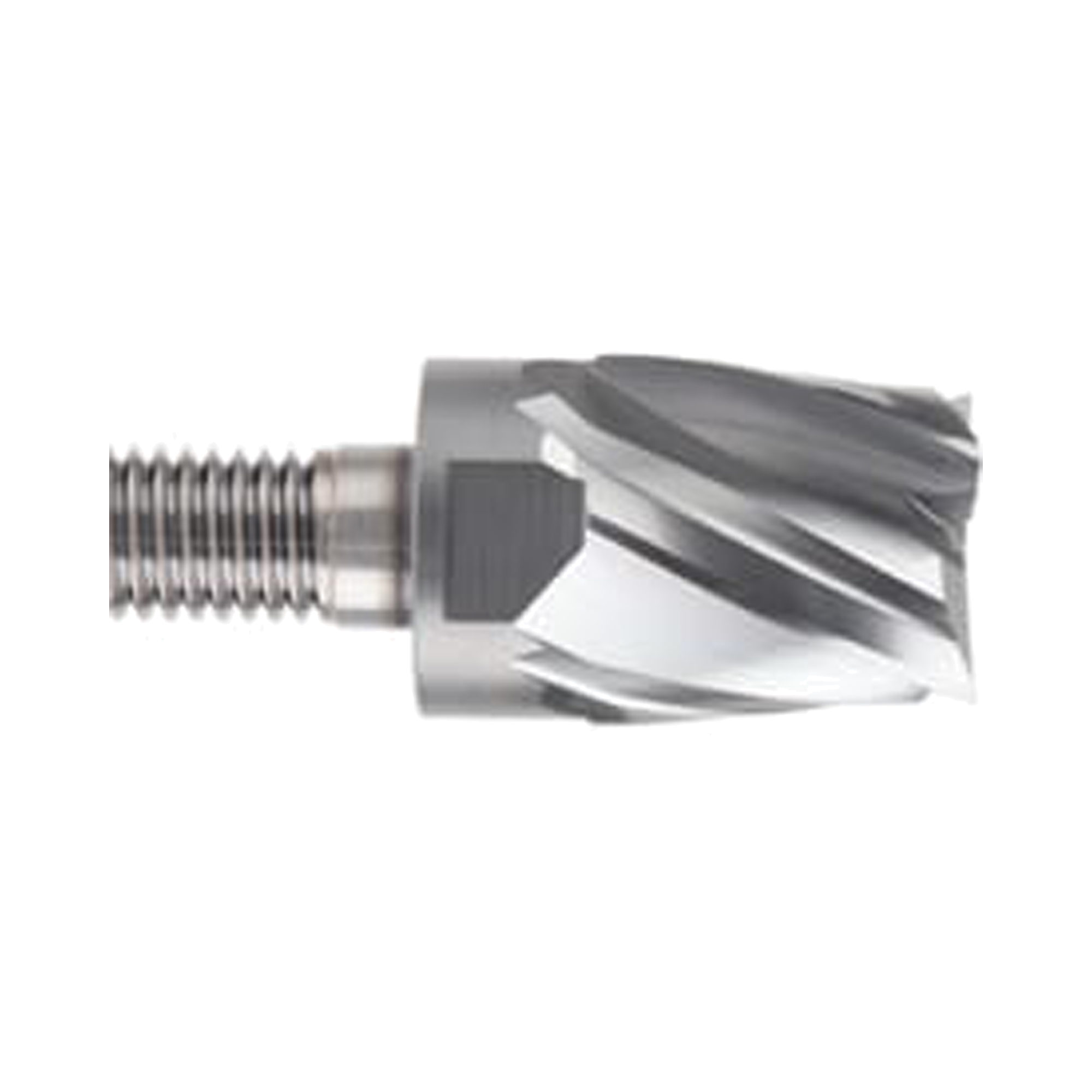

(XSEME36) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix End Mill

Four-Flute Multiple Helix Carbide Modular Heads

(XSEME36) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix End Mill
$0.00 INC GST $0.00 EX GST Price available on request
SKU
XSEME36100

Key features

  • Carbide modular head with four-flute square cutting edges
  • 27°/30° multiple helix geometry
  • Y-Coating specified throughout the XSEME36 series
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Square cutting profile

Four-flute square geometry supports square-profile milling applications.

Modular head selection

Threaded coupling options suit compatible i-Smart modular end mill assemblies.

Useful diameter range

Heads are available from 10.0 to 32.0 mm diameter.

Add (XSEME36) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix End Mill to comparison

View Comparison
  • Overview
  • Specifications
  • Reviews
Product Description

YG-1 XSEME36 i-Smart 4G Mill modular heads are carbide four-flute square end mills with 27°/30° multiple helix geometry. They provide square-profile milling in compatible i-Smart modular end mill assemblies. The 27°/30° multiple helix configuration complements its four-flute square cutting-edge design. Y-Coating is specified consistently for every head in the XSEME36 series. Available mill diameters range from 10.0 to 32.0 mm. The family includes M6, M8, M10, M12 and M16 threaded coupling options. Each variant also has defined neck diameter, length of cut, below-shank length and wrench width. Select the matching head diameter and threaded coupling for the appropriate i-Smart modular holder.

  • Carbide modular head with four-flute square cutting edges
  • 27°/30° multiple helix geometry
  • Y-Coating specified throughout the XSEME36 series
  • 10.0 to 32.0 mm mill diameter range
  • M6 to M16 threaded coupling options
  • Defined neck cutting below-shank and wrench dimensions
Product Data

No specifications available.

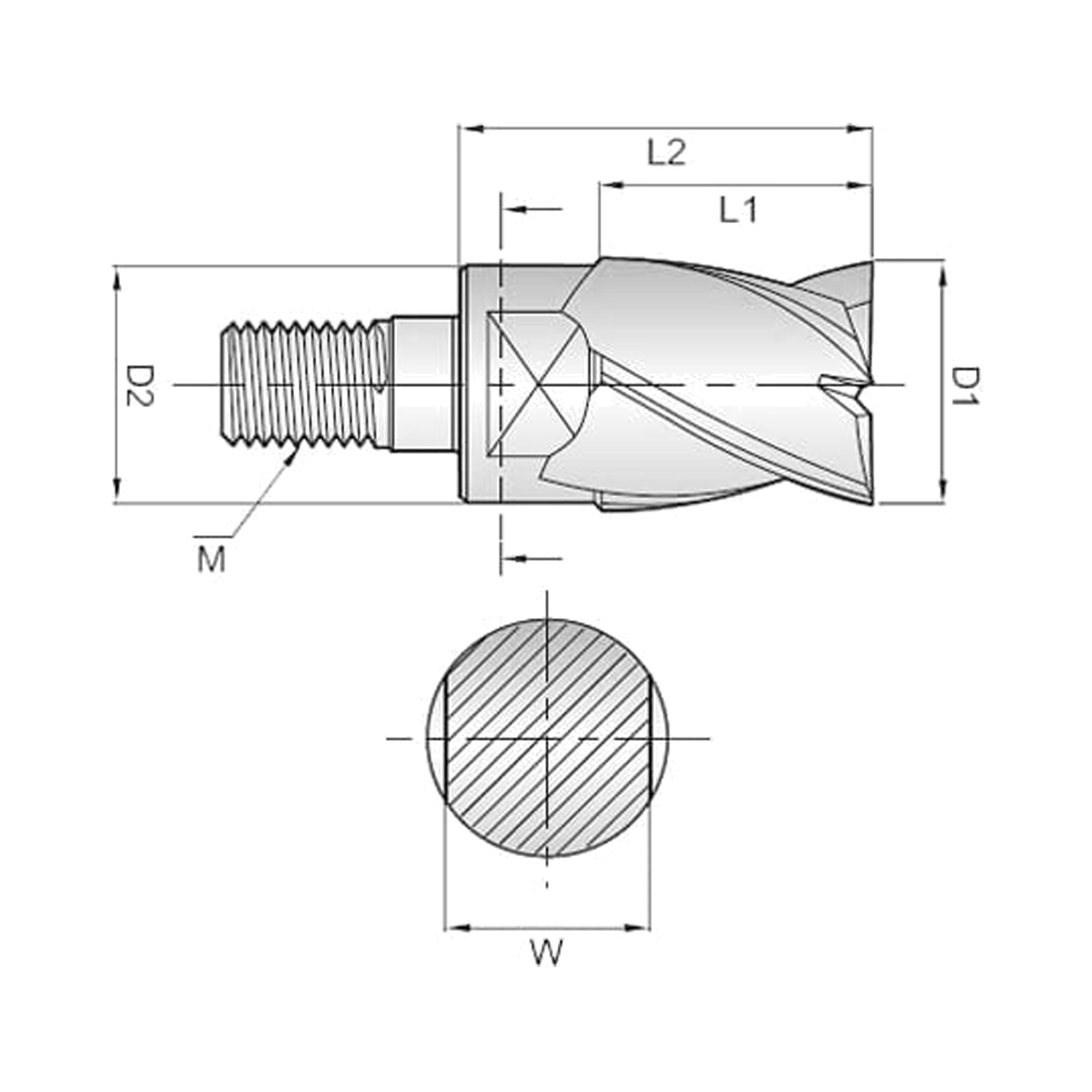

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME36100 10 9 10 17.5 8 M6 4 XSEME36120 12 11 12 20.5 10 M6 4 XSEME36160 16 15 16 25.5 13 M8 4 XSEME36200 20 19 20 30 17 M10 4 XSEME36250 25 24 25 37 22 M12 4 XSEME36300 30 29 30 43 27 M16 4 XSEME36320 32 31 32 45 27 M16 4
EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME36100 10 9 10 17.5 8 M6 4 XSEME36120 12 11 12 20.5 10 M6 4 XSEME36160 16 15 16 25.5 13 M8 4 XSEME36200 20 19 20 30 17 M10 4 XSEME36250 25 24 25 37 22 M12 4 XSEME36300 30 29 30 43 27 M16 4 XSEME36320 32 31 32 45 27 M16 4
