(XSEME68) i-Smart 4G Mill, Modular Head, 4Flute Corner Radius End Mill

(XSEME68) i-Smart 4G Mill, Modular Head, 4Flute Corner Radius End Mill
$0.00 INC GST $0.00 EX GST Price available on request
SKU
XSEME68100030
Work materials
PKH
Tool material Carbide
Surface treatment YG-1 Y Coating
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Corner Radius (mm)Length of cut (mm)Length below shank (mm)Neck dia. (mm)Stock Price Qty Add
XSEME6810003010.0R0.310.017.59.2 1-2 Weeks -
XSEME6810005010.0R0.510.017.59.2 1-2 Weeks -
XSEME6810010010.0R1.010.017.59.2 1-2 Weeks -
XSEME6812003012.0R0.312.020.511.2 1-2 Weeks -
XSEME6812010012.0R1.012.020.511.2 1-2 Weeks -
XSEME6816010016.0R1.016.025.515.0 1-2 Weeks -
XSEME6816015016.0R1.516.025.515.0 1-2 Weeks -
XSEME6816020016.0R2.016.025.515.0 1-2 Weeks -
XSEME6820005020.0R0.520.030.019.0 1-2 Weeks -
XSEME6820010020.0R1.020.030.019.0 1-2 Weeks -
XSEME6820015020.0R1.520.030.019.0 1-2 Weeks -
XSEME6825015025.0R1.525.037.024.0 1-2 Weeks -
XSEME6830005030.0R0.530.043.029.0 1-2 Weeks -
XSEME6830015030.0R1.530.043.029.0 1-2 Weeks -
XSEME6830020030.0R2.030.043.029.0 1-2 Weeks -
XSEME6832005032.0R0.532.045.031.0 1-2 Weeks -
XSEME6832010032.0R1.032.045.031.0 1-2 Weeks -
XSEME6832015032.0R1.532.045.031.0 1-2 Weeks -
XSEME6832020032.0R2.032.045.031.0 1-2 Weeks -

Add (XSEME68) i-Smart 4G Mill, Modular Head, 4Flute Corner Radius End Mill to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

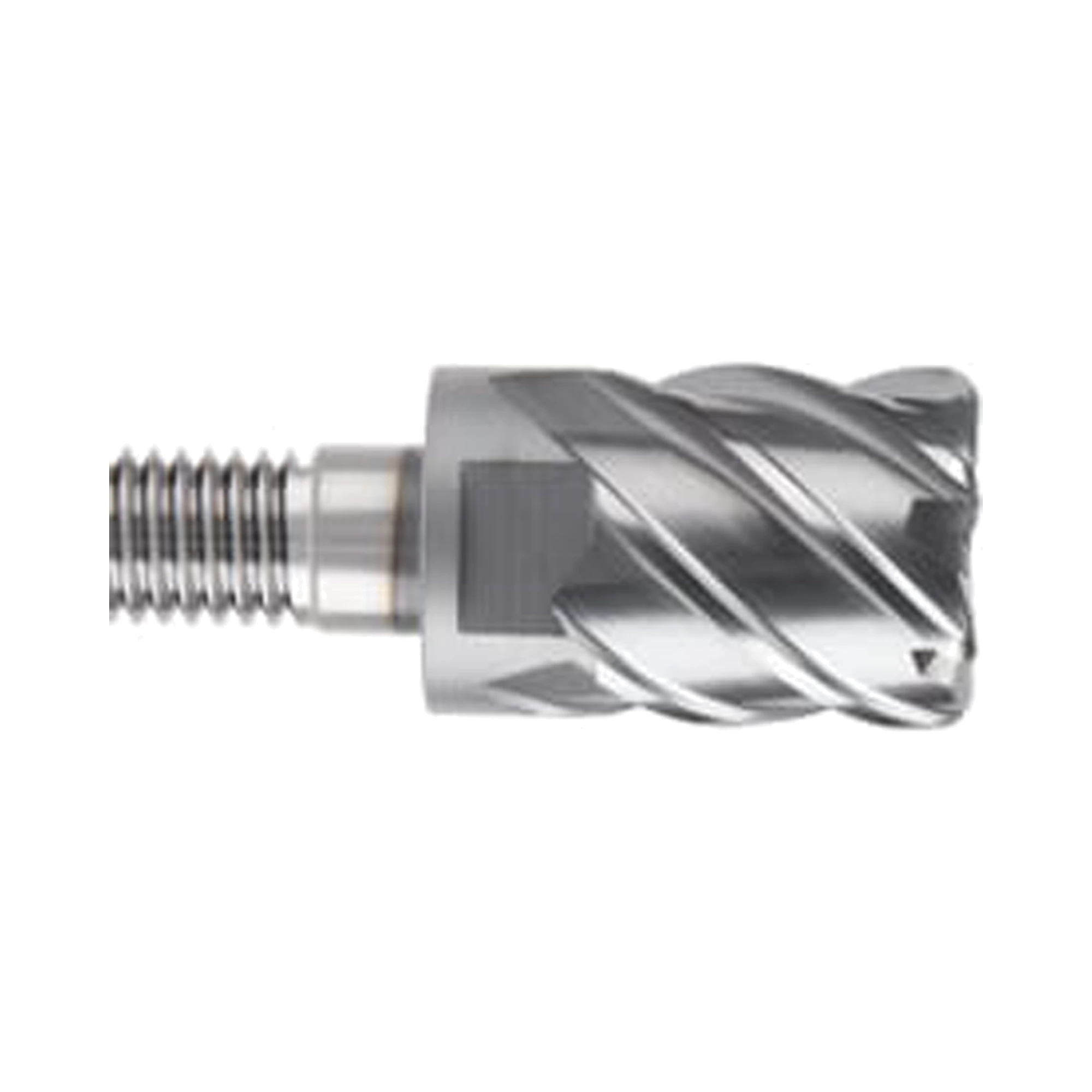

The XSEME68 series modular head is designed for ranges in diameter from 10-32mm, has a corner radius from R0.3mm to R2mm and a 45° helix. The 6 flute design allows for a high quality surface finish. These heads are suitable for use with i-Smart modular holders and high speed machining of steel

  • 45° Helix.
  • 6 flute design ensures a high quality surface finish.
  • Corner radius strengthens cutting edge and prevents chipping of the tool.
  • Change the carbide head on the machine, no need to reset tool length.
  • Y1200 coated ultrafine micrograin carbide for machining up to 1200°C.
  • Quick change replaceable heads - multiple head size and styles with just 1 holder.
  • High Speed Machining (HSC).
  • High precision.
  • Large cost savings compared to solid carbide tools.
  • High precision head location.
  • Reduced machine downtime.
  • YG-1 provides high accuracy and performance at an economical price.

Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.015
Hardened Steels(HRc40~45) Great
Helix Angle Square 45
No. Flutes 6
Operation Facing, Side Milling
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 6
Helix Angle 45°
Cutting Edge Shape CORNER RADIUS
Size Min D10.0
Size Max D32.0
Length -
Coating Y-Coating

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME68100030 10 9 10 17.5 8 M6 6 XSEME68100050 10 9 10 17.5 8 M6 6 XSEME68100100 10 9 10 17.5 8 M6 6 XSEME68120030 12 11 12 20.5 10 M6 6 XSEME68120050 12 11 12 20.5 10 M6 6 XSEME68120100 12 11 12 20.5 10 M6 6 XSEME68160050 16 15 16 25.5 13 M8 6 XSEME68160100 16 15 16 25.5 13 M8 6 XSEME68160150 16 15 16 25.5 13 M8 6 XSEME68160200 16 15 16 25.5 13 M8 6 XSEME68200050 20 19 20 30 17 M10 6 XSEME68200100 20 19 20 30 17 M10 6 XSEME68200150 20 19 20 30 17 M10 6 XSEME68200200 20 19 20 30 17 M10 6 XSEME68250050 25 24 25 37 22 M12 6 XSEME68250100 25 24 25 37 22 M12 6 XSEME68250150 25 24 25 37 22 M12 6 XSEME68250200 25 24 25 37 22 M12 6 XSEME68300050 30 29 30 43 27 M16 6 XSEME68300100 30 29 30 43 27 M16 6 XSEME68300150 30 29 30 43 27 M16 6 XSEME68300200 30 29 30 43 27 M16 6 XSEME68320050 32 31 32 45 27 M16 6 XSEME68320100 32 31 32 45 27 M16 6 XSEME68320150 32 31 32 45 27 M16 6 XSEME68320200 32 31 32 45 27 M16 6
Side Milling
Facing

Work materials

Material recommendations for this tool.

ExcellentGood

Steel

Carbon Steels
Good
Alloy Steels
Excellent
Prehardened Steels
Excellent

Hardened materials

Hardened steel (HRC 40-45)
Good
Hardened steel (HRC 45-55)
Good
High-hardened steel (HRC 55-70)
Good

Cast iron

Cast Iron
Good

These are broad material recommendations; specific VDI grades are not stated.
