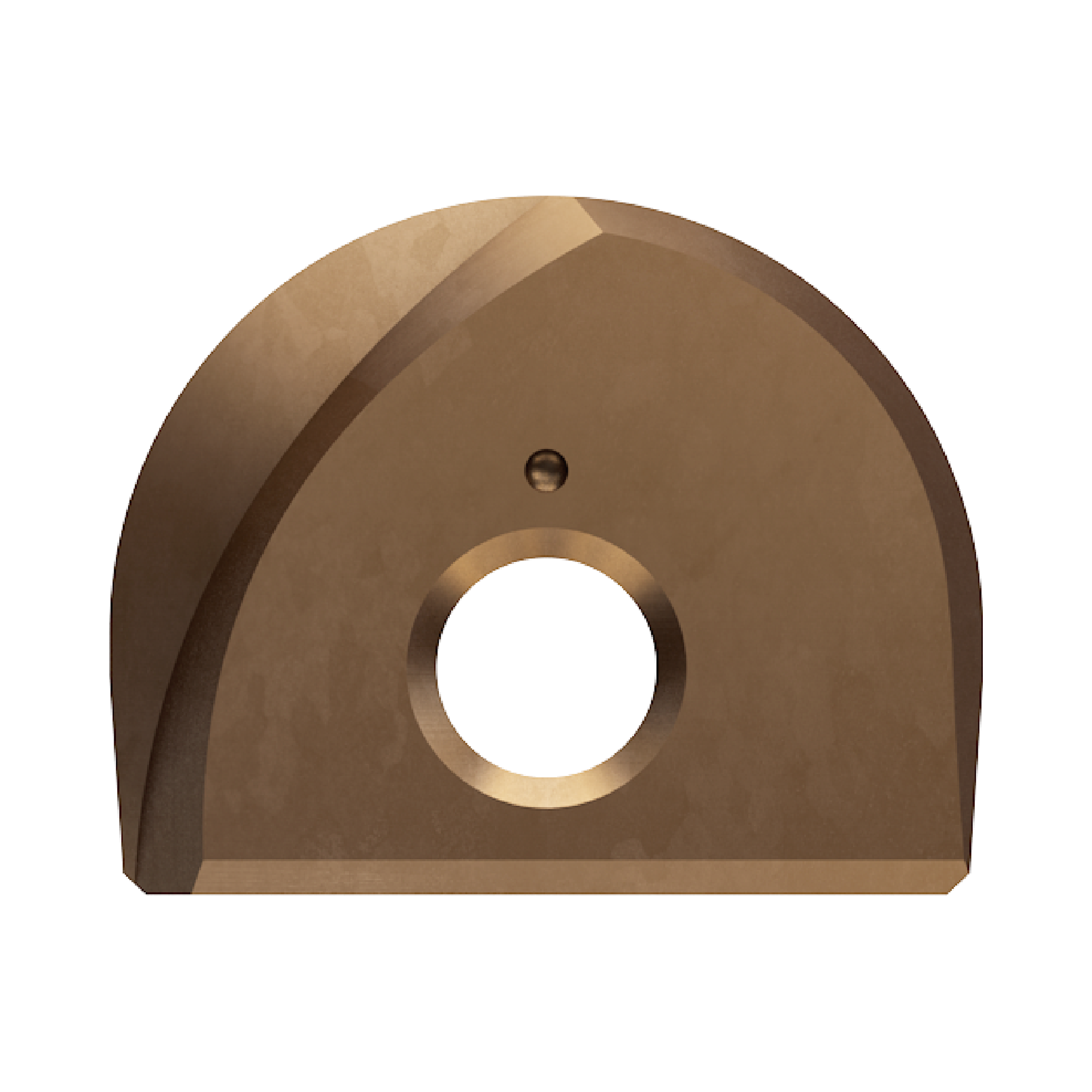

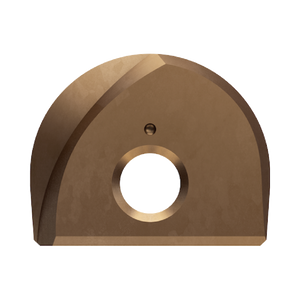

i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T)

i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T)
$43.89 INC GST $39.90 EX GST
SKU
XMB260T080
Work materials
H
Tool material NG HM
Surface treatment YG-1 Z Coating
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Indexable Ball End Mill for economic use
  • Three Types of Inserts are available
    1. For General Purpose (~HRc50)
    2. For Hardened Material (HRc40~HRc65)
    3. For Graphite
  • Special Geometry and Coating for Excellent Performance

Product Data
Workpiece Material H
Ball Radius Tolerance 0.01
Cutting Shape Ball Nose
Hardened Steels(HRc40~45) Great
No. Flutes 2
Operation Facing, Profiling, Small Part
Surface Treatment YG-1 Z Coating
Tool Material NG HM
Flutes 2
Helix Angle -
Cutting Edge Shape BALL NOSE
Size Min R4.0
Size Max R16.5
Length -
Coating Z-Coating

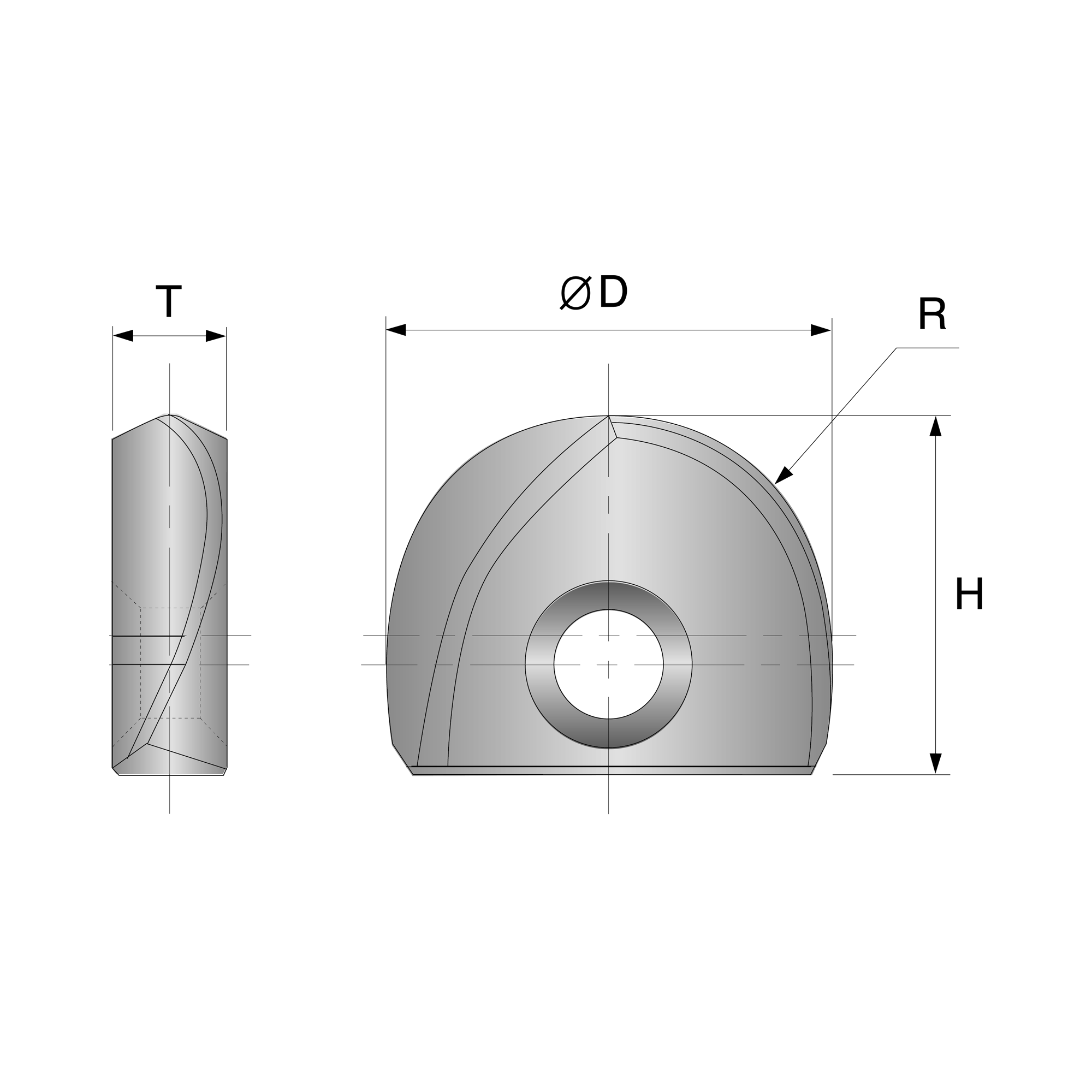

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMB260T080 8 R4.0 8 2.4 2 XMB260T100 10 R5.0 9.5 2.7 2 XMB260T110 11 R5.5 10 2.7 2 XMB260T120 12 R6.0 11 3.2 2 XMB260T130 13 R6.5 11.5 3.2 2 XMB260T160 16 R8.0 13 4.2 2 XMB260T170 17 R8.5 13.5 4.2 2 XMB260T200 20 R10.0 16 5.2 2 XMB260T210 21 R10.5 16.5 5.2 2 XMB260T250 25 R12.5 19.5 6.2 2 XMB260T260 26 R13.0 20 6.2 2 XMB260T300 30 R15.0 23.5 7.2 2 XMB260T320 32 R16.0 24.5 7.2 2 XMB260T330 33 R16.5 25 7.2 2
Profiling
Small Part
Facing

Work materials

Material recommendations for this tool.

ExcellentGood

Hardened materials

Hardened steel (HRC 40-45)
Good
Hardened steel (HRC 45-55)
Excellent
High-hardened steel (HRC 55-70)
Excellent

These are broad material recommendations; specific VDI grades are not stated.

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMB260T080 8 R4.0 8 2.4 2 XMB260T100 10 R5.0 9.5 2.7 2 XMB260T110 11 R5.5 10 2.7 2 XMB260T120 12 R6.0 11 3.2 2 XMB260T130 13 R6.5 11.5 3.2 2 XMB260T160 16 R8.0 13 4.2 2 XMB260T170 17 R8.5 13.5 4.2 2 XMB260T200 20 R10.0 16 5.2 2 XMB260T210 21 R10.5 16.5 5.2 2 XMB260T250 25 R12.5 19.5 6.2 2 XMB260T260 26 R13.0 20 6.2 2 XMB260T300 30 R15.0 23.5 7.2 2 XMB260T320 32 R16.0 24.5 7.2 2 XMB260T330 33 R16.5 25 7.2 2
