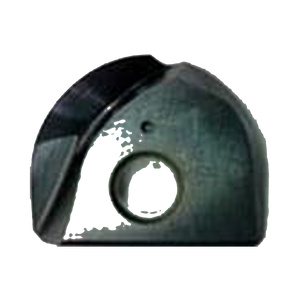

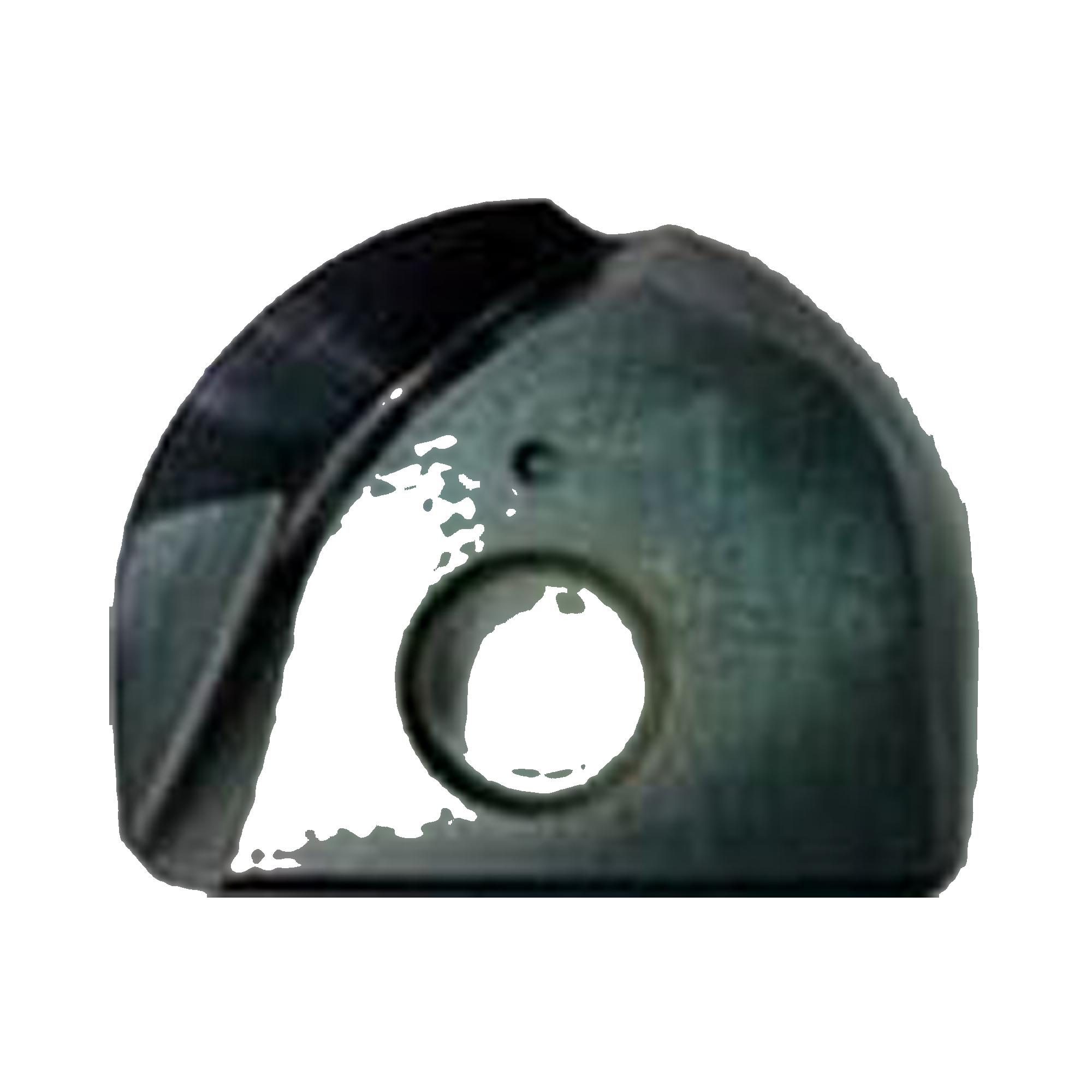

i-Xmill Ball Insert for Stainless Steel End Mill (XMB130A)

i-Xmill Ball Insert for Stainless Steel End Mill (XMB130A)
i-Xmill Ball Insert for Stainless Steel End Mill (XMB130A)
New

i-Xmill Ball Insert for Stainless Steel End Mill (XMB130A)

Product Code: XMB130A-1

Ball Radius Tolerance: 0.01 No. Flutes: 2 YG-1 LEGEND AlTiN Surface Treatment: Aluminium Titanium Nitride Coating YG-1 LEGEND NG HM Tool Material: NG HM
Buy Local
  • Indexable Ball End Mill for economic use
  • Three Types of Inserts are available
    1. For General Purpose (~HRc50)
    2. For Hardened Material (HRc40~HRc65)
    3. For Graphite
  • Special Geometry and Coating for Excellent Performance



Specifications

Flutes 2
Helix Angle -
Cutting Edge Shape BALL NOSE
Size Min R4.0
Size Max R16.5
Length -
Coating AlTiN



Product Data
Workpiece Material M
Ball Radius Tolerance 0.01
No. Flutes 2
Operation Facing, Profiling, Small Part
Surface Treatment Aluminium Titanium Nitride Coating
Tool Material NG HM
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Ball Insert for Stainless Steel End Mill (XMB130A) to comparison

View Comparison

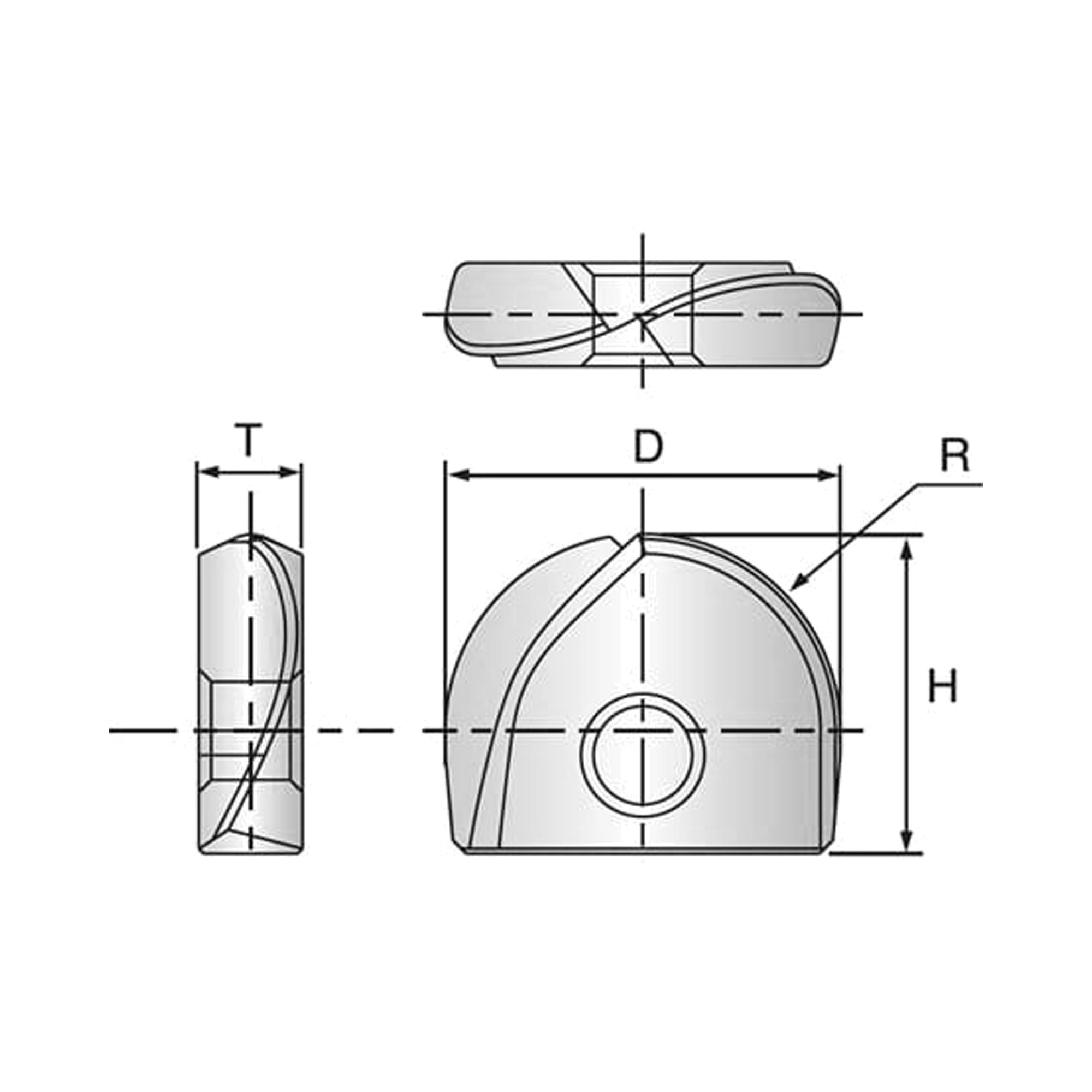

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMB130A080 8 R4.0 8 2.4 2 XMB130A100 10 R5.0 9.5 2.7 2 XMB130A110 11 R5.5 10 2.7 2 XMB130A120 12 R6.0 11 3.2 2 XMB130A130 13 R6.5 11.5 3.2 2 XMB130A160 16 R8.0 13 4.2 2 XMB130A170 17 R8.5 13.5 4.2 2 XMB130A200 20 R10.0 16 5.2 2 XMB130A210 21 R10.5 16.5 5.2 2 XMB130A250 25 R12.5 19.5 6.2 2 XMB130A260 26 R13.0 20 6.2 2 XMB130A300 30 R15.0 23.5 7.2 2 XMB130A320 32 R16.0 24.5 7.2 2 XMB130A330 33 R16.5 25 7.2 2

Video

Operation

Profiling
Small Part
Facing

Work Material

M Stainless Steels

Excellent

Good Great Excellent
