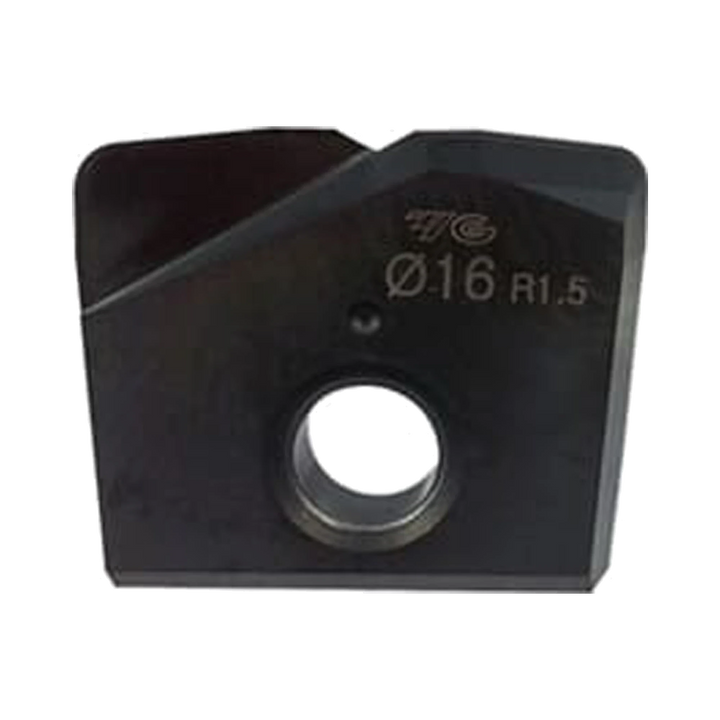

i-Xmill High Feed Insert for General Purpose End Mill (XMF110V)
Code: XMF110V08008
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
Add i-Xmill High Feed Insert for General Purpose End Mill (XMF110V) to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
Product Description

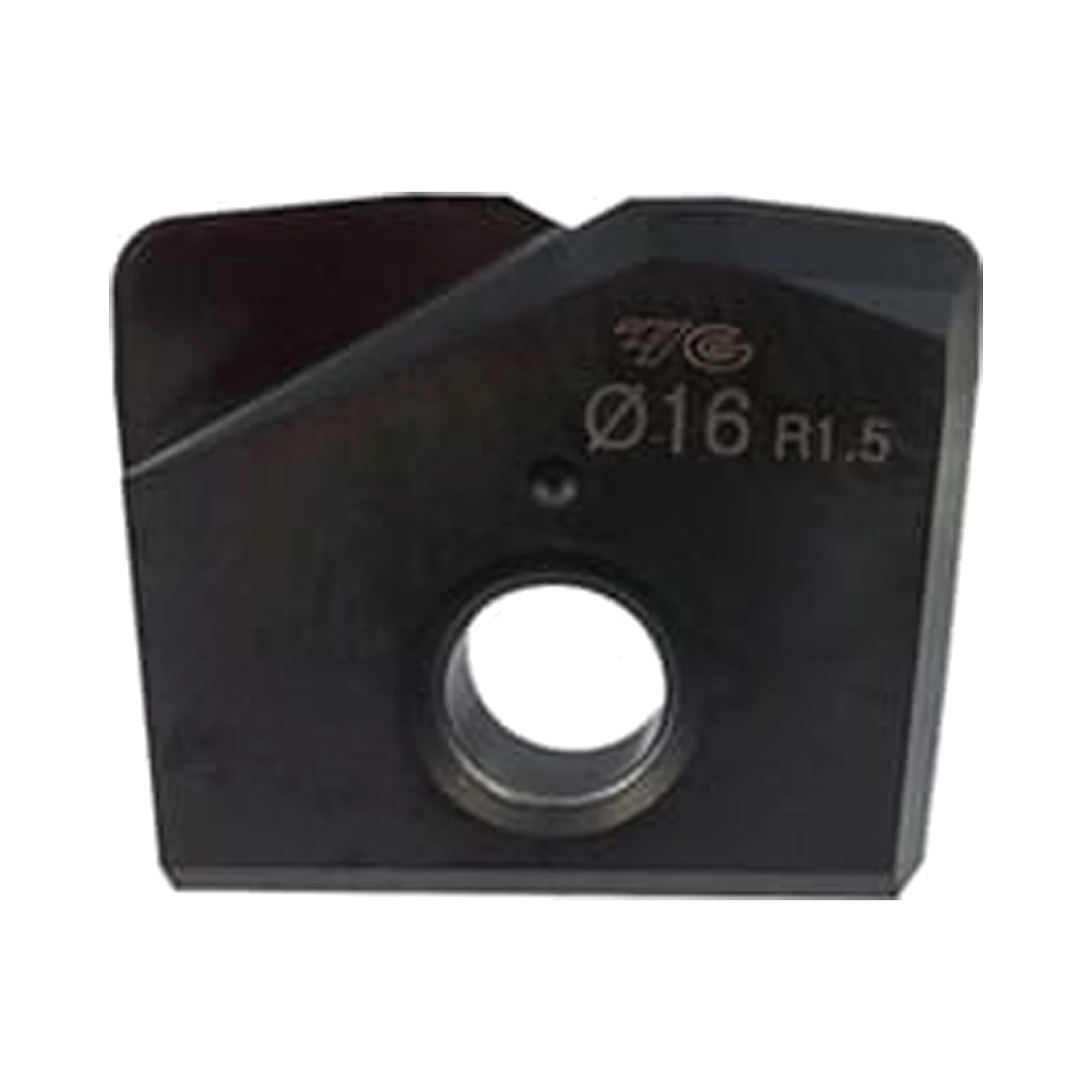

The YG-1 XMF11 series i-X Mill corner radius copy milling insert has a high feed geometry that can achieve up to feed rates of 7 meters/minutes on carbon steels, alloy steels and tool steels. The i-Xmill Indexable Milling system is a high precision system for finishing applications. It provides an economical solution due to its indexable replaceable inserts and these inserts are available in 5 different types for various materials.
- Corner radius geometry.
- General purpose grade for use on carbon steels, alloy steels, tool steels, high hardened steels
- Insert diameters available from 8mm to 32mm.
- Feed rates over 7 metres/minute can be achieved.
- When combined with dedicated high feed holders, better results are possible.
- Ideal for high performance roughing and finishing.
- Optimum geometry for better reliability with less vibration and cutting load.
- Inserts for roughing and finishing a wide range of materials.
- Can be used with the ball holder, but for higher precision machining use the corner radius holder.
- Solid carbide substrate for great wear resistance.
- Each insert geometry is specially designed for machining different materials.

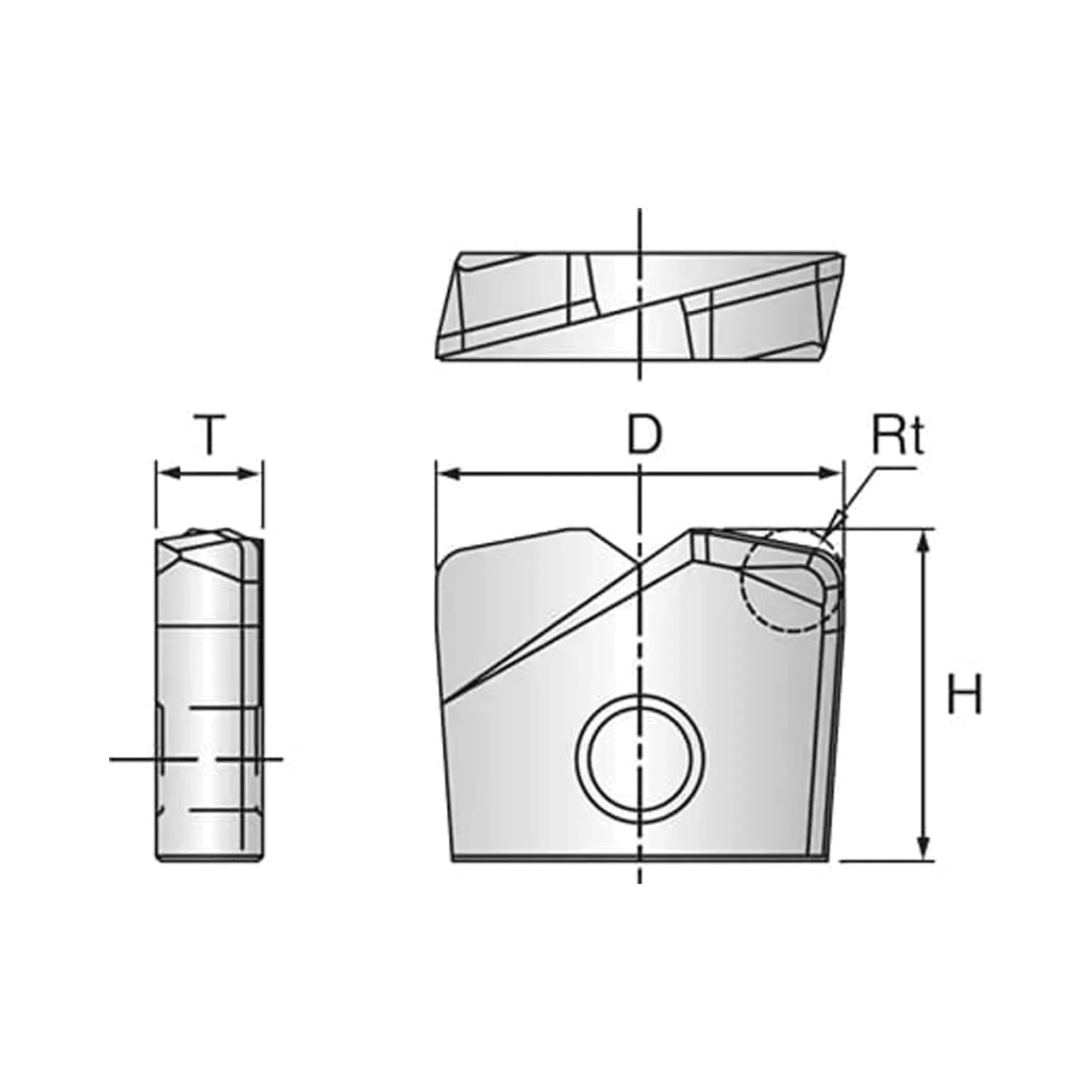

Specifications
| Flutes | 2 |
| Helix Angle | - |
| Cutting Edge Shape | CORNER RADIUS |
| Size Min | D8.0 |
| Size Max | D33.0 |
| Length | - |
| Coating | Y-Coating |
Product Data
| Workpiece Material | P |
| Corner Radius Tolerance | 0.015 |
| No. Flutes | 2 |
| Operation | Facing, Side Milling, Small Part |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | NG HM |
Side Milling
Small Part
Facing
Carbon Steels
Excellent
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Prehardened Steels
Excellent
Good
Great
Excellent
